POWER WINDOW SYSTEM s POWER WINDOW SYSTEM STRUCTURAL VIEW 1. Rear console 3. Power window regulator Removal 1 Installation ....... page S-56 Removal / Installation ........ page S- 9 ................. 2. Power window switch Inspection page S-22 Removal / Installation ....... page S-56 Inspection ................. page S-22 S-I 9 Gartner Banana
Page 778 of 1708
POWER WINDOW SYSTEM TROUBLESHOOTING Circuit Diagram MAIN FUSE BLOCK e (EI /I \ IX-021 OFF SWITCH FUSE BLOCK K POWER WINDOW SWITCH CLOSE OPEN POWER WINDOWS POWER WINOOW REGULATORS l., -03 POWER WINDOW REGULATOR RH(OR2) -01 POWER WINDOW SWITCH(1) K-02 POWER WiNCOW REGULATO2 LH (ORI) Gartner Banana
Page 779 of 1708
POWER WINDOW SYSTEM Power windows do not operate w Turn ignition switch ON B+: Battery positive voltage Check P.WINDOW (30A) fuse W Shon circuit Disconnect power window main switch connector, check Repair harness (Main switch--Ground) continuity of terminal-wire (B) to ground Check for B+ at terminal-wire (BNV) of power window main switch connector 1 Check power window switch (Refer to page S-22) 1 45UOSX-016 One power window does not operate w --c NG' I Turn ignition switch ON I Repair harness (Fuse box-Main switch) Check for B+ at terminal-wires of power window main Check power window switch (Refer to page S-22) switch connector Up : (GIR), ((RIB)) wire Down: (G), ((RIG)) wire I Repair harness (Main switch-Motor) connector Up : G/R) wire Down: [G) wire Check power window regulator (Refer to page S-22) (( )): Passenger side Gartner Banana
Page 780 of 1708
s POWER WINDOW SYSTEM FDB POWER WINDOW SWITCH Inspection 1. Check for continuity between terminals of the switch with an ohmmeter. O--O: Indicates continuity 2. If not as specified, replace the switch. POWER WINDOW REGULATOR lnspection 1. Connect battery positive voltage to terminal A and L' ground terminal B of the motor connector. Verify that the motor operates. 2. Reverse the above connections and check for reverse operation of the motor. 3. If not as specified, replace the motor. Gartner Banana
Page 781 of 1708
FUEL-FILLER LID OPENER s FUEL-FILLER LID OPENER COMPONENTS Removal l Installation 1. Remove in the order shown in the figure. To remove the opener cable, remove the rear package trim (page S-59) and rear end mat (page S-62). 2. Install in the reverse order of removal. 1. Rear console Removal 1 Installation . . . . . . . page S-56 2. Opener lever 3. Opener cable 4. Fuel-filler lid opener 5. Fuel-filler lid Gartner Banana
Page 782 of 1708
s FRONT BUMPER FRONT BUMPER COMPONENTS Removal 1 Installation 1. Raise the headlights. 2. Disconnect the negative battery cable. 3. Remove in the order shown in the figure. 4. Install in the reverse order of removal. Front combination light 6. Set plate Removal .................... Section T 7. Front fascia Front side marker light 8. Retainer Removal .................... Section T 9. Bumper reinforcement 3. Fender bracket 10. Spacer 4. Mud guard 11. Front bumper retainer 5. Grille cover 12. Front bumper bracket Gartner Banana
Page 783 of 1708

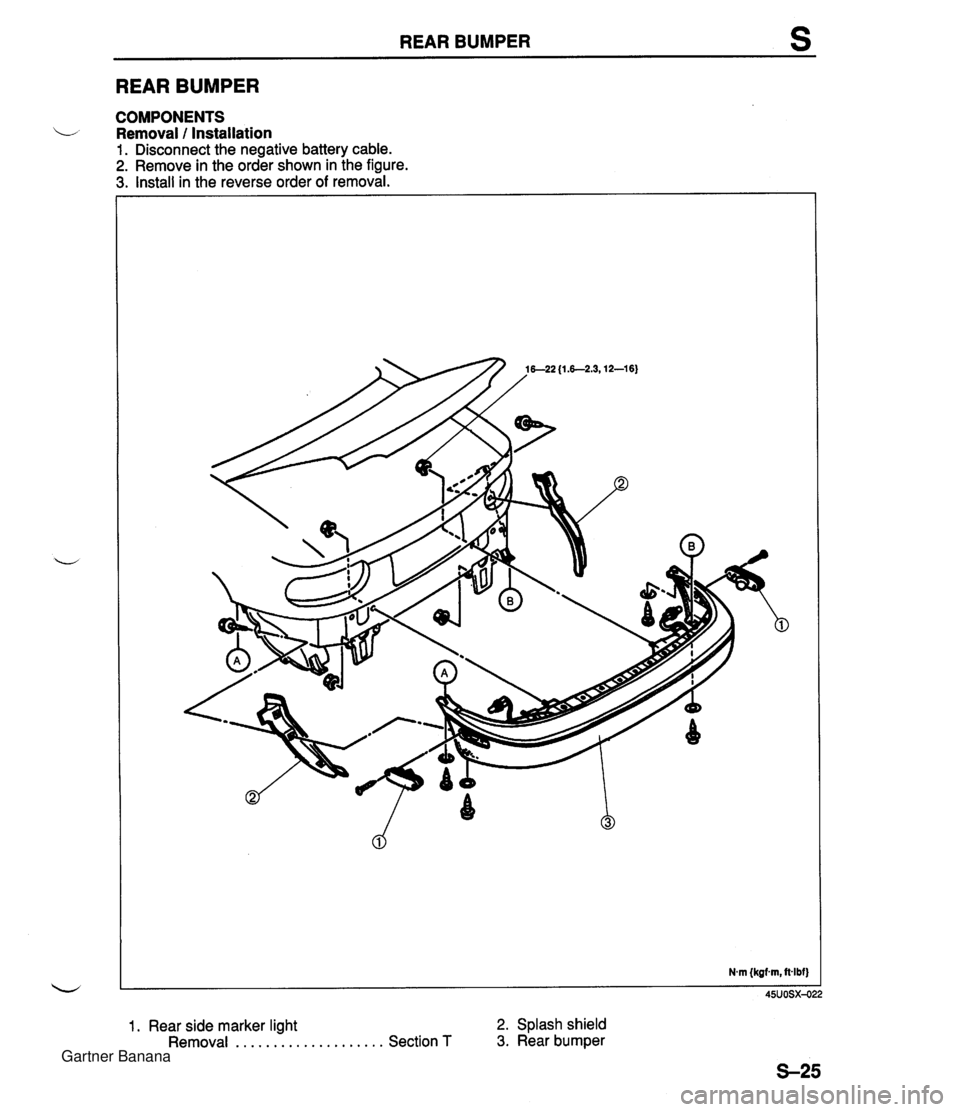

REAR BUMPER s REAR BUMPER COMPONENTS L Removal 1 Installation 1. Disconnect the negative battery cable. 2. Remove in the order shown in the figure. 3. Install in the reverse order of removal. 1. Rear side marker light 2. Splash shield Removal . . . . . . . . . . . . . . . . . . . . Section T 3. Rear bumper Gartner Banana
Page 784 of 1708

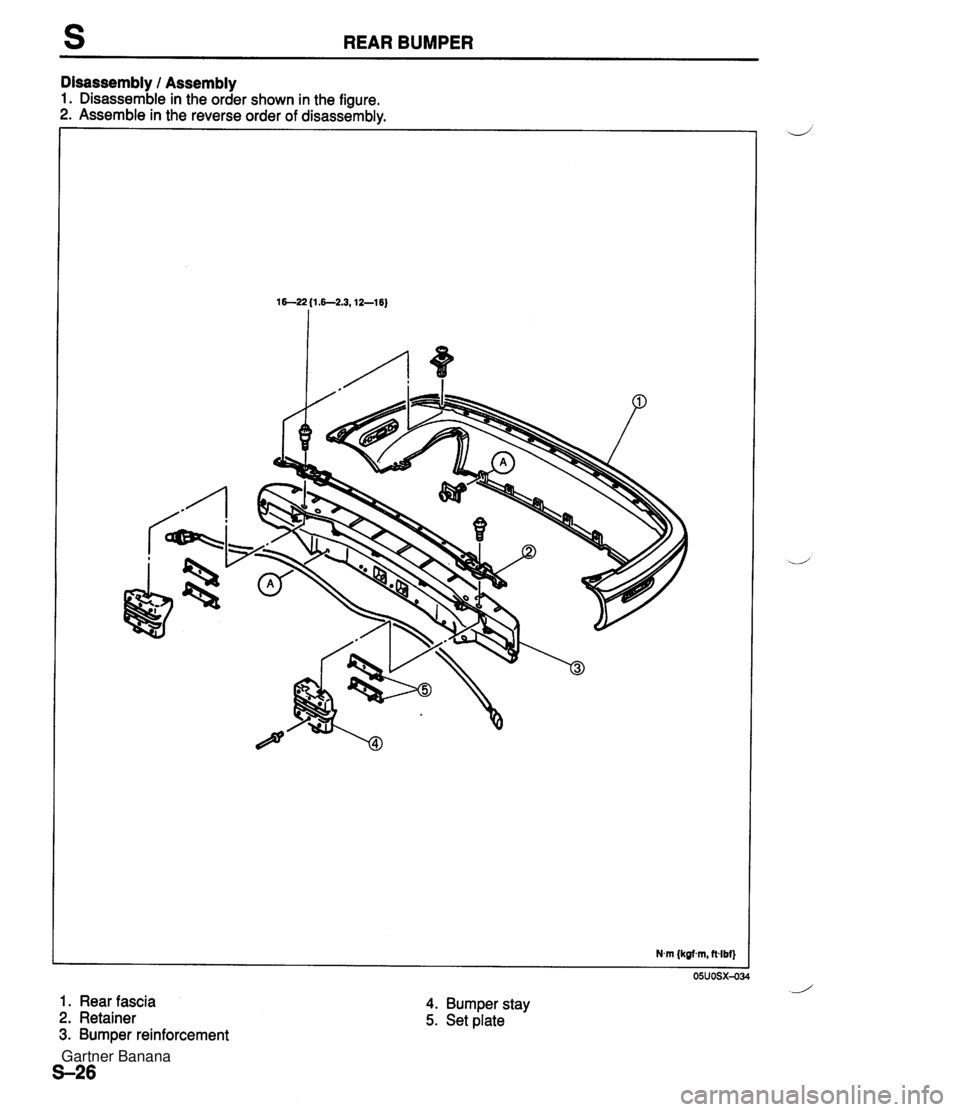

REAR BUMPER Disassembly / Assembly 1. Disassemble in the order shown in the figure. 2. Assemble in the reverse order of disassembly. 1 . Rear fascia 2. Retainer 3. Bumper reinforcement 4. Bumper stay 5. Set plate Gartner Banana
