1994 MAZDA MX-5 Workshop Manual

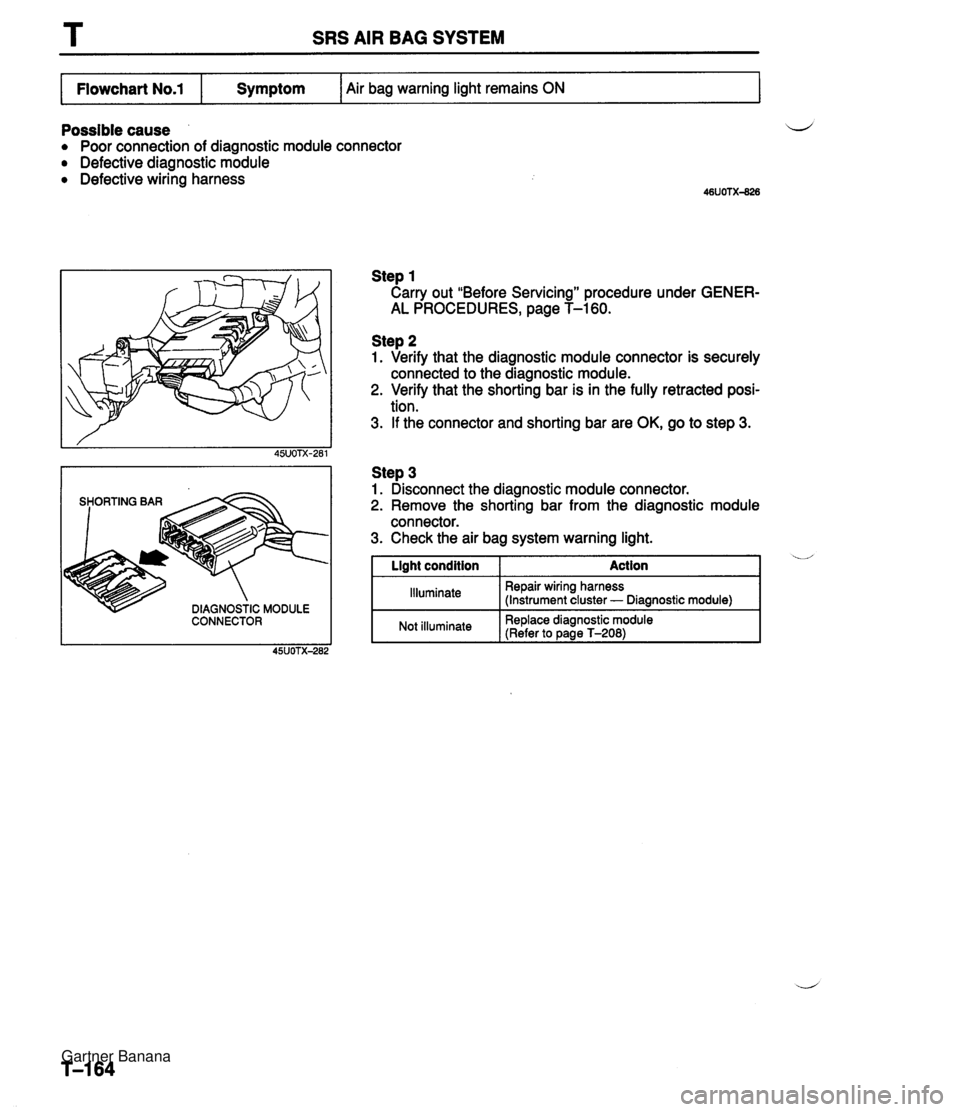

T SRS AIR BAG SYSTEM I Flowchart No1 I Symptom I Air bag warning light remains ON I Possible cause Poor connection of diagnostic module connector Defective diagnostic module 0 Defective wiring harness CONNECTOR Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Verify that the diagnostic module connector is securely connected to the diagnostic module. 2. Verify that the shorting bar is in the fully retracted posi- tion. 3. If the connector and shorting bar are OK, go to step 3. Step 3 1. Disconnect the diagnostic module connector. 2. Remove the shorting bar from the diagnostic module connector. 3. Check the air bag system warning light. I Llght condltlon 1 Action I I I Illuminate I Repair wiring harness (Instrument cluster - Diagnostic module) I Not illuminate Replace diagnostic module (Refer to page T-208) Gartner Banana

SRS AIR BAG SYSTEM T Possible cause Defective diagnostic module Defective S-sensor Defective wiring harness Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Service Code 12 Flowchart No.2 Step 2 Check the EGI IJN fuse. Symptom I Fuse I Action I Step 3 1. Disconnect the diagnostic module connector. 2. Connect the negative battery cable. 3. Measure the voltage at terminal 1 L (WIG) of the diagnos- tic module connector. OK Burnt B+: Battery positive voltage Voltage Action I Go to Step 3 Go to Step 4 Step 4 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 1L (WIG) of the diagnostic module connector and ground. B+ Other Replace diagnostic module Repair wiring harness (EGI INJ fuse - Diagnostic module) I NO I GO to Step 5 I Continuity Yes Step 5 Check for continuity between terminal 1H (GIB) of the diagnostic module connector and ground. Continuity I Action Action Repair wiring harness (EGI INJ fuse - Diag- nostic module) and replace the fuse Yes ( Go to Step 6 No Replace diagnostic module (Refer to page T-208) Gartner Banana

SRS AIR BAG SYSTEM Step 6 1. Disconnect the S-sensor connector. 2. Check for continuity between terminal 1 H (GIB) of the diagnostic module connector and ground. I No I Replace wiring harness I Continuity Yes Action Replace S-sensor (Refer to page T-213) Gartner Banana

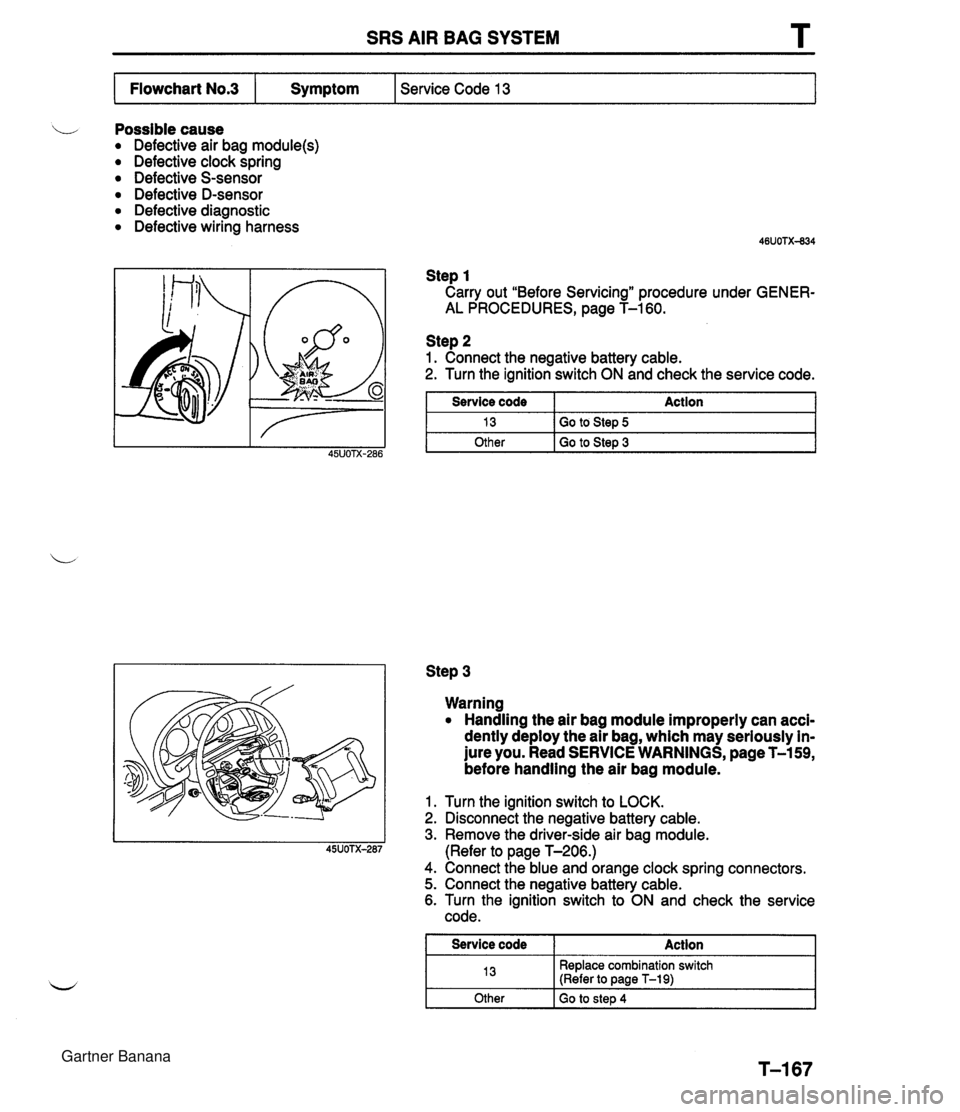

SRS AIR BAG SYSTEM L Possible cause Defective air bag module(s) Defective clock spring Defective S-sensor Defective D-sensor Defective diagnostic Defective wiring harness Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Service Code 13 Flowchart No.3 Step 2 1. Connect the negative battery cable. 2. Turn the ignition switch ON and check the service code. Symptom Step 3 Service code 13 Other Warning Handling the air bag module improperly can acci- dently deploy the air bag, which may seriously in- jure you. Read SERVICE WARNINGS, page T-159, before handling the air bag module. Action Go to Step 5 Go to Step 3 1. Turn the ignition switch to LOCK. 2. Disconnect the negative battery cable. 3. Remove the driver-side air bag module. (Refer to page T-206.) 4. Connect the blue and orange clock spring connectors. 5. Connect the negative battery cable. 6. Turn the ignition switch to ON and check the service code. I Service code I Action 1 13 Other Replace combination switch (Refer to page T-19) Go to step 4 Gartner Banana

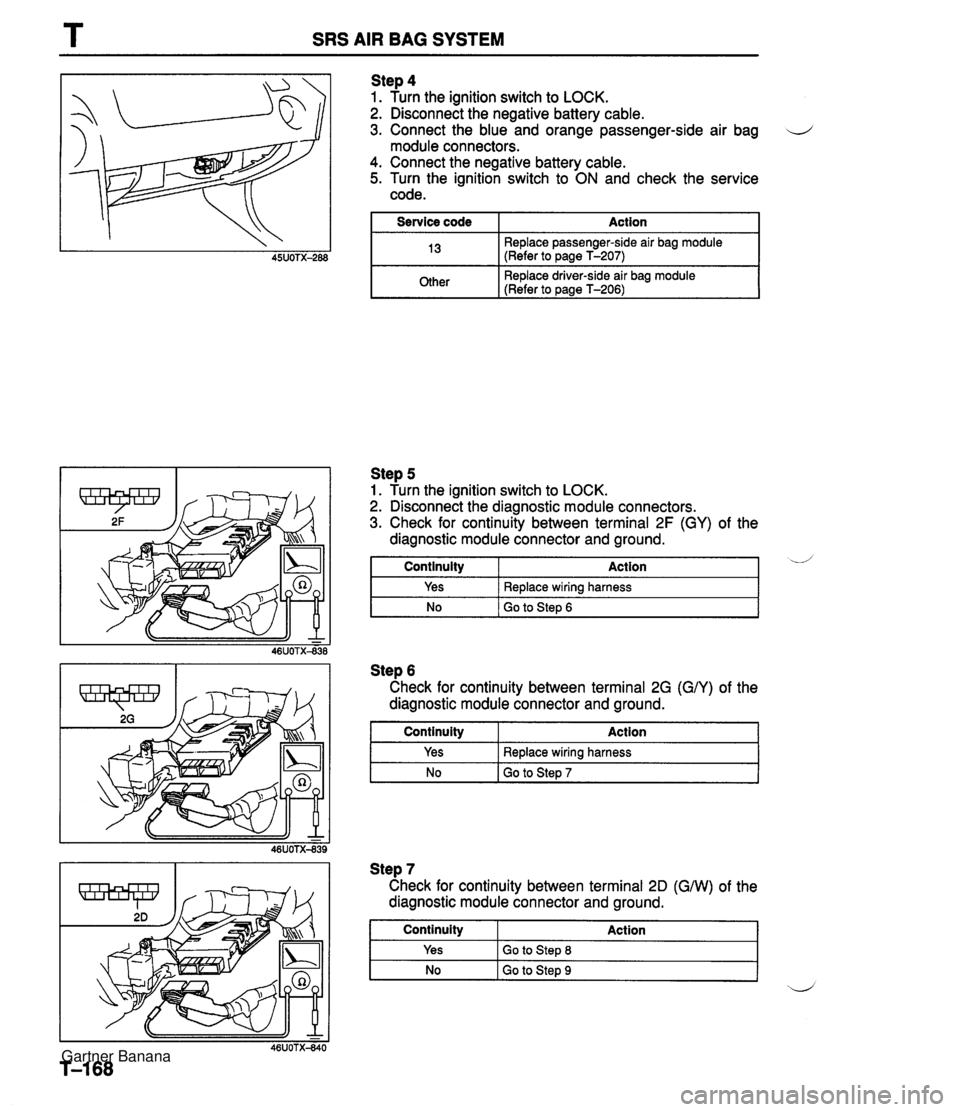

T SRS AIR BAG SYSTEM Step 4 1. Turn the ignition switch to LOCK. 2. Disconnect the negative battery cable. 3. Connect the blue and orange passenger-side air bag d module connectors. 4. Connect the negative battery cable. 5. Turn the ignition switch to ON and check the service code. I Service code I Action I I 13 Replace passenger-side air bag module (Refer to page T-207) I I mer I Replace driver-side air bag module (Refer to ~aae T-2061 I No I Go to Step 6 Step 5 1. Turn the ignition switch to LOCK. 2. Disconnect the diagnostic module connectors. 3. Check for continuity between terminal 2F (GY) of the diagnostic module connector and ground. Step 6 Check for continuity between terminal 2G (GN) of the diagnostic module connector and ground. I Continuity Action d Continuity Yes Step 7 Check for continuity between terminal 20 (GNV) of the diagnostic module connector and ground. Action Replace wiring harness Yes No Replace wiring harness Go to Step 7 I NO I GO to Step 9 ~d Continuity Yes Action Go to Step 8 Gartner Banana

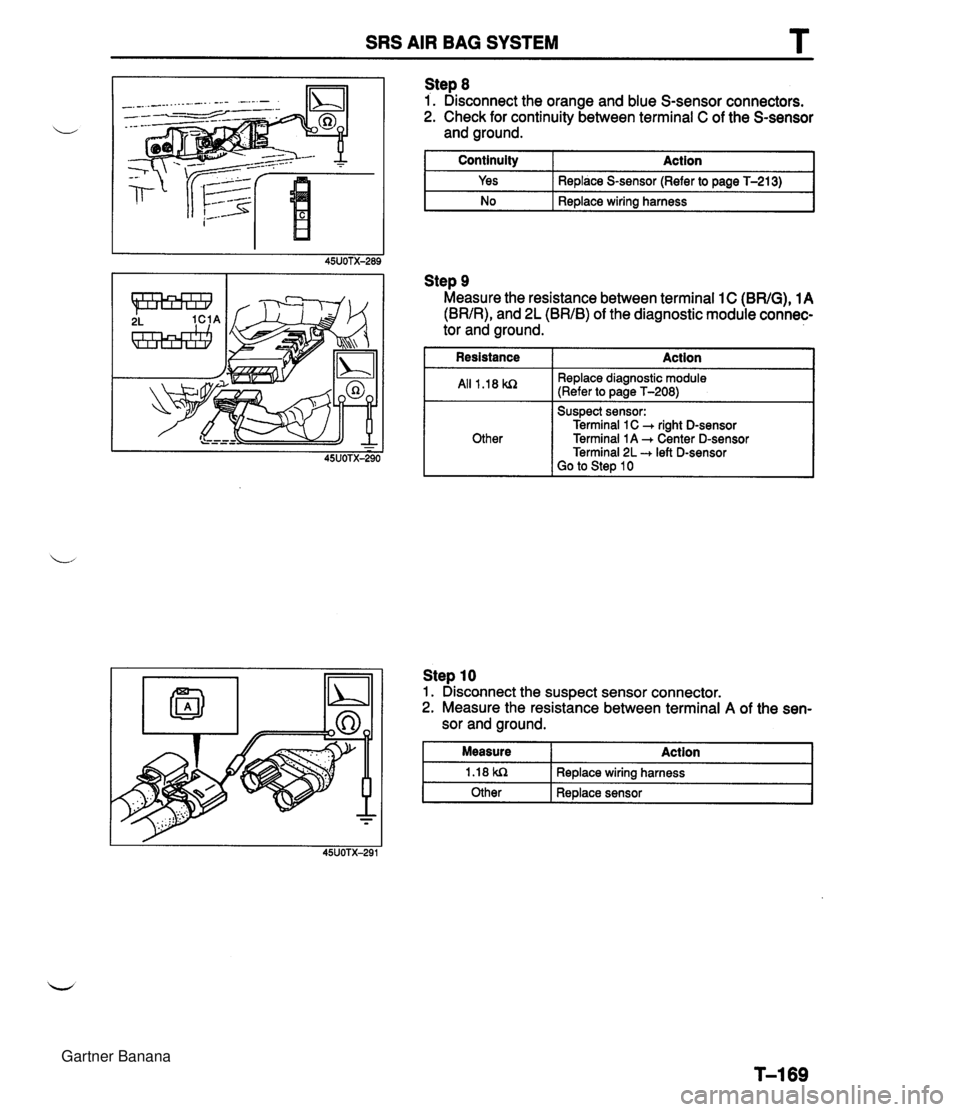

SRS AIR BAG SYSTEM Step 8 1. Disconnect the orange and blue S-sensor connectors. 2. Check for continuity between terminal C of the S-sensor and ground. Continuity Action 1 Yes No Step 10 1. Disconnect the suspect sensor connector. 2. Measure the resistance between terminal A of the sen- sor and ground. Replace S-sensor (Refer to page T-213) Replace wiring harness Step 9 Measure the resistance between terminal 1 C (BRIG), 1 A (BRIR), and 2L (BRIB) of the diagnostic module connec- tor and ground. Resistance k&2 Other Other I Replace sensor I Action Replace diagnostic module (Refer to page T-208) Suspect sensor: Terminal 1 C -+ right D-sensor Terminal 1 A -+ Center D-sensor Terminal 2L -+ left D-sensor Go to Step 10 Measure 1.18 kn Action Replace wiring harness Gartner Banana

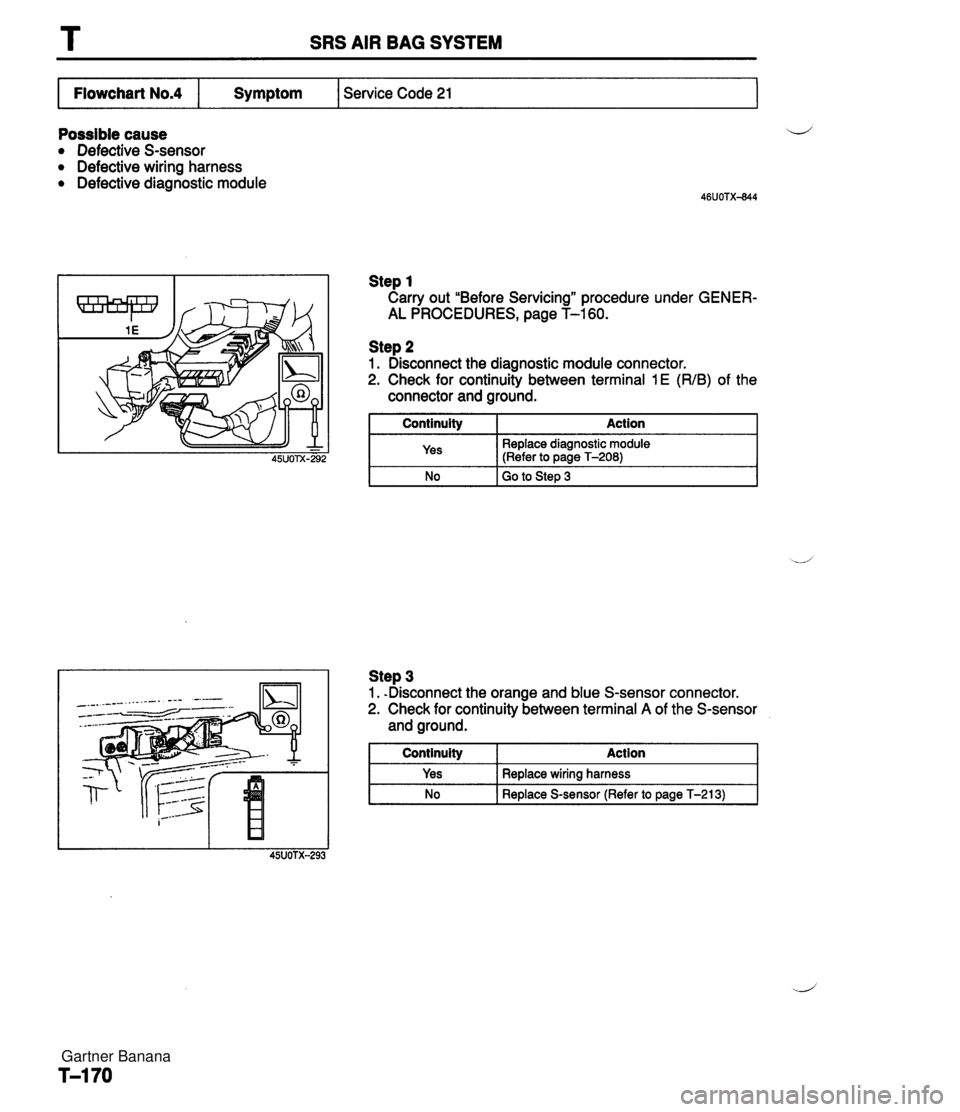

T SRS AIR BAG SYSTEM Possible cause i/ Defective S-sensor Defective wiring harness Defective diagnostic module Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Service Code 21 Flowchart No.4 Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 1 E (RIB) of the Symptom connector and ground. Step 3 1. -Disconnect the orange and blue S-sensor connector. 2. Check for continuity between terminal A of the S-sensor and ground. I Continuity I Action Continuity Yes No Action Replace diagnostic module (Refer to page T-208) Go to Step 3 Yes No Replace wiring harness Replace S-sensor (Refer to page T-213) Gartner Banana

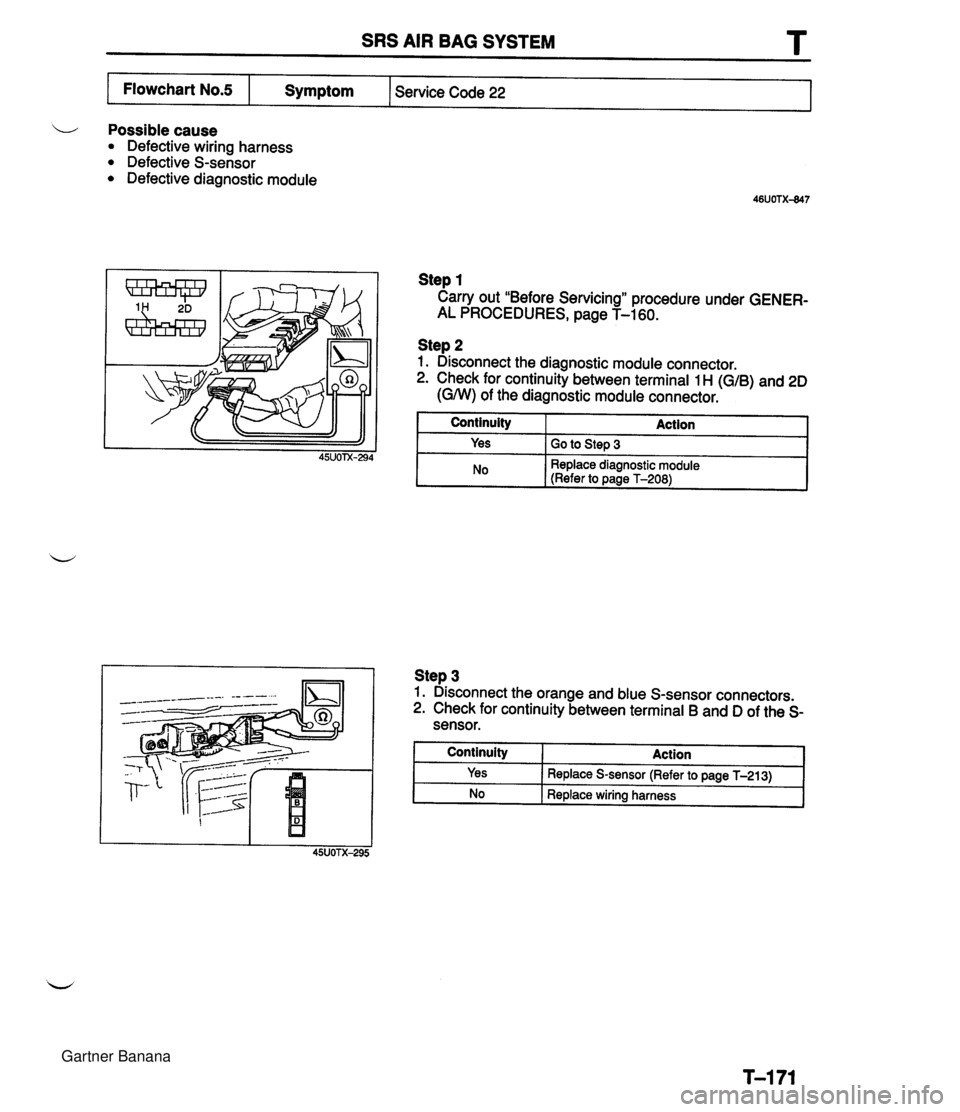

SRS AIR BAG SYSTEM T Flowchart N0.5 I Symptom I Service Code 22 Possible cause Defective wiring harness Defective S-sensor Defective diagnostic module Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 1 H (GIB) and 2D (GMI) of the diagnostic module connector. Continuity Yes Step 3 1. Disconnect the orange and blue S-sensor connectors. 2. Check for continuity between terminal B and D of the S- sensor. Continuity I Action I Action Go to Step 3 I No Replace diagnostic module (Refer to page T-208) Yes No Replace S-sensor (Refer to page T-213) Replace wiring harness Gartner Banana
