Page 1025 of 1708

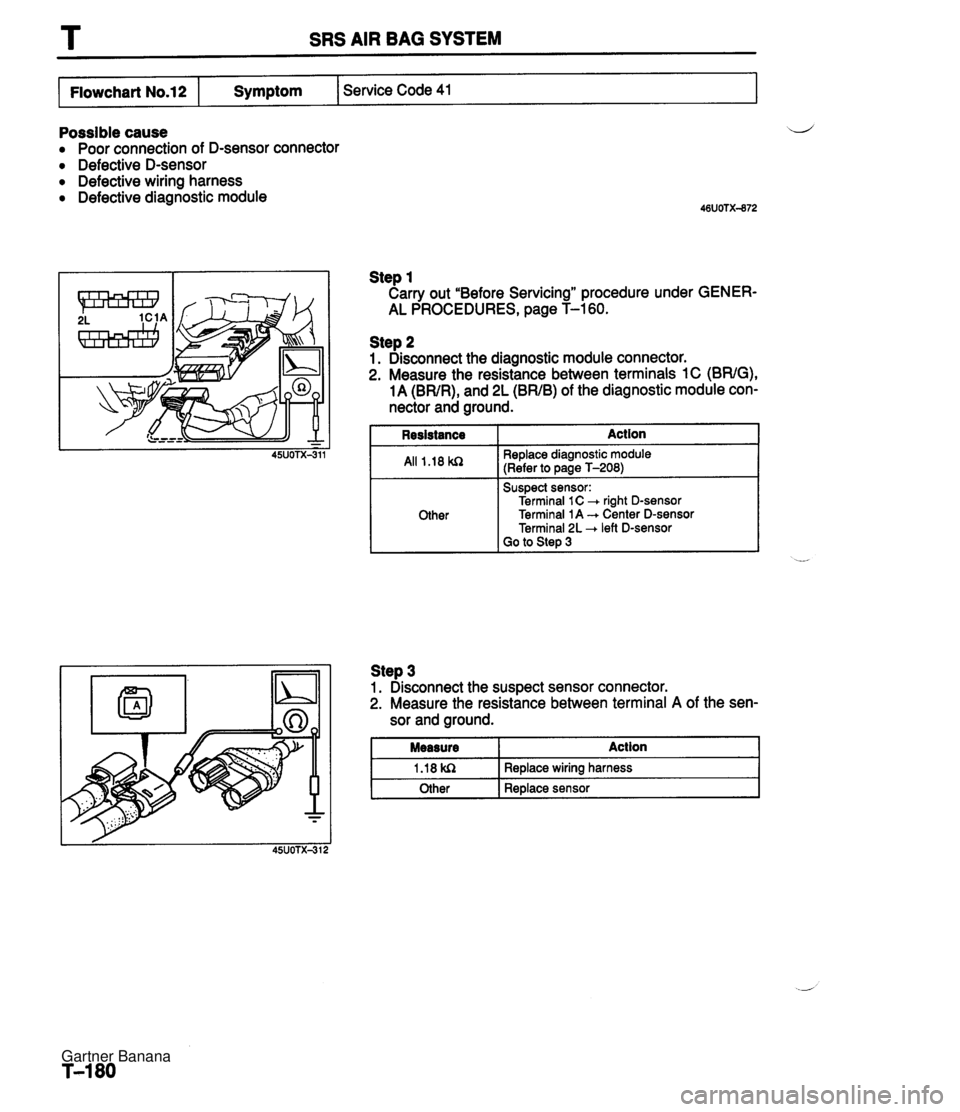

T SRS AIR BAG SYSTEM m~No.12Iy~m~torn I Service Code 41 Possible cause Poor connection of D-sensor connector Defective D-sensor Defective wiring harness Defective diagnostic module Step 3 1. Disconnect the suspect sensor connector. 2. Measure the resistance between terminal A of the sen- sor and ground. Measure I Action I Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Disconnect the diagnostic module connector. 2. Measure the resistance between terminals 1C (BWG), 1 A (BWR), and 2L (BWB) of the diagnostic module con- nector and ground. 45UoTX-311 1.18kn Other - Resistance All , .18 kSL Other Replace wiring harness Replace sensor Action Replace diagnostic module (Refer to page T-208) Suspect sensor: Terminal 1 C -+ right D-sensor Terminal 1 A --+ Center D-sensor Terminal 2L -+ left D-sensor Go to Step 3 Gartner Banana
Page 1026 of 1708

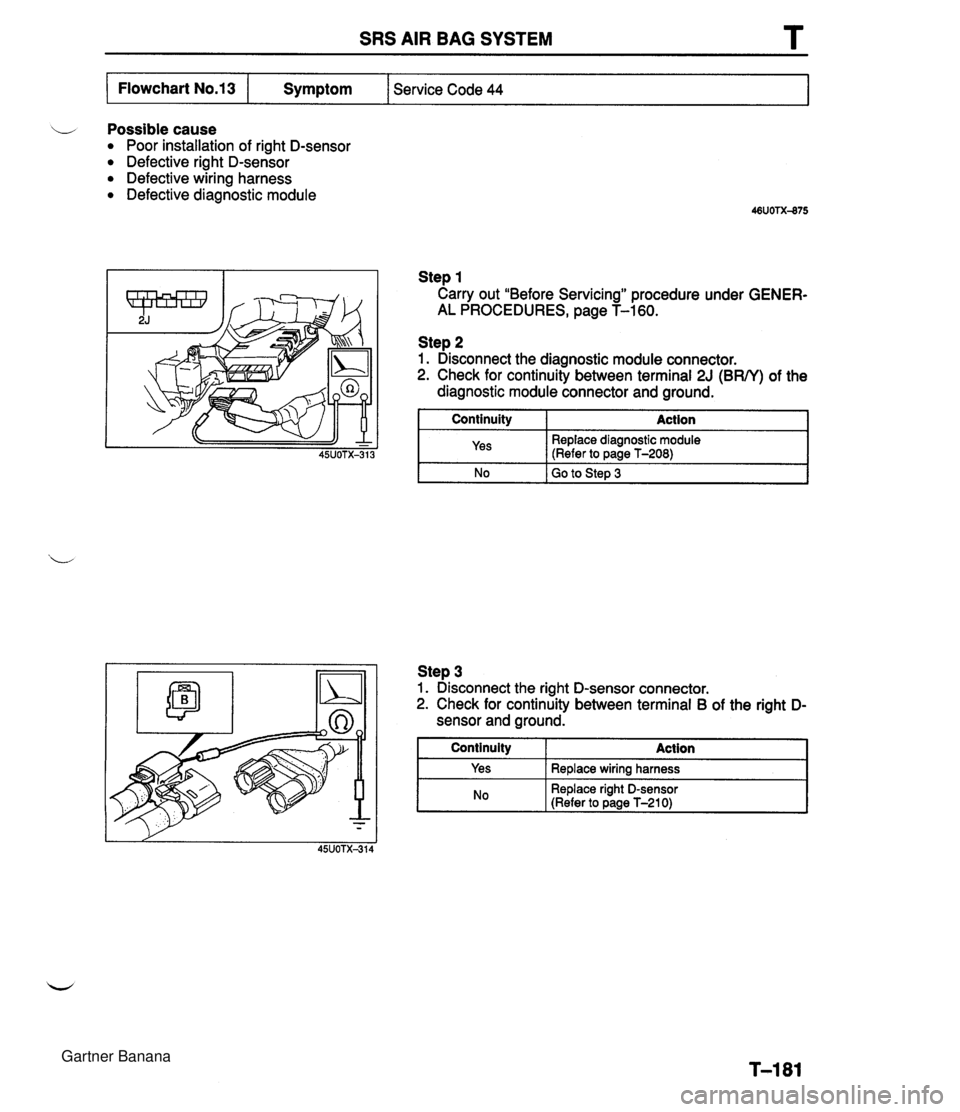

SRS AIR BAG SYSTEM i/ Possible cause Poor installation of right D-sensor Defective right D-sensor Defective wiring harness Defective diagnostic module Flowchart No.13 Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 2J (BRN) of the diagnostic module connector and ground. I Continuity I Action 1 Symptom Service Code 44 Yes No I Yes I Replace wiring harness I Replace diagnostic module (Refer to page T-208) Go to Step 3 .I Step 3 1. Disconnect the right D-sensor connector. 2. Check for continuity between terminal B of the right D- sensor and ground. Continuity Action I No Replace right D-sensor (Refer to page T-210) Gartner Banana
Page 1027 of 1708

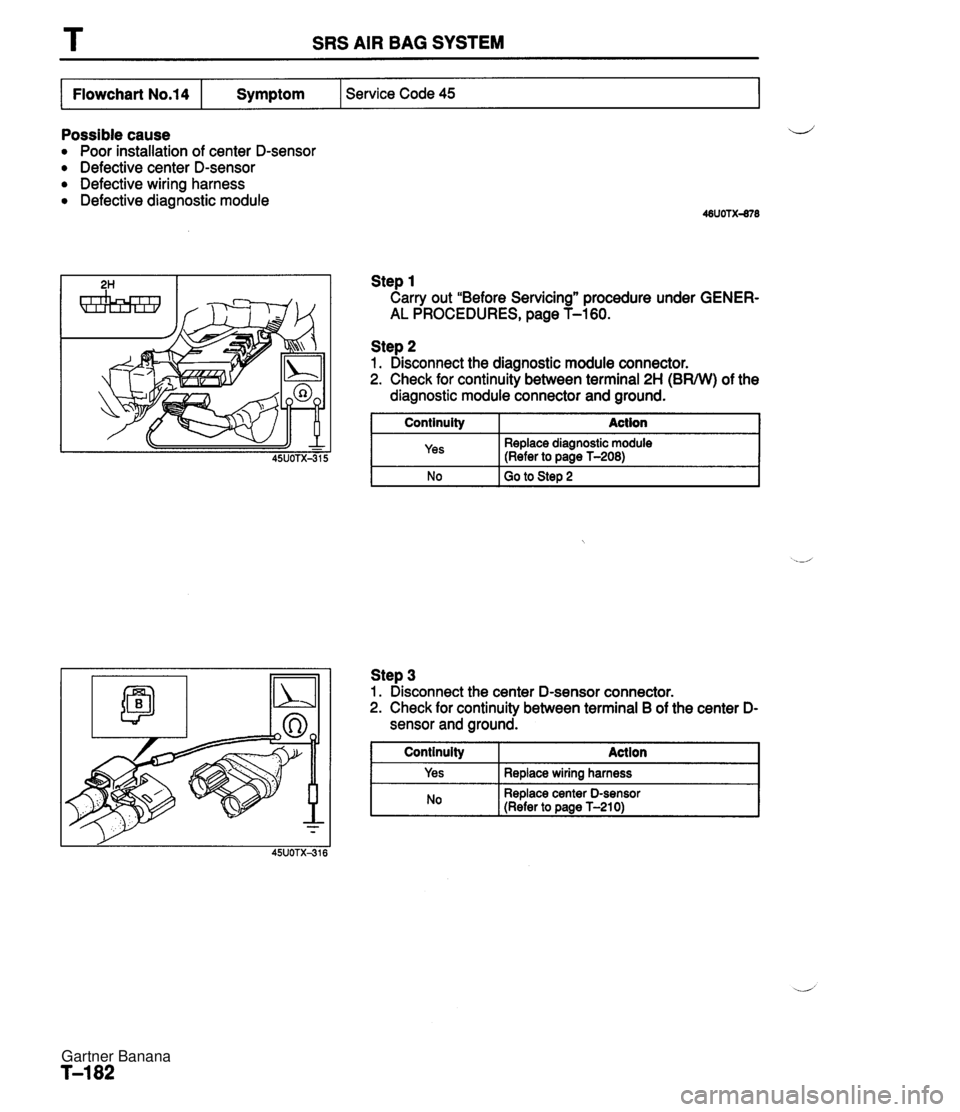

T SRS AIR BAG SYSTEM I Flowchart No.14 1 Symptom I Service Code 45 Possible cause Poor installation of center D-sensor Defective center D-sensor Defective wiring harness Defective diagnostic module Step 1 Carry out "Before Servicingw procedure under GENER- AL PROCEDURES, page T-160. No Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 2H (BWW) of the diagnostic module connector and ground. Continuity Action 1 Replace center D-sensor (Refer to page T-210) I - . - No 1 Go to Step 2 I Yes Step 3 1. Disconnect the center D-sensor connector. 2. Check for continuity between terminal B of the center D- sensor and ground. I Continulty Action I Replace diagnostic module (Refer to Dane T-2081 I I Yes I Replace wiring harness I Gartner Banana
Page 1028 of 1708

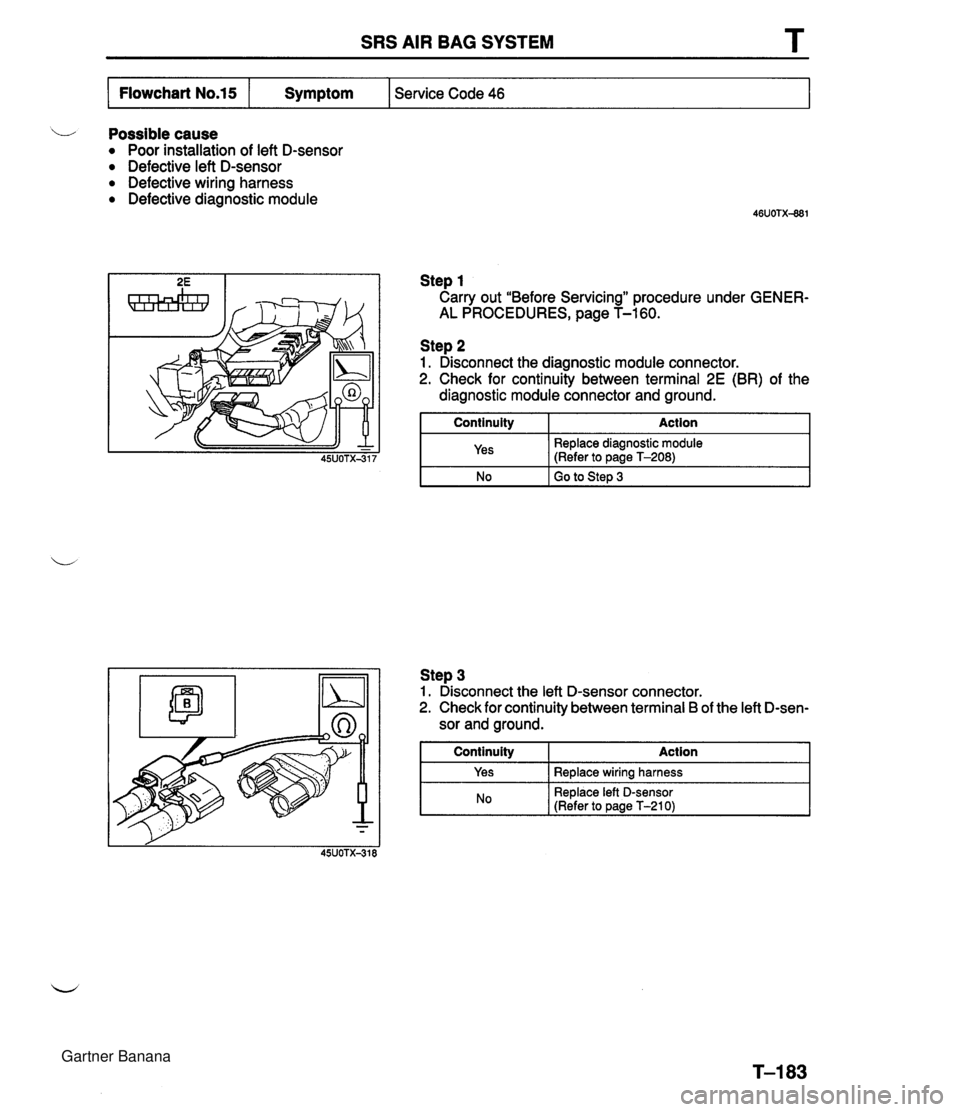

SRS AIR BAG SYSTEM T Possible cause Poor installation of left D-sensor Defective left D-sensor Defective wiring harness Defective diagnostic module Flowchart No.15 Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 2E (BR) of the diagnostic module connector and ground. Symptom I Continuity I Action I Service Code 46 Step 3 1. Disconnect the left D-sensor connector. 2. Check for continuity between terminal B of the left D-sen- sor and ground. Yes No Replace diagnostic module (Refer to page T-208) Go to Step 3 I No Replace left D-sensor (Refer to page T-210) Continuity Yes Action Replace wiring harness Gartner Banana
Page 1029 of 1708

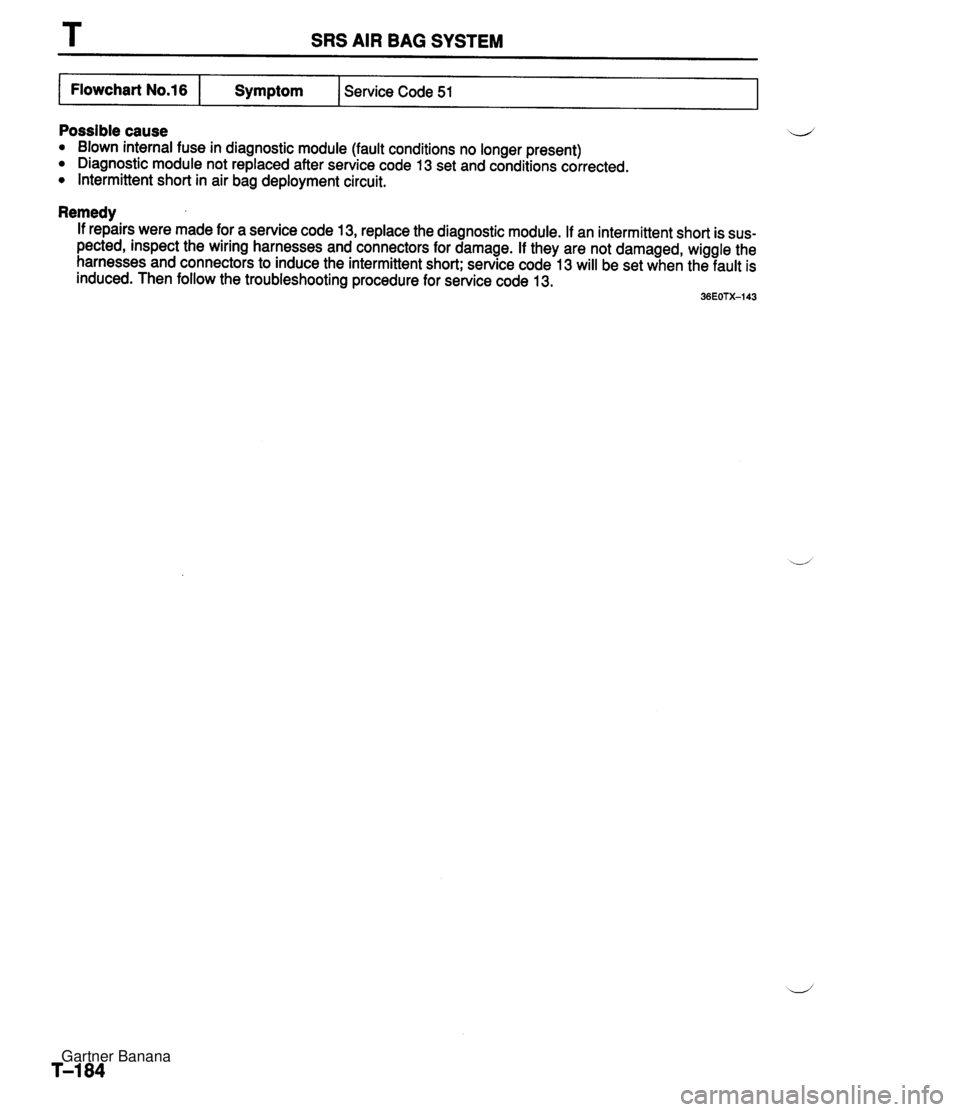

T SRS AIR BAG SYSTEM I Flowchart No.16 I Symptom I Service Code 51 I Possible cause Blown internal fuse in diagnostic module (fault conditions no longer present) 0 Diagnostic module not replaced after service code 13 set and conditions corrected. Intermittent short in air bag deployment circuit. Remedy If repairs were made for a service code 13, replace the diagnostic module. If an intermittent short is sus- pected, inspect the wiring harnesses and connectors for damage. If they are not damaged, wiggle the harnesses and connectors to induce the intermittent short; service code 13 will be set when the fault is induced. Then follow the troubleshooting procedure for service code 13. 36EOTX-143 Gartner Banana
Page 1030 of 1708

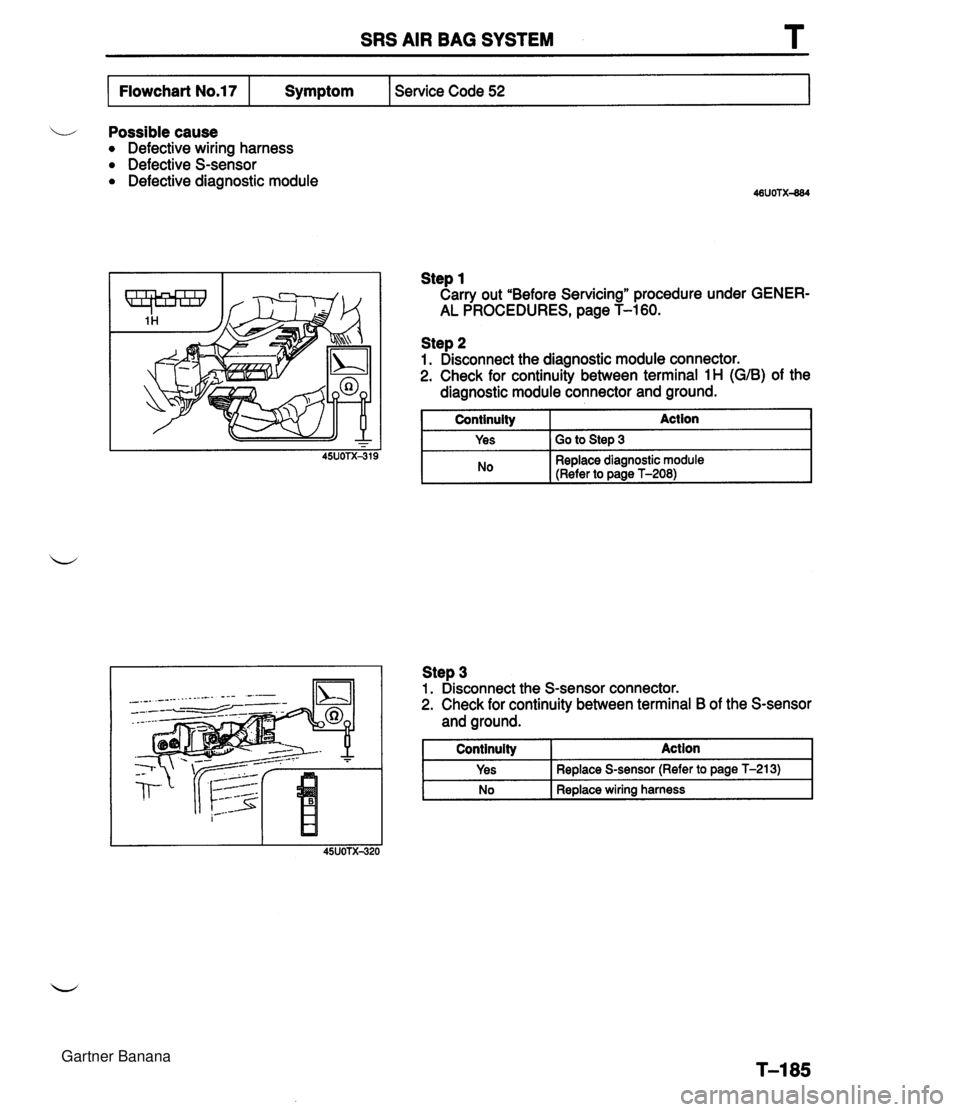

SRS AIR BAG SYSTEM T Possible cause Defective wiring harness Defective S-sensor Defective diagnostic module Flowchart No.17 Step 1 Carry out "Before Servicing" procedure under GENER- AL PROCEDURES, page T-160. Step 2 1. Disconnect the diagnostic module connector. 2. Check for continuity between terminal 1H (GIB) of the diagnostic module connector and ground. I Continuity Action I Symptom I Yes I Go to Step 3 Service Code 52 Step 3 1. Disconnect the S-sensor connector. 2. Check for continuity between terminal B of the S-sensor and ground. I Continuity I Action I No Replace diagnostic module (Refer to page T-208) Yes No Replace S-sensor (Refer to page T-213) Replace wiring harness Gartner Banana
Page 1031 of 1708

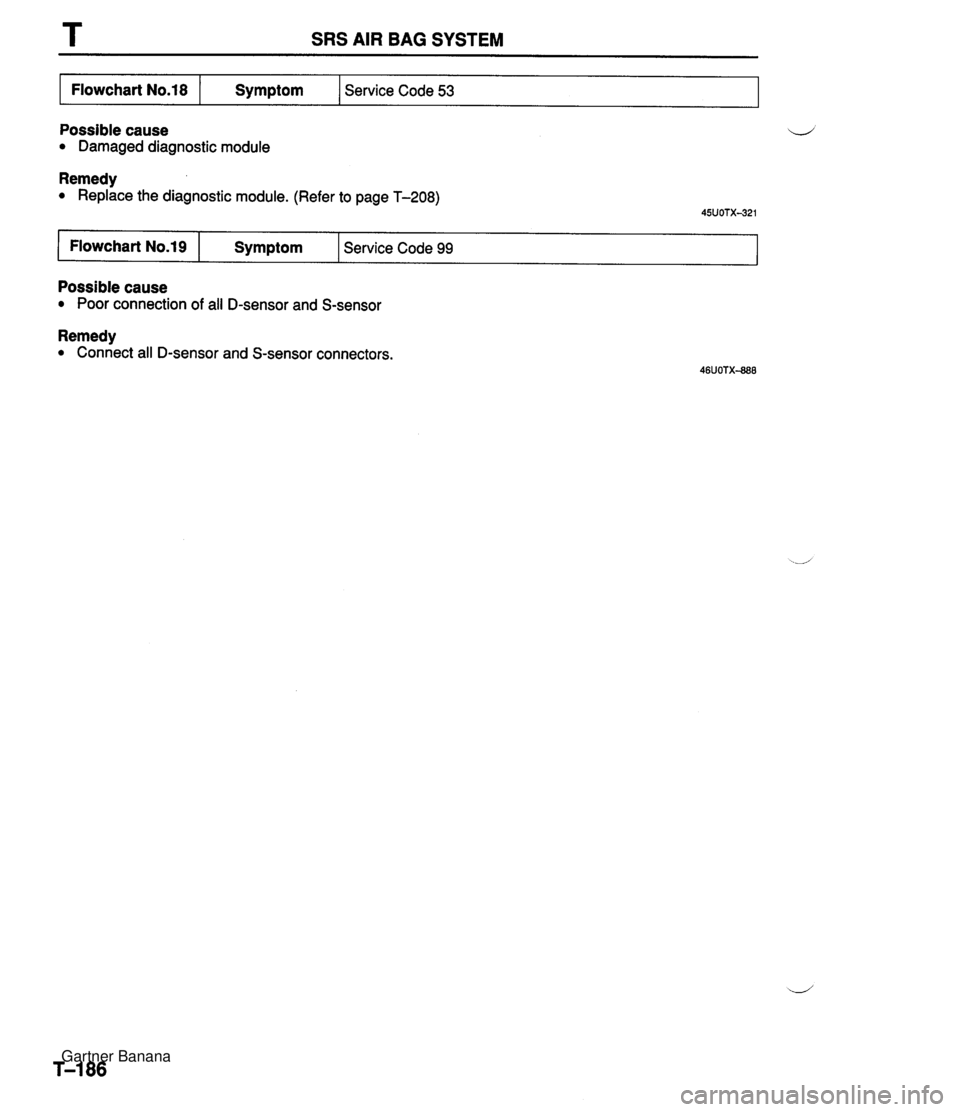

T SRS AIR BAG SYSTEM Possible cause e Damaged diagnostic module Remedy Replace the diagnostic module. (Refer to page T-208) Service Code 53 Flowchart No.18 I Flowchart N0.19 I Symptom ( Service Code 99 Symptom Possible cause Poor connection of all D-sensor and S-sensor Remedy Connect all D-sensor and S-sensor connectors. Gartner Banana
Page 1032 of 1708

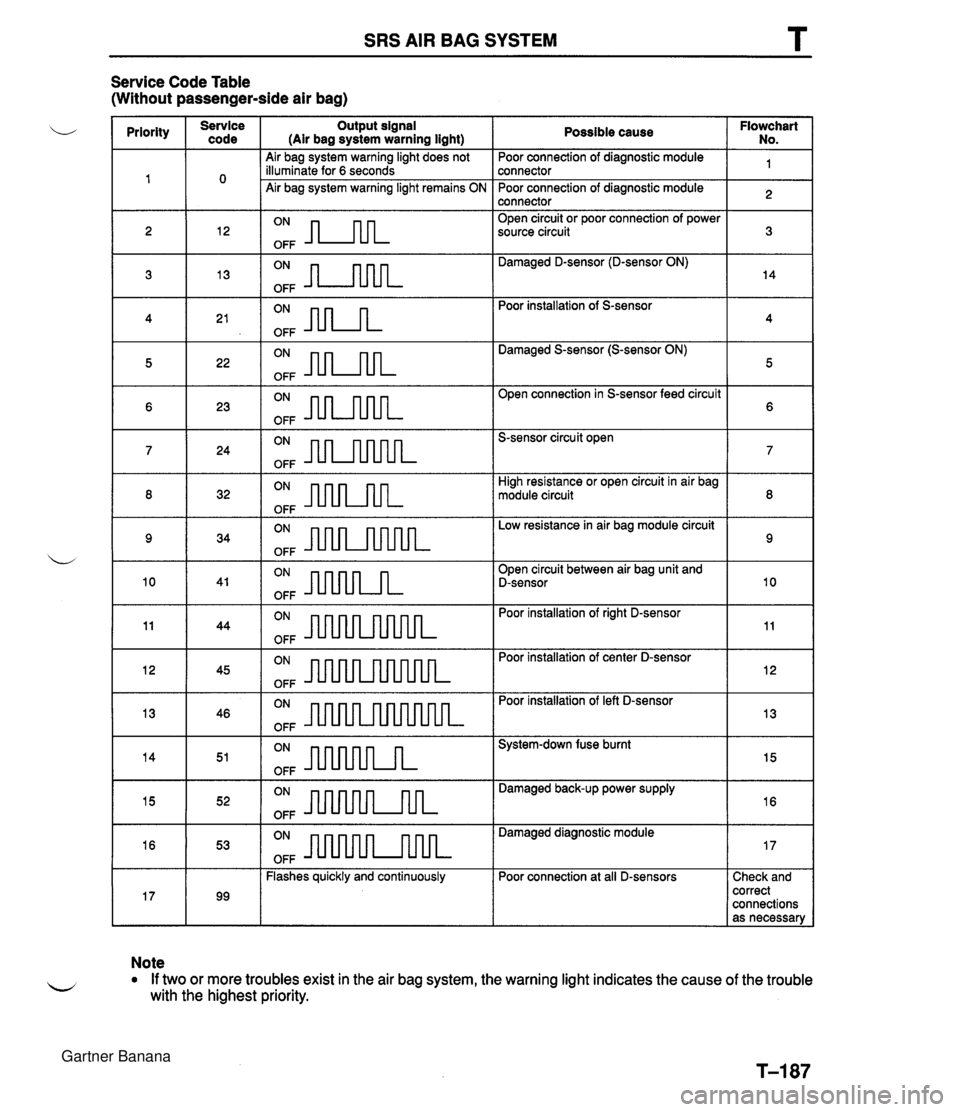

C Jopauuo3 spuo~as g JOJ aleupunll! 0 1 1 alnpou ~!lsou6e!p 40 uo!pauucx, ~ood lou saop 146!1 6u!u~e~ welsAs 6eq J!V suo!pauuo3 WaJJO3 PUB Wa43 1 W31SAS DW8 MlW SMS s~osuas-a lie ie uo!pauum ~ood Alsnonu!1uo3 pus Alyqnb sayselj 66 /! 1 Gartner Banana
