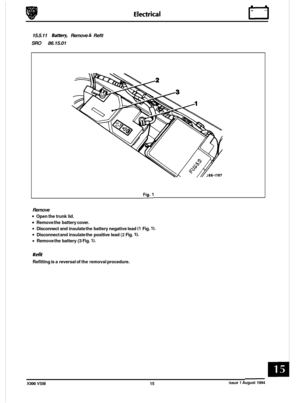

1994 JAGUAR XJ6 Workshop Manual

XJ6 - XJI 2
Vehicle Service Manual
Published by Produd Development & Publications Jaguar Cars Limited
Publication Part Number - JJM 10 04 12 / 50

Introduction
FOREWORD
This Vehicle Service Manual (VSM) is Dart
-
of a
set of service literature which covers -. diagnosis and rectification of problems associated with all areas of the X300 family of vehicles.
It is designed to be read in conjunction with other manuals, namely the various Unit Service Manuals (USM) (as
applicable to the particular vehicle under diagnosis/ repair) and the X300 Electrical Diagnostic Manual (EDM); see list
below.
It should be noted that its scope is limited to those areas that are unique to the family, e.g. Remove & Refit procedures
for Body Components, Engine, Transmission etcetera, Fuel, Emissions & Engine Management systems, and so on.
Fault Diagnosis and repair procedures (together
with Technical Data, Recommended Lubricants, Capacities etcetera) for major assemblies such as engines, automatic and manual transmissions, are covered in the separate Unit Service
Manuals.
The Unit Service Manuals are notvehicle
-specific, but are designed to be read in conjunction with this VSM, and, where so equipped, with other Jaguar Vehicle Service Manuals for new models launched subsequent to the X300 family.
The X300 Electrical Diagnostic Manual is the final part of the 'set' of service documentation. This manual
is
family-specific, and is designed to aid theTechnician to isolate electrical faults and to correct them. It covers all aspects
of electrical fault diagnosis, including:
OBD
II Codes and emission control system related fault diagnosis / rectification.
Circuit Diagrams
Component (Relays, fuse boxes, control modules etcetera) Location
/ Harness Diagrams I Ground Locations
Connector Locations.
Service Manuals Required
The Manuals required to service the X300 family of vehicles are as follows:
X300 Vehicle Service Manual
X300 Electrical Diagnostic Manual
Unit Service Manuals:
AJ16 Engine Service Manual

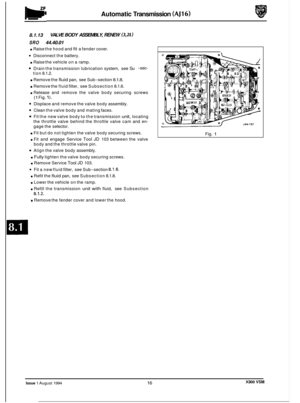

VI2 Engine Service Manual ZF AutomaticTransmissions Service Manual (ZF supplies transmissions for 3.2 liter and 4.0 liter normally aspirated
versions) Powertrain Automatic Transmissions Service Manual (The Powertrain name succeeds that of Hydra
-Matic.

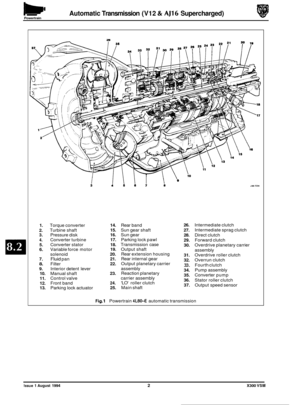

Powertrain are suppliers of the 4L 80 E transmission as fitted to 4.0 litre supercharged and 6.0 litre versions)
Each
of the X3Okpecific manuals is divided into Sections which adopt the same title and number where relevant, i.e. Section 5.1 of both the VSM and the EDM cover Fuel, Emission Control & Engine Management System (AJ16). An
over
-all contents list showing each section title and number together with its page-edge locator is given in this section
and in the introduction to the EDM.

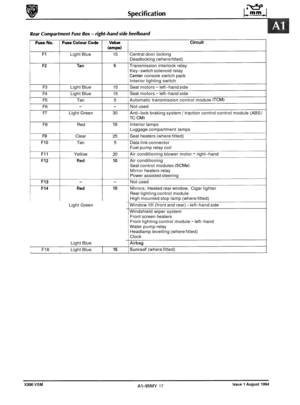

The VSM (not applicable to the EDM) also contains Appendices which cover specialized areas such as the current
vehicle specification, routine maintenance schedule etc. These are carried at the rear of this Manual, and have their
own contents page within this section.
INDEX
rapid location of information. The entries are set out as per the following example: @ This manual carries a comprehensive index at the rear, which is designed to save the Technician time by permitting
CLIMATE CONTROL SYSTEMS. Section 14.
See also Electrical Diagnostic Manual
Clutch
Description: Sect. 7.7 - 10
Fault diagnosis: Sect 7.1 - 11
In the example the heading in upper case lettering is to a section title, and it refers to the section number, 14, and also to the EDM as electrical diagnostic information will be found in that manual's section 14. The entry for clutch tells us that the relevant description will be found on page 10 of Section 7.1 of this manual, and
that fault diagnosis procedures start on page 11. In this case there is no reference to the EDM as electrical diagnosis does not apply to this area.
GLOSSARY OF TERMS
This Section contains a Glossary of general and emissions-related terminology (commencing on page 5).
X300 VSM 1 Issue 1 August 1994

A master index of numbered operations has bee? compiled for universal application to all vehicles manufactured by
Jaguar Cars Ltd.
Each operation described in this manual is allocated
a numberfromthe master indexand cross-refers with an identical
number in the Service Repair Operation Times Manual. The number consists of six digits arranged in three pairs.
Each operation is described in the sequence necessary to complete the operation in the minimum time, as specified
in the Manual of Repair Operation Times.
SERVICE TOOLS
Where non-standard service tools (i.e. tools which are not generally available hand tools) are required to complete an
operation, the number and an illustration of that tool is given in the preliminary pages of the Section concerned.
TORQUE TIGHTENING SPEClFKATlONS
Torque tightening specifications are given in tabular form in the preliminary pages of the relevant Section.
REPAIRS AND REPLACEMENTS
When service parts are required, it is essential that only genuine Jaguar / Daimler replacements are used.
Attention is drawn to the following points concerning repairs and the fitting of replacement parts and accessories:
0 Safety features embodied in the vehicle may be impaired if other than genuine parts are fitted. In certain
territories, legislation prohibits the fitting of parts which are not produced to the vehicle manufacturer's
specification.
0 Torque wrench setting figures given in this Manual must be strictly adhered to.
0 Locking devices, where specified, must be fitted. If the efficiency of a locking device is impaired during removal it must be renewed.
0 Owners purchasing accessories while travelling abroad should ensure that the accessory and its fitted location
on the vehicle conforms to mandatory requirements existing in their country of origin.
0 The vehicle warranty may be invalidated by the fitting of other than genuine Jaguar / Daimler parts. All Jaguar
/Daimler replacements have the full backing of the factory warranty.
0 Jaguar / Daimler dealers are obliged to supply only genuine service parts.
REFERENCES
References to the left or right-hand side of the vehicle are made as if viewing from the driver's seat.
SPECIFICATION
Purchasers are advised that the specification details set out in this Manual apply to a range of vehicles and not to any
specific one. For the specification of a particular vehicle, purchasers should consult their dealer.
The Manufacturers reserve the right to vary their specifications, with or without notice, and
at such times and in such
manner as they thinkfit. Major as well as minorchanges may be involved in accordance with the Manufacturer's policy
of continuous improvement.
Whilst every effort is made to ensure the accuracy
ofthe particulars contained in this Manual, neither the Manufacturer
nor the Dealer, by whom this Manual is supplied, shall in any circumstances be held liable for any inaccuracy or the
consequences thereof.
COPYRIGHT
Copyright.@ Jaguar Cars Lid. 1994
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any
form, electronic, mechanical, photocopying, recording or other means, without prior written permission of Jaguar
Cars Ltd., Service Department, Browns Lane, Coventry,
CV5 9DR, England.
X300 VSM Issue 1 August 1994 2

e-
@

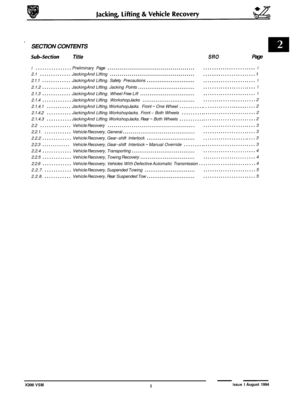

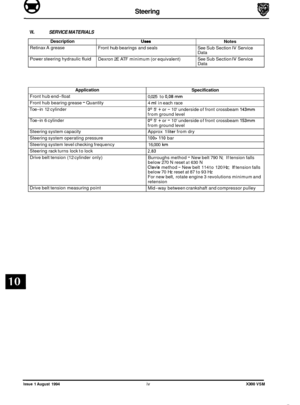

Contents
Fuel, Emission Control & Engine Management (AJI 6)
Manual Transmission & Clutch (AJl6)
Driveshafts & Final Drive
Suspension Systems

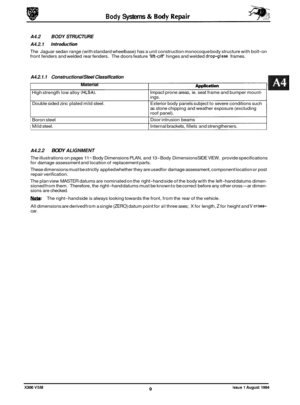

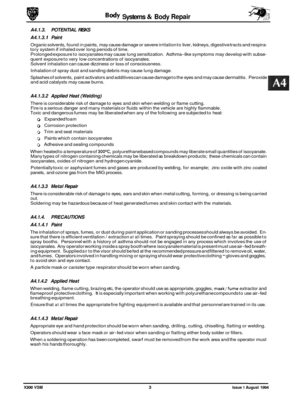

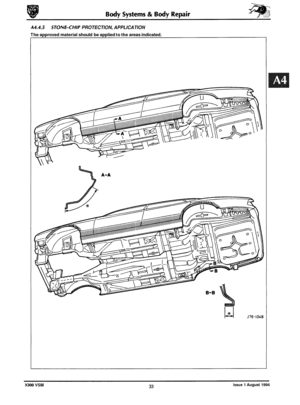

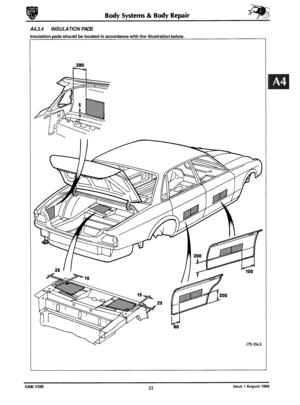

Body Components & Trim
Climate Control Systems
Issue 1 August 1994 3 x300
- - ~~

4

6

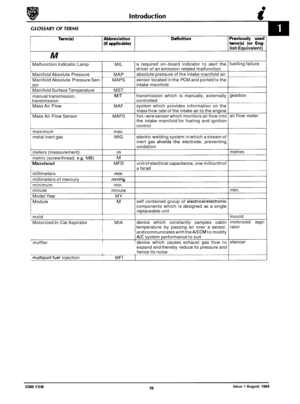

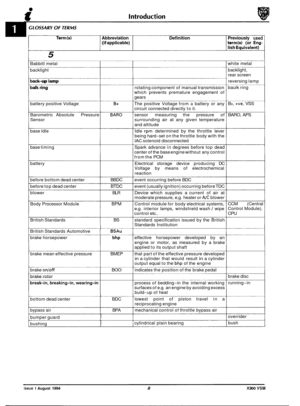

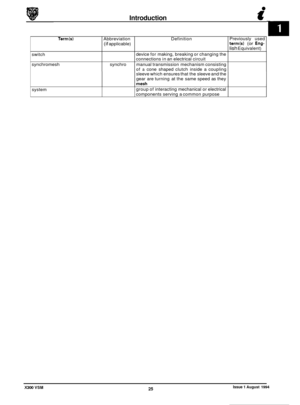

GLOSSARY OF TERMS
Introduction
This glossary of terms is intended to cover both general and emissions-related (to SAE J 1930) terminology. It is in- tended to enable the user to ascertain the meaning of standardized terms and acronyms used throughout the Manual.
The required term may be looked-up in the left-hand column, and subsequent columns give the standard abbreviation
or acronym, definitions and previously used terms, as applicable.
As this Manual is a world
-wide publication, and must comply with certain Society of Automotive Engineers Standards, it has been necessary to adopt the terminology etc. demanded by that Standard.
Term(s) Abbreviation Definition Previously used
(if applicable) term(s) (or Eng- lish Eauivalent)
A
throttle pedal
accelerator Dedal AP
AI= measurement across the spanner flats of a
across flats
nut or bolt head
adaptor
AC.
aircon
adapter
after bottom dead center
after
too dead center event
occurring after BDC
event occurring after TDC
ABDC
ATDC ACL
AIC
ACS
Air
Cleaner
Air Conditioning
Air Conditioning Signal air conditioning
compressor clutch
operation is signalled to the PCM which
induces idle speed corrections to
compensate for engine load changes
module controlling air conditioning, heating
and ventilation
wing or similar, designed to obtain some
effect from the flow of air over
it
electrical current whose flow alternates in
direction, in a sinusoidal waveform
NCCM Air Conditioning Control Module
airfoil aerofoil
alternating current ac
aluminium
aluminum
Ambient temperature Temperature
of the air surrounding an object
SI unit of current AmDere A Amp Amp. hour -~ 1 Ampere flowing for one hour
system, usually ele&o&ally controlled (but ~- __. .. . Ampere hour
Anti
-Lock Braking System Ah
ABS can be mechanically) which prevents wheel
lock
-up under braking by sensing lack of
rotation of a wheel(s) and diverting fluid
pressure away from
it (them). Originally Anti-Blockier System (Bosch).
ABS control module
ABS
/ traction control control
module ABS
CM
ABS I TC CM
aerial
antenna (plural, antennae or
antennas)
analog
Analoa Volt-Ohm meter analogue
AVOM unit of pressure
(1.01325 bar)
atmospheres
automatic transmission atm
auto,
auto gearbox
drive shaft
axle shaft shaft
transmitting power to the rear wheel
hubs
.-
Issue 1 August 1994 X300 VSM 7
