Page 457 of 521
F
J 76 'IO4C

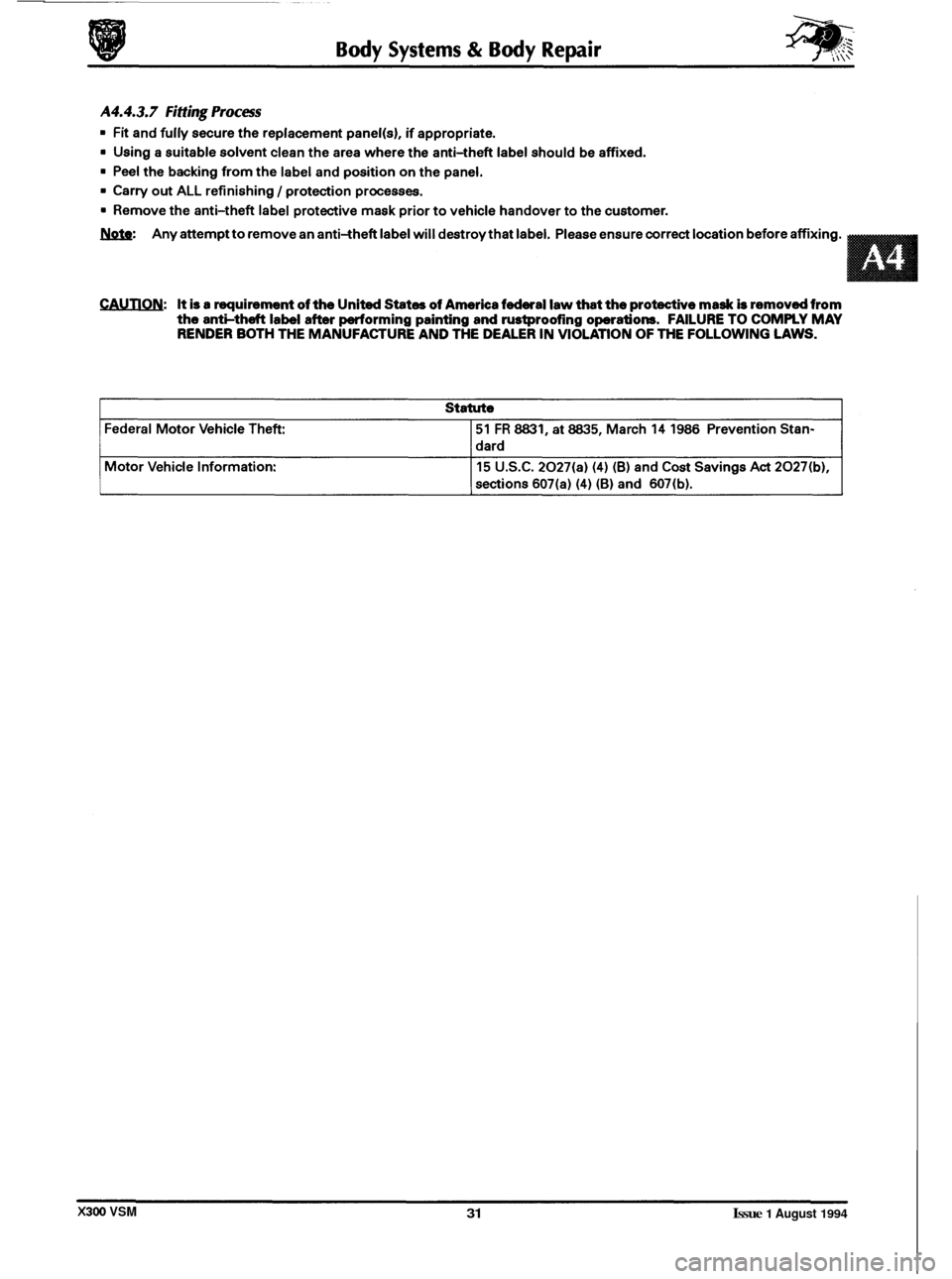

== Label Anti-theft Label
Replacement part
Page 458 of 521
31 Issue 1 August 1994 X300 VSM
Page 459 of 521
B C D
K J H G
A. Power steering -Warning F. Headlamp beam setting adjustment B. Shock absorber fixings -Warning G. Emission control data
C. Brake fluid type -Warning H. El 1 legislation label (not all markets) D. Clutch fluid type -Warning J. Rotating components - Warning
E. Coolant pressureltemperature -Warning K. Vacuum pipe routing
0
0
X300 VSM Issue 1 August 1994 32
Page 460 of 521
A4.4.5 STONE-CHIP PROTECTION, APPLICATION
he approved material should be applied to the areas indicated.
U" J76-1018 ~
X300 VSM Issue 1 August 1994 33
Page 461 of 521

Body Systems & Body Repair
Optimum temperature 6OoC - 7OoC
Minimum temperature 35%
Maximum Temperature 7 5oc
A4.5 GLAZING
A4.5.1 Special notes
In order that the design condition of the vehicle is preserved when direct glazing repairs are carried out, it is essential
that both the applied materials and processes are as stipulated.
Application time - including
positioning
4 minutes
Will not bond
A4.5.1.1 Glass and Body Preparation
The preparation methods and materials, as used with the Betaseal HV3 system on previous Jaguar vehicles, are fully
compatible with the current sedan range.
Ease of working and extended process time may be gained by ensuring that the vehicle body and replacement glass
are 'soaked
at room temperature, a minimum of 2OoC, prior to adhesive application and fitting.
Should damage occur to the body flange finish, rectify as appropriate with the full paint refinishing process as de
- scribed in the 'Paint Refinishing Manual' see section 4.4.1.1.
A4.5.1.2 Adhesive Application Temperature
The specified adhesive has a high viscosity and is not easily applied at 'room temperature' using conventional
methods. When the adhesive is applied it chills rapidly on contact with the body and reverts to the hard condition, thus
providing full retention (not full strength) within minutes.
Raising the temperature of the adhesive lowers the viscosity and speeds up the flow.
It is recommended therefore that
the adhesive is pre-warmed in a heated cabinet for a minimum of 20 (twenty) minutes and the extrusion gun has inte- gral heating elements, see Preliminary pages for details.
A4.5.1.3 Adhesive Application
CAUTION: The glass will not bond to the body if the time
taken to apply the adhesive AND position the glass. exceeds the stated limit.
It is recommended that the bead of adhesive conforms tothe shape and dimensions as shown in Fig. 1 and is positioned
along the edge of the rubber.
m: The depth of the glass and thus the thickness of the
adhesive, is controlled by the screen rubber 'bot- toming' on the body flange.
A4.5.1.4 Adhesive Curing
The specified polyurethane adhesive cures by exposure to
moisture and NOT by heat. Cure times may vary consider- ablyand are dependant upon ambient humidity levels, how- everthe initial 'chill off will occur within l to4 minutes, after
which the screen may not be moved (this is entirely depend- ant upon the application temperature and rate of cooling). 1
12nnrl6mnr
J76-1031
1.
Fitted condition
2. Bead application
Fig. 1
X300 VSM Issue 1 August 1994 34
Page 462 of 521
Page 463 of 521
J76 -1 01 7
Fig. 1 Front bumper - Typical components
Page 464 of 521
conditions.
. Tighten all fixings to specification.
A4.6.1.3 SERVICE PROCEDURES
A4.6.1.4
Fitted Condition (Front)
The following procedures may apply should any part of the bumper mounting system, or cover, be renewed but should
not be necessary if the cover is removed for service reasons.
The front mountings must initially be set for 'cross car' pitch and center within the clearances around thestrut to body
. In orderthat the bumpertop face, headlamp surrounds and grille lower have the correct relationship the strut height
. Set the guide blocksto thespecified dimensionto achievethecorrect bumpertofender gap, BEFOREfittingthecover
. With all fixing points set, the bumper cover may be fitted and adjusted as necessary to achieve the specified gap
fixings.
adjusters must be finally
set AFTER the cover is fitted.
because adjustments can only be made with the cover
off.
Fig. 1 Front bumper setting dimensions
Issue 1 August 1994 37 X300 VSM
