15.9 LAMPS & LIGHTING LOGIC
15.9.1 Exterior Lighting, General Description
1
I t
4
1.1
a ;7 10
11 12 13 14 15 22
J86-1713
Fig. 1 Exterior Lighting
Figure
1 indicates all exterior lamps located at the front, the sides and the rear of the vehicle.
The exterior lamps consisting of
two headlamp assemblies containing the inboard and outboard headlamp units incor- porating the pilot bulbs, the fog lamps, the front direction indicator lamps and side marker lamps fitted through the
front bumper, the repeater lamps positioned on the fenders, the number plate lamps and the rear lights incorporating
tail, stop, flasher and fog lamps.
0
0
0

15.9.2 Interior Lighting, General Description
0
Fig.1 Interior Lighting
The interior lamps consist of
E-Post lamps with or without map lights, a map light combined with switch fitted to the
roof console, sun visor lamps, door courtesy / hazard lamps and a trunk lamp.
Other interior illumination bulbs are fitted within the various switch assemblies.
X300 VSM 21 Issue 1 August 1994

Electrical
0
15.10 HARNESSES & CABLES
15.10.1 Battery Power Distribution Cabk, General Description
1 2 8
10-

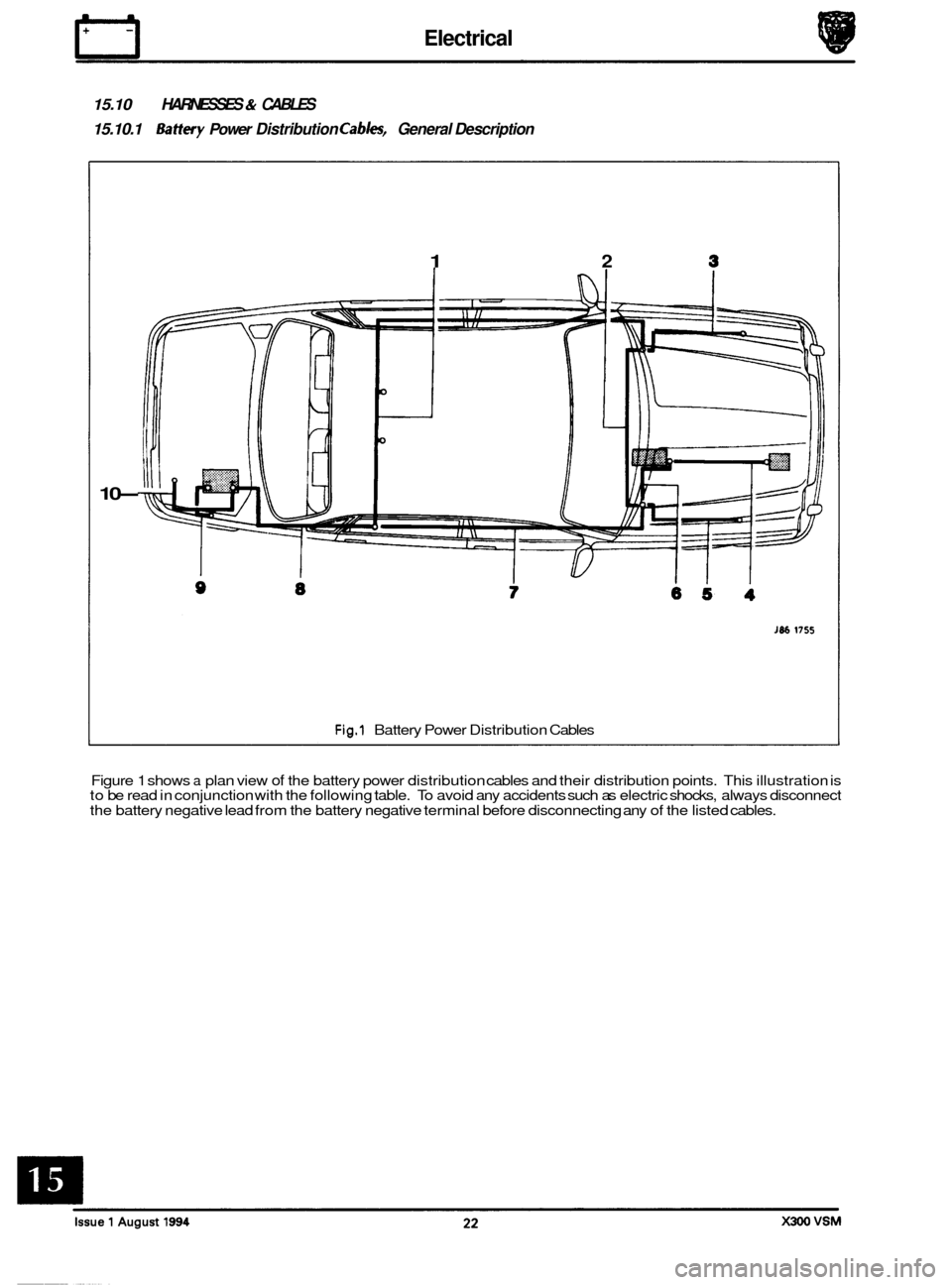

Fig.1 Battery Power Distribution Cables
Figure 1 shows
a plan view of the battery power distribution cables and their distribution points. This illustration is
to be read in conjunction with the following table. To avoid any accidents such as electric shocks, always disconnect
the battery negative lead from the battery negative terminal before disconnecting any of the listed cables.

Key to Fig. 1, Battery Power Distribution Cables, page 22.
Rear heel board 1 Fuse box power lead 1
Terminal to terminal post link lead 2
Engine bay 1 fuse box power cable LH 3
Starter to alternator cable 4
Engine bay 1 fuse box power cable RH 5
Batt.ry Power Distribution Cabb Numb
1 Starter cable I 6 I
Battery positive extension cable 7
Battery positive cable 8
Battery negative cable 9
Trunk fuse box power cable 10

IT E I ectr ical
15.10.2 Main Harnm, General Description
1 2 3 4 56
7
M6 1720
Fig.1 Main Harnesses
Fig.
1 shows a plan view of the main harness runs inside the trunk, the passenger compartment and the engine bay.
The illustration is to be read in conjunction with the following table.
To avoid any accidents such as electric shocks,
always disconnect the battery negative lead from the battery negative terminal before disconnecting any of the listed
cables.
e
0
0
0
Issue 1 August 1994 24 X300 VSM

Electrical I3
Main Harness Number
Rear Lamp
LH Rear Door
LH Rear Door
(Passenaer)
Fascia I 4 I
1
2
3
Enaine I PI I 5 I
RH Front BumDer
Left Forward I 6 I
a
Right Forward 9
RH Front Door
In-Car Entertainment I 14 I
10
Console
Cabin
RH Rear Door
X300 VSM 25 Issue 1 August 1994
11
12
13
Trunk 15

rl Electrical
'5.10.3 Link /farnest?$, General Description
Fig. 1 Link Harnesses
Fig.
1 shows a plan view of the link harness runs inside the trunk, the passenger compartment and the engine bay.
The illustration is to be read in conjunction with the following table.
To avoid any accidents such as electric shocks,
always disconnect the battery negative lead from the battery negative terminal before disconnecting any of the listed
cables.

Key to Fig. 1, Link Harnesses, page 32.
X300 VSM 27 Issue 1 August 1994
