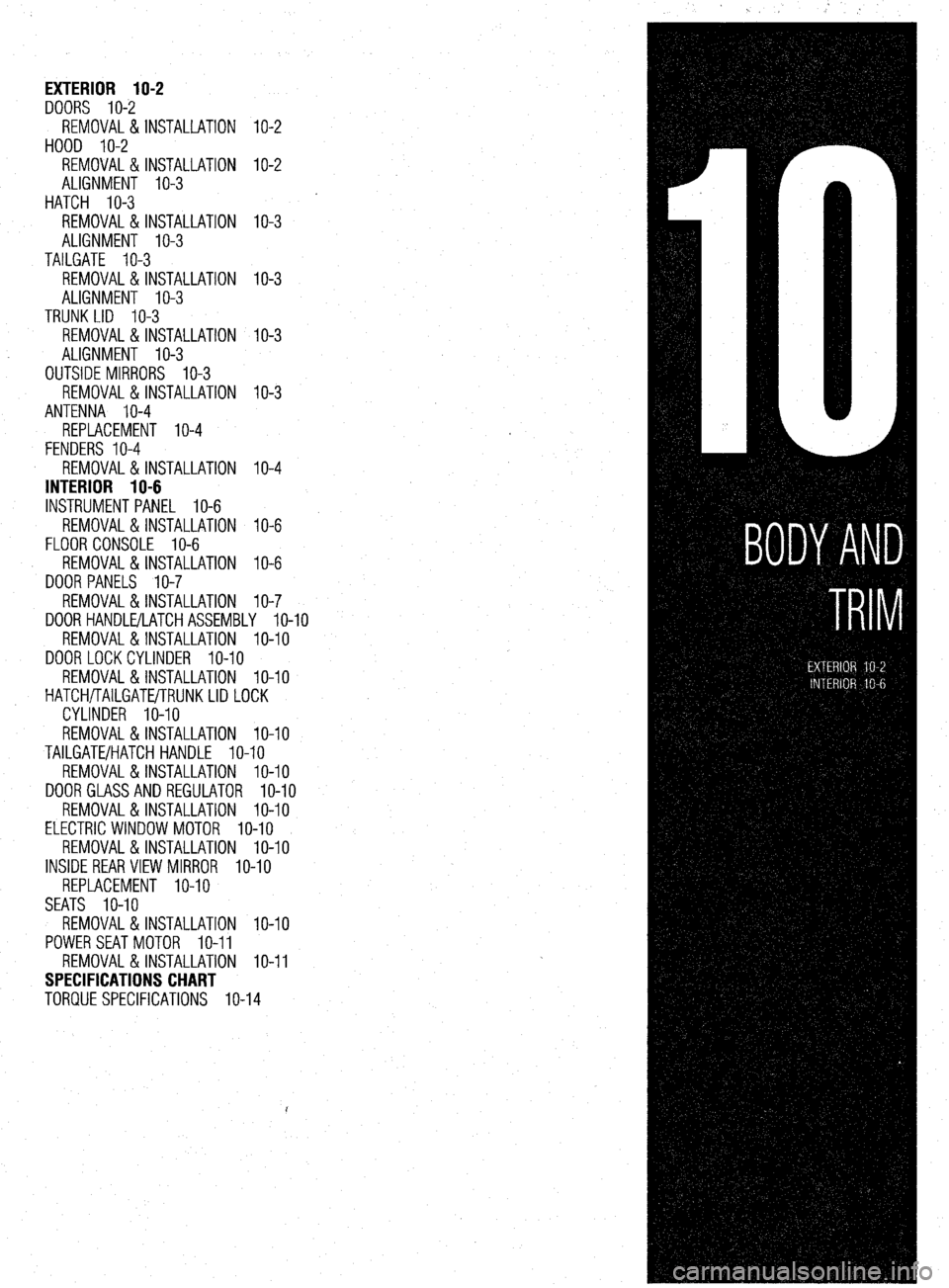

MITSUBISHI DIAMANTE 1900 Repair Manual EXTERIOR IO-2
DOORS IO-2
REMOVAL&INSTALLATION IO-2
HOOD IO-2
REMOVAL&INSTALLATION IO-2
ALIGNMENT IO-3
HATCH IO-3
REMOVAL & INSTALLATION IO-3
ALIGNMENT IO-3
TAILGATE IO-3
REMOVAL & INSTALLATI

Page 370 of 408

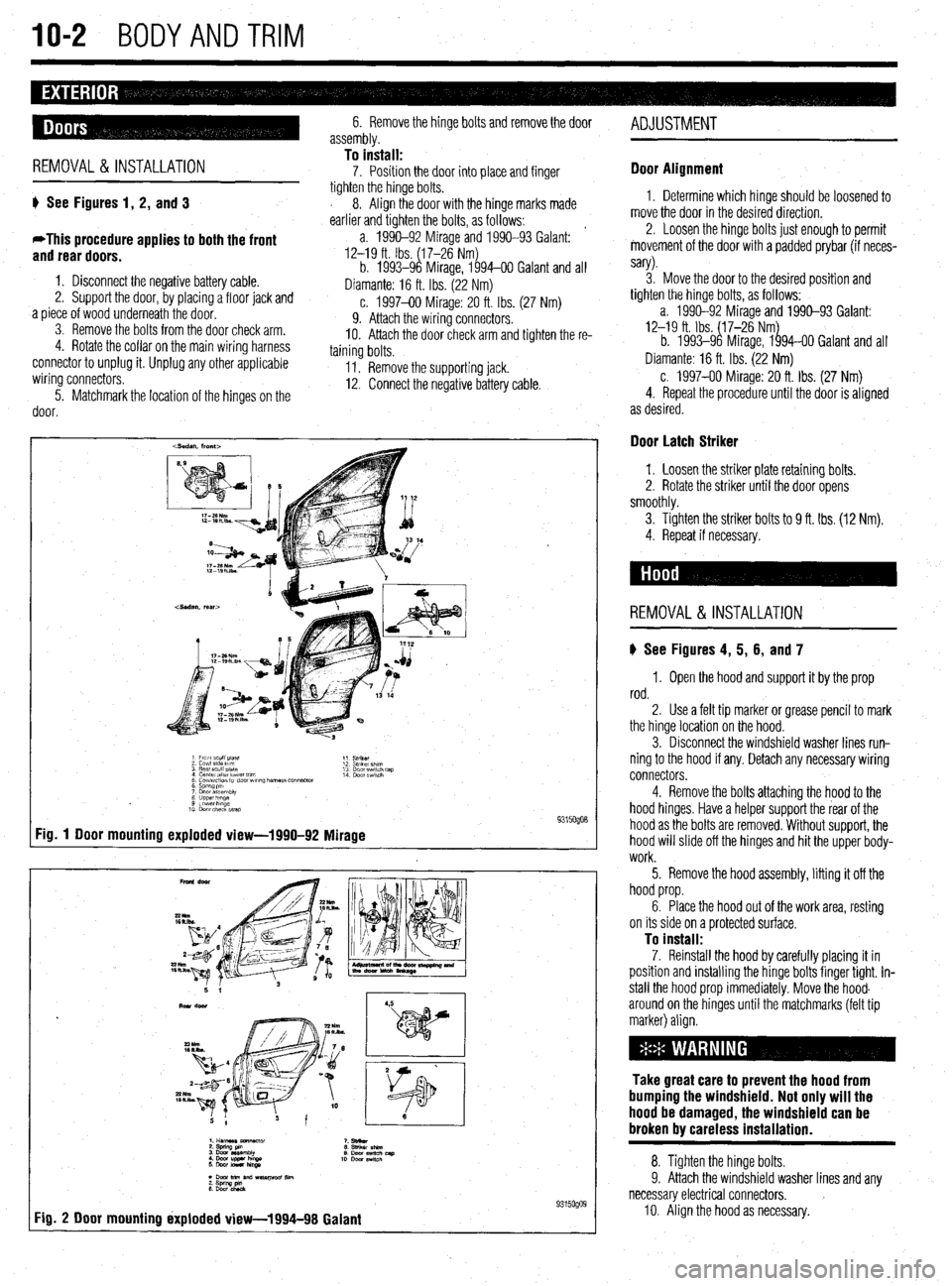

MITSUBISHI DIAMANTE 1900 Repair Manual IO-2 BODYANDTRIM
6. Remove the hinge bolts and remove the door
assembly.
REMOVAL &INSTALLATION To install:
7. Position the door into place and finger
ti See Figures 1, 2, and 3
*This procedure a

IO-2 BODYANDTRIM
6. Remove the hinge bolts and remove the door
assembly.
REMOVAL &INSTALLATION To install:
7. Position the door into place and finger
ti See Figures 1, 2, and 3
*This procedure applies to both the front
and rear doors.
1. Disconnect the negative battery cable.
2. Support the door, by placing a floor jack and
.a piece of wood underneath the door.
3. Remove the bolts from the door check arm.
4. Rotate the collar on the main wiring harness
connector to unplug it. Unplug any other applicable
wiring connectors.
5. Matchmark the location of the hinges on the
door. tighten the hinge bolts.
s 8. Align the door with the hinge marks made
earlier and tighten the bolts, as follows:
’
a. 1990-92 Mirage and 1990-93 Galant:
12-19 ft. Ibs. (6l7,26 Nm&
b. 1993-9 Mirage, 1 94-00 Galant and all
Diamante: 16 ft. Ibs. (22 Nm)
c. 1997-00 Mirage: 20 ft. Ibs. (27 Nm)
9. Attach the wiring connectors.
IO. Attach the door check arm and tighten the re-
taining bolts.
II. Remove the supporting jack.
12. Connect the negative battery cable.

Fig. 1 Door mounting exploded view-1990-92
Mirage 9315oQo8
9315oQog 1
Fig. 2 Door mounting ixploded view-1994-98 Galanf ADJUSTMENT
Door Alignment
1. Determine which hinge should be loosened to
move the door in the desired direction.
2. Loosen the hinge bolts just enough to permit
movement of the door with a padded prybar (if neces-
sary).
3. Move the door to the desired position and
tighten the hinge bolts, as follows:
a. 1990-92 Mirage and 1990-93 Galant:
12-19 ft. Ibs. ($7-26 Nmg
b. 1993-9 Mirage, 1 94-00 Galant and all
Diamante: 16 ft. Ibs. (22 Nm)
c. 1997-00 Mirage: 20 ft. Ibs. (27 Nm)
4. Repeat the procedure until the door is aligned
as desired.
Door Latch Striker
1. Loosen the striker plate retaining bolts.
2. Rotate the striker until the door opens
smoothly.
3. Tighten the striker
bolts to 9 ft. Ibs. (12 Nm).
4. Repeat if necessary.
REMOVAL & INSTALLATION
ti See Figures 4, 5, 6, and 7
1, Open the hood and support it by the prop
rod.
2. Use a felt tip marker or grease pencil to mark
the hinge location on the hood.
3. Disconnect the windshield washer lines run-
ning to the hood if any. Detach any necessary wiring
connectors.
4. Remove the bolts attaching the hood to the
hood hinges. Have a helper support the rear of the
hood as the bolts are removed. Without support, the
hood will slide off the hinges and hit the upper body-
work.
5. Remove the hood assembly, lifting it off the
hood prop.
6. Place the hood out of the work area, resting
on its side on a protected surface.
To install: 7. Reinstall the hood by carefully placing it in
position and instaliing the hinge bolts finger tight. In-
stall the hood prop immediately. Move the hood.
around on the hinges until the matchmarks (felt tip
marker) align.
Take great care to prevent the hood from
bumping the windshield. Not only will the
hood be damaged, the windshield can be
broken by careless installation.
8. Tighten the hinge bolts.
9. Attach the windshield washer lines and any
necessary electrical connectors. )
IO. Align the hood as necessary.

Page 371 of 408

MITSUBISHI DIAMANTE 1900 Repair Manual BODYANDTRIM 10-3
3. Check the hood latch operation; it should en-
gage easily and smoothly. The latch should release
without the use of excessive force. The hood latch
mounting bolts may be loosen

BODYANDTRIM 10-3
3. Check the hood latch operation; it should en-
gage easily and smoothly. The latch should release
without the use of excessive force. The hood latch
mounting bolts may be loosened; the latch can be
adjusted left/right or up/down to compensate for the
hood striker position.
4. With the hood closed and latched, check the
height of the hood. It should sit even with the fender
tops; this dimension may be adjusted by turning the
hood stops to a higher or lower position. Note that
adjusting these stops may require readjustment of the
latch to position the hood correctly.
REMOVAL &INSTALLATION
1999-92 Mirage
1. Disconnect the liftgate support or strut. The
9315Ql10 struts are held by either a cross-point screw or a bolt.
2. Disconnect the washer tube running to the
glass.
3. Disconnect any necessary wiring harnesses.
4. Close the hatch. From the inside of the vehi-
cle, remove the nuts holding the lid to the hinge.
With an assistant. carefullv ooen the lid and remove it
from the car. ’
To install:
5. Fit the hatch into place and install the nuts
finger tight.
6. Reinstall the support.
7. Close the tailgate and align it by checking the
seam all around. Thegap must be equal and even.
Align the hatch by moving it on the hinges until cor-
rectly placed, then tighten the hinge nuts to 11 ft. Ibs.
(15 Nm).
8. Attach the electrical harnesses.
9. Connect the rear windshield washer tube.
Make sure it is pressed firmly onto the fitting.
10. Check the alignment of the hatch.
ALIGNMENT
Close the hatch and align it by checking the seam
all around. The gap must be equal and even. Align
the hatch by moving it on the hinges until correctly
placed, then tighten the hinge nuts. The final position
of the lid may be further adjusted by moving the latch
and/or striker on their mounts. When fully closed, the
hatch must be flush with the surrounding body pan-
els. Minor adjustments in this dimension may be
made by turning the rubber bumpers in or out as
needed.
REMOVAL &INSTALLATION
then remove the hose retaining
ALIGNMENT
1, Close the hood, at least engaging the first
latch, and check the hood-to-fender and hood-to-
cowl seams and alignment. Re-open the hood and Fig. 7 With an assistant supporting the
make adjustments as needed to give equal seams all
around. When the hood is in final alignment, tighten
the hinge bolts.
2. Reconnect the washer lines and any electrical
lines which were disconnected. Diamante Wagon
ti See Figure 8
1. Disconnect the tailgate support.
2. Disconnect the washer fluid tube.
3. Disconnect any necessary wiring harnesses.
4. Have an assistant support the tailgate.
5. Remove the nuts holding the tailgate to the
hinge.

Page 372 of 408

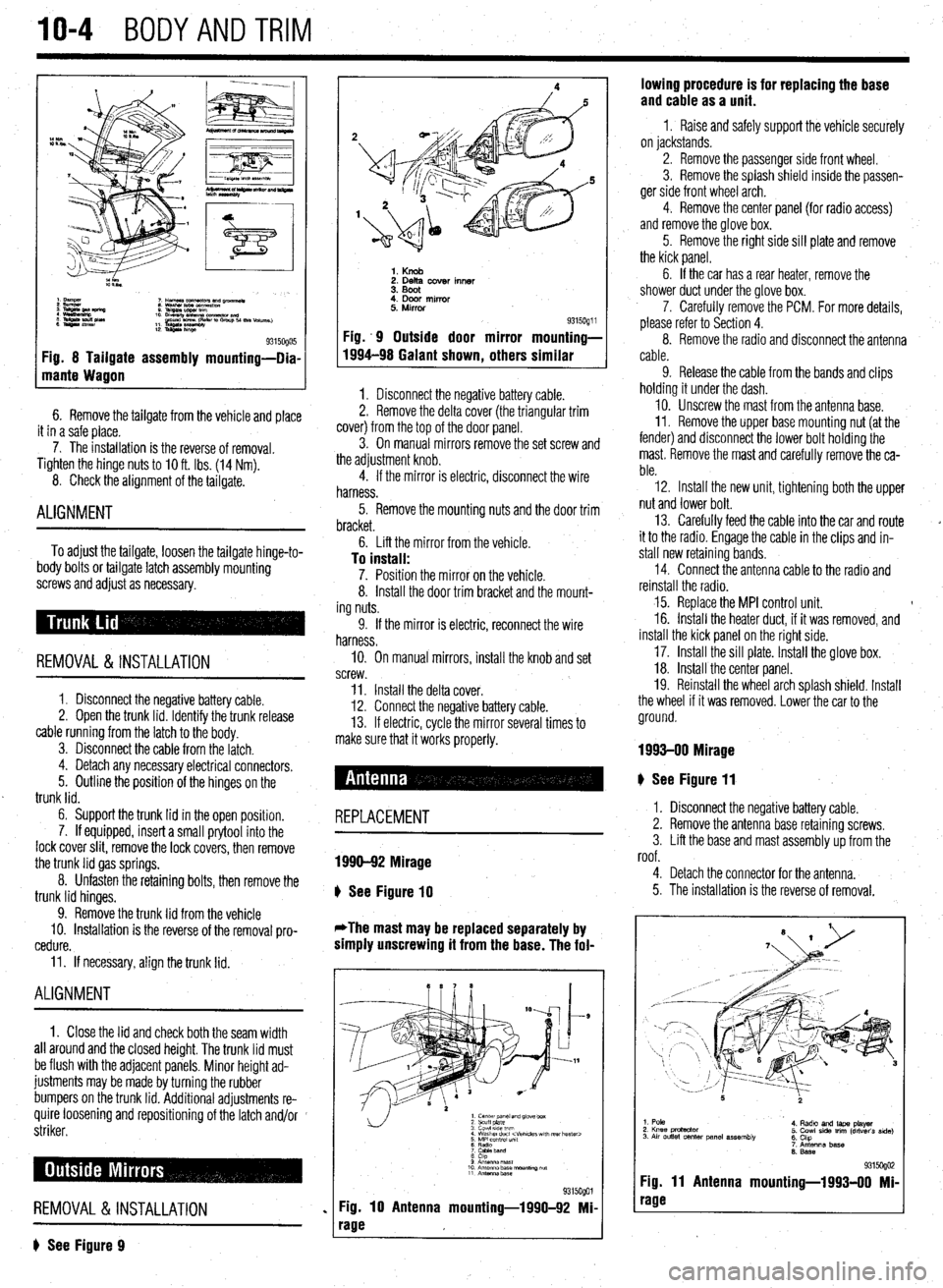

MITSUBISHI DIAMANTE 1900 Repair Manual 10-4 BODYANDTRIM
Fig. 8 Tailgate assembly mounting-Dia-
mante Wagon
6. Remove the tailgate from the vehicle and place
it in a safe place.
7. The installation is the reverse of removal.
Tighten t

10-4 BODYANDTRIM
Fig. 8 Tailgate assembly mounting-Dia-
mante Wagon
6. Remove the tailgate from the vehicle and place
it in a safe place.
7. The installation is the reverse of removal.
Tighten the hinge
nuts to IO ft. Ibs. (14 Nm).
8. Check the alignment of the tailgate.
ALIGNMENT
To adjust the tailgate, loosen the tailgate hinge-to-
body bolts or tailgate latch assembly mounting
screws and adjust as necessary.
REMOVAL &INSTALLATION
1. Disconnect the negative battery cable.
2. Open the trunk lid. Identify the trunk release
cable running from the latch to the body.
3. Disconnect the cable from the latch.
4. Detach any necessary electrical connectors.
5. Outline the position of the hinges on the
trunk lid.
6. Support the trunk lid in the open position.
7. If equipped, insert a small prytool into the
lock cover slit, remove the lock covers, then remove
the trunk lid gas springs.
8. Unfasten the retaining bolts, then remove the
trunk lid hinges.
9. Remove the trunk lid from the vehicle
10. Installation is the reverse of the removal pro-
cedure.
11. If necessary, align the trunk lid.
ALIGNMENT
1. Close the lid and check both the seam width
all around and the closed height. The trunk lid must
be flush with the adjacent panels. Minor height ad-
justments may be made by turning the rubber
bumpers on the trunk lid. Additional adjustments re-
quire loosening and repositioning of the latch and/or
striker.
REMOVAL &INSTALLATION
? See Figure 9
1. Knob 2. Delta cover inner
3. Boot
4. Door mirror
5. Mirror
Fig. .9 Outside door mirror
1994-98 Galant shown
, others 9315oQ1 i mounting-
similar
1. Disconnect the negative battery cable.
2. Remove the delta cover (the triangular trim
cover) from the top of the door panel.
3. On manual mirrors remove the set screw and
the adjustment knob.
4. If the mirror is electric, disconnect the wire
harness.
5. Remove the mounting nuts and the door trim
bracket.
6. Lift the mirror from the vehicle.
To install: 7. Position the mirror on the vehicle.
8. Install the door trim bracket and the mount-
ing nuts.
9. If the mirror is electric, reconnect the wire
harness.
IO. On manual mirrors, install the knob and set
screw.
11. Install the delta cover.
12. Connect the negative battery cable.
13. If electric, cycle the mirror several times to
make sure that it works properly.
# See Figure 11
REPLACEMENT
1990-92 Mirage
b
See Figure 10
*The mast may be replaced separately by
simply unscrewing it from the base. The fol-
1. center panel and glove box
2 scuff plate
3 cowl 51ae wm
4 Washer duct 2 p$iltrol ““It
7 CaMeband
8 cap
9 Anrsnna mast
10 Antenna base “ourmng ““f
11 Antennz.base
%i%Qol
Fig. 10 Antenna mounting-1990-92 Mi-
rage lowing procedure is for replacing the base
and cable as a unit.
1 I Raise and safely support the vehicle securely
on jackstands.
2. Remove the passenger side front wheel.
3. Remove the splash shield inside the passen-
ger side front wheel arch.
4. Remove the center panel {for radio access)
and remove the glove box.
5. Remove the right side sill plate and remove
the kick panel.
6. If the car has a rear heater, remove the
shower duct under the glove box.
7. Carefully remove the PCM. For more details,
please refer to Section 4.
8. Remove the radio and disconnect the antenna
cable.
9. Release the cable from the bands and clips
holding it under the dash.
10. Unscrew the mast from the antenna base.
II. Remove the upper base mounting nut (at the
fender) and disconnect the lower bolt holding the
mast. Remove the mast and carefully remove the ca-
ble.
12. Install the new unit, tightening both the upper
nut and lower bolt.
13. Carefully feed the cable into the car and route
it to the radio. Engage the cable in the clips and in-
stall new retaining bands.
14. Connect the antenna cable to the radio and
reinstall the radio.
15. Replace the MPI control unit. t
16. Install the heater duct, if it was removed, and
install the kick panel on the right side.
17. Install the sill plate. Install the glove box.
18. Install the center panel.
19. Reinstall the wheel arch splash shield. Install
the wheel if it was removed. Lower the car to the
ground.
1993-00 Mirage
I. Disconnect the negative battery cable.
2. Remove the antenna base retaining screws.
3. Lift the base and mast assembly up from the
roof.
4. Detach the connector for the antenna.
5. The installation is the reverse of removal.
1. Pole
2. Knee protactor
3. Air outlet center panel assembly 4. Radto and laps player
5. Cowl side trim (driver’s side)
6. Chp
7. Antenna base
6. Base
931 !iogo2 Fig. 11 Antenna mounting-1993-00 Mi-
rage

Page 373 of 408

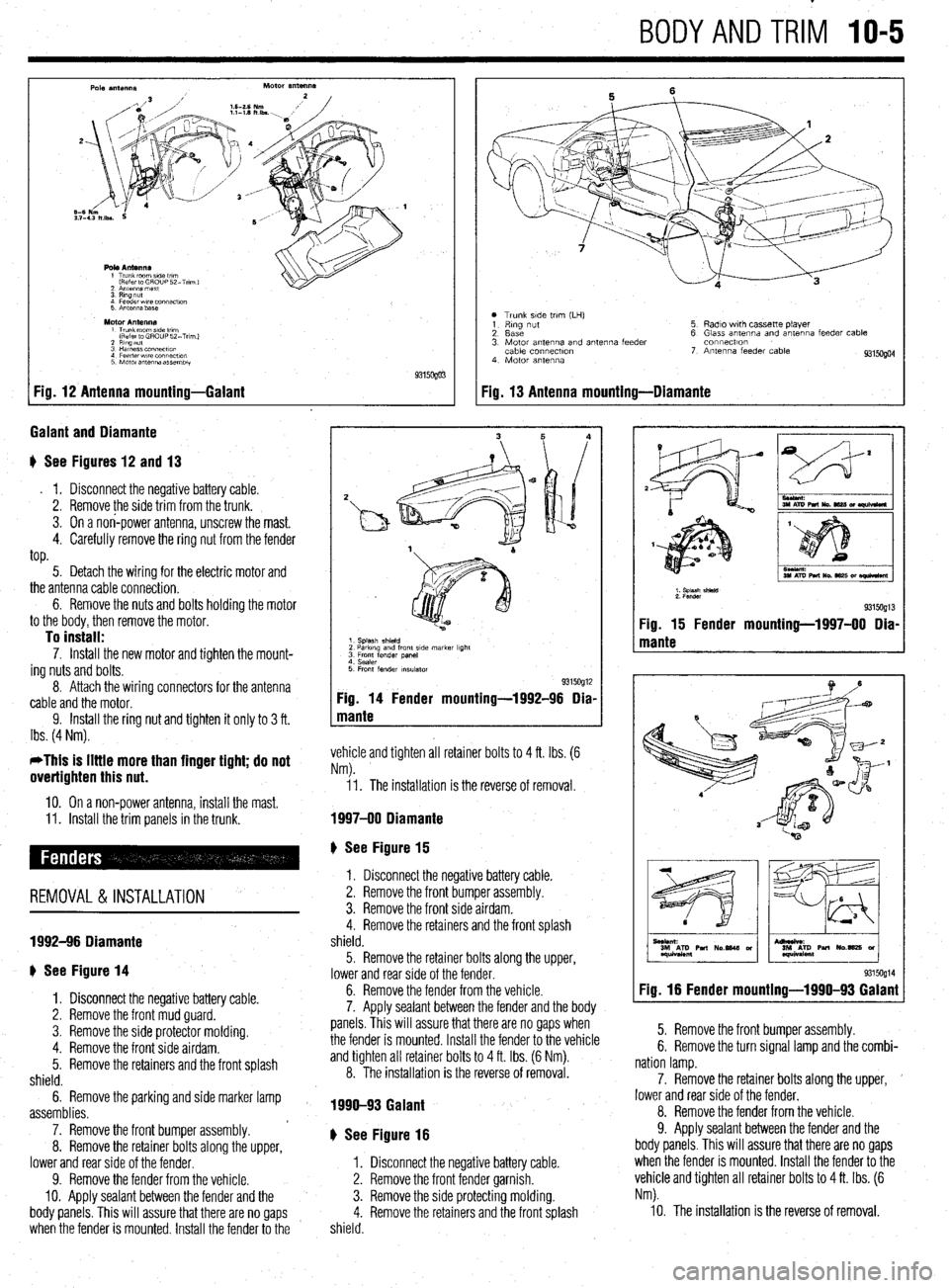

MITSUBISHI DIAMANTE 1900 Repair Manual BODYANDTRIM IO-5
Pole antenna Motor antenna
Pob Antennr
1 Trunk man side tram
Refer to GHOUP 52-Tnm.1
2 Antenna mast
3 Amg nut
4 Feeder wre connect,~n
5 Antenna base
Motor Antenna 1 Trunk mom

BODYANDTRIM IO-5
Pole antenna Motor antenna
Pob Antennr
1 Trunk man side tram
Refer to GHOUP 52-Tnm.1
2 Antenna mast
3 Amg nut
4 Feeder wre connect,~n
5 Antenna base
Motor Antenna 1 Trunk mom side trim
(Refer to GROUP 52-Trim )
2 Ring nut
3 Harness connect,~n
4 Feeder wre connectu~n
5 Motor antenna assembly
Fig. 12 Antenna mounting-Galant 9315ogo3
;alant and Diamante
+ See Figures 12 and 13
. 1. Disconnect the negative battery cable.
2. Remove the side trim from thetrunk.
3. On a non-power antenna, unscrew the mast.
4. Carefully remove the ring nut from the fender
top.
5. Detach the wiring for the electric motor and
the antenna cable connection.
6. Remove the nuts and bolts holding the motor
to the body, then remove the motor.
To install: 7. Install the new motor and tighten the mount-
ing nuts and bolts.
8. Attach the wiring connectors for the antenna
cable and the motor.
9. Install the ring nut and tighten it only to 3 ft.
Ibs. (4 Nm).
*This is little more than finger tight; do not
overtighten this nut.
IO. On a non-power antenna, install the mast.
11. Install the trim panels in the trunk.
REMOVAL&INSTALLATION
1992-96 Diamante
+ See Figure 14
1. Disconnect the negative battery cable.
2. Remove the front mud guard.
3. Remove the side protector molding.
4. Remove the front side airdam.
5. Remove the retainers and the front splash
shield.
6. Remove the parking and side marker lamp
assemblies.
7. Remove the front bumper assembly.
8. Remove the retainer bolts along the upper,
lower and rear side of the fender.
9. Remove the fender from the vehicle.
IO. Apply sealant between the fender and the
body panels. This will assure that there are no gaps
when the fender is mounted. Install the fender to the
0 Trunk side tnm (LH)
1 Rmg nut
2. Base
3. Motor antenna and antenna feeder
cable connectlon
4 Motor antenna 5 Radio with cassette player
6 Glass antenna and antenna feeder cable
connectton
7. Antenna feeder cable
9315Ogo4
Fig. 13 Antenna mounting-Diamante
1. Splash shield
2 Parkmg and front side marker light
3 Front fender panel 4. Sealer
5 Front fender insulator 9315OglZ Fig. 14 Fender mounting-1992-96 Dia-
mante
vehicle and tighten all retainer bolts to 4 ft. Ibs. (6
Nm).
11. The installation is the reverse of removal.
1997-00 Diamante
) See Figure 15
1. Disconnect the negative battery cable.
2. Remove the front bumper assembly.
3. Remove the front side airdam.
4. Remove the retainers and the front splash
shield.
5. Remove the retainer bolts along the upper,
lower and rear side of the fender.
6. Remove the fender from the vehicle.
7. Apply sealant between the fender and the body
panels. This will assure that there are no gaps when
the fender is mounted. Install the fender to the vehicle
and tighten all retainer bolts to 4 ft. Ibs. (6 Nm).
8. The installation is the reverse of removal.
1990-93 Galant
b See Figure 16
1. Disconnect the negative battery cable.
2. Remove the front fender garnish.
3. Remove the side protecting molding.
4. Remove the retainers and the front splash
shield.
I
I
1. splash shWd
2. Fender
931sog13 Fig. 15 Fender mounting-1997-00 Dia-
mante
9315og14 Fig. 16 Fender mounting-1990-93 Galant
5. Remove the front bumper assembly.
6. Remove the turn signal lamp and the combi-
nation lamp.
7. Remove the retainer bolts along the upper, ’
lower and rear side of the fender.
8. Remove the fender from the vehicle.
9. Apply sealant between the fender and the
body panels. This will assure that there are no gaps
when the fender is mounted. Install the fender to the
vehicle and tighten all retainer bolts to 4 ft. Ibs. (6
Nm).
10. The installation is the reverse of removal.

Page 374 of 408

MITSUBISHI DIAMANTE 1900 Repair Manual IO-6 BODYANDTRIM
1994-98 Galant .
I) See Figure 17
1. Disconnect the negative battery cable.
2. Remove the stone guard. -
3. Remove the retainers and the front splash
shield.
4. Remove the radi

IO-6 BODYANDTRIM
1994-98 Galant .
I) See Figure 17
1. Disconnect the negative battery cable.
2. Remove the stone guard. -
3. Remove the retainers and the front splash
shield.
4. Remove the radiator grille assembly.
5. Remove the turn signal lamp
6. Remove the headlamp lamp assembly.
7. Remove the header panel assembly.
8. Remove the retainer bolts along the upper,
lower and rear side of the fender.
9. Remove the fender from the vehicle.
10. Apply sealant between the fender and the
body panels, This will assure that there are no gaps
when the fender is mounted. Install the fender to the
vehicle and tighten all retainer bolts to 4 ft. Ibs. (6
Nm).
I
L
1999-00 Galant
I) See Figure 18
1. Disconnect the negative battery cable.
2. Remove the front bumper assembly.
3. Remove the headlamp lamp assembly.
4. Remove the fender side cladding.
I 5. Remove the stone guard.
6. Remove the retainers and the front splash
shield.
7. Remove the hood damper bracket.
8. Remove the retainer bolts along the upper,
lower and rear side of the fender.
9. Remove the fender from the vehicle.
10. Apply sealant between the fender and the
body panels. This will assure that there are no gaps
when the fender is mounted. Install the fender to the
vehicle and tighten all retainer bolts to 4 ft. Ibs. (6
Nm).
i 1. The installation is the reverse of removal. 11. The installation is the reverse of removal.
Fig. 17 Fender mounting-1994-98 Galant
9315Og16 Fig. 18 Fender mounting-1999-00 Galant
Fig. 19 Fender mounting-1990-92 Mirage 93150917
1990-92 Mirage
+ See Figure 19
1. Disconnect the negative battery cable.
2. Remove the radiator grille assembly.
3. Remove the retainers and the front splash
shield.
4. Remove the antenna assembly.
5. Remove the side protecting molding.
6. Remove the headlamp lamp assembly. a
7. Remove the grille filler panel.
8. Remove the front bumper assembly.
9. Remove the retainer bolts along the upper,
lower and rear side of the fender.
IO. Remove the fender from the vehicle. ~
11. Apply sealant between the fender
and the
body panels. This will assure that there are no gaps
when the fender is mounted. Install the fender to the
vehicle and tighten all retainer bolts to 4 ft. Ibs. (6
Nm).
12. The installation is the reverse of removal.
1993-00 Mirage
b See Figure 20
I. Disconnect the negative battery cable.
2. Remove the front bumper assembly.
3. Remove the retainers and the front splash
shield.
4. Remove the front turn signal lamp assembly.
5. Remove the ornament from the fender.
6. Remove the retainer bolts along the upper,
lower and rear side of the fender.
7. Remove the fender from the vehicle.
8. Installation is the reverse of the removal proce-
dure.
l Font bummer pISeWtbly 1 Splash shield
; !$yum~ slgwl l!gM 4. From lander panal
5Fenderswtlbracket 93150918 Fig. 20 Fender mounting-1993-00 Mirage
REMOVAL &INSTALLATION
6 See Figures 21 thru 31
For installation of the instrument panel, different
types of fasteners were used. During installation, it is
important that these fasteners are installed in their
original locations. To aid in this, the specific fasten-
ers and their positions are referenced by letters in the
exploded views of the instrument panel which follow. 1. Disconnect the negative battery cable.
2. Remove the floor console(s).
3. Remove the plugs and the screws from the
knee protector assembly. Remove the assembly from
the vehicle.
4. Remove the retainer and the hood lock re-
lease handle from the vehicle.

Page 375 of 408

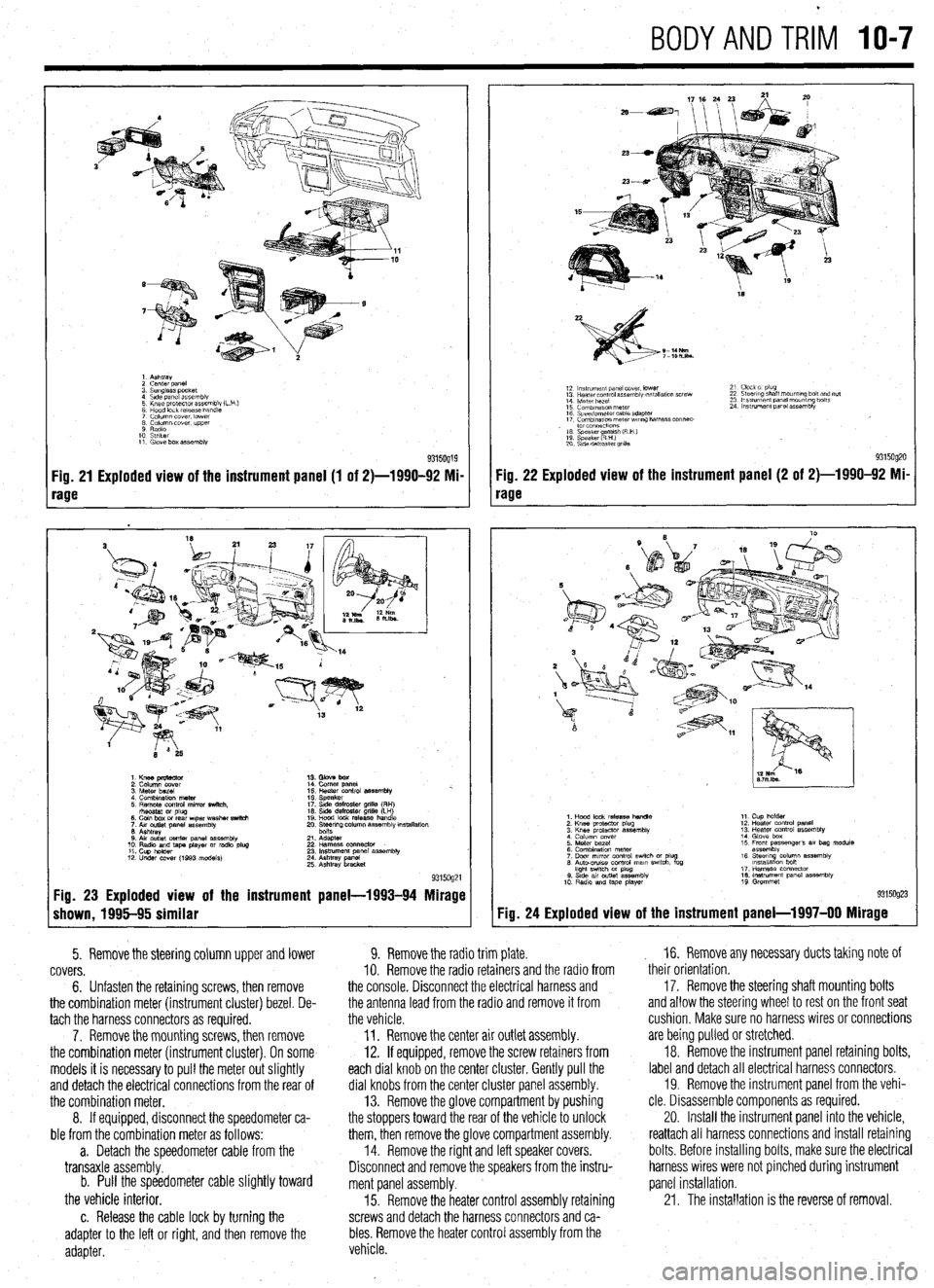

MITSUBISHI DIAMANTE 1900 Repair Manual BODYANDTRIM IO-7
1. Ashtray
2 cenrer DaneI
3. Sunglass pocket
4 Side panel assembly
5 Knee protector assembly (L
6 Hood lock release handle
7 Column cover. lower
8 Column cover. upper
9 Radio

BODYANDTRIM IO-7
1. Ashtray
2 cenrer DaneI
3. Sunglass pocket
4 Side panel assembly
5 Knee protector assembly (L
6 Hood lock release handle
7 Column cover. lower
8 Column cover. upper
9 Radio
10 Striker
11. Glove box assembly
Fig. 21 Exploded view of the instrument panel (1 of 2)-1990-92 Mi-
rage
1. Knee pmtector
2. Column cover
3. Meter bezel
4. Combination meter
5. Remote control mirror switch.
rhsostat or plug
6. Coin box or rear wper washer switch
7. Aw outlet panel assembly
6. Ashtray
0. Air outlet center panel assembly
10. Radio and tape player or radio plug
11. Cup holder
12. Under COW (1993 models) 14. Comer panel
15. Heater control assembly %.
16. Speaker
17. Side defroster grille (RH)
16. Side defroster grille (LH)
19. Hood lock release handle
20. Ee$ng column assembly mstallation
21. Adapter
22 Harness oonnector
23. Instrument panel assembly
24. Ashtray panel
25. Ashtray bracket
9315og21 Fig. 23 Exploded view of the instrument panel-1993-94 Mirage
shown, 1995-95 similar
5. Remove the steering column upper and lower
covers.
6. Unfasten the retaining screws, then remove
the combination meter (instrument cluster) bezel. De-
tach the harness connectors as required.
7. Remove the mounting screws, then remove
the combination meter (instrument cluster). On some
models it is necessary to pull the meter out slightly
and detach the electrical connections from the rear of
the combination meter.
8. If equipped, disconnect the speedometer ca-
ble from the combination meter as follows:
a. Detach the speedometer cable from the
transaxle assembly.
b. Pull the speedometer cable slightly toward
the vehicle interior.
c. Release the cable lock by turning the
adapter to the left or right, and then remove the
adapter.
18
S-14Nm
7-lOh.lbs.
12 ln~v~rnent panel cover. lower
13 Hearer control assembly w,tallatlon screw
14 Meter bezel
15 Combination meter
16 Speedometer cable adapter
17 Comblnawn meterwr~ng harness connec-
. to1 co”“ectlo”s
16 Speaker amlsh (R H )
19 Speaker RHI e
20 S\de defroster grllla 21 Clock 01 plug
22 Steering shaft mount,ng bolt and nut
23 Ins!rument panel mounting bolts
24 Instrument panel assembly
9315og20 Fig. 22 Exploded view of the instrument panel (2 of 2)-1990-92 Mi-
rage
Fig. 24
1. Hood lock release handle
2. Knee protactor plug
3. Knee protector assembly
4 Column cover
5. Meter bezel
6. Combination meter
7. Door mrror control swich or plug
6. Auto-CNISO control mam swtch. fog
hght swtch M plug
0. Stde av outlet assembly
10 Radio and tape player 11. Cup holder
12. Heater control panel
13. Heater control assembly
14. Glove box
15 Front passenger’s 81, bag module
assembly
16. Steerq column assembly
lnstallatlon bon
17. Harness connector
16. Instrument panel assembly
19 Grommet
Exploded view of the instrument panel-l 997-00 Mirage
9. Remove the radio trim plate.
IO. Remove the radio retainers and the radio from
the console. Disconnect the electrical harness and
the antenna lead from the radio and remove it from
the vehicle.
11. Remove the center air outlet assembly.
12. If equipped, remove the screw retainers from
each dial knob on the center cluster. Gently pull the
dial knobs from the center cluster panel assembly.
13. Remove the glove compartment by pushing
the stoppers toward the rear of the vehicle to unlock
them, then remove the glove compartment assembly.
14. Remove the right and left speaker covers.
Disconnect and remove the speakers from the instru-
ment panel assembly.
15. Remove the heater control assembly retaining
screws and detach the harness connectors and ca-
bles. Remove the heater control assembly from the
vehicle. , 16. Remove any necessary ducts taking note of
their orientation,
17. Remove the steering shaft mounting bolts
and allow the steering wheel to rest on the front seat
cushion, Make sure no harness wires or connections
are being pulled or stretched.
18. Remove the instrument panel retaining bolts,
label and detach all electrical harness connectors.
19. Remove the instrument panel from the vehi-
cle. Disassemble components as required.
20. Install the instrument panel into the vehicle,
reattach all harness connections and install retaining
bolts. Before installing bolts, make sure the electrical
harness wires were not pinched during instrument
panel installation.
21. The installation is the reverse of removal.

Page 376 of 408

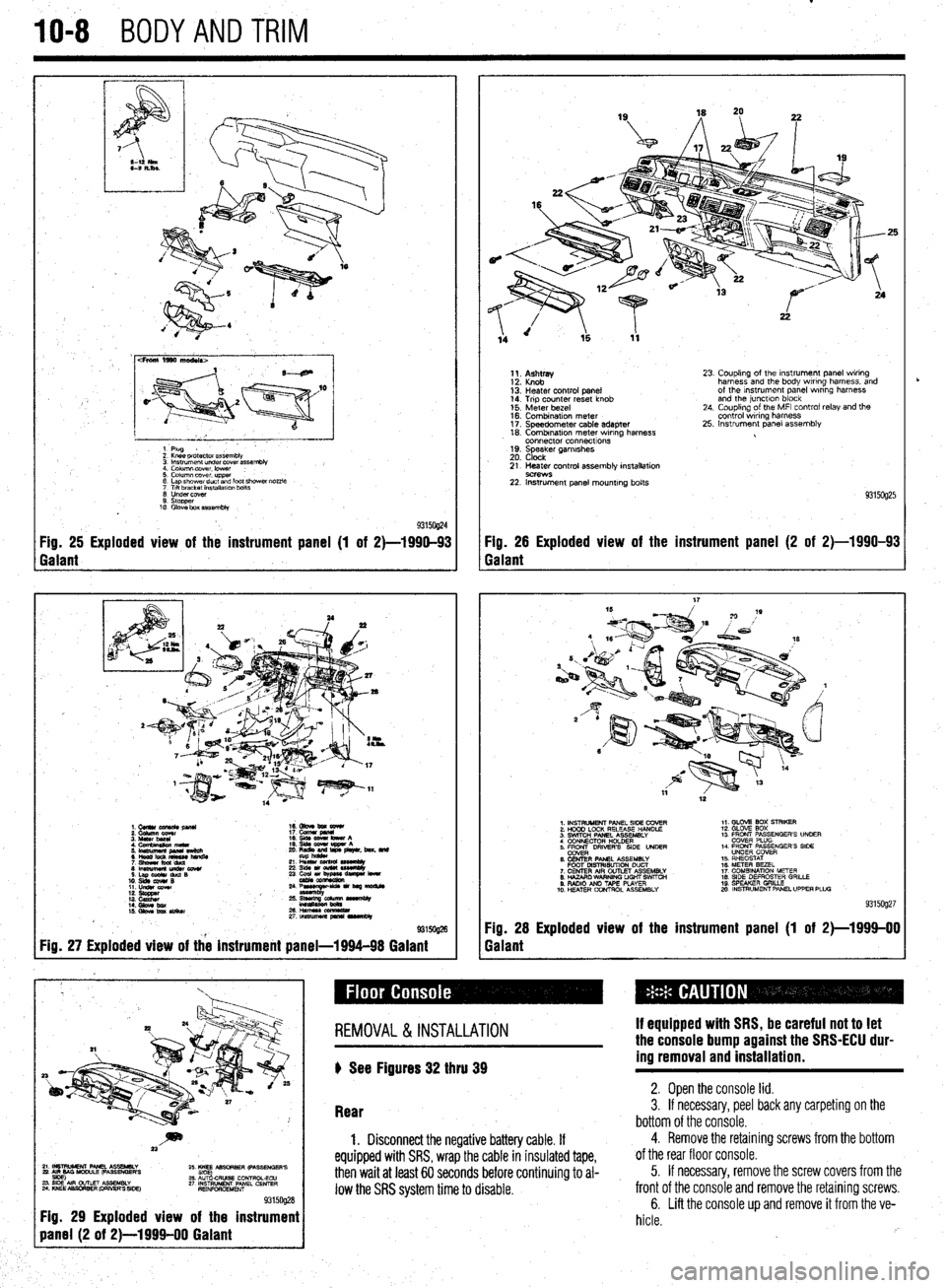

MITSUBISHI DIAMANTE 1900 Repair Manual IO-8 BODYANDTRIM
cFroni 1990 ma&Is>
1 Plug
2 Knee pr&ctor assembb
3 lnsuumen~ under covet assembly
4. Column lxwer. lower :
5. Column cover upper
6 Lap shower duct and foot shcwai nozzle
7 Ttl

IO-8 BODYANDTRIM
cFroni 1990 ma&Is>
1 Plug
2 Knee pr&ctor assembb
3 lnsuumen~ under covet assembly
4. Column lxwer. lower :
5. Column cover upper
6 Lap shower duct and foot shcwai nozzle
7 Ttlt bracket installalm bolts
0 Undercover
9. stopper
10 Glove box assembly
93150@4 Fig. 25 Exploded view of the instrument panel (1 of 2)-1990-93 Fig. 26 Exploded view of the instrument panel (2 of 2)-1990-93
Galant Galant
1.CUllUCU+RC&pllU 16. Gbve bm eewr
i: iiiikz!!T 17. cucw gmnl
4. Cfnnbinuion meta 19. qds cww bww A
5 ‘~fiJzg%L L: ,“zr&, beat. md
21 L% sssemuy
8lmwmemu&cowr 236&1ou(W~
S.LapOdrduQB
10. slds cw4# B 23 ~u,~e-
11. LIdsI corn
::: s%ZZ
14. Gbw bx / ;:+q-=:-
kmasa
IS. Gkw ba SIiikw 2&HWSSCCl!ZL
2rtnsmlmuapr*lrvrnbly
@ma
Fig. 27 Exploded view of the instrument panel-1994-98 Galant
1;. p;;w
13: Heater control panel
14. Trip counter reset knob
15. Meter bezel
16. Combination meter
17. Speedometer cable adapter
18. Combrnatron meter wiring harness
connector connecttons
19. Speaker garnrshes
20. Clock 23. Coupling of the Instrument panel wiring
harness and the body wiring harness, and
of the Instrument panel wrring harness
and the junctlon block
24. Coupling of the MFI control relay and the
control wiring harness
25. Instrument panel assembly

21. Heater control assembly installation
9C?WS 22. Instrument panel mounting bolts
93150925
1. INSTRUMENT PANEL SIDE COVER
2. HOOD LOCK RELEASE HANDLE
3. SWITCH PANEL ASSEMBLY
4 CONNECTOR H+DER
5. ER DRIVERS SIDE UNDER
6. CENTER PANEL ASSEMBLY
FOOT MSTRISUTION DUCT
7. CENTER AIR OUTLET ASSEMBLY
8. HAZARO WARNING LIGHT SWfTCti
9. RADIO AN0 TAPE PLAYER
10. H!ZATER CONTROL ASSEMBLY 1,. GLOV2 BOX STRIKER
12. GLOVE SOX
13 FRONT PASSENGER’S UNOER
COVER PLUG
14. FRONT PASSENGER’S SIDE
UNDER COVER
15. RHEOSTAT
16. METER BEZEL
17. COMBINATION METER
18. SIDE DEFROSTER GRILLE
19 SPEAKER GRILLE
mo. INSTRUMENT PANEL UPPER PLUG
93159927
Fig. 28 Exploded view of the instrument panel (1 of 2)-1999-00
Galant
~~~~~~~~~
Fig. 29 Exploded view of the instrument
REMOVAL &INSTALLATION
) See Figures 32 thru 39 If equipped with SRS, be careful not to let
the console bump against the SRS-ECU dur-
ing removal and installation.
Rear 2. Open the console lid. 3. If necessary, peel back any carpeting on the
bottom of the console.
1. Disconnect the negative battery cable. If
equipped with SRS, wrap the cable in insulated tape,
then wait at least 60 seconds before continuing to al-
low the SRS system time to disable.
4. Remove the retaining screws from the bottom
of the rear floor console.
5. If necessary, remove the screw covers from the
front of the console and remove the retaining screws.
6. Lift the console up and remove it from the ve-
hicle.
rb

Load next 8 pages

Page: < prev 1-10 ... 337-344 345-352 353-360 361-368 369-376 377-384 385-392 393-400 401-408 ... 408 next >

seat memory towing capacity coolant level clock fog light service interval
