Reverse Automatic Braking (RAB) System (If Equipped)
283
– CONTINUED –
Starting and Operating7
Guideline of detecting range*: Range of detection may vary depending on the environmental condition.Alert level
Range of detected
object
*
Distance
indicator Alarm pattern
Long proximity (object detected) 35 in (90 cm) or more Green No warning sound
Medium proximity alert (approaching
the object) 28 to 35 in (70 to 90 cm) Yellow Short beeps
Short proximity alert (approaching
closer to the object) 20 to 28 in (50 to 70 cm) Orange Rapid short beeps
Closest proximity alert (too close to
the object) 20 in (50 cm) or less Red Continuous beep
▼
Obstacle detected and alert levelLong proximity alert (object detected)
1) Green: 35 in (90 cm) or more
Medium proximity alert (approaching the
object)
1) Yellow: 28 to 35 in (70 to 90 cm)
1
702886
1
702887
BRZ_U.book 283 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Reverse Automatic Braking (RAB) System (If Equipped)
284Short proximity alert (approaching the
object closer)
1) Orange: 20 to 28 in (50 to 70 cm)
Closest proximity alert (too close to the
object)
1) Red: 20 in (50 cm) or less

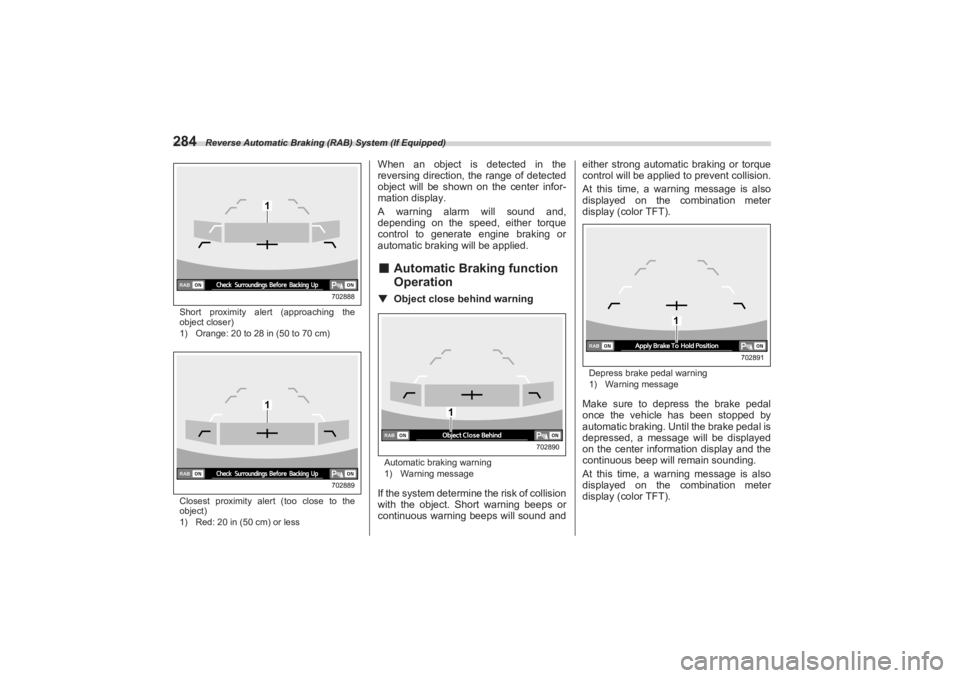

When an object is detected in the
reversing direction, the range of detected
object will be shown on the center infor-
mation display.
A warning alarm will sound and,
depending on the speed, either torque
control to generate engine braking or
automatic braking will be applied.■ Automatic Braking function
Operation▼ Object close behind warningAutomatic braking warning
1) Warning messageIf the system determine the risk of collision
with the object. Short warning beeps or
continuous warning beeps will sound and either strong automatic braking or torque

control will be applied to prevent collision.
At this time, a warning message is also
displayed on the combination meter
display (color TFT).
Depress brake pedal warning
1) Warning messageMake sure to depress the brake pedal
once the vehicle has been stopped by
automatic braking. Un til the brake pedal is
depressed, a message will be displayed
on the center information display and the
continuous beep will remain sounding.
At this time, a warning message is also
displayed on the combination meter
display (color TFT).
1
702888
1
702889
1
702890
1
702891
BRZ_U.book 284 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Reverse Automatic Braking (RAB) System (If Equipped)
285
Starting and Operating7
– CONTINUED –
NOTEThe Sonar Audible Alarm function and
Automatic Braking fu nction are differ-
ent in operation conditions. Therefore
there are cases in which only one of
these functions will activate.▼ After the vehicle is stopped by the
system After the brake pedal is depressed, the

RAB OFF indicator will illuminate and the
system will temporarily stop operating.
The RAB OFF indicator will turn off when
the select lever is shifted to a position
other than the “R” position.
The system will operate again the next
time the select lever is shifted to the “R”
position.
NOTE The Reverse Automatic Braking
(RAB) system will be disabled in the
following situations. - When 3 seconds pass after the
vehicle is stopped
- When any door is opened
- When the RAB warning indicator
is illuminated
- When the RAB OFF indicator is
illuminated
 The Reverse Automatic Braking
(RAB) system may stop operating
temporarily in the following cases and
the RAB OFF indicator will illuminate. - Ice, snow or mud is adhered to
the sonar sensors or the rear
bumper near the sonar sensor
- Objects are too close to the rear
bumper when the select lever is set
to the “R” position
- The system detects sounds of a
similar frequency to the RAB sonar - When the TRAC mode and

Vehicle Stability Control (VSC)
mode are turned off
- When in TRACK mode and the
Pre-Collision Braking System has
been turned off
■ Canceling the Reverse Auto -
matic Braking (RAB) System
OperationThe Reverse Automatic Braking (RAB)
system can be temporarily canceled by
any of the following operation.
 While the vehicle is stopped by the
operation of automatic braking, the brake
pedal is depressed.
 While the vehicle is stopped by the
operation of automati c braking, the accel-
erator pedal is depressed.
 The accelerator pedal is depressed
continuously (In this case, limited acceler-
ation will be canceled and the vehicle will
continue reversing.)
 The select lever is shifted to a position
other than the “R” position.NOTEThe system will be canceled if the
object is no longer detected.
WARNING
Depress the brake pedal immedi-
ately after the system stops the
vehicle by automatic braking.
Depending on the conditions of the
road surface and tires, the vehicle
may not remain stopped, possibly
leading to an accident.
702810
BRZ_U.book 285 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Reverse Automatic Braking (RAB) System (If Equipped)
286■Reverse Automatic Braking
(RAB) System ON/OFF
SettingWhile the select lever is shifted to the “R”
position, the below functions of the
Reverse Automatic Braking (RAB) system
can be set by operating the center infor-
mation display.1) ON setting key of Automatic Braking
function
2) OFF setting key of Automatic Braking
function
3) ON setting key of the Sonar Audible
Alarm function
4) OFF setting key of the Sonar Audible
Alarm functionWhen the ON setting key is shown, the
corresponding setting is ON. Touch the ON setting key to turn the

setting OFF.
When the OFF setting is shown, the corre-
sponding setting is OFF.
Touch the OFF setting key to turn the
setting ON.
When the Automatic Braking function are
turned OFF, the following indicator(s) will
illuminate.
The RAB OFF indicator will turn off when
the corresponding function is turned ON.
NOTEWhen the settings cannot be changed,
the ON/OFF setting key will be grayed
out.
Also, the following settings can be
changed by operating the center informa-
tion display. 
Warning volume
 Sonar Audible Alarm
 Automatic Braking
For details, refer to "Car settings" P165.
■ RAB Warning IndicatorIf the Reverse Automatic Braking (RAB)
system malfunctions, the above indicator
illuminates on the combination meter.
Contact the nearest SUBARU dealer for
details.■ Handling of the Sonar
SensorsThe 4 sonar sensors are located in the
rear bumper. To ensure the proper opera-
tion of the Reverse Automatic Braking
(RAB) system, observe the following
precautions.
12
34
702892
702810
702811
BRZ_U.book 286 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Reverse Automatic Braking (RAB) System (If Equipped)
287
Starting and Operating7
– CONTINUED –
Do not affix any stickers or other items
on the sonar sensor or the bumper
surface near the sonar sensors.
 Always keep the sonar sensor and the
rear bumper surface near the sonar
sensors clean.
 Do not modify rear bumper.
 Do not paint the bumper near the sonar
sensors.
 Do not apply high pressure water to the
sonar sensors with a high pressure car-
washing machine.
 Do not apply strong impacts to the rear
bumper near the sonar sensors. If a
sensor becomes misaligned, a system
malfunction may occur, including inability
to detect objects in the reversing direction.
If any strong impact is applied to the rear bumper, contact a SUBARU dealer to

have the system inspected.
 Do not disassemble the sonar sensors.
NOTEIf the sonar sensors require repair or
replacement, or if the area of the rear
bumper near the sonar sensors
requires repair, paintwork or replace-
ment, contact your SUBARU dealer for
assistance.
702995
BRZ_U.book 287 ページ ２０２２年３月２９日　火曜日　午後３時５９分
