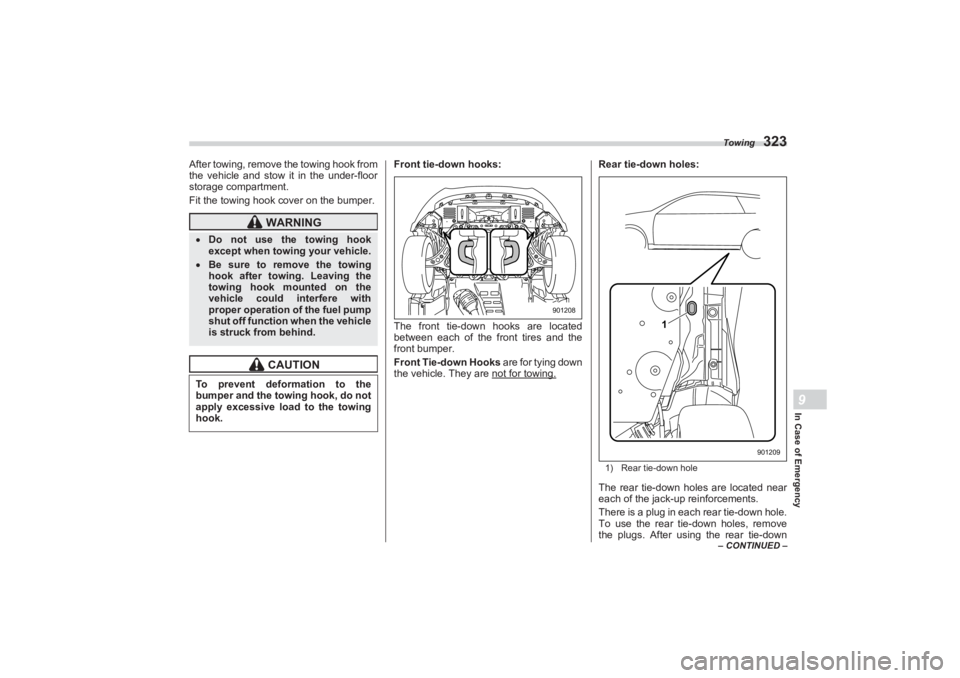

2023 SUBARU BRZ Owners Manual

Towing
323
In Case of Emergency9
– CONTINUED –
After towing, remove the towing hook from
the vehicle and stow it in the under-floor
storage compartment.
Fit the towing hook cover on the bumper. Front tie-down hooks:
The front tie-down hooks are located

between each of the front tires and the
front bumper.
Front Tie-down Hooks are for tying down
the vehicle. They are not for towing.
Rear tie-down holes:1) Rear tie-down holeThe rear tie-down holes are located near
each of the jack-up reinforcements.
There is a plug in each rear tie-down hole.
To use the rear tie-down holes, remove
the plugs. After using the rear tie-down
WARNING
Do not use the towing hook
except when towing your vehicle. Be sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the
vehicle could interfere with
proper operation of the fuel pump
shut off function when the vehicle
is struck from behind.
CAUTION
To prevent deformation to the
bumper and the towing hook, do not
apply excessive load to the towing
hook.
901208
1
901209
BRZ_U.book 323 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Towing
324holes, return the plugs to their original
places.■Using a Flat-Bed Truck
This is the best way to transport your
vehicle. Use the following procedures to
ensure safe transportation.
1. Shift the select lever into the “P” posi-
tion for AT models. Sh ift the shift lever into
the 1st position for MT models.
2. Apply the parking brake firmly.
3. Secure the vehicle onto the carrier
properly with safety chains. Each safety
chain should be equally tightened and
care must be taken not to pull the chains
so tightly that the suspension bottoms out.
■ Towing with All Wheels on
the Ground
WARNING
Use the rear tie-down holes only for
downward anchoring. If they are
used to anchor the vehicle in any
other direction, cables may slip out
of the holes, possibly causing a
dangerous situation.
900488
CAUTION
Transport by flat -bed truck may
cause the headlights to become
misaligned. In such a case, have the
headlight alignment checked by a
SUBARU dealer after transporting
the vehicle by flat-bed truck.
WARNING
 Never turn the ignition switch to
the “OFF” position while the
vehicle is being towed because
the steering wheel and the direc-
tion of the wheels will be locked. Remember that the brake booster
and power steering do not func-
tion when the engine is not
running. Because the engine is
turned off, it w ill take greater
effort to operate the brake pedal
and steering wheel.
900489
BRZ_U.book 324 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Access Key Fob – If Access Key Fob Does Not Operate Properly
325
In Case of Emergency9
– CONTINUED –
1. Release the parking brake and put the
transmission in neutral.
2. The ignition switch should be in the
“ON” position while the vehicle is being
towed.
3. Take up slack in the towline slowly to
prevent damage to the vehicle.
9-7. Access Key Fob – If
Access Key Fob Does Not Operate ProperlyThe following functions may be inoperable
because of strong radio signals in the
surrounding area or a low battery condi-
tion of the access key fob.
 Locking/unlocking doors including
trunk
 Switching power status
 Starting engine
In such cases, perform the following
procedure. When t he battery of the
access key fob is discharged, replace it
with a new one. Refer to "Replacing
Battery of Access Key Fob" P376.
CAUTION
 If transmission failure occurs,
transport your vehicle on a flat-
bed truck. Sometime damaged vehicles
cannot be towed because of their
damaged condition. In that case,
use a flat-bed truck for transpor-
tation. The traveling speed must be
limited to less than 20 mph (32
km/h) and the traveling distance
to less than 19 miles (30 km). For
greater speeds and distances,
transport your vehicle on a flat-
bed truck. Use a flat-bed truck if there are
long distance downgrades or
steep slopes. However, do not
apply the brake pedal for a long
time because the engine braking
will not work while towing. Doing
so could overheat the brake. Drive carefully and do not make
an impact on the towing rope by
suddenly starting.
 Use a specific towing rope for
towing. If wire ropes and metal
chains are needed to be used for
towing, wrap the contact portion
of the bumper with cloth to
protect it from damage.
CAUTION
Keep metallic objects, magnetic
sources and signal transmitters
away from the area between the
access key fob and the push-button
ignition switch. They may interfere
with the communication between
the access key fob and the push-
button ignition switch.
BRZ_U.book 325 ページ ２０２２年３月２９日　火曜日　午後３時５９分

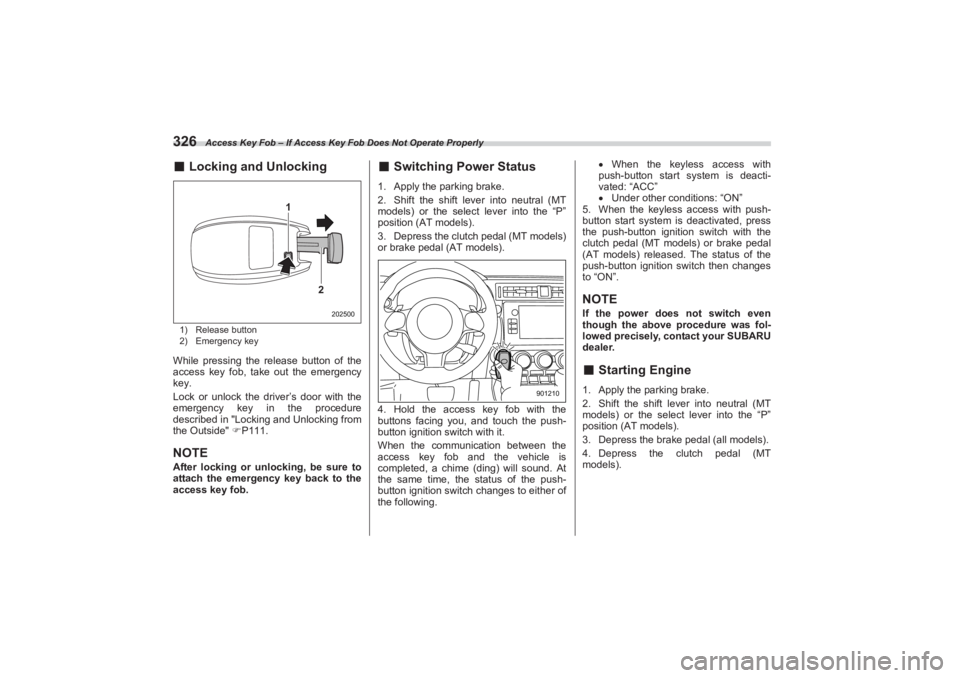

Access Key Fob – If Access Key Fob Does Not Operate Properly
326■Locking and Unlocking1) Release button
2) Emergency keyWhile pressing the release button of the
access key fob, take out the emergency
key.
Lock or unlock the driver’s door with the
emergency key in the procedure
described in "Locking and Unlocking from
the Outside" P111.NOTEAfter locking or unlocking, be sure to
attach the emergency key back to the
access key fob.
■ Switching Power Status1. Apply the parking brake.
2. Shift the shift lever into neutral (MT
models) or the select lever into the “P”
position (AT models).
3. Depress the clutch pedal (MT models)
or brake pedal (AT models).
4. Hold the access key fob with the
buttons facing you, and touch the push-
button ignition switch with it.
When the communication between the
access key fob and the vehicle is
completed, a chime (ding) will sound. At
the same time, the status of the push-
button ignition switch changes to either of
the following. 
When the keyless access with
push-button start system is deacti-
vated: “ACC”
 Under other conditions: “ON”
5. When the keyless access with push-
button start system is deactivated, press
the push-button ignition switch with the
clutch pedal (MT models) or brake pedal
(AT models) released. The status of the
push-button ignition switch then changes
to “ON”.
NOTEIf the power does not switch even
though the above procedure was fol-
lowed precisely, co ntact your SUBARU
dealer.■ Starting Engine1. Apply the parking brake.
2. Shift the shift lever into neutral (MT
models) or the select lever into the “P”
position (AT models).
3. Depress the brake pedal (all models).
4. Depress the clutch pedal (MT
models).
1
2
202500
901210
BRZ_U.book 326 ページ ２０２２年３月２９日　火曜日　午後３時５９分

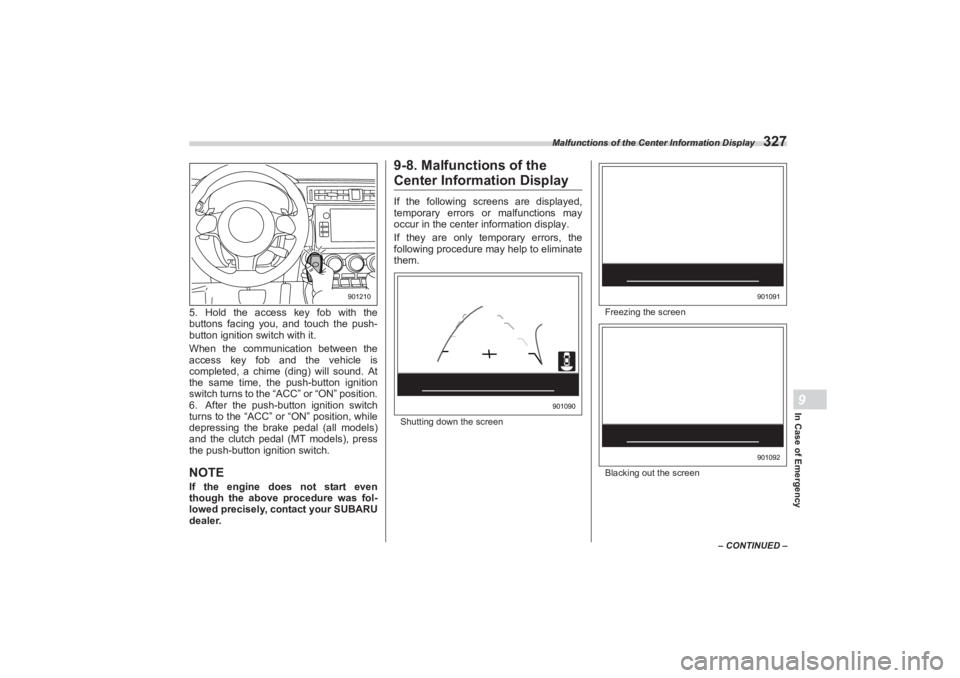

Malfunctions of the Center Information Display
327
In Case of Emergency9
– CONTINUED –
5. Hold the access key fob with the
buttons facing you, and touch the push-
button ignition switch with it.
When the communication between the
access key fob and the vehicle is
completed, a chime (ding) will sound. At
the same time, the push-button ignition
switch turns to the “ACC” or “ON” position.
6. After the push-button ignition switch
turns to the “ACC” or “ON” position, while
depressing the brake pedal (all models)
and the clutch pedal (MT models), press
the push-button ignition switch.NOTEIf the engine does not start even
though the above procedure was fol-
lowed precisely, contact your SUBARU
dealer.
9-8. Malfunctions of the Center Information DisplayIf the following screens are displayed,
temporary errors or malfunctions may
occur in the center information display.
If they are only temporary errors, the
following procedure may help to eliminate
them.Shutting down the screen Freezing the screen
Blacking out the screen
901210
901090
901091901092
BRZ_U.book 327 ページ ２０２２年３月２９日　火曜日　午後３時５９分

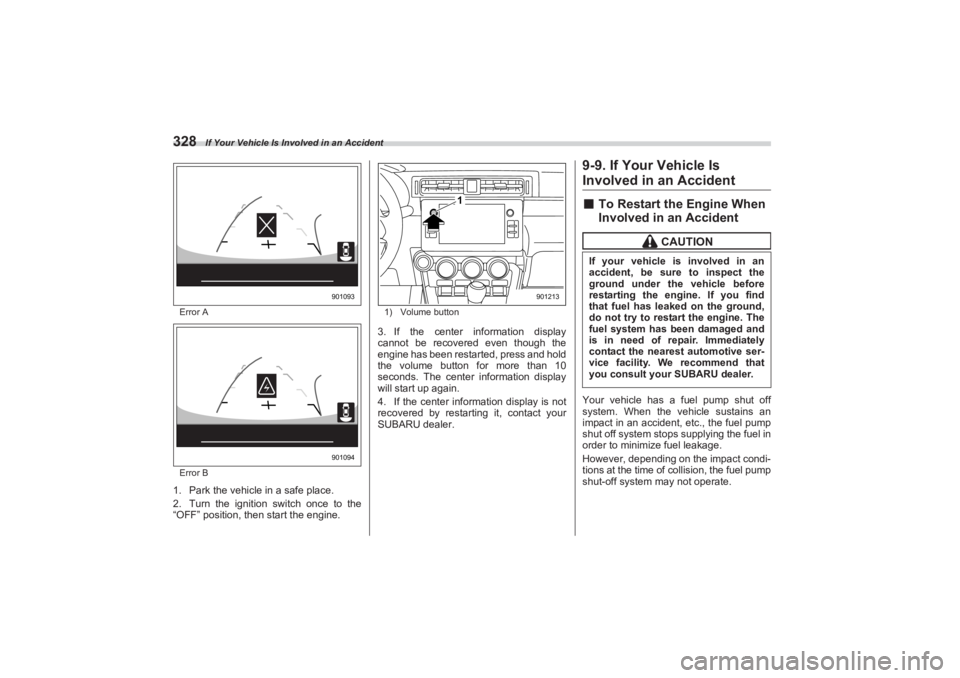

If Your Vehicle Is Involved in an Accident
328Error A
Error B1. Park the vehicle in a safe place.
2. Turn the ignition switch once to the
“OFF” position, then start the engine.
1) Volume button3. If the center information display
cannot be recovered even though the
engine has been restarted, press and hold
the volume button for more than 10
seconds. The center information display
will start up again.
4. If the center information display is not
recovered by restarting it, contact your
SUBARU dealer.
9-9. If Your Vehicle Is Involved in an Accident■ To Restart the Engine When
Involved in an AccidentYour vehicle has a fuel pump shut off
system. When the vehicle sustains an
impact in an accident, etc., the fuel pump
shut off system stops supplying the fuel in
order to minimize fuel leakage.
However, depending on the impact condi-
tions at the time of collision, the fuel pump
shut-off system may not operate.
901093901094
1
901213
CAUTION
If your vehicle is involved in an
accident, be sure to inspect the
ground under the vehicle before
restarting the engine. If you find
that fuel has leaked on the ground,
do not try to rest art the engine. The
fuel system has been damaged and
is in need of repair. Immediately
contact the nearest automotive ser-
vice facility. We recommend that
you consult your SUBARU dealer.
BRZ_U.book 328 ページ ２０２２年３月２９日　火曜日　午後３時５９分

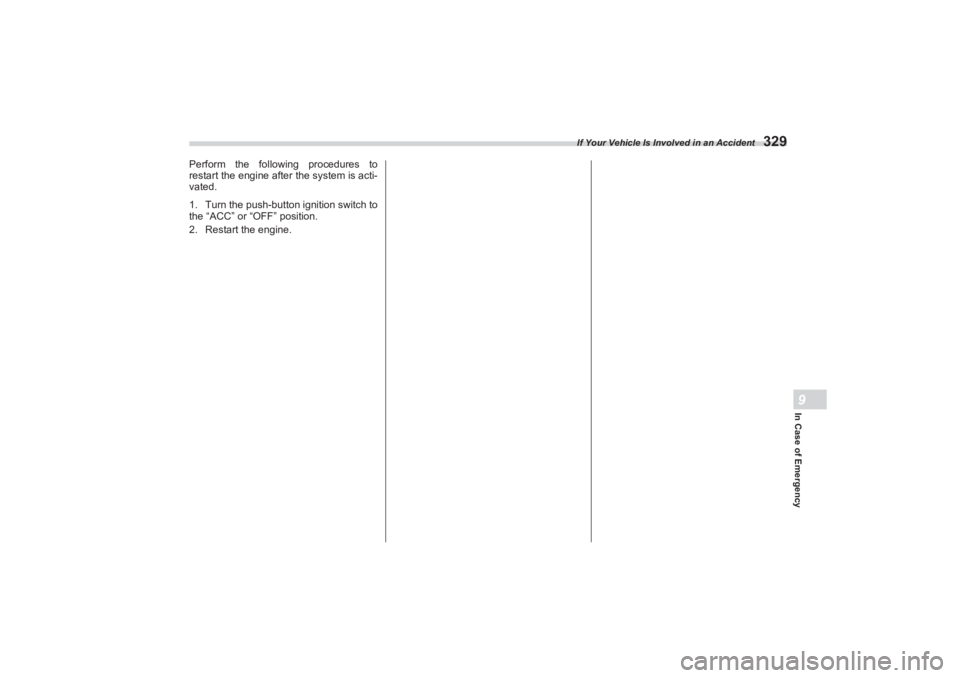

If Your Vehicle Is Involved in an Accident
329
In Case of Emergency9
Perform the following procedures to
restart the engine after the system is acti-
vated.
1. Turn the push-button ignition switch to
the “ACC” or “OFF” position.
2. Restart the engine.
BRZ_U.book 329 ページ ２０２２年３月２９日　火曜日　午後３時５９分
