2023 SUBARU BRZ Owners Manual

Combination Meter Display (Color TFT)
155
Instruments and Controls3
– CONTINUED –

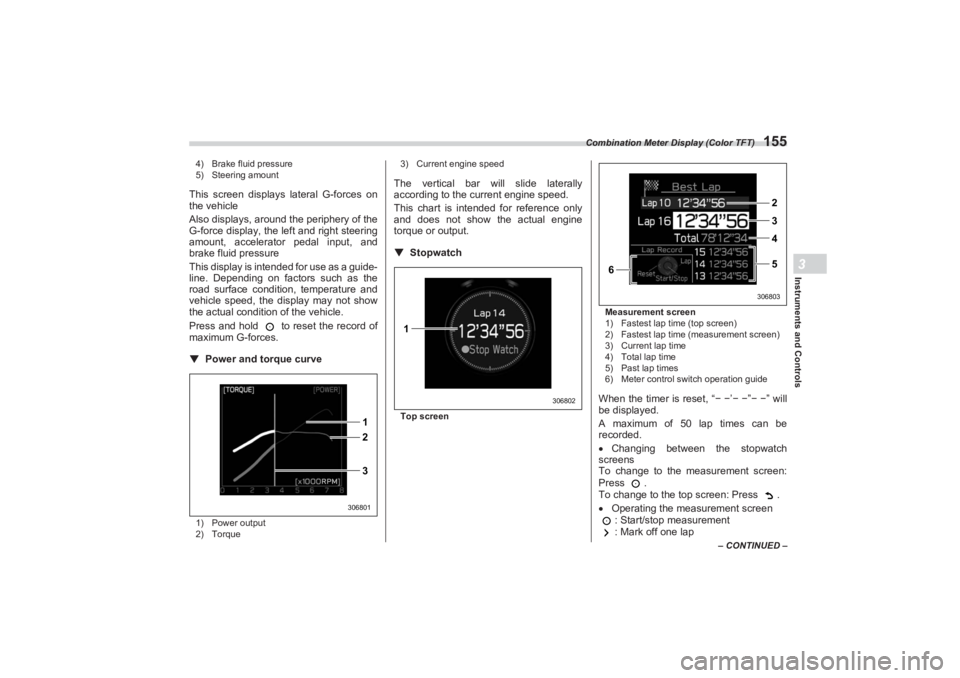

4) Brake fluid pressure
5) Steering amount
This screen displays lateral G-forces on

the vehicle
Also displays, around the periphery of the
G-force display, the left and right steering
amount, accelerator pedal input, and
brake fluid pressure
This display is intended for use as a guide-
line. Depending on factors such as the
road surface condition, temperature and
vehicle speed, the display may not show
the actual condition of the vehicle.
Press and hold to reset the record of
maximum G-forces.▼ Power and torque curve1) Power output
2) Torque 3) Current engine speed
The vertical bar will slide laterally

according to the current engine speed.
This chart is intended for reference only
and does not show the actual engine
torque or output.
▼ StopwatchTop screen Measurement screen
1) Fastest lap time (top screen)
2) Fastest lap time (measurement screen)
3) Current lap time
4) Total lap time
5) Past lap times
6) Meter control switch operation guide
When the timer is reset, “
− − ’− − ”− − ” will
be displayed.
A maximum of 50 lap times can be
recorded.
 Changing between the stopwatch
screens 
To change to the measurement screen:
Press . 
To change to the top screen: Press .
 Operating the measurement screen 
: Start/stop measurement 
: Mark off one lap 
2 1
3
306801
1
306802
6
2
3
4
5
306803
BRZ_U.book 155 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter Display (Color TFT)
156
: Reset measured lap times
/ : Scroll through the lap times
 Resetting measured lap times 
After stopping the measurement, press
.
 To display other content while the stop-
watch is operating 
If the measurement screen is displayed,
press to display the top screen. Then
operate the meter control switches to
display other content. While other items
are displayed, the measurement will
continue but the stopwatch cannot be
operated.
■ Navigation System-Linked
DisplayWhen the route guidance is set in the navi-
gation system, this item shows the naviga-
tion route information. For details about
the audio system, refer to the separate
audio Owner’s Manual.
■ Audio System-Linked
DisplayThis screen displays the status of audio
information. For details about the audio
system, refer to the separate audio
Owner’s Manual.
306798
306879
BRZ_U.book 156 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter Display (Color TFT)
157
Instruments and Controls3
– CONTINUED –

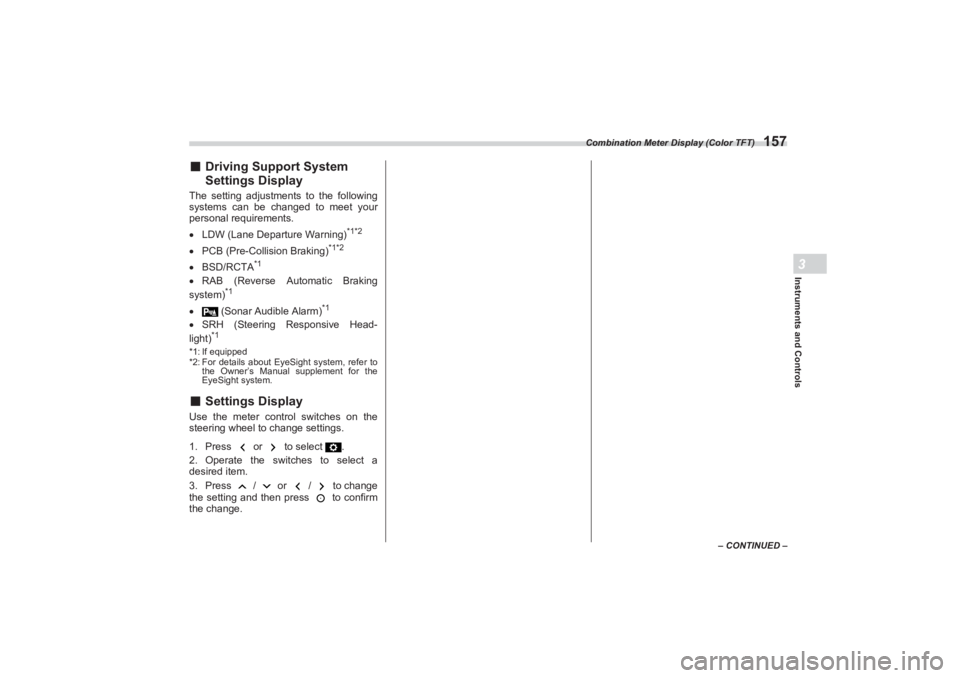

■Driving Support System
Settings DisplayThe setting adjustments to the following
systems can be changed to meet your
personal requirements.
 LDW (Lane Departure Warning)
*1*2
PCB (Pre-Collision Braking)
*1*2
BSD/RCTA
*1
RAB (Reverse Automatic Braking
system)
*1
 (Sonar Audible Alarm)
*1
SRH (Steering Responsive Head-
light)
*1
*1: If equipped
*2: For details about EyeSight system, refer to
the Owner’s Manual supplement for the
EyeSight system.■ Settings DisplayUse the meter control switches on the
steering wheel to change settings.
1. Press or to select .
2. Operate the switches to select a
desired item.
3. Press / or / to change
the setting and then press to confirm
the change.
BRZ_U.book 157 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter Display (Color TFT)
158*1: If equipped
*2: For details about EyeSight system, refer to the Owner’s Manual supplement for the EyeSight system.
Item
SettingsPage reference for
the vehicle system
operation
EyeSight
*1
Acquisition Sound ON/OFF
*2
Start AlertON/OFF
Accel Lv. Lv.1 (Eco)/Lv.2 (Comfort)/Lv.3 (Standard)/Lv.4 (Dynamic)
Select Drive Lane Right Lane/Left Lane
Units km, km/h, l/100km / miles, MPH, MPG127, 151 and *2
Warning Volume *1
Max/Mid/Min 277 and *2
Screen Settings Startup Scrn
ON/OFF -
GSI (MT models) ON/OFF 234
REV. Indicator
ON/OFF
130
RPM **00rpm
Buzzer ON/OFF
Car Settings Keyless Entry
Audible Signal
*1
ON/OFF
105 and 110
Hazard Flasher ON/OFF 106 and 110
Driver Door Unlock Driver Door Only/All 100
Defogger 15 minutes/Continuous 185
Interior Light 7.5 seconds/15 seconds/30 seconds 212
Auto Light Sensor Light Sensitivity Min/Low/Mid/High/Max
174
Wiper Link ON/OFF 175
Welcome Lighting Approaching Time Set 30 sec
onds/60 seconds/90 seconds/OFF
175
Leaving Time Set 30 seconds/60 seconds/90 seconds/OFF
1-Touch LN CHGR ON/OFF 182
BRZ_U.book 158 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter Display (Color TFT)
159
Instruments and Controls3

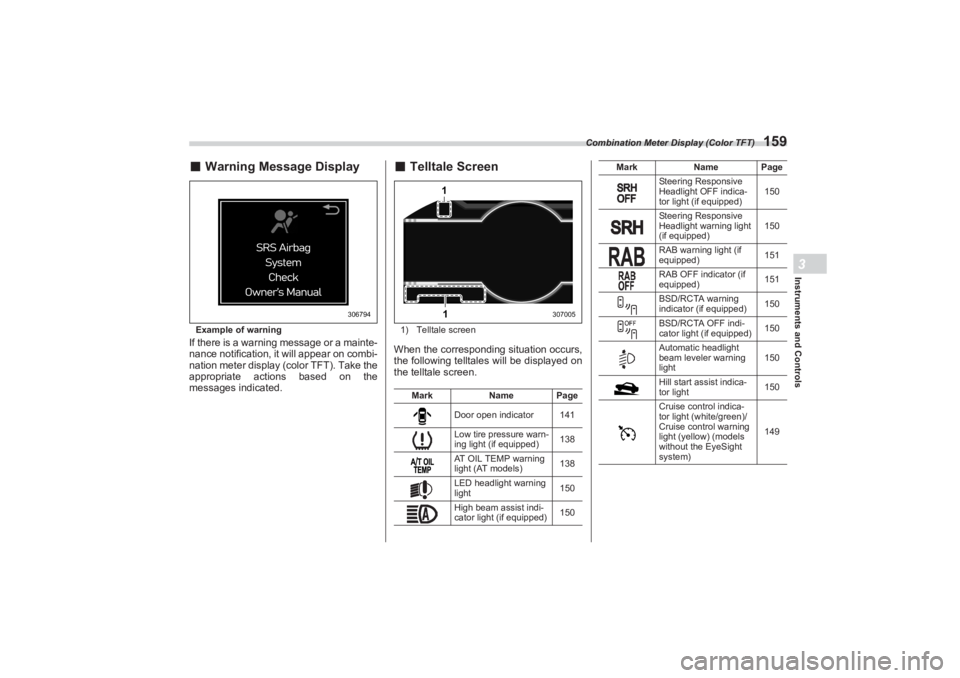

■Warning Message DisplayExample of warningIf there is a warning message or a mainte-
nance notification, it will appear on combi-
nation meter display (color TFT). Take the
appropriate actions based on the
messages indicated.
■ Telltale Screen1) Telltale screenWhen the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen.
306794
Mark Name Page
Door open indicator 141
Low tire pressure warn-
ing light (if equipped) 138
AT OIL TEMP warning
light (AT models) 138
LED headlight warning
light 150
High beam assist indi-
cator light (if equipped) 150
11
307005
Steering Responsive
Headlight OFF indica-
tor light (if equipped)150
Steering Responsive
Headlight warning light
(if equipped) 150
RAB warning light (if
equipped) 151
RAB OFF indicator (if
equipped) 151
BSD/RCTA warning
indicator (if equipped) 150
BSD/RCTA OFF indi-
cator light (if equipped) 150
Automatic headlight
beam leveler warning
light 150
Hill start assist indica-
tor light 150
Cruise control indica-
tor light (white/green)/
Cruise control warning
light (yellow) (models
without the EyeSight
system) 149
Mark
Name Page
BRZ_U.book 159 ページ ２０２２年３月２９日　火曜日　午後３時５９分

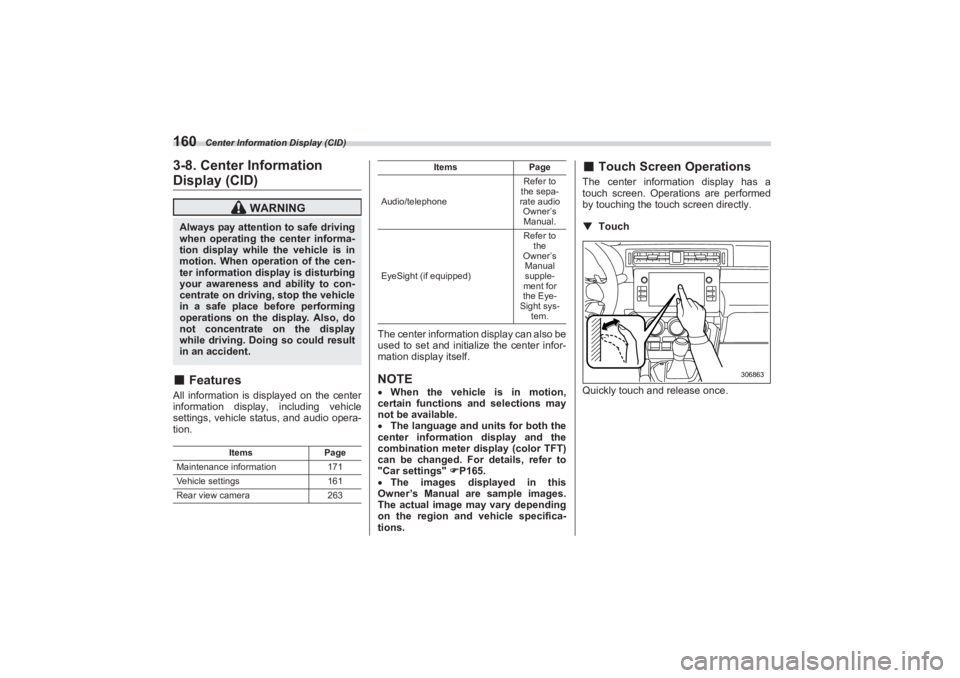

Center Information Display (CID)
1603-8. Center Information Display (CID)■FeaturesAll information is displayed on the center
information display, including vehicle
settings, vehicle status, and audio opera-
tion. The center information display can also be

used to set and initialize the center infor-
mation display itself.
NOTE When the vehicle is in motion,
certain functions and selections may
not be available.
 The language and units for both the
center information display and the
combination meter display (color TFT)
can be changed. For details, refer to
"Car settings" P165.
 The images displayed in this
Owner’s Manual are sample images.
The actual image may vary depending
on the region and vehicle specifica-
tions.
■ Touch Screen OperationsThe center information display has a
touch screen. Operations are performed
by touching the touch screen directly.
▼ TouchQuickly touch and release once.
WARNING
Always pay attention to safe driving
when operating the center informa-
tion display while the vehicle is in
motion. When operation of the cen-
ter information display is disturbing
your awareness and ability to con-
centrate on driving, stop the vehicle
in a safe place before performing
operations on the display. Also, do
not concentrate on the display
while driving. Doing so could result
in an accident.
Items Page
Maintenance information 171
Vehicle settings 161
Rear view camera 263
Audio/telephoneRefer to
the sepa-
rate audio Owner’s
Manual.
EyeSight (if equipped) Refer to
the
Owner’s Manual
supple-
ment for
the Eye-
Sight sys- tem.
Items
Page
306863
BRZ_U.book 160 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)
161
Instruments and Controls3
– CONTINUED –

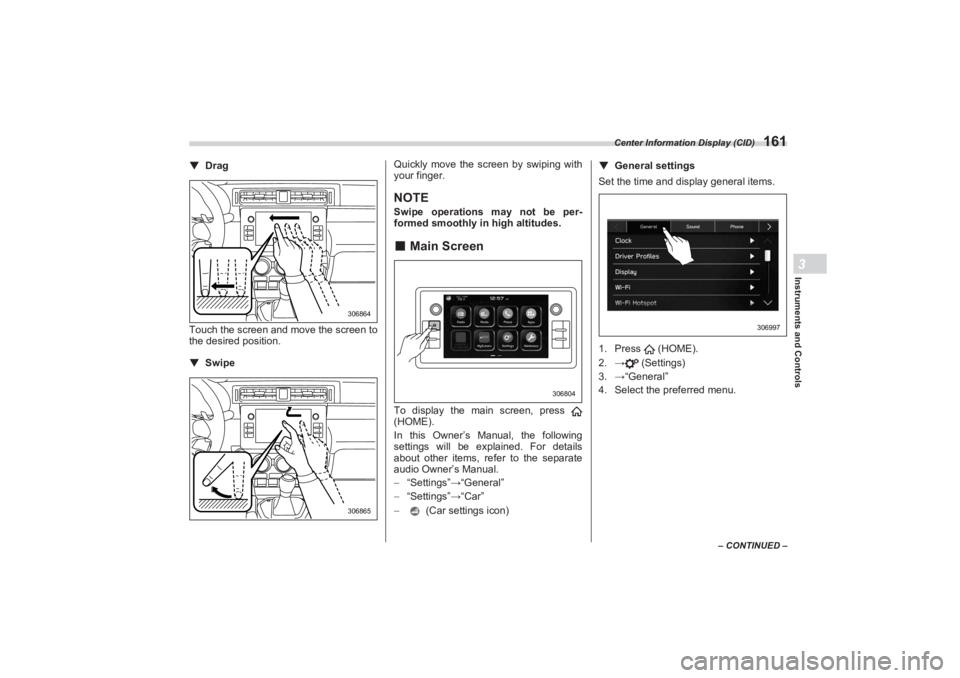

▼Drag
Touch the screen and move the screen to
the desired position.
▼ Swipe Quickly move the screen by swiping with

your finger.
NOTESwipe operations may not be per-
formed smoothly in high altitudes.■ Main ScreenTo display the main screen, press
(HOME).
In this Owner’s Manual, the following
settings will be explained. For details
about other items, re fer to the separate
audio Owner’s Manual.
 “Settings” →“General”
 “Settings” →“Car”
 (Car settings icon) ▼
General settings
Set the time and display general items.
1. Press (HOME).
2.→ (Settings)
3. →“General”
4. Select the preferred menu.
306864306865
306804
306997
BRZ_U.book 161 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Center Information Display (CID)

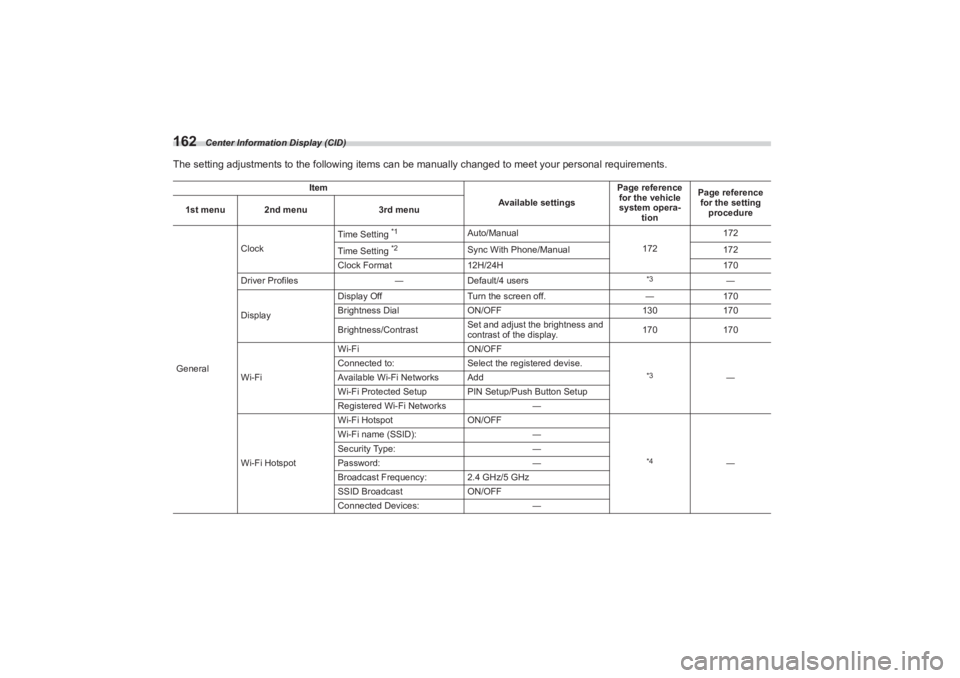

162The setting adjustments to the following items can be manually changed to meet your personal requirements.
Item
Available settingsPage reference
for the vehicle
system opera- tion Page reference
for the setting
procedure
1st menu 2nd menu
3rd menu
General Clock
Time Setting
*1
Auto/Manual
172172
Time Setting
*2
Sync With Phone/Manual 172
Clock Format 12H/24H 170
Driver Profiles ―Default/4 users
*3
―
Display Display Off
Turn the screen off. ―170
Brightness Dial ON/OFF 130170
Brightness/Contrast Set and adjust the brightness and
contrast of the display.
170
170
Wi-Fi Wi-Fi
ON/OFF
*3
―
Connected to:
Select the registered devise.
Available Wi-Fi Networks Add
Wi-Fi Protected Setup PIN Setup/Push Button Setup
Registered Wi-Fi Networks ―
Wi-Fi Hotspot Wi-Fi Hotspot
ON/OFF
*4
―
Wi-Fi name (SSID):
―
Security Type: ―
Password: ―
Broadcast Frequency: 2.4 GHz/5 GHz
SSID Broadcast ON/OFF
Connected Devices: ―
BRZ_U.book 162 ページ ２０２２年３月２９日　火曜日　午後３時５９分
