SRS Airbag (Supplemental Restraint System Airbag)
83
Seat, Seatbelt and SRS Airbags1
– CONTINUED –

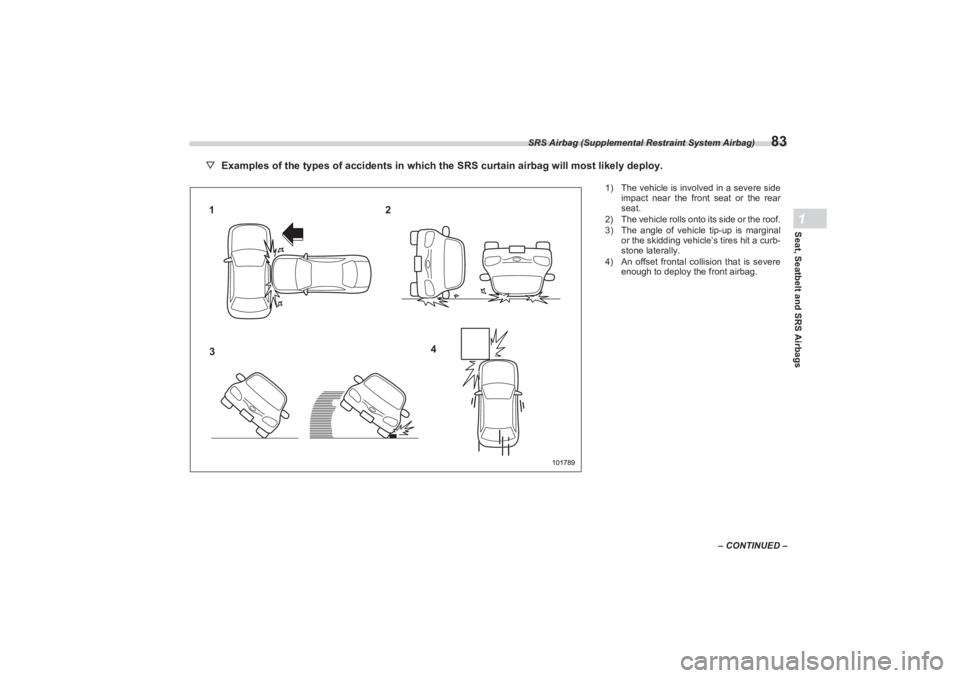

▽Examples of the types of accidents in which the SRS curtain airbag will most likely deploy.
101789
3
12
4
1) The vehicle is involved in a severe side
impact near the front seat or the rear
seat.
2) The vehicle rolls onto its side or the roof.
3) The angle of vehicle tip-up is marginal or the skidding vehicle’s tires hit a curb-
stone laterally.
4) An offset frontal collision that is severe
enough to deploy the front airbag.
BRZ_U.book 83 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
84

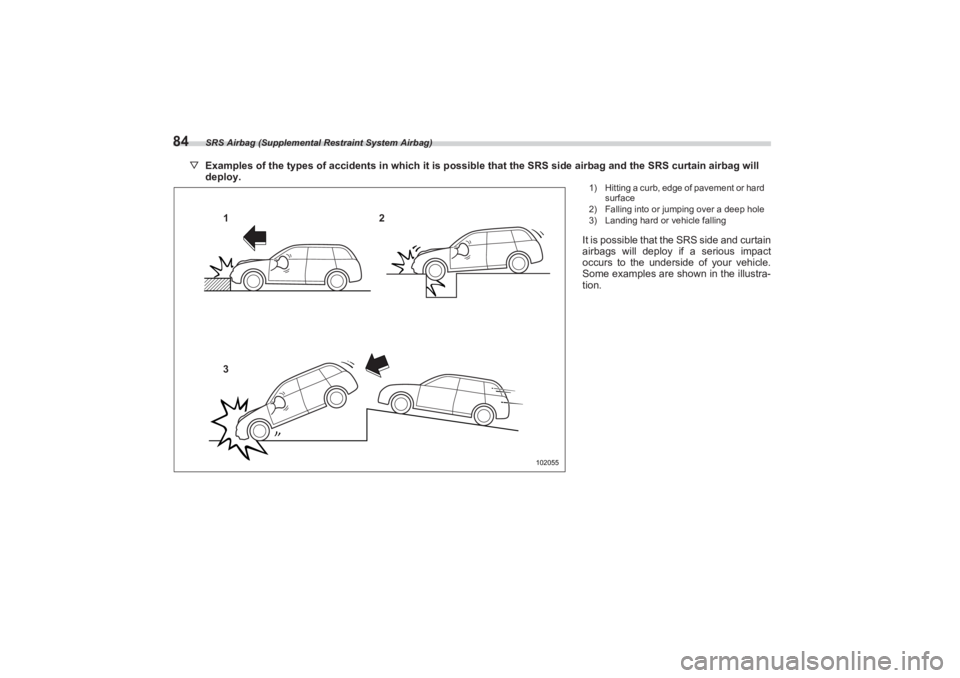

▽Examples of the types of accidents in which it is possible that the SRS side airbag and the SRS curtain airbag will
deploy.
1
3 2
102055
1) Hitting a curb, edge of pavement or hard

surface
2) Falling into or jumping over a deep hole
3) Landing hard or vehicle fallingIt is possible that the SRS side and curtain
airbags will deploy if a serious impact
occurs to the underside of your vehicle.
Some examples are shown in the illustra-
tion.
BRZ_U.book 84 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
85
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
▽Examples of the types of accidents in which the SRS side airbag is unlikely to deploy.
1
3 2
4
5
101319
1) The vehicle is involved in an oblique

side-on impact.
2) The vehicle is involved in a side-on
impact in an area outside the vicinity of
the passenger compartment.
3) The vehicle strikes a telephone pole or
similar object.
4) The vehicle is involved in a side-on
impact from a motorcycle.
5) The vehicle rolls onto its side or the roof.There are many types of collisions which
might not necessarily require SRS side
airbag deployment. In the event of acci-
dents like those illustrated, the SRS side
airbag may not deploy depending on the
level of accident forces involved.
BRZ_U.book 85 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
86

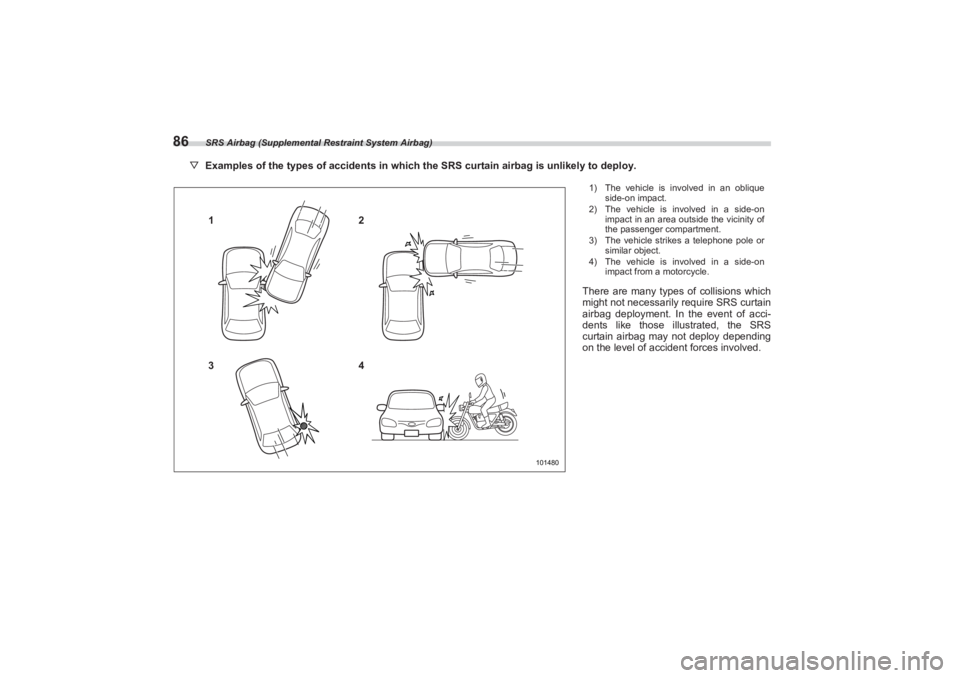

▽Examples of the types of accidents in which the SRS curtain airbag is unlikely to deploy.
1
32
4
101480
1) The vehicle is involved in an oblique

side-on impact.
2) The vehicle is involved in a side-on
impact in an area outside the vicinity of
the passenger compartment.
3) The vehicle strikes a telephone pole or
similar object.
4) The vehicle is involved in a side-on
impact from a motorcycle.There are many types of collisions which
might not necessarily require SRS curtain
airbag deployment. In the event of acci-
dents like those illustrated, the SRS
curtain airbag may not deploy depending
on the level of accident forces involved.
BRZ_U.book 86 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
87
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
▽Examples of the types of acci -
dents in which the SRS side
airbag and SRS curtain airbag
are not designed to deploy in
most cases1) The vehicle is involved in frontal colli- sion with another vehicle (moving or stationary).
2) The vehicle is struck from behind.
3) The vehicle pitches end over end.
In the event of accidents like those illus-
trated, the SRS side airbag and SRS
curtain airbag are not designed to deploy
in most cases.1) First impact
2) Second impact
A) SRS curtain airbag
B) SRS side airbagIn an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.
Example: In the case of a double side
impact collision, first with one vehicle and
immediately followed by another from the same direction, once the SRS side airbag

and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second.
■ SRS Airbag System MonitorsSRS airbag system warning lightA diagnostic system continually monitors
the readiness of the SRS airbag system
(including seatbelt pretensioners) with the
ignition switch in the “ON” position. The
SRS airbag system warn ing light will show
normal system operation by illuminating
for approximately 6 seconds when the
ignition switch is turned to the “ON” posi-
tion.
The following components are monitored
by the indicator:
 Front impact sensor
1
3 2
102056
B
A
1
2
101410
102698
BRZ_U.book 87 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
88
- Right-hand side
- Left-hand side
 Airbag control module (including
impact sensor and rollover sensor)
 Frontal airbag module
- Driver’s side
- Front passenger’s side
 Knee airbag module
- Driver’s side
 Side impact sensor
- Center pillar left-hand side
- Center pillar right-hand side
- Forward of rear wheel house left-
hand side
- Forward of rear wheel house right-
hand side
- Door left-hand side
- Door right-hand side
 Side airbag module
- Driver’s side
- Front passenger’s side
 Curtain airbag module
- Right-hand side
- Left-hand side
 Front seatbelt pretensioner and adap-
tive force limiter
- Front passenger's side
 Front seatbelt pretensioner
- Driver's side
 Seatbelt buckle switch
- Front passenger’s side 
Front passenger’s occupant detection
sensor
 Front passenger’s frontal airbag ON
and OFF indicator
 All related wiring
■ SRS Airbag System
Servicing
WARNING
If the warning light exhibits any of
the following conditions, immedi-
ately stop the vehicle in a safe
place, and consult a SUBARU
dealer. Unless a technician checks
and repairs the system as needed,
the seatbelt pretensioners and/or
the SRS airbag will not operate
properly in the event of a collision,
which may result in injury. Flashing or flickering of the
warning light No illumination of the warning
light when the ignition switch is
first turned to the “ON” position Continuous illumination of the
warning light Illumination of the warning light
while driving
WARNING
 When discarding an airbag
module or scrapping the entire
vehicle damaged by a collision,
consult your SUBARU dealer. The SRS airbag has no user-
serviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer.
Tampering with or disconnecting
the system’s wiring could result
in accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in
serious injury.
CAUTION
If you need service or repair in
areas indicated in the following list,
have the work performed by an
authorized SUBARU dealer. The
SRS airbag control module, impact
sensors and airbag modules are
stored in these areas.
BRZ_U.book 88 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
89
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
In the event that the SRS airbag is
deployed, replacement of the system
should be performed only by an autho-
rized SUBARU dealer. When the
components of the SRS airbag system
are replaced, use only genuine
SUBARU parts.
NOTEIn the following cases, contact your
SUBARU dealer as soon as possible.
 The front part of the vehicle was
involved in an accident in which only
the driver’s SRS fron tal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.
 The pad of the steering wheel, the
cover over the front passenger’s SRS
frontal airbag, or ei ther roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.
 The center pillar, door, rear wheel
house or rear sub frame, or an area
near these parts, was involved in an
accident in which the SRS side airbag
and SRS curtain airbag did not deploy.
 The fabric or leather of either front
seatback is cut, frayed, or otherwise
damaged.
 The rear part of the vehicle was
involved in an accident in which no
SRS airbag was deployed.
■ Precautions against Vehicle
Modification
Under the center of the instru-
ment panelOn both the righ t and left sides at
the front of the vehicle Steering wheel and column and
nearby areas Bottom of the steering column
and nearby areas Top of the dashboard on front
passenger’s side and nearby
areas Each front seat and nearby areaInside each center pillarInside each doorIn each roof side (from the front
pillar to a point over the rear seat) Between the rear seat cushion
and rear wheel house on each
side
WARNING
 To avoid accidental activation of
the system or rendering the
system inoperative, which may
result in serious injury, no modifi-
cations should be made to any
components or wiring of the SRS
airbag system. 
This includes following modifica-
tions.
- Installation of custom steering
wheels- Attachment of additional trim
materials to the dashboard- Installation of custom seats- Replacement of seat fabric or
leather- Installation of additional fabric
or leather on the front seat- Attachment of a hands-free
microphone or any other
accessory to a front pillar, a
center pillar, a rear pillar, the
windshield, a side window or
any other cabin surface that
would be near a deploying
SRS curtain airbag.
BRZ_U.book 89 ページ ２０２２年３月２９日　火曜日　午後３時５９分

SRS Airbag (Supplemental Restraint System Airbag)
90
Always consult your SUBARU dealer if
you want to install any accessory parts on
your vehicle.
■ How to Contact the Vehicle
Manufacturer concerning
Modifications for Persons
with Disabilities That May
Affect the Advanced Airbag
SystemChanging or moving any parts of the front
seats, rear seat, se atbelts, front bumper,
front side frame, radiator panel, instru-
ment panel, combination meter, steering
wheel, steering colu mn, tire, suspension
or floor panel can affect the operation of
the SUBARU advanced airbag system. If
you have any questions, you may contact
the following SUBARU distributors.
of Columbia>
Subaru of America, Inc.
Customer Advocacy Department
One Subaru Drive
P.O. Box 9103
Camden, NJ 08101-9877
1-800-SUBARU3 (1-800-782-2783)

Subaru Hawaii
2850-A Pukoloa St., 
Honolulu, HI 96819
877-215-0338

- Installation of additional elec- trical/electronic equipment
such as a mobile two-way
radio on or near the SRS
airbag system components
and/or wiring is not advisable.
This could interfere with
proper operation of the SRS
airbag system.- Modifications on or inside the
door panels for the purpose of
a speaker replacement or
sound insulation
 The impact sensors, which detect
the pressure of an impact, are
located in the doors. Do not
modify any components of the
doors or door trims, such as the
addition of door speakers for
example. Any modifications to
the doors will create a risk of the
airbag system becoming inopera-
tive or unintended airbag deploy-
ment.
CAUTION
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system.
 Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than
genuine SUBARU accessory
parts to the front end. Modification of the suspension
system or front end structure. Installation of a tire of different
size and construction from the
tires specified on the vehicle
placard attached to the driver’s
center pillar or specified for indi-
vidual vehicle models in this
Owner’s Manual. Attachment of any equipment
(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.
BRZ_U.book 90 ページ ２０２２年３月２９日　火曜日　午後３時５９分
