Tilt/Telescopic Steering Wheel
195
Instruments and Controls3
3-17. Tilt/Telescopic SteeringWheel
1) Tilt adjustment
2) Telescopic adjustment
3) Tilt/telescopic lock lever1. Adjust the seat position. Refer to
"Front Seats" P30.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down,
and forward and backward.
3-18. HornTo sound the horn, push the horn pad.
WARNING
 Do not adjust the steering wheel
tilt/telescopic position while
driving. This may cause loss of
vehicle control and result in
personal injury. If the lever cannot be raised to the
fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in
personal injury.
2
3
1
306823
306824
BRZ_U.book 195 ページ ２０２２年３月２９日　火曜日　午後３時５９分

²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²BRZ_U.book 196 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Climate Control4
Climate Control
4-1. Ventilator Control................................................198
Center Ventilators.........................................................198
Side Ventilators ............................................................198
4-2. Climate Control Panel.........................................198
4-3. Automatic Climate Control Operation...............200
Sensors .........................................................................200
4-4. Manual Climate Control ......................................201
Airflow Mode Selection ................................................201
Temperature Control ....................................................202
Fan Speed Control........................................................202
Air Conditioner Control................................................202
Air Inlet Selection .........................................................203
To Turn Off the Climate Control System ....................203
4-5. Defrosting ............................................................203 4-6. Operating Tips for Heater and Air

Conditioner ......... ....................................... ........204
Cleaning Ventilator Grille ............................................ 204
Efficient Cooling after Parking in Direct Sunlight .... 204
Lubrication Oil Circulation in the Refrigerant 
Circuit ......................................................................... 204
Checking Air Conditioning System before Summer Season ........................................................................ 204
Cooling and Dehumidifying in High Humidity and 
Low Temperature Weather Condition...................... 205
Air Conditioner Compressor Shut-Off When 
Engine Is Heavily Loaded ......................................... 205
Refrigerant for Your Climate Control System ........... 205
4-7. Air Filtration System ...........................................205
Replacing the Cabin Air Filter .................................... 206
BRZ_U.book 197 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Ventilator Control
1984-1. Ventilator Control■Center Ventilators1) Open
2) CloseMove the tab to adjust the flow direction.
To open the ventilator, turn the center
grille open/close wheel upward to the “ ”
position.
To close it, turn th e wheel downward to
the “ ” position.
■ Side Ventilators1) Open
2) CloseTo adjust the flow direction, move the tab.
4-2. Climate Control Panel
21
21
403482
2
1
403483
WARNING
The cooling function operates
only when the engine is running. Do not leave children or adults
who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high
enough to cause severe or
possibly fatal injuries to people
or animals.
BRZ_U.book 198 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Climate Control Panel
199
Climate Control4
17
2
3
4
6
5
15
13
8
9
10
11
12
14
403484

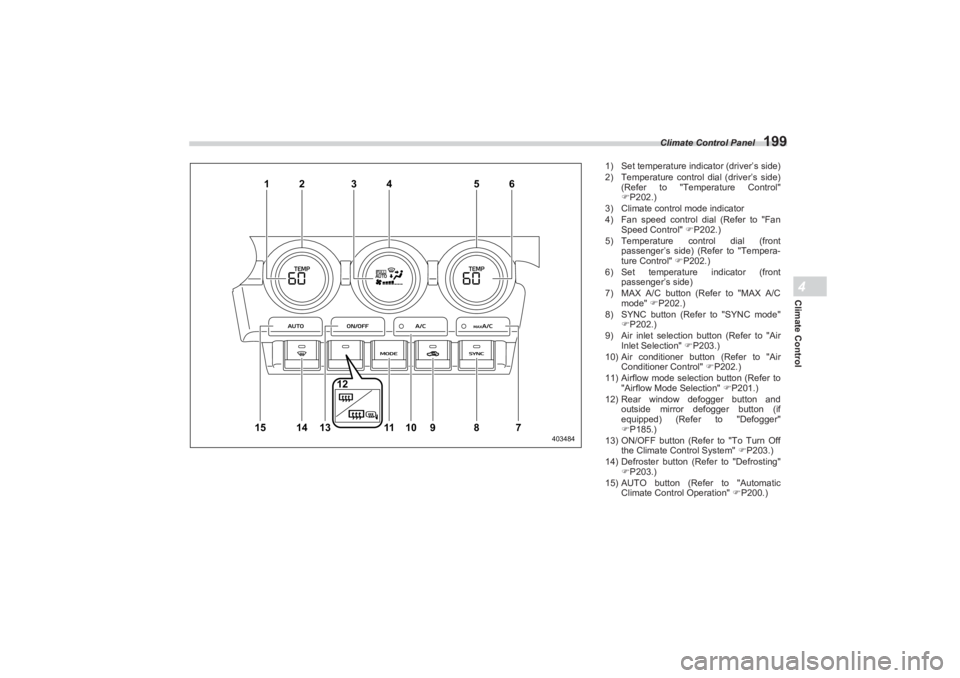

1) Set temperature indi cator (driver’s side)
2) Temperature control dial (driver’s side)
(Refer to "Temperature Control"
 P202.)
3) Climate control mode indicator
4) Fan speed control dial (Refer to "Fan
Speed Control"  P202.)
5) Temperature control dial (front
passenger’s side) (Refer to "Tempera-
ture Control" P202.)
6) Set temperature indicator (front
passenger’s side)
7) MAX A/C button (Refer to "MAX A/C
mode"  P202.)
8) SYNC button (Refer to "SYNC mode"
 P202.)
9) Air inlet selection button (Refer to "Air
Inlet Selection"  P203.)
10) Air conditioner button (Refer to "Air
Conditioner Control" P202.)
11) Airflow mode selection button (Refer to
"Airflow Mode Selection" P201.)
12) Rear window defogger button and
outside mirror defogger button (if
equipped) (Refer to "Defogger"
 P185.)
13) ON/OFF button (Refer to "To Turn Off
the Climate Control System" P203.)
14) Defroster button (Refer to "Defrosting"
 P203.)
15) AUTO button (Refer to "Automatic
Climate Control Operation" P200.)
BRZ_U.book 199 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Automatic Climate Control Operation
2004-3. Automatic Climate Control OperationWhen this mode is selected, the fan
speed, airflow mode, air-inlet control, and
air conditioner operation are automatically
controlled. To activate this mode, perform
the following.
1. Press the AUTO button. The FULL
AUTO mode is selected and the “FULL
AUTO” indicator light on the display illumi-
nates.
2. Set the preferred temperature using
the temperature control dial.NOTE Operate the automatic climate
control system when the engine is
running.
 Even when cooling is not necessary,
the air conditioner will automatically
turn on if the temperature is set much
lower than the cu rrent outlet air
temperature. Even in this case, the “A/
C” indicator light on the control panel
illuminates
 The air conditioner may not operate
in the following cases: - When the cabin temperature is
low
- When the ambient temperature
decreases close to 32°F (0°C) 
The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
 If you operate any of the buttons on
the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO
mode operation, the “FULL” indicator
light on the control panel will turn off
and the “AUTO” indicator light will
remain illuminated. You can then
manually control the system as desired
using the button you operated. To
change the system back to the FULL
AUTO mode, press the AUTO button.
To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
 When the air inlet selection is set to
auto mode: Outside air circulation
 When the air inlet selection is set to
manual mode: No change
When the ignition switch is changed to the
“OFF” or “ACC” position from “ON”, the air
inlet mode will automatically change to the
outside air mode regardless of whether it
is the auto mode or manual mode.
■ Sensors1) Interior air temperature sensor
2) Solar sensorThe automatic climate control system
employs several sensors. These sensors
are delicate. If they are treated incorrectly
1
2
403485
BRZ_U.book 200 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Manual Climate Control
201
Climate Control4
– CONTINUED –
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the
sensors, observe the following precau-
tions:
 Do not subject the sensors to impact.
 Keep water away from the sensors.
 Do not cover the sensors.
4-4. Manual Climate Control■ Airflow Mode SelectionSelect the airflow mode using the airflow
mode selection button.
Airflow modes are as follows.
Ventilation: Instrument panel outlets Ventilation 2: Instrument panel outlets and

foot outlets
Bi-level: Instrument panel outlets and the
foot outlets
403486
403488403487
BRZ_U.book 201 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Manual Climate Control

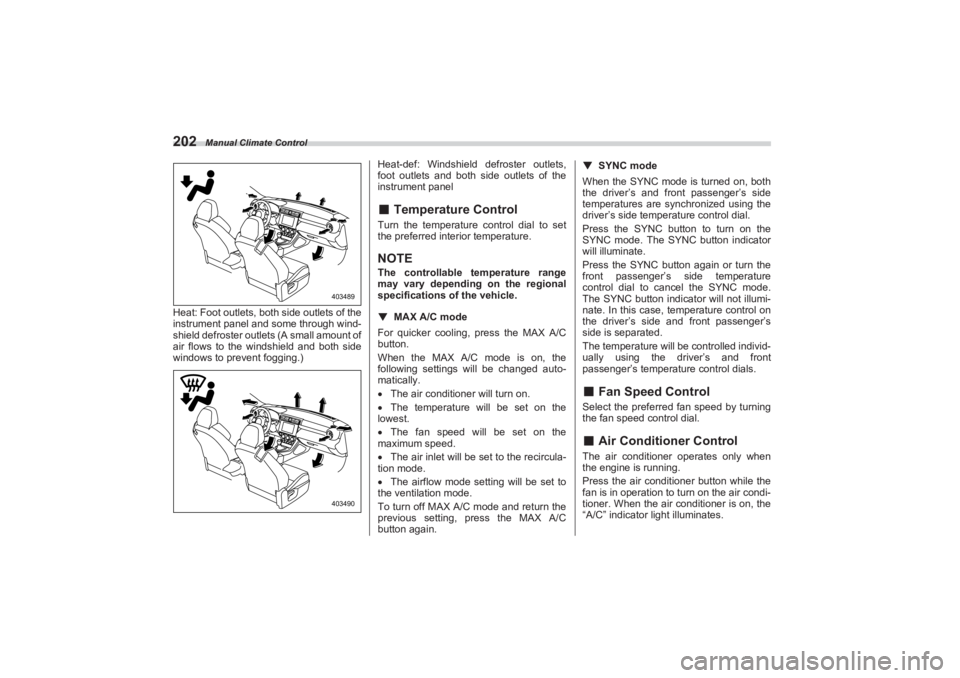

202Heat: Foot outlets, both side outlets of the
