2023 SUBARU BRZ Owners Manual

Maintenance Schedule
339
Maintenance and Service11
– CONTINUED –

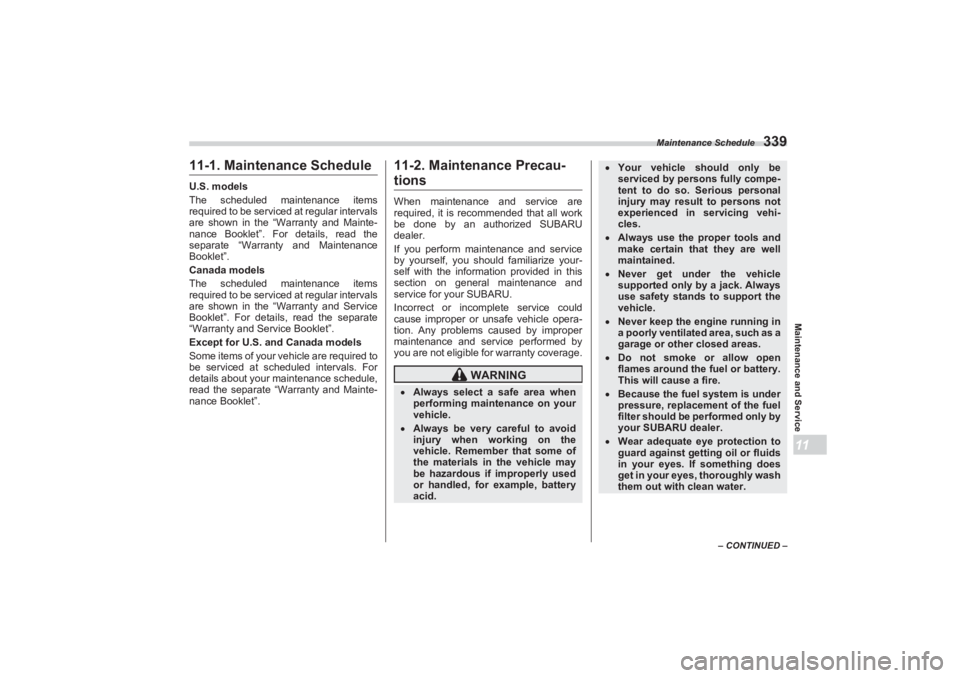

11-1. Maintenance ScheduleU.S. models
The scheduled maintenance items
required to be serviced at regular intervals
are shown in the “Warranty and Mainte-
nance Booklet”. For details, read the
separate “Warranty and Maintenance
Booklet”.
Canada models
The scheduled maintenance items
required to be serviced at regular intervals
are shown in the “Warranty and Service
Booklet”. For details, read the separate
“Warranty and Service Booklet”.
Except for U.S. and Canada models
Some items of your vehicle are required to
be serviced at scheduled intervals. For
details about your maintenance schedule,
read the separate “Warranty and Mainte-
nance Booklet”.
11-2. Maintenance Precau -tionsWhen maintenance and service are
required, it is reco mmended that all work
be done by an authorized SUBARU
dealer.
If you perform maintenance and service
by yourself, you should familiarize your-
self with the information provided in this
section on general maintenance and
service for your SUBARU.
Incorrect or incomplete service could
cause improper or unsafe vehicle opera-
tion. Any problems caused by improper
maintenance and service performed by
you are not eligible for warranty coverage.
WARNING
 Always select a safe area when
performing maintenance on your
vehicle. Always be very careful to avoid
injury when working on the
vehicle. Remember that some of
the materials in the vehicle may
be hazardous if improperly used
or handled, for example, battery
acid.
 Your vehicle should only be
serviced by persons fully compe-
tent to do so. Serious personal
injury may result to persons not
experienced in servicing vehi-
cles. Always use the proper tools and
make certain that they are well
maintained. Never get under the vehicle
supported only by a jack. Always
use safety stands to support the
vehicle. Never keep the engine running in
a poorly ventilated area, such as a
garage or other closed areas. Do not smoke or allow open
flames around the fuel or battery.
This will cause a fire. Because the fuel system is under
pressure, replacement of the fuel
filter should be performed only by
your SUBARU dealer. Wear adequate eye protection to
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly wash
them out with clean water.
BRZ_U.book 339 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Maintenance Precautions

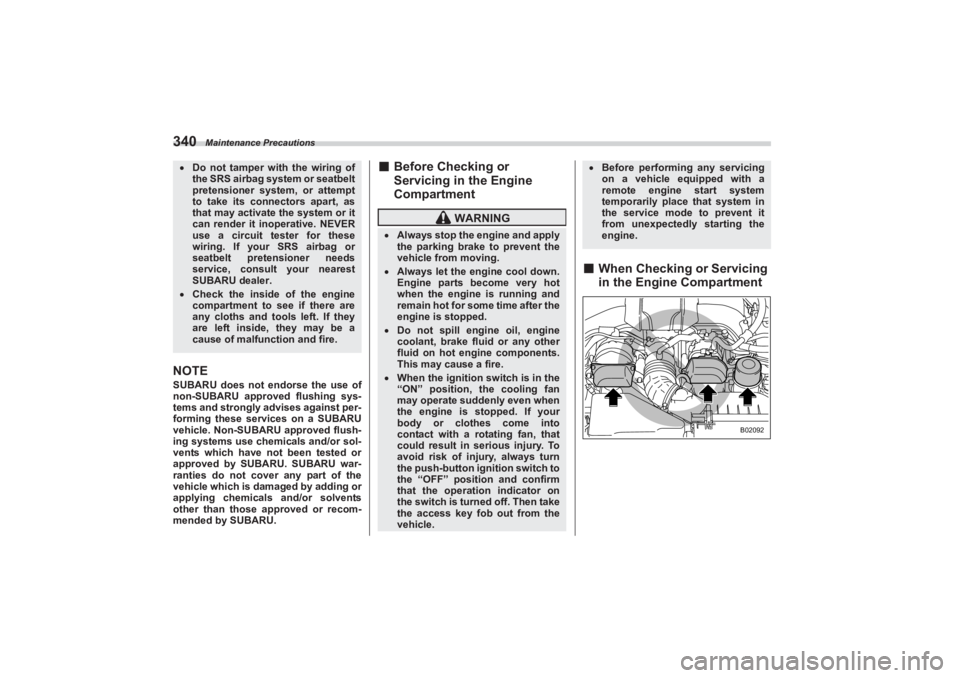

340NOTESUBARU does not endorse the use of
non-SUBARU approved flushing sys-
tems and strongly advises against per-
forming these services on a SUBARU
vehicle. Non-SUBARU approved flush-
ing systems use chemicals and/or sol-
vents which have not been tested or
approved by SUBARU. SUBARU war-
ranties do not cover any part of the
vehicle which is damaged by adding or
applying chemicals and/or solvents
other than those approved or recom-
mended by SUBARU.
■ Before Checking or
Servicing in the Engine
Compartment
■When Checking or Servicing
in the Engine Compartment
Do not tamper wi th the wiring of
the SRS airbag system or seatbelt
pretensioner system, or attempt
to take its connectors apart, as
that may activate the system or it
can render it inoperative. NEVER
use a circuit tester for these
wiring. If your SRS airbag or
seatbelt pretensioner needs
service, consult your nearest
SUBARU dealer. Check the inside of the engine
compartment to see if there are
any cloths and tools left. If they
are left inside, they may be a
cause of malfunction and fire.
WARNING
 Always stop the engine and apply
the parking brake to prevent the
vehicle from moving. Always let the engine cool down.
Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine is stopped. Do not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire. When the ignition switch is in the
“ON” position, the cooling fan
may operate suddenly even when
the engine is stopped. If your
body or clothes come into
contact with a rotating fan, that
could result in serious injury. To
avoid risk of injury, always turn
the push-button i gnition switch to
the “OFF” position and confirm
that the operation indicator on
the switch is turn ed off. Then take
the access key fob out from the
vehicle.
 Before performing any servicing
on a vehicle equipped with a
remote engine start system
temporarily place that system in
the service mode to prevent it
from unexpectedly starting the
engine.
B02092
BRZ_U.book 340 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Maintenance Tips
341
Maintenance and Service11
– CONTINUED –
■When Checking or Servicing
in the Engine Compartment
While the Engine Is Running
11-3. Maintenance TipsSome clips and fender linings must be
removed before replacing the air cleaner
element or specific bulbs.■ Removing and Reinstalling
Clips▼ Removing clips
There are several types of clips used for
your vehicle.
▽Type A and D clipsType A clips Type D clips
1. Turn the clips co
unterclockwise using
a flat-head screwdriver until the center
portion of the clip is raised.
2. Remove the clips with a flat-head
screwdriver using leverage.
CAUTION
 Do not contact the belt cover
while checking the components
in the engine compartment.
Doing so may cause your hand to
slip off the belt cover and result in
an unexpected injury. Do not touch the o il filter until the
engine has cooled down
completely. Doing so may result
in a burn or other injury. Note that
the oil filter becomes very hot
when the engine is running and
remains hot for so me time after
the engine has stopped.
WARNING
A running engine can be danger-
ous. Keep your fingers, hands,
clothing, hair and tools away from
the cooling fan, belts and any other
moving engine parts. Removing
rings, watches and ties is advisable.
B01036
B01536
BRZ_U.book 341 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Maintenance Tips
342
▽Type B clips
1. Pull out the center portion of the clip
using a flat-head screwdriver as shown in
the illustration.
2. Pull the protruded center portion to
remove the entire body of the clip. ▽
Type C clips
1. Turn the clip counterclockwise using a
Phillips screwdriver until the center portion
of the clip is raised.
2. Remove the entire clip by pulling it up. ▼
Reinstalling clips
Type A clips
Type B clips
B00924
B00798
B01024B00925
BRZ_U.book 342 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Engine Hood
343
Maintenance and Service11
– CONTINUED –

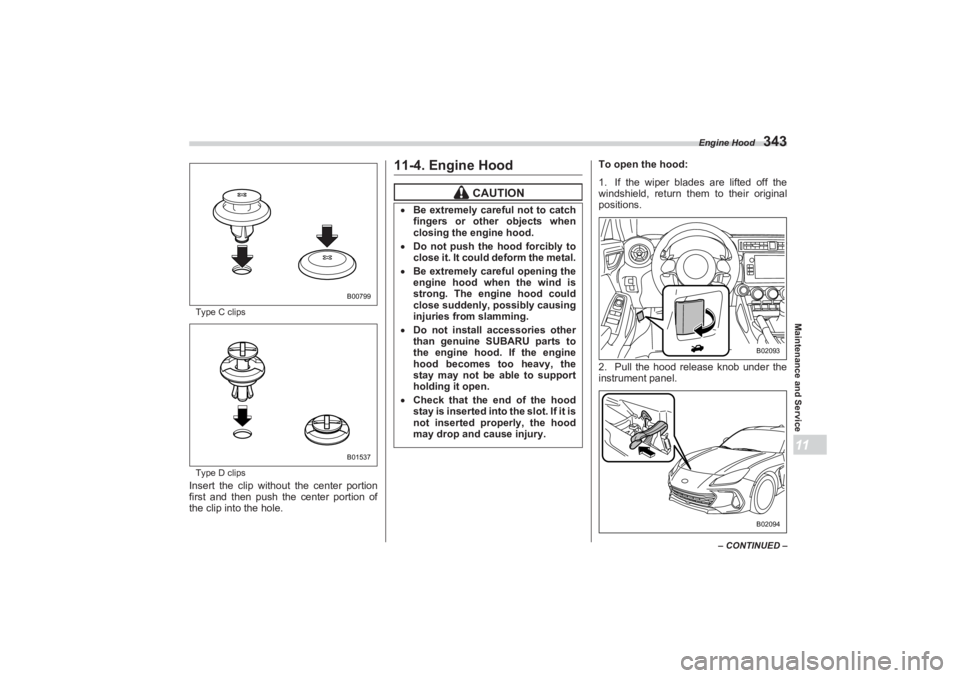

Type C clips
Type D clips
Insert the clip without the center portion

first and then push the center portion of
the clip into the hole.
11-4. Engine Hood
To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
positions.
2. Pull the hood release knob under the
instrument panel.
B00799B01537
CAUTION
 Be extremely careful not to catch
fingers or other objects when
closing the engine hood. Do not push the hood forcibly to
close it. It could deform the metal. Be extremely careful opening the
engine hood when the wind is
strong. The engine hood could
close suddenly, possibly causing
injuries from slamming. Do not install accessories other
than genuine SUBARU parts to
the engine hood. If the engine
hood becomes too heavy, the
stay may not be able to support
holding it open. Check that the end of the hood
stay is inserted into the slot. If it is
not inserted properly, the hood
may drop and cause injury.
B02093B02094
BRZ_U.book 343 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Engine Hood

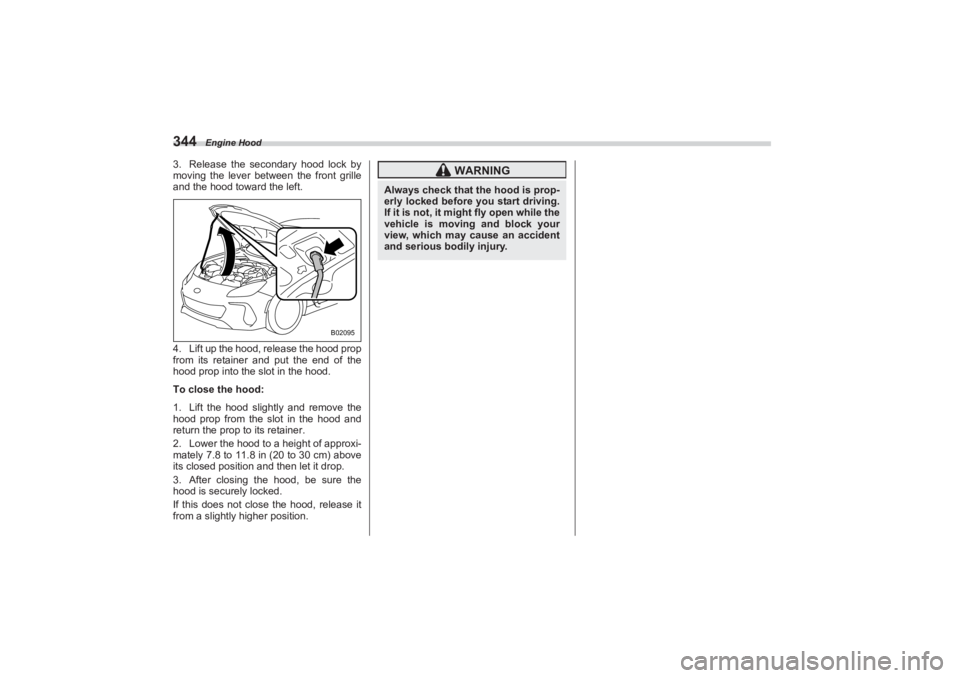

3443. Release the secondary hood lock by
moving the lever between the front grille
and the hood toward the left.
4. Lift up the hood, release the hood prop
from its retainer and put the end of the
hood prop into the slot in the hood.
To close the hood:
1. Lift the hood slightly and remove the
hood prop from the slot in the hood and
return the prop to its retainer.
2. Lower the hood to a height of approxi-
mately 7.8 to 11.8 in (20 to 30 cm) above
its closed position and then let it drop.
3. After closing the hood, be sure the
hood is securely locked.
If this does not close the hood, release it
from a slightly higher position.
B02095
WARNING
Always check that the hood is prop-
erly locked before you start driving.
If it is not, it might fly open while the
vehicle is moving and block your
view, which may cause an accident
and serious bodily injury.
BRZ_U.book 344 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Engine Compartment Overview
345
Maintenance and Service11
11-5. Engine Compartment Overview
19
3
2
11
8
10
4
6
7
5
B02096
1) Battery (page 370)
2) Clutch fluid reservoir (MT models)
(page 354)
3) Brake fluid reservoir (page 353)
4) Windshield washer tank (page 366)
5) Engine oil filler cap (page 346)
6) Air cleaner case (page 350)
7) Engine oil filter (page 347)
8) Engine oil level gauge (page 346)
9) Engine coolant reservoir (page 349)
10) Radiator cap (page 349)
11) Main fuse box (page 371)
BRZ_U.book 345 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Engine Oil

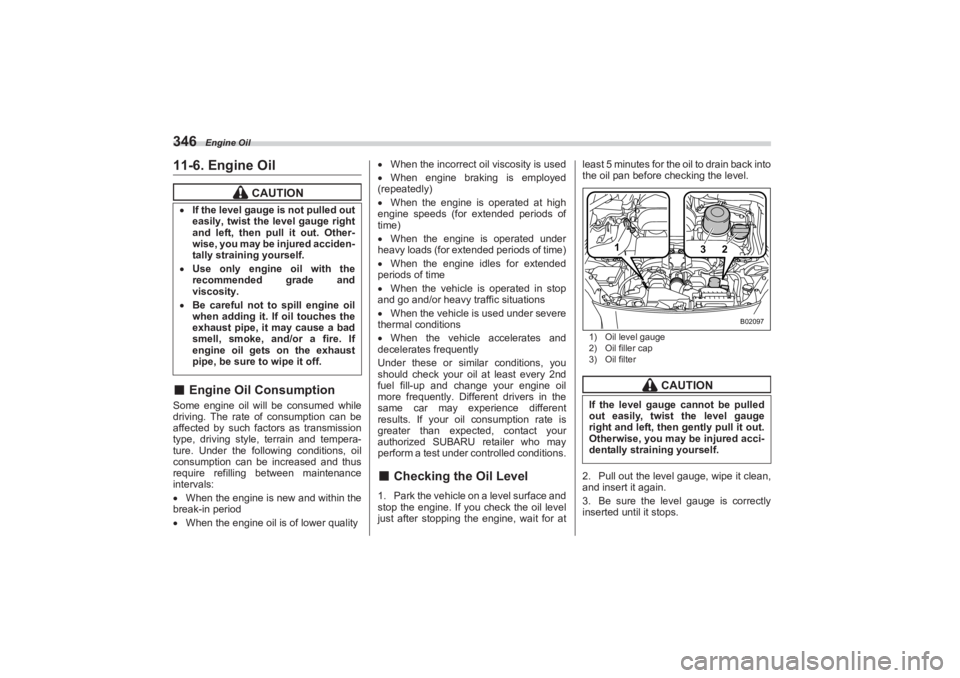

34611-6. Engine Oil■Engine Oil ConsumptionSome engine oil will be consumed while
driving. The rate of consumption can be
affected by such factors as transmission
type, driving style, terrain and tempera-
ture. Under the followi ng conditions, oil
consumption can be increased and thus
require refilling between maintenance
intervals:
 When the engine is new and within the
break-in period
 When the engine oil is of lower quality 
When the incorrect oil viscosity is used
 When engine braking is employed
(repeatedly)
 When the engine is operated at high
engine speeds (for extended periods of
time)
 When the engine is operated under
heavy loads (for extended periods of time)
 When the engine idles for extended
periods of time
 When the vehicle is operated in stop
and go and/or heavy traffic situations
 When the vehicle is used under severe
thermal conditions
 When the vehicle accelerates and
decelerates frequently
Under these or similar conditions, you
should check your oil at least every 2nd
fuel fill-up and change your engine oil
more frequently. Different drivers in the
same car may experience different
results. If your oil consumption rate is
greater than expected, contact your
authorized SUBARU retailer who may
perform a test under controlled conditions.
■ Checking the Oil Level1. Park the vehicle on a level surface and
stop the engine. If you check the oil level
just after stopping the engine, wait for at least 5 minutes for the oil to drain back into

the oil pan before checking the level.
1) Oil level gauge
2) Oil filler cap
3) Oil filter2. Pull out the level gauge, wipe it clean,
and insert it again.
3. Be sure the level gauge is correctly
inserted until it stops.
CAUTION
 If the level gauge is not pulled out
easily, twist the level gauge right
and left, then pull it out. Other-
wise, you may be injured acciden-
tally straining yourself. Use only engine oil with the
recommended grade and
viscosity. Be careful not to spill engine oil
when adding it. If oil touches the
exhaust pipe, it may cause a bad
smell, smoke, and/or a fire. If
engine oil gets on the exhaust
pipe, be sure to wipe it off.
CAUTION
If the level gauge cannot be pulled
out easily, twist the level gauge
right and left, then gently pull it out.
Otherwise, you may be injured acci-
dentally straining yourself.
1
3
2
B02097
BRZ_U.book 346 ページ ２０２２年３月２９日　火曜日　午後３時５９分
