2023 SUBARU BRZ Owners Manual

Tires and Wheels
363
Maintenance and Service11
– CONTINUED –
■Wheel BalanceEach wheel was correctly balanced
when your vehicle was new, but the
wheels will become unbalanced as
the tires become worn during use.
Wheel imbalance causes the
steering wheel to vibrate slightly at
certain vehicle speeds and detracts
from the vehicle’s straight-line
stability. It can also cause steering
and suspension system problems
and abnormal tire wear. If you
suspect that the wheels are not
correctly balanced, have them
checked and adjusted by your
SUBARU dealer. Also have them
adjusted after tire repairs and after
tire rotation.
NOTEThe suspension system is
designed to hold each wheel at a
certain alignment (relative to the
other wheels and to the road) for
optimum straight-line stability
and cornering performance.■ Wear Indicators1) New tread
2) Worn tread3)
Tread wear indicator
Each tire incorporates a tread wear
indicator, which becomes visible
when the depth of the tread grooves
decreases to 0.063 in (1.6 mm). A tire must be replaced when the

tread wear indicator appears as a
solid band across the tread.
NOTEFor safety, inspect the tire tread
regularly and replace the tires
before their tread wear indicators
become visible.
CAUTION
Loss of correct wheel align-
ment causes the tires to wear
on one side and reduces the
vehicle’s running stability.
Contact your SUBARU dealer
if you notice abnormal tire
wear.
12 3
B00327
WARNING
When a tire’s tread wear indi-
cator becomes visible, the tire
is worn beyond the accept-
able limit and must be
replaced immediately. With a
tire in this condition, driving at
high speeds in wet weather
can cause the vehicle to
hydroplane. The resulting loss
of vehicle control can lead to
an accident.
BRZ_U.book 363 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Tires and Wheels

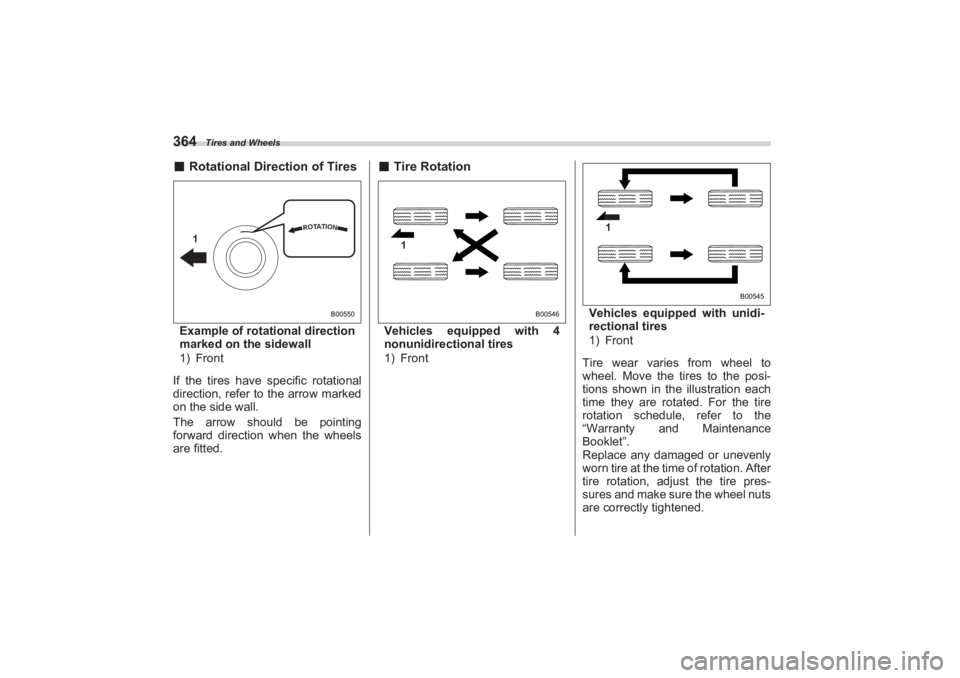

364■Rotational Direction of TiresExample of rotational direction
marked on the sidewall
1) Front
If the tires have specific rotational
direction, refer to the arrow marked
on the side wall.
The arrow should be pointing
forward direction when the wheels
are fitted.
■ Tire RotationVehicles equipped with 4
nonunidirectional tires
1) Front Vehicles equipped with unidi-
rectional tires
1) Front
Tire wear varies from wheel to
wheel. Move the tires to the posi-
tions shown in the illustration each
time they are rotated. For the tire
rotation schedule, refer to the
“Warranty and Maintenance
Booklet”. 
Replace any damaged or unevenly
worn tire at the time of rotation. After
tire rotation, adjust the tire pres-
sures and make sure the wheel nuts
are correctly tightened.
ROTATION
1
B00550
1
B00546
1
B00545
BRZ_U.book 364 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Tires and Wheels
365
Maintenance and Service11
– CONTINUED –

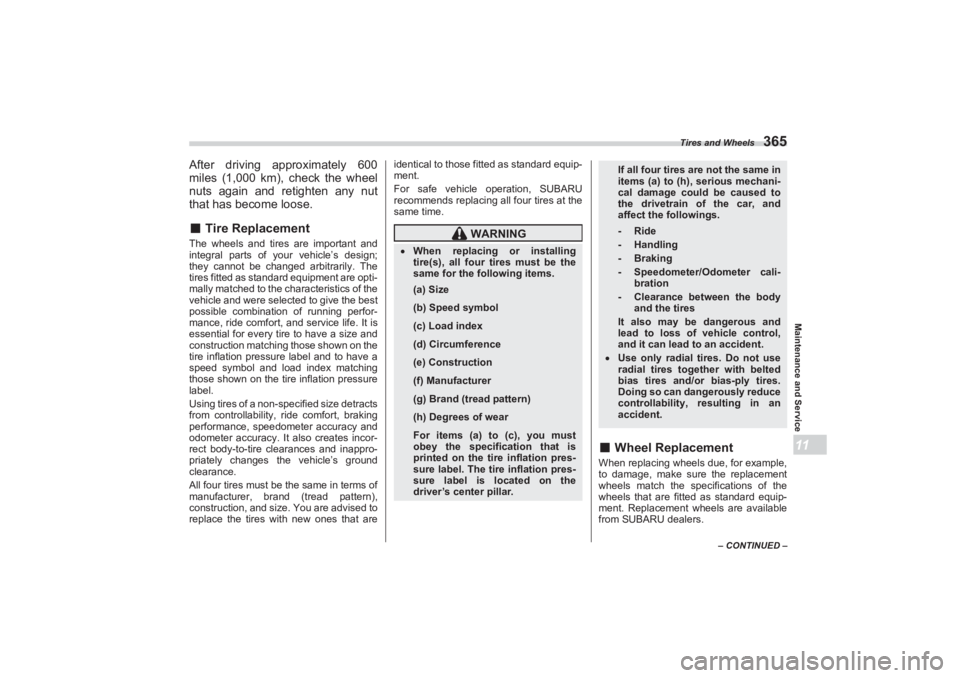

After driving approximately 600
miles (1,000 km), check the wheel
nuts again and retighten any nut
that has become loose.■ Tire ReplacementThe wheels and tires are important and
integral parts of your vehicle’s design;
they cannot be changed arbitrarily. The
tires fitted as standard equipment are opti-
mally matched to the characteristics of the
vehicle and were sele cted to give the best
possible combination of running perfor-
mance, ride comfort, and service life. It is
essential for every tire to have a size and
construction matching those shown on the
tire inflation pressure label and to have a
speed symbol and load index matching
those shown on the tire inflation pressure
label.
Using tires of a non-specified size detracts
from controllability, ride comfort, braking
performance, speedometer accuracy and
odometer accuracy. It also creates incor-
rect body-to-tire clearances and inappro-
priately changes the vehicle’s ground
clearance.
All four tires must be the same in terms of
manufacturer, brand (tread pattern),
construction, and size. You are advised to
replace the tires with new ones that are identical to those fitted as standard equip-
ment.
For safe vehicle operation, SUBARU

recommends replacing all four tires at the
same time.
■ Wheel ReplacementWhen replacing wheels due, for example,
to damage, make sure the replacement
wheels match the specifications of the
wheels that are fitted as standard equip-
ment. Replacement wheels are available
from SUBARU dealers.
WARNING
 When replacing or installing
tire(s), all four tires must be the
same for the following items.
(a) Size(b) Speed symbol(c) Load index(d) Circumference(e) Construction(f) Manufacturer(g) Brand (tread pattern)(h) Degrees of wearFor items (a) to (c), you must
obey the specification that is
printed on the tire inflation pres-
sure label. The tire inflation pres-
sure label is located on the
driver’s center pillar.
If all four tires are not the same in
items (a) to (h), serious mechani-
cal damage could be caused to
the drivetrain of the car, and
affect the followings.-Ride-Handling-Braking- Speedometer/Odometer cali- bration- Clearance between the body
and the tires
It also may be dangerous and
lead to loss of vehicle control,
and it can lead to an accident.
 Use only radial tires. Do not use
radial tires together with belted
bias tires and/or bias-ply tires.
Doing so can dangerously reduce
controllability, resulting in an
accident.
BRZ_U.book 365 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Alloy Wheels

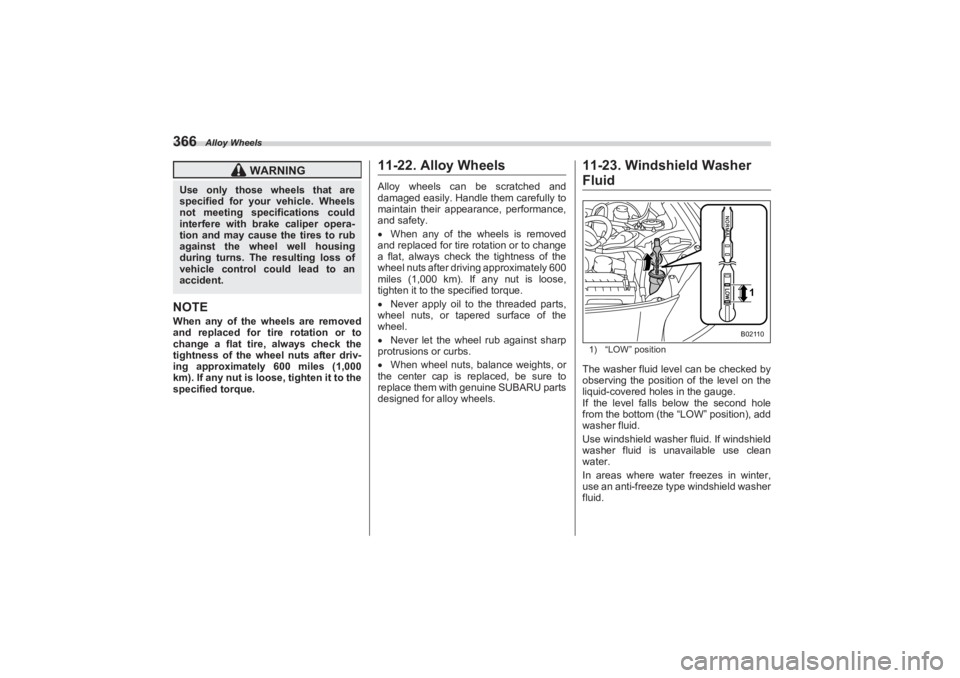

366NOTEWhen any of the wheels are removed
and replaced for tire rotation or to
change a flat tire, always check the
tightness of the wheel nuts after driv-
ing approximately 600 miles (1,000
km). If any nut is loos e, tighten it to the
specified torque.
11-22. Alloy WheelsAlloy wheels can be scratched and
damaged easily. Handle them carefully to
maintain their appearance, performance,
and safety.
 When any of the wheels is removed
and replaced for tire rotation or to change
a flat, always check the tightness of the
wheel nuts after driving approximately 600
miles (1,000 km). If any nut is loose,
tighten it to the specified torque.
 Never apply oil to the threaded parts,
wheel nuts, or tapered surface of the
wheel.
 Never let the wheel rub against sharp
protrusions or curbs.
 When wheel nuts, balance weights, or
the center cap is replaced, be sure to
replace them with genuine SUBARU parts
designed for alloy wheels.
11-23. Windshield Washer Fluid1) “LOW” positionThe washer fluid level can be checked by
observing the position of the level on the
liquid-covered holes in the gauge. 
If the level falls below the second hole
from the bottom (the “LOW” position), add
washer fluid.
Use windshield washer fluid. If windshield
washer fluid is unavailable use clean
water.
In areas where water freezes in winter,
use an anti-freeze type windshield washer
fluid.
WARNING
Use only those wheels that are
specified for your vehicle. Wheels
not meeting specifications could
interfere with brake caliper opera-
tion and may cause the tires to rub
against the wheel well housing
during turns. The resulting loss of
vehicle control could lead to an
accident.
1B02110
BRZ_U.book 366 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Replacement of Wiper Blades
367
Maintenance and Service11
– CONTINUED –

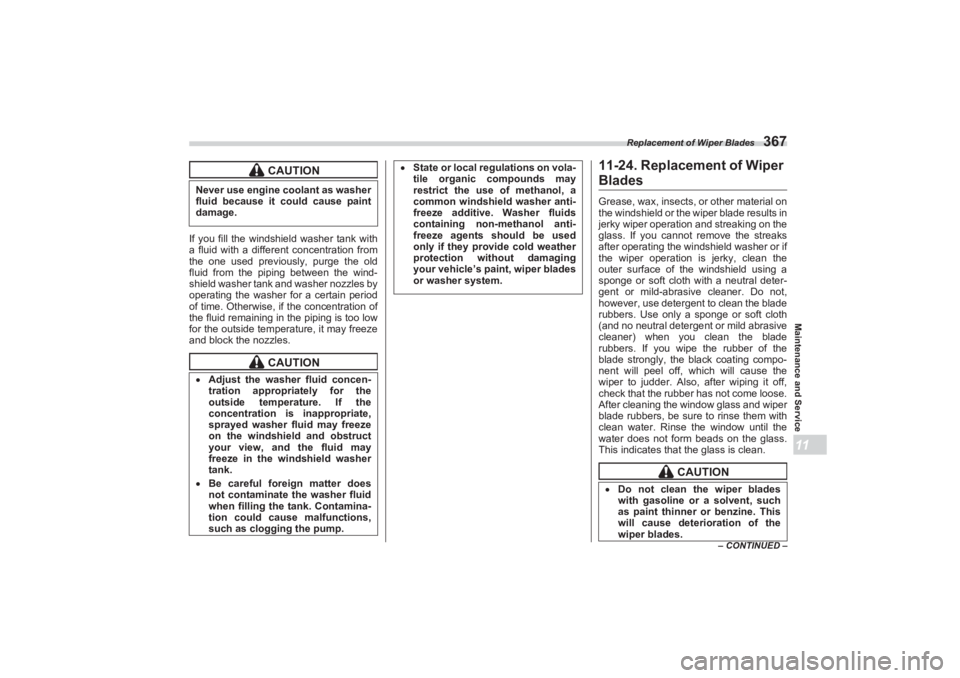

If you fill the windshield washer tank with
a fluid with a different concentration from
the one used previously, purge the old
fluid from the piping between the wind-
shield washer tank and washer nozzles by
operating the washer for a certain period
of time. Otherwise, if the concentration of
the fluid remaining in the piping is too low
for the outside temperature, it may freeze
and block the nozzles.
11-24. Replacement of Wiper BladesGrease, wax, insects, or other material on
the windshield or the wiper blade results in
jerky wiper operation and streaking on the
glass. If you cannot remove the streaks
after operating the windshield washer or if
the wiper operation is jerky, clean the
outer surface of the windshield using a
sponge or soft cloth with a neutral deter-
gent or mild-abrasive cleaner. Do not,
however, use detergent to clean the blade
rubbers. Use only a sponge or soft cloth
(and no neutral deterge nt or mild abrasive
cleaner) when you clean the blade
rubbers. If you wipe the rubber of the
blade strongly, the black coating compo-
nent will peel off, which will cause the
wiper to judder. Also, after wiping it off,
check that the rubber has not come loose.
After cleaning the window glass and wiper
blade rubbers, be sure to rinse them with
clean water. Rinse the window until the
water does not form beads on the glass.
This indicates that the glass is clean.
CAUTION
Never use engine coolant as washer
fluid because it could cause paint
damage.
CAUTION
 Adjust the washer fluid concen-
tration appropriately for the
outside temperature. If the
concentration is inappropriate,
sprayed washer fluid may freeze
on the windshield and obstruct
your view, and the fluid may
freeze in the windshield washer
tank. Be careful foreign matter does
not contaminate the washer fluid
when filling the tank. Contamina-
tion could cause malfunctions,
such as clogging the pump.
 State or local regulations on vola-
tile organic compounds may
restrict the use of methanol, a
common windshield washer anti-
freeze additive. Washer fluids
containing non-methanol anti-
freeze agents should be used
only if they provide cold weather
protection without damaging
your vehicle’s paint, wiper blades
or washer system.
CAUTION
 Do not clean the wiper blades
with gasoline or a solvent, such
as paint thinner or benzine. This
will cause deterioration of the
wiper blades.
BRZ_U.book 367 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Replacement of Wiper Blades
368
If you cannot eliminate the streaking even
after following this method, replace the
wiper blades using the following proce-
dures.■ Windshield Wiper Blade
AssemblyNOTEDo not lower the wi per arm while the
wiper blade assembly is removed.
1. Raise the wiper arm off the windshield.
First raise the driver’s side wiper arm and
then raise the front passenger’s side wiper
arm.
1) Lock cover2. Hold the wiper blade connection by
hand, open the lock cover to release the
lock.
 When you wish to raise the
passenger-side wiper arm, first
raise the driver-side wiper arm.
Otherwise, the passenger-side
wiper assembly and driver-side
wiper assembly will touch each
other, possibly resulting in
scratches. Return the passenger-side wiper
arm to its original position before
returning the dr iver-side wiper
arm to its original position. Other-
wise, the passenger-side wiper
assembly and driver-side wiper
assembly will touch each other,
possibly resulting in scratches. When returning the raised wipers
to the original positions, return
the wipers slowly on the wind-
shield by hand. Returning the
wipers from the detached posi-
tions by the spring operation
might change the shape of the
wiper arm or scratch the wind-
shield. While removing the wiper blades
from the wiper arms, do not
return the wiper ar ms to the orig-
inal positions. Otherwise, the
windshield surface may be
scratched.
B01729
CAUTION
Hold the wiper arm when replacing
the wiper blade. Holding the wiper
blade, may result in blade deforma-
tion.
1
B02111
BRZ_U.book 368 ページ ２０２２年３月２９日　火曜日　午後３時５９分

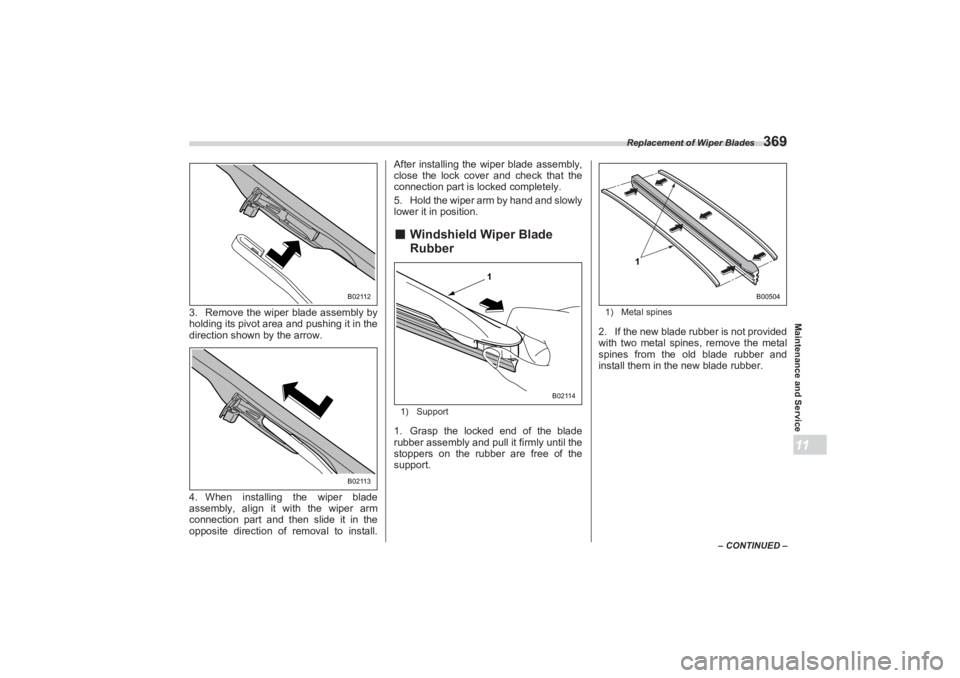

Replacement of Wiper Blades
369
Maintenance and Service11
– CONTINUED –
3. Remove the wiper blade assembly by
holding its pivot area and pushing it in the
direction shown by the arrow.
4. When installing the wiper blade
assembly, align it with the wiper arm
connection part and then slide it in the
opposite direction of removal to install. After installing the wiper blade assembly,

close the lock cover and check that the
connection part is locked completely.
5. Hold the wiper arm by hand and slowly
lower it in position.
■ Windshield Wiper Blade
Rubber1) Support1. Grasp the locked end of the blade
rubber assembly and pull it firmly until the
stoppers on the rubber are free of the
support.
1) Metal spines2. If the new blade rubber is not provided
with two metal spines , remove the metal
spines from the old blade rubber and
install them in the new blade rubber.
B02112B02113
1
B02114
B00504
1
BRZ_U.book 369 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Battery
3703. Align the claws of the support with the
grooves in the rubber and slide the blade
rubber assembly into the support until it
locks.1) Stopper
4. Be sure to position the claws at the
end of the support between the stoppers
on the rubber as shown. If the rubber is
not retained properly, the wiper blade may
scratch the windshield.
11-25. Battery
B02115
1
B02116
WARNING
 Before beginning work on or near
any battery, be sure to extinguish
all cigarettes, matches, and
lighters. Never expose a battery
to an open flame or electric
sparks. Batteries give off a gas
which is highly flammable and
explosive. For safety, in case an explosion
does occur, wear eye protection
or shield your eyes when working
near any battery. Never lean over
a battery. Do not let battery fluid contact
eyes, skin, fabrics, or paint
because battery fluid is a corro-
sive acid. If battery fluid gets on
your skin or in your eyes, immedi-
ately flush the area with water
thoroughly. Seek medical help
immediately if acid has entered
the eyes.
If battery fluid is accidentally
swallowed, immediately drink a
large amount of milk or water,
and seek medical attention
immediately.
BRZ_U.book 370 ページ ２０２２年３月２９日　火曜日　午後３時５９分
