2023 SUBARU BRZ Owners Manual

Instrument Panel
19
Illustrated Index
Instrument Panel
1
2
3
4
5
7
6
12
10
9
8
11
002018

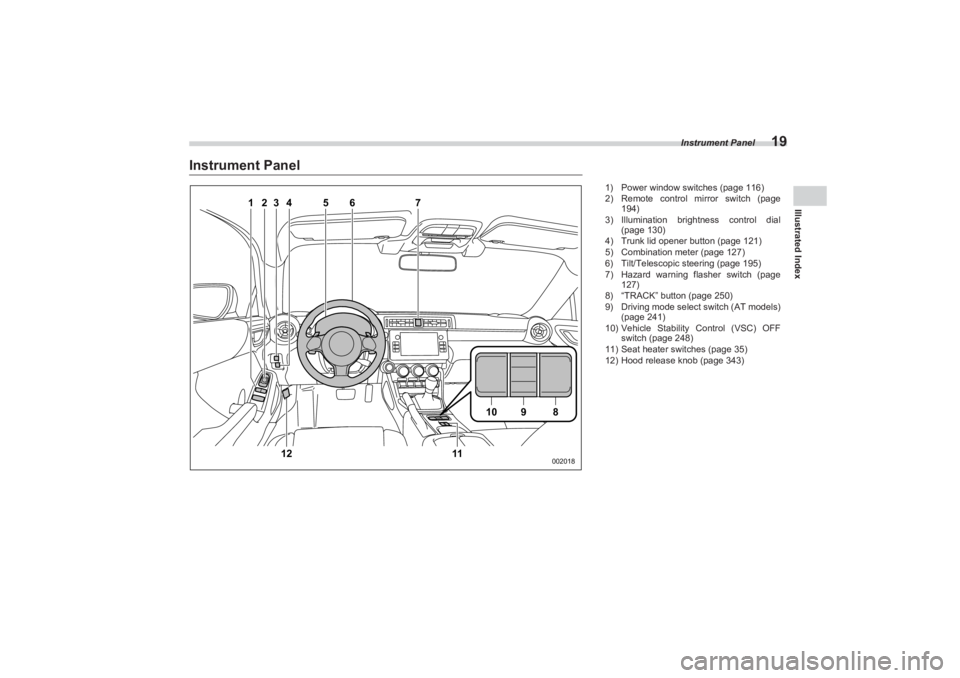

1) Power window switches (page 116)
2) Remote control mirror switch (page
194)
3) Illumination brightness control dial (page 130)
4) Trunk lid opener button (page 121)
5) Combination meter (page 127)
6) Tilt/Telescopic steering (page 195)
7) Hazard warning flasher switch (page
127)
8) “TRACK” button (page 250)
9) Driving mode select switch (AT models)
(page 241)
10) Vehicle Stability Control (VSC) OFF
switch (page 248)
11) Seat heater switches (page 35)
12) Hood release knob (page 343)
BRZ_U.book 19 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Steering Wheel
20Steering Wheel
11
9
33
9
22
4
5
6
8
7
002019

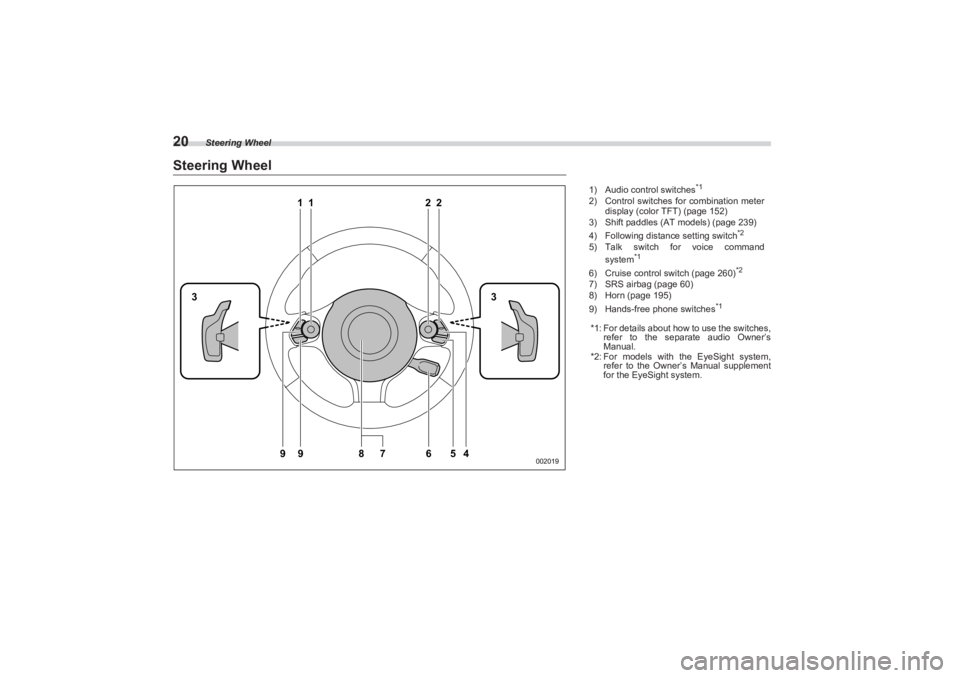

1)
Audio control switches
*1
2) Control switches for combination meter
display (color TFT) (page 152)
3) Shift paddles (AT models) (page 239)
4) Following distance setting switch
*2
5) Talk switch for voice command
system
*1
6) Cruise control switch (page 260)
*2
7) SRS airbag (page 60)
8) Horn (page 195)
9) Hands-free phone switches
*1
*1: For details about how to use the switches,
refer to the separate audio Owner’s
Manual.
*2: For models with the EyeSight system,
refer to the Owner’s Manual supplement
for the EyeSight system.
BRZ_U.book 20 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Light Control and Wiper Control Levers/Switches
21
Illustrated Index
Light Control and Wiper Control Levers/Switches
1
2
3
4
65
7
8
9
002020

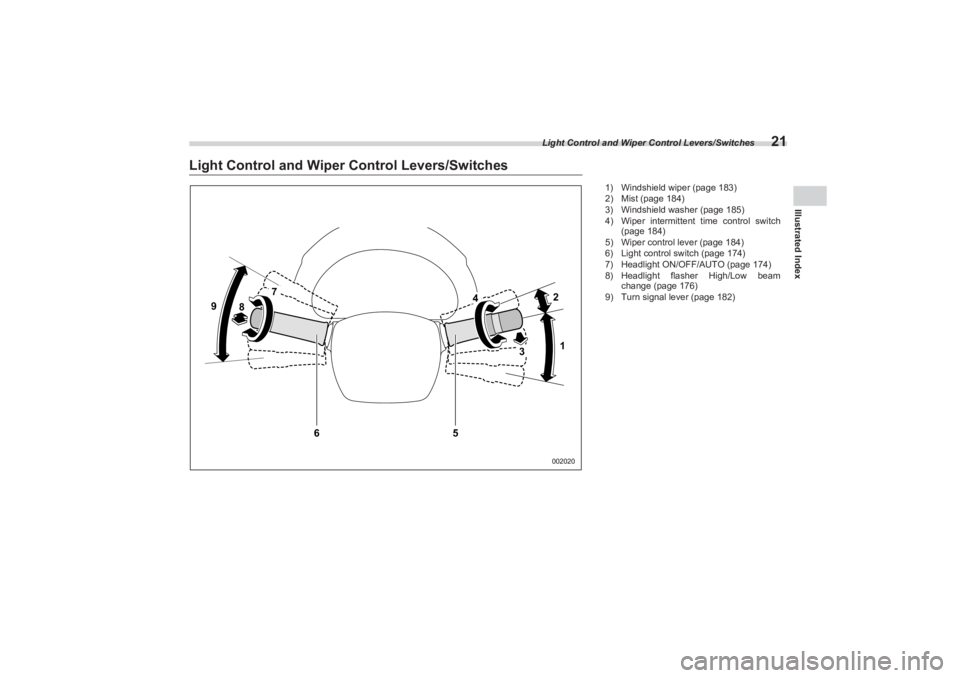

1) Windshield wiper (page 183)
2) Mist (page 184)
3) Windshield washer (page 185)
4) Wiper intermittent time control switch

(page 184)
5) Wiper control lever (page 184)
6) Light control switch (page 174)
7) Headlight ON/OFF/AUTO (page 174)
8) Headlight flasher High/Low beam
change (page 176)
9) Turn signal lever (page 182)
BRZ_U.book 21 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter
22Combination Meter■U.S. Spec. Models (Normal mode)
1
2
3
7
8
9
4
5
6002005

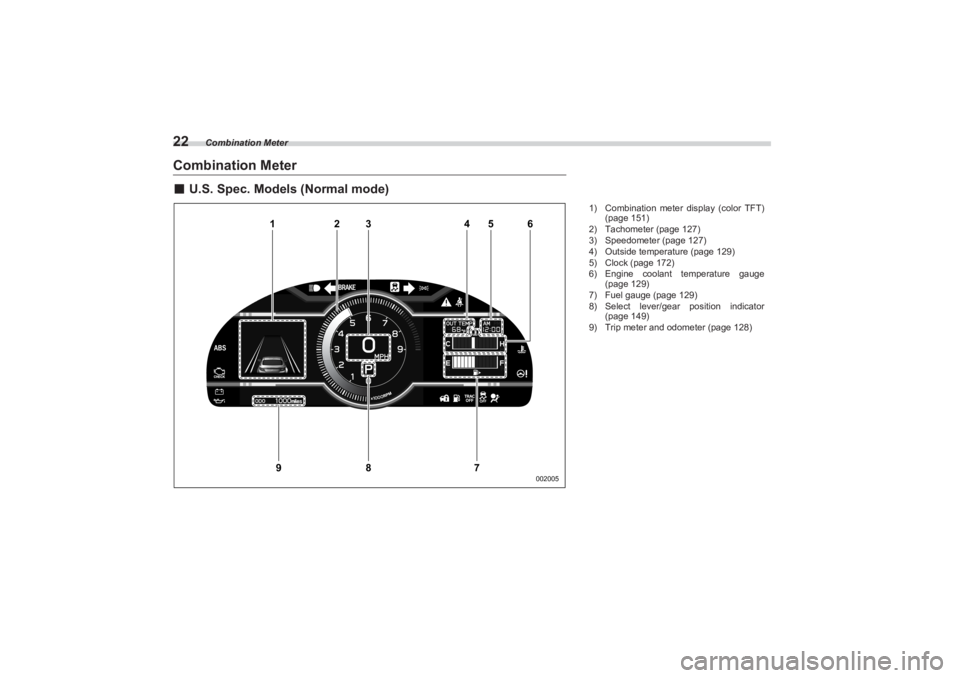

1) Combination meter display (color TFT)
(page 151)
2) Tachometer (page 127)
3) Speedometer (page 127)
4) Outside temperature (page 129)
5) Clock (page 172)
6) Engine coolant temperature gauge
(page 129)
7) Fuel gauge (page 129)
8) Select lever/gear position indicator
(page 149)
9) Trip meter and odometer (page 128)
BRZ_U.book 22 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter
23
Illustrated Index
– CONTINUED –
■U.S. Spec. Models (TRACK mode)
1
2
3
4
5
6
7
8
9
002006

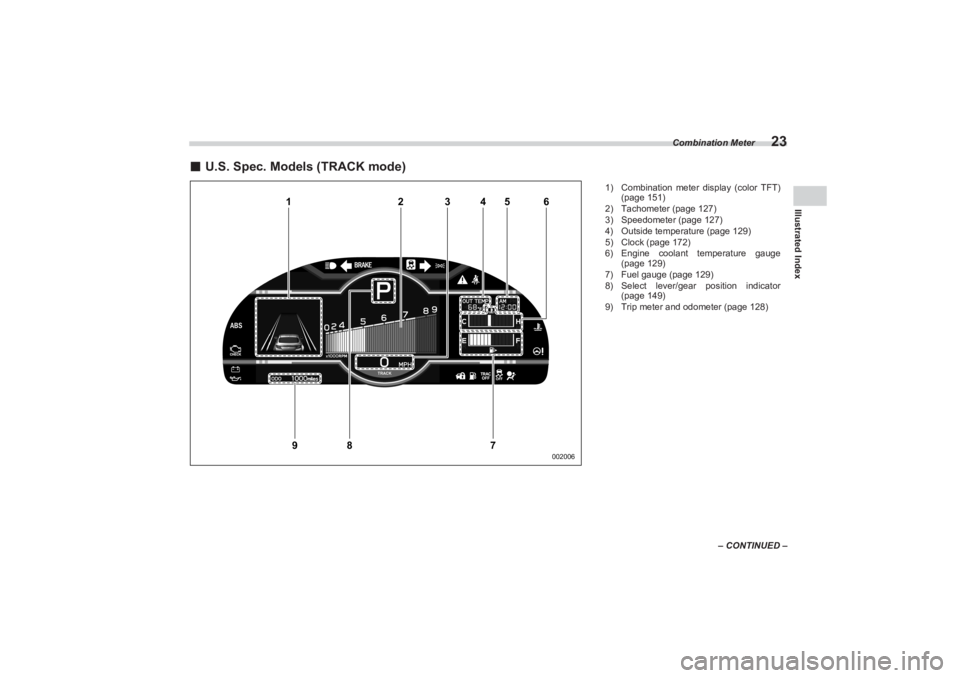

1) Combination meter display (color TFT)
(page 151)
2) Tachometer (page 127)
3) Speedometer (page 127)
4) Outside temperature (page 129)
5) Clock (page 172)
6) Engine coolant temperature gauge
(page 129)
7) Fuel gauge (page 129)
8) Select lever/gear position indicator
(page 149)
9) Trip meter and odometer (page 128)
BRZ_U.book 23 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter
24■Except U.S. Spec. Models (Normal mode)
1
2
3
7
8
9
4
5
6002007

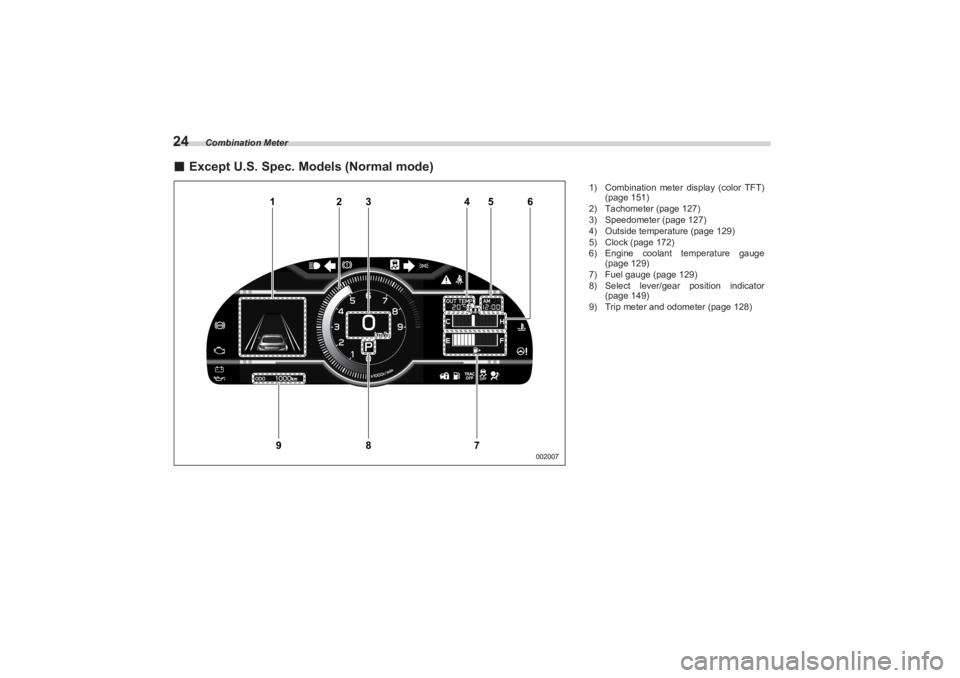

1) Combination meter display (color TFT)
(page 151)
2) Tachometer (page 127)
3) Speedometer (page 127)
4) Outside temperature (page 129)
5) Clock (page 172)
6) Engine coolant temperature gauge
(page 129)
7) Fuel gauge (page 129)
8) Select lever/gear position indicator
(page 149)
9) Trip meter and odometer (page 128)
BRZ_U.book 24 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Combination Meter
25
Illustrated Index
■Except U.S. Spec. Models (TRACK mode)
1
2
3
4
5
6
7
8
9
002008
1) Combination meter display (color TFT)
(page 151)
2) Tachometer (page 127)
3) Speedometer (page 127)
4) Outside temperature (page 129)
5) Clock (page 172)
6) Engine coolant temperature gauge
(page 129)
7) Fuel gauge (page 129)
8) Select lever/gear position indicator
(page 149)
9) Trip meter and odometer (page 128)
BRZ_U.book 25 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
26
MarkName Page
Seatbelt warning light 131
Front passenger’s
seatbelt warning light 131
Rear passenger’s
seatbelt warning light 131
SRS airbag system
warning light 135
CHECK ENGINE warn-
ing light/Malfunction
indicator light 136
Coolant temperature
low indicator light
(blue)/Coolant tem-
perature high warning
light (red) 136
Charge warning light 137
Oil pressure warning
light 137
AT OIL TEMP warning
light (AT models) 138
ABS warning light 140
Brake system warning
light 140
Door open indicator 141
Low fuel warning light 141
Power steering warn-
ing light 141
Vehicle Stability Control
(VSC) warning light/
Vehicle Stability Control
(VSC) operation indica-
tor light 142
Vehicle Stability Control
(VSC) OFF indicator
light 143
TRAC OFF indicator
light 142
Access key warning
indicator 143
Security indicator light 148
Turn signal indicator
lights 149
High beam indicator
light 150
High beam assist indi-
cator light (if equipped) 150
Automatic headlight
beam leveler warning
light 150
LED headlight warning
light 150
Mark
Name Page
Steering Responsive
Headlight OFF indica-
tor light (if equipped) 150
Steering Responsive
Headlight warning light
(if equipped) 150
Hill start assist indica-
tor light 150
Headlight indicator light 150
Cruise control indica-
tor light (white/green)/
Cruise control warning
light (yellow) (models
without the EyeSight
system) 149
Low tire pressure warn-
ing light (if equipped) 138
Front passenger’s fron-
tal airbag ON indicator
light 135
Front passenger’s fron-
tal airbag OFF indicator
light 135
BSD/RCTA warning
indicator (if equipped) 150
BSD/RCTA OFF indi-
cator (if equipped) 150
Snow mode indicator
light (if equipped) 148
Mark
Name Page
Warning and Indicator LightsBRZ_U.book 26 ページ ２０２２年３月２９日　火曜日　午後３時５９分
