2023 SUBARU BRZ Owners Manual

Child Restraint Systems
51
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
■Installing Child Restraint
Systems with ALR/ELR Seat -
belt▼ Installing a rearward facing child
restraint system
1. Place the child rest raint system in the
rear seating position.
2. Run the lap and shoulder belt through
or around the chil d restraint system
following the instructions provided by its
manufacturer.
3. Insert the tongue plate into the buckle
until you hear a click. 4. Take up the slack in the lap belt.
5. If using the seatbelt in the ALR mode

is recommended by the manufacturer’s
instructions supplied with the child
restraint system, perform the following
procedure.
(1) Pull out the seatbelt fully from the
retractor to change the retractor over from
the Emergency Locking Retractor (ELR)
to the Automatic Locking Retractor (ALR)
mode.
(2) Allow the belt to rewind into the
retractor. As the belt is rewinding, clicks
will be heard which indicate the retractor
functions as ALR.
CAUTION
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held
securely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in
the event of an accident may be
increased.
WARNING
 NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER'S SEAT.
DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG.
 Before installing a child restraint
system, be sure to confirm that
the seatback is securely locked
into place. Otherwise, in an acci-
dent, serious injury or death
could result.
100503
101511
BRZ_U.book 51 ページ ２０２２年３月２９日　火曜日　午後３時５９分

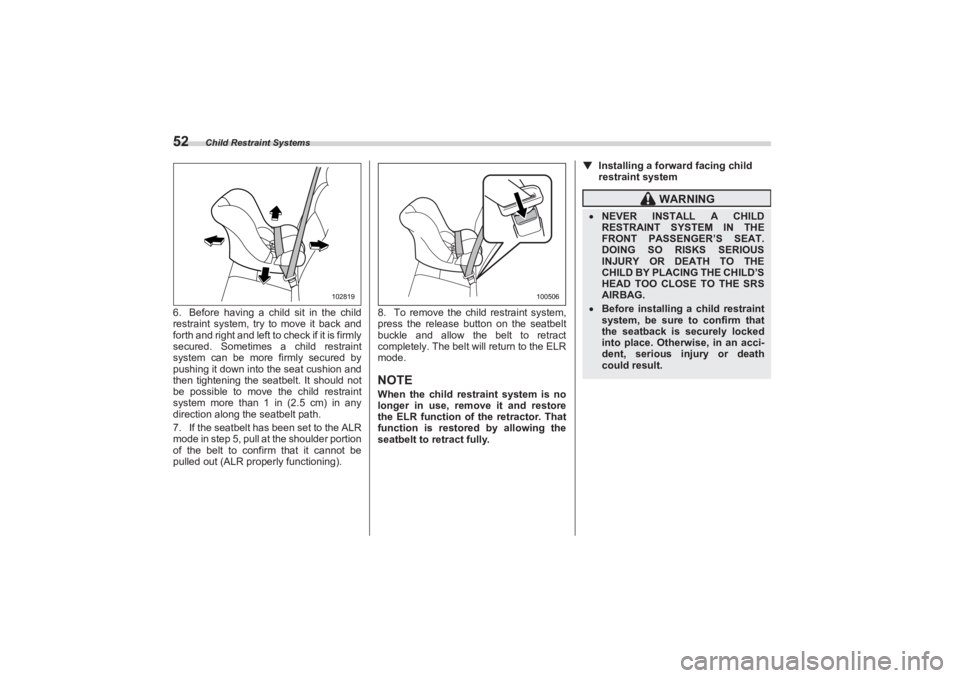

Child Restraint Systems
526. Before having a child sit in the child
restraint system, try to move it back and
forth and right and left to check if it is firmly
secured. Sometimes a child restraint
system can be more firmly secured by
pushing it down into the seat cushion and
then tightening the seatbelt. It should not
be possible to move the child restraint
system more than 1 in (2.5 cm) in any
direction along the seatbelt path.
7. If the seatbelt has been set to the ALR
mode in step 5, pull at the shoulder portion
of the belt to confir m that it cannot be
pulled out (ALR properly functioning). 8. To remove the child restraint system,

press the release button on the seatbelt
buckle and allow the belt to retract
completely. The belt will return to the ELR
mode.
NOTEWhen the child restraint system is no
longer in use, remove it and restore
the ELR function of the retractor. That
function is restored by allowing the
seatbelt to retract fully.
▼ Installing a forward facing child
restraint system
102819
100506
WARNING
NEVER INSTALL A CHILD
RESTRAINT SYSTEM IN THE
FRONT PASSENGER’S SEAT.
DOING SO RISKS SERIOUS
INJURY OR DEATH TO THE
CHILD BY PLACING THE CHILD’S
HEAD TOO CLOSE TO THE SRS
AIRBAG. Before installing a child restraint
system, be sure to confirm that
the seatback is securely locked
into place. Otherwise, in an acci-
dent, serious injury or death
could result.
BRZ_U.book 52 ページ ２０２２年３月２９日　火曜日　午後３時５９分

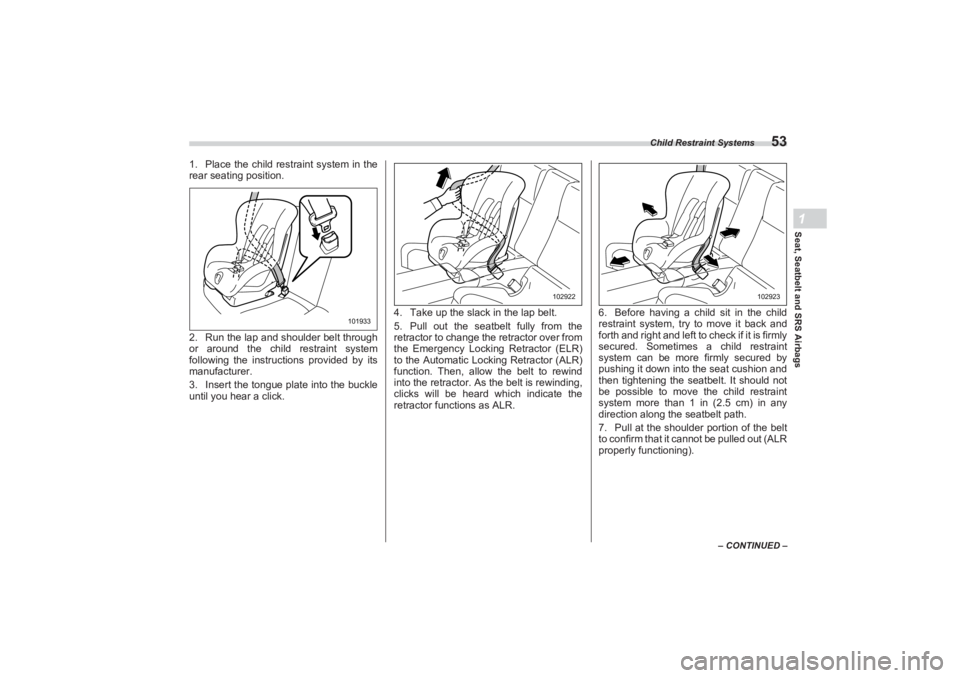

Child Restraint Systems
53
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
1. Place the child restraint system in the
rear seating position.
2. Run the lap and shoulder belt through
or around the child restraint system
following the instructions provided by its
manufacturer.
3. Insert the tongue plate into the buckle
until you hear a click. 4. Take up the slack in the lap belt.
5. Pull out the seatbelt fully from the

retractor to change the retractor over from
the Emergency Locking Retractor (ELR)
to the Automatic Locking Retractor (ALR)
function. Then, allow the belt to rewind
into the retractor. As the belt is rewinding,
clicks will be heard which indicate the
retractor functions as ALR. 6. Before having a child sit in the child

restraint system, try to move it back and
forth and right and left to check if it is firmly
secured. Sometimes a child restraint
system can be more firmly secured by
pushing it down into the seat cushion and
then tightening the seatbelt. It should not
be possible to move the child restraint
system more than 1 in (2.5 cm) in any
direction along the seatbelt path.
7. Pull at the shoulder portion of the belt
to confirm that it cannot be pulled out (ALR
properly functioning).
101933
102922
102923
BRZ_U.book 53 ページ ２０２２年３月２９日　火曜日　午後３時５９分

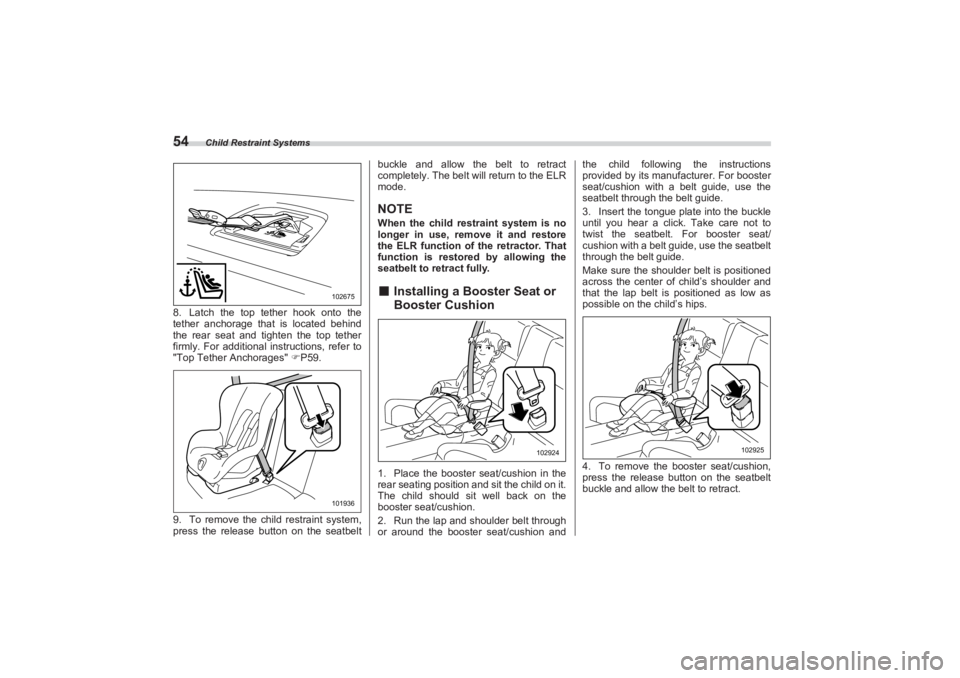

Child Restraint Systems
548. Latch the top tether hook onto the
tether anchorage that is located behind
the rear seat and tighten the top tether
firmly. For additional instructions, refer to
"Top Tether Anchorages"  P59.
9. To remove the child restraint system,
press the release butt on on the seatbelt buckle and allow the belt to retract

completely. The belt will return to the ELR
mode.
NOTEWhen the child restraint system is no
longer in use, remove it and restore
the ELR function of the retractor. That
function is restored by allowing the
seatbelt to retract fully.■ Installing a Booster Seat or
Booster Cushion1. Place the booster seat/cushion in the
rear seating position and sit the child on it.
The child should si t well back on the
booster seat/cushion.
2. Run the lap and shoulder belt through
or around the booster seat/cushion and the child following the instructions

provided by its manufacturer. For booster
seat/cushion with a belt guide, use the
seatbelt through the belt guide.
3. Insert the tongue plate into the buckle
until you hear a click. Take care not to
twist the seatbelt. For booster seat/
cushion with a belt guide, use the seatbelt
through the belt guide.
Make sure the shoulder belt is positioned
across the center of child’s shoulder and
that the lap belt is positioned as low as
possible on the child’s hips.
4. To remove the booster seat/cushion,
press the release button on the seatbelt
buckle and allow the belt to retract.
102675101936
102924
102925
BRZ_U.book 54 ページ ２０２２年３月２９日　火曜日　午後３時５９分

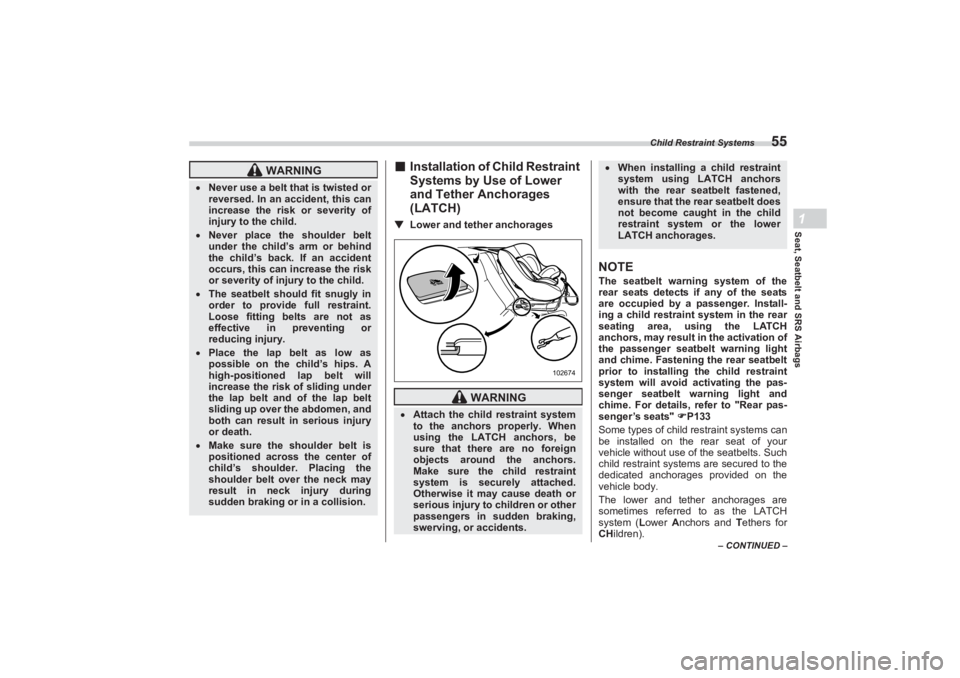

Child Restraint Systems
55
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
■Installation of Child Restraint
Systems by Use of Lower
and Tether Anchorages
(LATCH)▼ Lower and tether anchorages
NOTEThe seatbelt warning system of the
rear seats detects if any of the seats
are occupied by a passenger. Install-
ing a child restraint system in the rear
seating area, using the LATCH
anchors, may result in the activation of
the passenger seatbelt warning light
and chime. Fastening the rear seatbelt
prior to installing the child restraint
system will avoid activating the pas-
senger seatbelt warning light and
chime. For details, refer to "Rear pas-
senger’s seats" P133
Some types of child restraint systems can
be installed on the rear seat of your
vehicle without use of the seatbelts. Such
child restraint systems are secured to the
dedicated anchorages provided on the
vehicle body.
The lower and tether anchorages are
sometimes referred to as the LATCH
system ( Lower Anchors and T ethers for
CHildren).
WARNING
 Never use a belt that is twisted or
reversed. In an accident, this can
increase the risk or severity of
injury to the child. Never place the shoulder belt
under the child’s arm or behind
the child’s back. If an accident
occurs, this can increase the risk
or severity of injury to the child. The seatbelt should fit snugly in
order to provide full restraint.
Loose fitting belts are not as
effective in preventing or
reducing injury. Place the lap belt as low as
possible on the child’s hips. A
high-positioned lap belt will
increase the risk of sliding under
the lap belt and of the lap belt
sliding up over the abdomen, and
both can result in serious injury
or death. Make sure the shoulder belt is
positioned across the center of
child’s shoulder. Placing the
shoulder belt over the neck may
result in neck injury during
sudden braking or in a collision.
WARNING
 Attach the child restraint system
to the anchors properly. When
using the LATCH anchors, be
sure that there are no foreign
objects around the anchors.
Make sure the child restraint
system is securely attached.
Otherwise it may cause death or
serious injury to children or other
passengers in sudden braking,
swerving, or accidents.
102674
 When installing a child restraint
system using LATCH anchors
with the rear seatbelt fastened,
ensure that the rear seatbelt does
not become caught in the child
restraint system or the lower
LATCH anchorages.
BRZ_U.book 55 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Child Restraint Systems
56Your vehicle is equipped with four lower
anchorages (bars) and two upper anchor-
ages (tether anchorages) for accommo-
dating such child restraint systems.
▽ Lower anchorages
The lower anchorages (bars) are used for
installing a child restraint system. For
each seating position, two lower anchor-
ages are provided. Each lower anchorage
is located where the seat cushion meets
the seatback. ▽
Tether anchorages
1) For right seat
2) For left seatThe tether anchorages (upper anchor-
ages) are provided at the locations shown
101210
102676
1
2102677
BRZ_U.book 56 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Child Restraint Systems
57
Seat, Seatbelt and SRS Airbags1
– CONTINUED –
in the above illustration. For details, refer
to "Top Tether Anchorages" P59.
▽ To install a child restraint
system using lower and tether
anchorages
1. Move the seatback back and forth to
confirm that it is securely locked into
place.
Check that the red colored
unlocking marker on the lock release
button is not visible. For details, refer
to "Folding Down the Rear Seatback"
 P37. 2. You will find “ ” marks at the bottoms

of the rear seatback. These marks indi-
cate the positions of the lower anchorages
(bars).
Each lower anchorage is located behind
the cover of seatback bottom. Peel off the anchorage cover completely

from the selected side of the rear
seatback to expose the anchorages (bars)
to be used for installation of the child
restraint system.
If it is hard to install the child restraint
system because the anchorage cover
returns to the original position, press the
anchorage cover to the seat cushion until
it is flat.
WARNING
Before installing a child restraint
system, be sure to confirm that the
seatback is securely locked into
place. Otherwise, in an accident,
serious injury or death could result.
CAUTION
When you install a child restraint
system, follow the manufacturer’s
instructions supplied with it. After
installing the child restraint system,
check to ensure that it is held
securely in position. If it is not held
tight and secure, the danger of your
child suffering personal injury in
the event of an accident may be
increased.
102678
102760
BRZ_U.book 57 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Child Restraint Systems
583. While following the instructions
supplied by the child restraint system
manufacturer, connect the lower hooks
onto the lower anchorages located at “ ”
marks on the bottom of the rear seatback.
When the hooks are connected, make
sure the adjacent seatbelts are not
caught. 4. If your child restraint system is a flex-
ible attachment type (which uses tether

belts), push the child restraint system into
the seat cushion and pull both left and
right lower tether belts up to secure the
child restraint system by taking up the
slack in the belt.
5. Latch the top tether hook onto the
tether anchorage that is located on the
rear shelf and tighten the top tether firmly.
For additional instructions, refer to "Top
Tether Anchorages" P59. 6. Before having a child sit in the child

restraint system, try to move it back and
forth and right and left to check if it is firmly
secured. Sometimes a child restraint
system can be more firmly secured by
pushing it down into the seat cushion. It
should not be possible to move the child
restraint system more than 1 in (2.5 cm).
7. To remove the child restraint system,
follow the reverse procedures of installa-
tion.
SUBARU recommends that you check
with a certified Child Passenger Safety
Technician to ensure the proper installa-
tion of your child restraint system. For
more information, and to locate the
closest inspection location in the U.S.,
refer to the National Highway Traffic
Safety Administration (NHTSA) website.
In Canada, check with Transport Canada.
102679
102680
102926
BRZ_U.book 58 ページ ２０２２年３月２９日　火曜日　午後３時５９分
