2023 SUBARU BRZ Owners Manual

Defrosting
203
Climate Control4
– CONTINUED –
To turn off the air conditioner, press the
button again. The indicator light will turn
off.NOTEFor efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. However, if the ambient
temperature decreases to approxi-
mately 32°F (0°C), the air conditioner
and dehumidification system may not
work properly.■ Air Inlet SelectionSelect the air inlet by pressing the air inlet
selection button.
 Recirculation:
When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
in the following cases.
- When driving on a dusty road
- When you want cooling perfor-
mance to increase (for example, in
particularly hot weather)
 Outside air circulation:
When the indicator light on the air inlet
selection button does not illuminate,
outside air is drawn into the passenger
compartment. Press the air inlet selection button to the OFF position in the following

cases.
- When the road is no longer dusty
- When the interior has cooled to a
comfortable temperature
NOTEWhen outside air circulation is
selected, the system may automati-
cally adjust the air inlet setting
depending on such factors as the tem-
perature setting, the temperature
inside the vehicle, or conditions out-
side the vehicle.■ To Turn Off the Climate
Control SystemTo turn off the clim ate control system,
press the ON/OFF button.
4-5. DefrostingSelect the “ ” or “ ” mode to defrost
or dehumidify the windshield and the side
door windows.NOTE When the “” or “” mode is
selected, the air conditioner operates
automatically regardless of the posi-
tion of the air conditioner button to
defrost the wi ndshield more quickly.
However, the indicator on the air condi-
tioner button may not illuminate. At the
same time, the air inlet selection is
automatically set to the outside air
circulation mode.
 After defrosting the windshield by
pressing the defroster button “ ”,
pressing the button again returns the
WARNING
Continued operation in the recircu-
lation mode may fog up the win-
dows. Switch to the outside air
circulation mode as soon as the
outside dusty condition clears.
403491
BRZ_U.book 203 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Operating Tips for Heater and Air Conditioner
204system to the setting that had been
selected before the defroster was acti-
vated.
4-6. Operating Tips for Heater and Air Conditioner■ Cleaning Ventilator Grille1) Front ventilator inlet grille
2) CondenserAlways keep the front ventilator inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept
clean because cooling performance is
impaired by any accu mulation of insects
and leaves on the condenser.
■ Efficient Cooling after
Parking in Direct SunlightAfter parking in direct sunlight, drive with
the windows open for a few minutes to
allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of
the air conditioner for maximum cooling
efficiency.■ Lubrication Oil Circulation in
the Refrigerant CircuitOperate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.■ Checking Air Conditioning
System before Summer
SeasonCheck the air conditioner unit for refrig-
erant leaks, hose conditions, and proper
operation each spring. Have the air condi-
tioning system checked by your SUBARU
dealer.
2
1
403492
BRZ_U.book 204 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Air Filtration System
205
Climate Control4
– CONTINUED –
■Cooling and Dehumidifying
in High Humidity and Low
Te mperature Weather Condi -
tionUnder certain weather conditions (high
relative humidity, lo w temperatures, etc.)
a small amount of water vapor emission
from the air outlets may be noticed. This
condition is normal and does not indicate
any problem with the air conditioning
system.■ Air Conditioner Compressor
Shut-Off Whe n Engine Is
Heavily LoadedTo improve acceleration and gas mileage,
the air conditio ner compressor is
designed to temporarily shut off during air
conditioner operation whenever the accel-
erator is fully depressed such as during
rapid acceleration or when driving on a
steep upgrade.
■ Refrigerant for Your Climate
Control Syste m1) Air conditioner labelYour air conditioner uses ozone friendly
refrigerant R-1234yf (HFO-1234yf).
Before adding, changing or checking the
refrigerant, check the air conditioner label
in the location shown in the illustration to
confirm the type of refrigerant is used in
your vehicle.
Consult your SUBARU dealer for service.
Repairs needed as a result of using the
wrong refrigerant are not covered under
warranty.
4-7. Air Filtration SystemYour vehicle’s air conditioning system is
equipped with an air filtration system.
Replace the cabin air filter according to
the replacement schedule found in the
“Warranty and Maintenance Booklet”.
This schedule should be followed to main-
tain the filter’s dust collection ability.
Under extremely dusty conditions, the
filter should be replaced more frequently.
Have your filter checked or replaced by
your SUBARU dealer. For replacement,
use only a genuine SUBARU air filter kit.NOTEThe filter can influence the air condi-
tioning, heating and defroster perfor-
mance if not properly maintained.
1
403493
CAUTION
Contact your SUBARU dealer if the
following occurs, even if it is not yet
time to change the filter. Reduction of the airflow through
the vents. Windshield gets easily fogged or
misted.
BRZ_U.book 205 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Air Filtration System
206■Replacing the Cabin Air Filter1. Remove the glove box.
(1) Open the glove box.1) Link pocket(2) Remove the link pocket from the
glove box. (3) Push both sides of the glove box

inward to unlock the stoppers and then
pull down the glove box as far as it will
go.
(4) Pull out the glove box horizontally
and remove the hinge portion. When doing this, be careful not to damage the

hinge.
2. Remove the cabin air filter according
to the following procedure in order to
prevent dust on the air cleaner from falling
to the inside of its housing.
(1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.
1
403594
403495403496
403497
BRZ_U.book 206 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Air Filtration System
207
Climate Control4

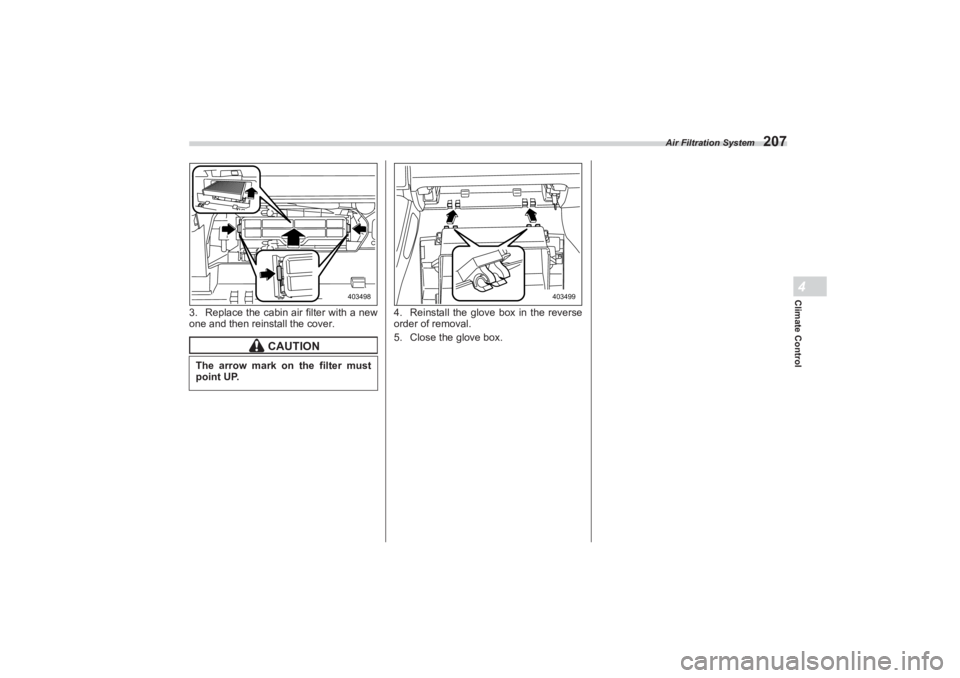

3. Replace the cabin air filter with a new
one and then reinstall the cover. 4. Reinstall the glove box in the reverse

order of removal.
5. Close the glove box.
CAUTION
The arrow mark on the filter must
point UP.
403498
403499
BRZ_U.book 207 ページ ２０２２年３月２９日　火曜日　午後３時５９分

²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²BRZ_U.book 208 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Audio5
Audio
5-1. Antenna................................................................210
Roof Antenna ................................................................210
5-2. Audio Set .............................................................210
BRZ_U.book 209 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Antenna
2105-1. Antenna■Roof AntennaThe roof antenna is in stalled on the roof.
5-2. Audio SetIf your vehicle is equipped with a genuine
SUBARU audio system, refer to the sepa-
rate audio Owner’s Manual for details.
501618
