2023 SUBARU BRZ Owners Manual

SRS Airbag (Supplemental Restraint System Airbag)
91
Seat, Seatbelt and SRS Airbags1
Shen’s Corporation dba Prestige Automo-
biles
491 East Marine Corps Drive, 
Dededo, Guam 96929
671-633-2698

Trebol Motors
296 Marginal JF Kennedy, San Juan,
Puerto Rico
787-793-2828

Subaru Canada, Inc.
Consumer Support Department 
560 Suffolk Court, Mississauga, Ontario
L5R 4J7
1-800-894-4212
There are currently no SUBARU distribu-
tors in any other U.S. territories. If you are
in such an area, please contact the
SUBARU distributor or dealer from which
you bought your vehicle.
BRZ_U.book 91 ページ ２０２２年３月２９日　火曜日　午後３時５９分

²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²
²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²²BRZ_U.book 92 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keys and Doors2
Keys and Doors
2-1. Keyless Access with Push-Button Start 
System .................................................................94
Safety Precautions ..... .......................................... ..........94
Locking and Unlocking with “Keyless Access” 
Entry Function ..............................................................97
Unlock Using PIN Code Access ..................................100
Power Saving Function ................................................102
Power Saving Function of Access Key Fob...............103
Disabling Keyless Access Function ...........................103
Selecting Audible Signal Operation (If Equipped).....105
Selecting Hazard Warning Flasher Operation ...........106
Warning Chimes and Warning Indicator ....................106
When Access Key Fob Does Not Operate 
Properly.......................................................................106
Replacing Battery of Access Key Fob ........................106
Replacing Access Key Fob..........................................106
Certification for Keyless Access with Push-Button 
Start System ...............................................................106
2-2. Immobilizer ..........................................................108
Security Indicator Light ...............................................108
Key Replacement..........................................................108
Certification for Immobilizer System ..........................108
2-3. Remote Keyless Entry System ..........................109
Locking the Doors ........................................................110
Unlocking the Doors ....................................................110
Opening the Trunk Lid .................................................110 Setting Audible Signal Operation (If Equipped)........ 110
Selecting Hazard Warning Flasher Operation........... 110
Vehicle Finder Function .............................................. 110
Sounding a Panic Alarm ............................................. 110
Replacing the Battery .................................................. 111
Replacing Lost Transmitters ...................................... 111
2-4. Door Locks ..........................................................111
Locking and Unlocking from the Outside ................. 111
Locking and Unlocking from the Inside .................... 112
Key Lock-In Prevention Function............................... 113
Battery Drainage Prevention Function ...................... 113
2-5. Alarm System ......................................................114
Alarm System Operation ............................................. 114
Arming the System ...................................................... 114
Disarming the System ................................................. 115
Alarm System Setting.................................................. 115
If You Have Accidentally Triggered the Alarm

System........................................................................ 116
2-6. Windows ..............................................................116
Power Window Operation ........................................... 117
Initialization of Power Window ................................... 118
2-7. Trunk Lid ..............................................................119
To Open and Close the Trunk Lid from Outside ....... 120
To Open the Trunk Lid from Inside ............................ 121
Internal Trunk Lid Release Handle ............................. 121
BRZ_U.book 93 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keyless Access with Push-Button Start System
942-1. Keyless Access with Push-Button Start SystemThe following access key fobs are
provided with the vehicle.1) Access key fob
2) Key number plateThe keyless access with push-button start
system allows you to perform the following
functions when you are carrying the
access key fob.
 Locking and unlocking of the doors,
fuel filler lid
 Opening the trunk
 Starting and stopping the engine. For
detailed information, refer to "Starting and
Stopping Engine" P229. 
Arming and disarming the alarm
system. For detailed in formation, refer to
"Alarm System" P114.
NOTE Locking and unlocking by the
remote keyless entry system can also
be controlled with the buttons on the
access key fob. For detailed informa-
tion, refer to "Remote Keyless Entry
System" P109.
 Carefully store the key number plate
supplied with the access key fob. It is
necessary for vehicle repair and addi-
tional registration of access key fobs.
For details, refer to "Key Replacement"
 P108.
An emergency key is attached to each
access key fob.
1) Release button
2) Emergency keyWhile pressing the release button of the
access key fob, take out the emergency
key.
The emergency key is used for locking
and unlocking the driver’s door.■ Safety Precautions
203629
11 2
WARNING
If you wear an implanted pacemaker
or an implanted defibrillator, stay at
least 8.7 in (22 cm) away from the
transmitting antennas installed on
the vehicle.
1
2
202500
BRZ_U.book 94 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keyless Access with Push-Button Start System
95
Keys and Doors2
– CONTINUED –

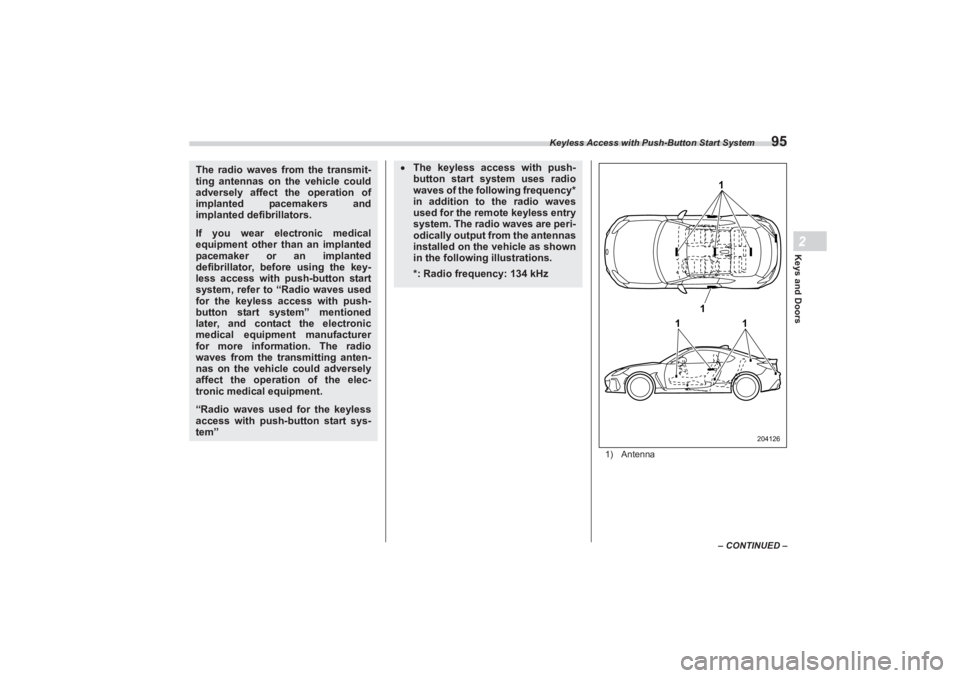

1) Antenna
The radio waves from the transmit-
ting antennas on the vehicle could

adversely affect the operation of
implanted pacemakers and
implanted defibrillators.If you wear electronic medical
equipment other than an implanted
pacemaker or an implanted
defibrillator, before using the key-
less access with push-button start
system, refer to “Radio waves used
for the keyless access with push-
button start system” mentioned
later, and contact the electronic
medical equipment manufacturer
for more information. The radio
waves from the tr ansmitting anten-
nas on the vehicle could adversely
affect the operation of the elec-
tronic medical equipment.“Radio waves used for the keyless
access with push-button start sys-
tem”
 The keyless access with push-
button start system uses radio
waves of the following frequency*
in addition to the radio waves
used for the remote keyless entry
system. The radio waves are peri-
odically output from the antennas
installed on the vehicle as shown
in the following illustrations.
*: Radio frequency: 134 kHz
1
1
1
1
204126
BRZ_U.book 95 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keyless Access with Push-Button Start System
96
NOTEThe operational/non-operational
setting for the keyless access function
can be changed. For the setting proce-
dure, refer to "Disabling Keyless
Access Function" P103.
 For detailed info rmation about the
operation method fo r the push-button
ignition switch while the keyless
access function is switched to the non-
operational mode, refer to "Access Key
Fob – If Access Key Fob Does Not
Operate Properly" P325.
 The keyless access with push-
button start system uses weak radio
waves. The status of the access key
fob and environmental conditions may
interfere with the communication
between the access key fob and the
vehicle under the following conditions,
and it may not be possible to lock or
unlock the doors or start the engine.

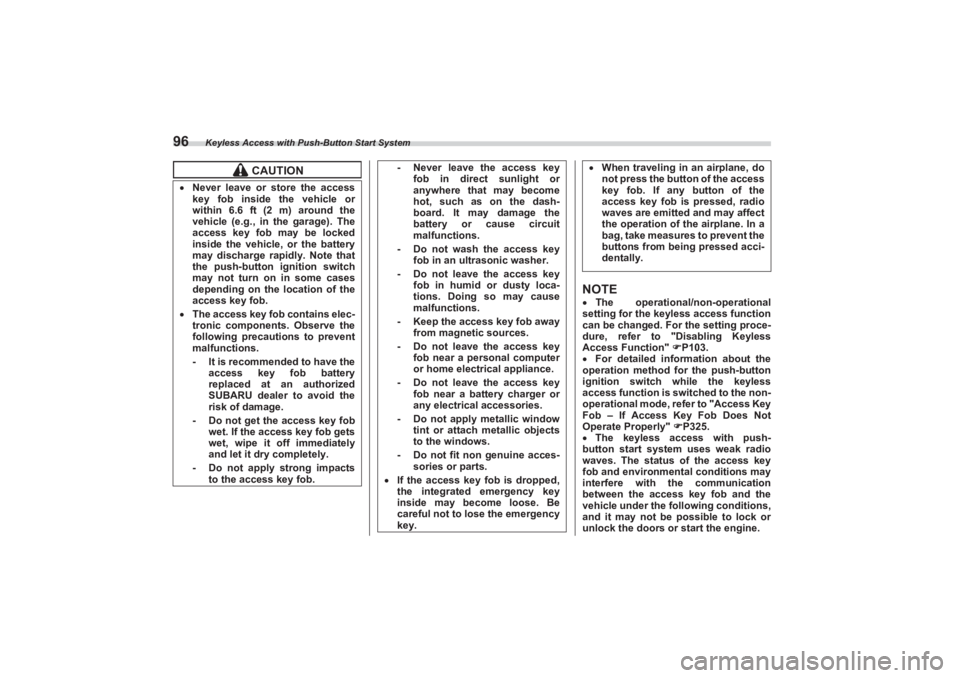

CAUTION
 Never leave or store the access
key fob inside the vehicle or
within 6.6 ft (2 m) around the
vehicle (e.g., in the garage). The
access key fob may be locked
inside the vehicle, or the battery
may discharge rapidly. Note that
the push-button ignition switch
may not turn on in some cases
depending on the location of the
access key fob. The access key fob contains elec-
tronic components. Observe the
following precautions to prevent
malfunctions.
- It is recommended to have the
access key fob battery
replaced at an authorized
SUBARU dealer to avoid the
risk of damage.- Do not get the access key fob
wet. If the access key fob gets
wet, wipe it off immediately
and let it dry completely.- Do not apply strong impacts
to the access key fob.
- Never leave the access key
fob in direct sunlight or
anywhere that may become
hot, such as on the dash-
board. It may damage the
battery or cause circuit
malfunctions.- Do not wash the access key
fob in an ultrasonic washer.- Do not leave the access key
fob in humid or dusty loca-
tions. Doing so may cause
malfunctions.- Keep the access key fob away
from magnetic sources.- Do not leave the access key
fob near a personal computer
or home electrical appliance.- Do not leave the access key
fob near a battery charger or
any electrical accessories.- Do not apply metallic window
tint or attach metallic objects
to the windows.- Do not fit non genuine acces- sories or parts.
If the access key fob is dropped,
the integrated emergency key
inside may become loose. Be
careful not to lose the emergency
key.
 When traveling in an airplane, do
not press the button of the access
key fob. If any button of the
access key fob is pressed, radio
waves are emitted and may affect
the operation of the airplane. In a
bag, take measures to prevent the
buttons from being pressed acci-
dentally.
BRZ_U.book 96 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keyless Access with Push-Button Start System
97
Keys and Doors2
– CONTINUED –
- When operating near a facility
where strong radio waves are trans-
mitted, such as a broadcast station
and power transmission lines.
- When products that transmit
radio waves are used, such as an
access key fob or a remote trans-
mitter key of another vehicle.
- When carrying the access key
fob of your vehicle together with the
access key fob or the remote trans-
mitter of another vehicle.
- When the access key fob is
placed near wireless communica-
tion equipment such as a cell phone.
- When the access key fob is
placed near a metallic object.
- When metallic accessories are
attached to the access key fob.
- When carrying the access key
fob with an elec tronic appliance
such as a laptop computer.
- When the battery of the access
key fob is discharged.
 The access key fob is always
communicating with the vehicle and is
continuously using the battery.
Although the life of the battery varies
depending on the operating condi-
tions, it is approximately 1 to 2 years. If
the battery becomes fully discharged,
replace it with a new one. 
If an access key fob is lost, it is
recommended that all of the remaining
access key fobs be reregistered. For
reregistration of an access key fob,
contact a SUBARU dealer.
 For a spare access key fob, contact
a SUBARU dealer.
 Up to 7 access key fobs can be
registered for one vehicle.
 Do not leave the access key fob in
the storage spaces inside the vehicle,
such as the door pocket, dashboard or
inside the corner of the trunk. Vibra-
tions may damage the access key fob
or turn on the switch, possibly
resulting in a lockout.
 After the vehicle battery is
discharged or replaced, initialization of
the steering lock system may be
required to start the engine. In this
case, perform the following procedure
to initialize the steering lock. (1) Turn the push -button ignition
switch to the “OFF” position. For
details, refer to "Switching Power
Status" P125.
(2) Open and close the driver’s door.
(3) Wait for approximately 10
seconds.
When the steering is locked, the initial-
ization is completed.
 Do not leave the access key fob in
the following places. - On the instrument panel
- On the floor
- Inside the glove box
- Inside the door trim pocket
- On the rear seat
- On the rear shelf
- Inside the trunk
 If you do, the following situations
may occur. - The access key fob is mistakenly
locked inside the vehicle.
- A false warning issues although
no malfunction actually occurs.
- No warning issues even when a
malfunction occurs.
■ Locking and Unlocking with
“Keyless Access” Entry
FunctionWhen the access key fob is carried within
the operating range, the doors, the fuel
filler lid can be locked/unlocked just by
touching the door handle.NOTEThe vehicle can also be locked/
unlocked with the remote keyless
entry system. For details, refer to
"Remote Keyless Entry System"
 P109.
BRZ_U.book 97 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Keyless Access with Push-Button Start System
98▼Operating ranges1) Antenna
2) Operating range (approximately 16 to
32 in (40 to 80 cm))
1) LED indicator
When the access key fob is within either of
the operating ranges of the doors, the
LED indicator on the access key fob
flashes. When the keyless access func-
tions are disabled, the LED indicator does
not flash unless a button on the access
key fob is pressed.NOTE If the access key fob is placed too
close to the vehicle body, the keyless
access functions may not operate
properly. If it does not operate prop-
erly, repeat the operation from farther
away.
 If the access key fob is placed near
the ground or in an elevated location
from the ground, even if it is in the indi-
cated operating range, the keyless
access function may not operate prop-
erly.
 When the access key fob is within
the operating range, it is possible for
anyone, even someone who is not
carrying the access key fob, to operate
the keyless access function. Note that
the keyless access function can be
operated only by the door handle, door
lock sensor or trunk opener button in
the operating range in which the
access key fob is detected.
 It is not possible to lock the doors,
trunk lid and fuel filler lid using the keyless access function when the

access key fob is inside the vehicle.
However, depending on the status of
the access key fob and the environ-
mental conditions, the access key fob
may be locked inside the vehicle.
Before locking the vehicle, make sure
that you have the access key fob.
 When the battery of the access key
fob is discharged, or when operating it
in a location with strong radio waves or
noise (e.g., near a radio tower, power
plant, broadcast station or an area
where wireless equipment is used), or
while talking on a cell phone, the oper-
ating ranges may be reduced, or the
keyless access function may not
operate. 
In such a case, perform the procedure
described in "Locking and Unlocking"
 P326.
 The doors may lock or unlock when
the car is being washed or exposed to
a significant amount of water that
touches the door handle while the key
fob is still in the operating range.
▼ How to lock and unlock
It is possible to perform the following oper-
ations when you are carrying the access
key fob.
 Lock and unlock the doors and the fuel
filler lid
2
2
1
2
1
1204127202501
1
BRZ_U.book 98 ページ ２０２２年３月２９日　火曜日　午後３時５９分
