2023 SUBARU BRZ Owners Manual

Warning and Indicator Lights
139
Instruments and Controls3
– CONTINUED –
If this light illuminates while driving,
never brake suddenly. Instead, per-
form the following procedure. Oth-
erwise an accident involving
serious vehicle damage and serious
personal injury could occur.1) Keep driving straight ahead while
gradually reducing speed.2) Slowly pull off the road to a safe
place.If this light still illuminates while
driving after adjusting the tire pres-
sure, a tire may have significant
damage and a fast leak that causes
the tire to lose air rapidly. If you
have a flat tire, replace it with a
spare tire as soon as possible.
When a spare tire is mounted or a
wheel rim is replaced without the
original pressure sensor/transmitter
being transferred, the Low tire pres-
sure warning light will illuminate
steadily after blinking for approxi-
mately one minute. This indicates
the TPMS is unable to monitor all
four road wheels. Contact your
SUBARU dealer as soon as possi-
ble for tire and sensor replacement
and/or system resetting. If the light
illuminates steadily after blinking
for approximately one minute,
promptly contact a SUBARU dealer
to have the system inspected.
CAUTION
The tire pressure monitoring sys-
tem is NOT a substitute for manu-
ally checking tire pressure. The tire
pressure should be checked period-
ically (at least monthly) using a tire
gauge. After any change to tire
pressure(s), the tire pressure moni-
toring system will not re-check tire
inflation pressures until the vehicle
is first driven mo re than 25 mph (40
km/h). After adjusting the tire pres-
sures, increase the vehicle speed to
at least 25 mph (40 km/h) to start the
TPMS re-checking of the tire infla-
tion pressures. If the tire pressures
are now above the severe low pres-
sure threshold, the low tire pres-
sure warning light should turn off a
few minutes later. Therefore, be
sure to install the specified size for
the front and rear tires.
BRZ_U.book 139 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
140■ABS Warning LightThe ABS warning light illuminates
together with the brake system warning
light if the EBD system malfunctions. For
further details of the EBD system malfunc- tion warning, refe
r to "Brake System
Warning Light" P140.
NOTEIf the warning light behavior is as
described in the following conditions,
the ABS may be considered normal.
 The warning light illuminates right
after the engine is started but turns off
immediately, remaining off.
 The warning light remains illumi-
nated after the engine has been
started, but it turns off while driving.
 The warning light illuminates during
driving, but it turns off immediately and
remains off.
When driving with an insufficient battery
voltage such as when the engine is jump
started, the ABS warn ing light may illumi-
nate. This is due to the low battery voltage
and does not indicate a malfunction.
When the battery becomes fully charged,
the light will turn off.
■ Brake System
Warning LightThis light has the following functions.
▼ Parking brake warning
The light illuminates with the parking
brake applied while the ignition switch is in
the “ACC” or “ON” position. It turns off
when the parking brake is fully released.
▼ Brake fluid level warningThis light illuminates when the brake fluid
level has dropped to near the “MIN” level
of the brake fluid reservoir with the ignition
switch in the “ON” position and with the
parking brake fully released.
CAUTION
 If any of the following conditions
occur, we recommend that you
have the ABS (Anti-Lock Brake
System) repaired at the first avail-
able opportunity by your
SUBARU dealer.
- The warning light does not
illuminate when the ignition
switch is turned to the “ON”
position.- The warning light illuminates
when the ignition switch is
turned to the “ON” position,
but it does no t turn off even
after starting the vehicle.- The warning light illuminates
during driving.
 When the warning light is on (and
brake system warning light is off),
the ABS function shuts down;
however, the conventional brake
system continues to operate
normally.
WARNING
 Driving with the brake system
warning light on is dangerous.
This indicates your brake system
may not be working properly. If
the light remains illuminated,
have the brakes inspected by a
SUBARU dealer immediately. If at all in doubt about whether the
brakes are operating properly, do
not drive the vehicle. Have your
vehicle towed to the nearest
SUBARU dealer for repair.
BRZ_U.book 140 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
141
Instruments and Controls3
– CONTINUED –
If the brake system warning light should
illuminate while driving (with the parking
brake fully released and with the ignition
switch positioned in “ON”), it could be an
indication of leaking of brake fluid or worn
brake pads. If this occurs, immediately
stop the vehicle at the nearest safe place
and check the brake fluid level. If the fluid
level is below the “MIN” mark in the reser-
voir, do not drive the vehicle. Have the
vehicle towed to the nearest SUBARU
dealer for repair.▼ Electronic Brake Force Distribution
(EBD) system warning
If the warning light remains on even
though the parking brake is released, the
brake fluid level may be low or there could
be a problem with the EBD system. Park
the vehicle in a safe place immediately
and contact a SUBARU dealer.
▼ Vacuum pressure system warning
The brake system warning light will illumi-
nate when the vacuum pressure sensor is
malfunctioning or brake booster pressure
is decreasing. If the light continues to illu-
minate for several minutes after starting
the engine, there may be a malfunction in
the vacuum system. In this case, drive the
vehicle carefully and have the system
inspected by a SUBARU dealer.
■ Low Fuel Warning LightThe low fuel warning light illuminates
when the tank is nearly empty approxi-
mately 1.8 US gal (7.0 liters, or 1.5 Imp
gal). It only operates when the ignition
switch is in the “ON” position.■ Door Open IndicatorWhen any of the doors or the trunk lid is
not fully closed, the door open indicator
appears. This function is effective even if
the ignition switch is in the “OFF” or “ACC”
position.
The open door is indicated by the corre-
sponding part of the door open indicator.
Always make sure this indicator does not
appear before you start to drive.■ Power Steering
Warning LightWhile the engine is running, a warning
light illuminates and a buzzer sounds if a malfunction is detected in the electric

power steering system.
NOTEIf the steering wheel is operated in the
following ways, the power steering
control system may temporarily limit
the power assist in order to prevent
the system components, such as the
control computer and drive motor,
from overheating.
 The steering wheel is operated
frequently and turned sharply while the
vehicle is maneuvered at extremely low
speeds, such as while frequently
turning the steering wheel during
parallel parking.
 The steering wheel remains in the
fully turned position for a long period
of time.
At this time, there will be more resis-
tance when steering. However this is
not a malfunction. Normal steering
CAUTION
Promptly put fuel in the tank when-
ever the low fuel warning light illu-
minates. Engine misfires as a result
of an empty tank could cause dam-
age to the engine.
CAUTION
When the power steering warning
light is illuminated, there may be
more resistance when the steering
wheel is operated. Drive carefully to
the nearest SUBARU dealer and
have the vehicle inspected immedi-
ately.
BRZ_U.book 141 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
142force will be restored after the steering
wheel is not operated for a while and
the power steering control system has
an opportunity to cool down. However,
if the power steering is operated in a
non-standard way which causes
power assist limitation to occur too
frequently, that may result in a mal-
function of the power steering control
system.■ TRAC OFF Indicator
LightThis light illuminates when the TRAC
system is off. For detai ls, refer to "Vehicle
Stability Control ( VSC)/TRAC System"
 P247.
■ Vehicle Stability
Control (VSC)
Warning Light/Vehicle
Stability Control (VSC) Oper -
ation Indicator Light▼ Vehicle Stability Control (VSC)
warning light
NOTEIf the electrical circuit of the Vehicle
Stability Control (VSC) system itself
malfunctions, the warning light only
illuminates. At this time, the ABS (Anti-
lock Brake System) remains fully oper-
ational.
 The warning light illuminates when
the electronic control system of the
ABS/Vehicle Stability Control (VSC)
system malfunctions.
The Vehicle Stability Control (VSC)
system is probably inoperative under any
of the following conditions. Have your
vehicle checked at a SUBARU dealer
immediately.
 The warning light does not illuminate
when the ignition switch is turned to the
“ON” position.
 The warning light illuminates while the
vehicle is running.NOTEIf the warning light behavior is as
described in the following examples,
the Vehicle Stability Control (VSC) sys-
tem may be considered normal.
 The warning light illuminates right
after the engine is started but turns off
immediately and remains off.
 The warning light illuminates after
the engine has started and turns off
CAUTION
The Vehicle Stability Control (VSC)
system provides its ABS control
through the electrica l circuit of the
ABS. Accordingly, if the ABS is
inoperative, the Vehicle Stability
Control (VSC) system becomes
unable to provide ABS control. As a
result, the Vehicle Stability Control
(VSC) system becomes inoperative,
causing the warning light to illumi-
nate. Although both the Vehicle Sta-
bility Control (VSC) and ABS are
inoperative in this case, the ordi-
nary functions of the brake system
are still available. You will be safe
while driving in this condition, but
drive carefully and have your vehi-
cle checked at a SUBARU dealer as
soon as possible.
BRZ_U.book 142 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
143
Instruments and Controls3
– CONTINUED –
while the vehicle is subsequently being
driven.
 The warning light illuminates during
driving, but turns off immediately and
remains off.▼ Vehicle Stability Control (VSC)
operation indicator light
The indicator light flashes during activa-
tion of the skid suppression function and
during activation of the TRAC system.NOTE The light may remain illuminated for
a short period of time after the engine
has been started, especially in cold
weather. This does not indicate the
existence of a problem. The light
should turn off as soon as the engine
has warmed up.
 The indicator light illuminates when
the engine has developed a problem
and the CHECK ENGINE warning light/
malfunction indicator light is on.
The Vehicle Stability Control (VSC)
system is probably malfunctioning under
the following condition. Have your vehicle
checked at a SUBARU dealer as soon as
possible.
 The light does not turn off even after
the lapse of several minutes (the engine
has warmed up) after the engine has
started.
■ Vehicle Stability
Control (VSC) OFF
Indicator Light The light illuminates when “Vehicle
Stability Control (VSC)” is selected to
deactivate the Vehicle Stability Control
(VSC) system.
The Vehicle Stability Control (VSC)
system is probably malfunctioning under
any of the following conditions. Have your
vehicle checked at a SUBARU dealer
immediately.
 The light does not illuminate while the
system check.
 The light does not turn off even after a
period of approximately 2 seconds after
the ignition switch has been turned to the
“ON” position.
■ Warning Chimes and
Warning Indicator of the
Keyless Access with Push-
Button Start SystemAccess key warning indicatorThe keyless access with push-button start
system is equipped wi th a warning chime
and the access key warning indicator in
order to minimize improper operations
and help protect your vehicle from theft.
When the warning chime sounds and/or
the warning indicator appears, take the
appropriate action.
You cannot turn the warning chimes off.
However, the volume setting of the
outside warning chime can be changed by
a SUBARU dealer. Consult your SUBARU
dealer for details.
306791
BRZ_U.book 143 ページ ２０２２年３月２９日　火曜日　午後３時５９分

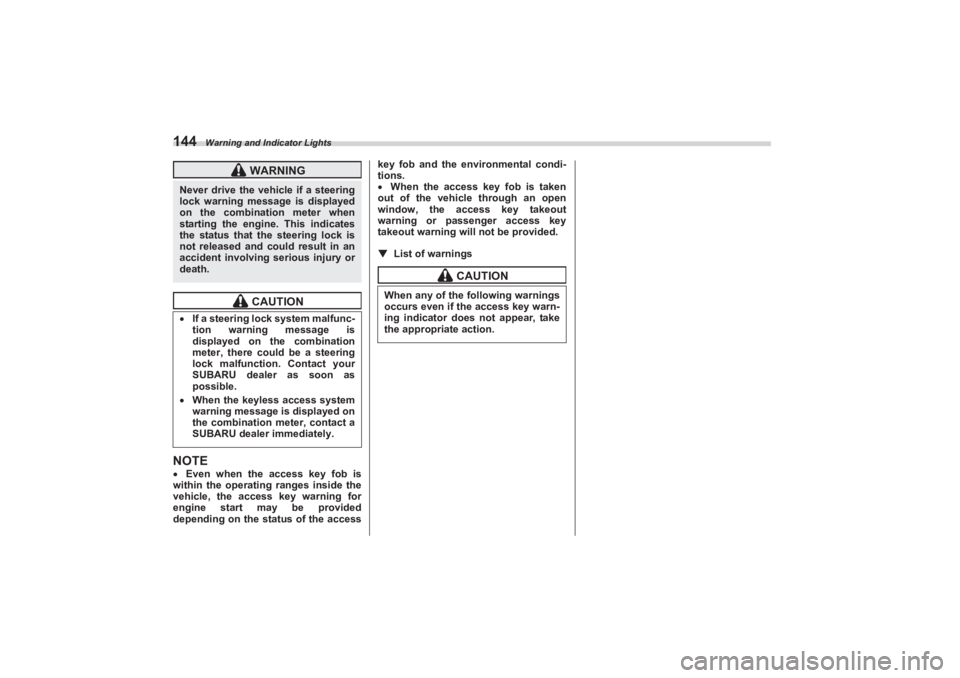

Warning and Indicator Lights
144NOTEEven when the access key fob is
within the operating ranges inside the
vehicle, the access key warning for
engine start may be provided
depending on the status of the access key fob and the environmental condi-
tions.

When the access key fob is taken
out of the vehicle through an open
window, the access key takeout
warning or passenger access key
takeout warning will not be provided.
▼ List of warnings
WARNING
Never drive the vehicle if a steering
lock warning message is displayed
on the combination meter when
starting the engine. This indicates
the status that the steering lock is
not released and could result in an
accident involving serious injury or
death.
CAUTION
 If a steering lock system malfunc-
tion warning message is
displayed on the combination
meter, there could be a steering
lock malfunction. Contact your
SUBARU dealer as soon as
possible. When the keyless access system
warning message is displayed on
the combination meter, contact a
SUBARU dealer immediately.
CAUTION
When any of the following warnings
occurs even if the access key warn-
ing indicator does not appear, take
the appropriate action.
BRZ_U.book 144 ページ ２０２２年３月２９日　火曜日　午後３時５９分

Warning and Indicator Lights
145
Instruments and Controls3
– CONTINUED –
Inside warning
chime Outside warning
chime Status
Action
Ding, ding ...
(intermittent) ―The driver’s door is opened while the push-button
ignition switch is “ACC”. (in AT models, when the
select lever is in the “P” position.) Switch the push-button ignition switch to “OFF”, or
close the driver’s door.
When exiting the vehicle, be sure to switch the
push-button ignition switch to “OFF”.
The push-button ignition switch is switched to
“OFF” while the driver’s door is open. Close the driver’s door.
Ding Short beep
(2 seconds) Lockout warning:
The doors are locked by following methods when
an access key fob is left in the car.

The door is closed when the lock lever of the
door is in the lock position.
 The door is closed when the power door locking
switch is in the lock position. Take out the access key fob from the vehicle, and
lock the doors.
The doors cannot be locked while the access key
fob is inside the vehicle.
A chirp sound will be heard, and all doors will be
unlocked.
― Short beep
(2 seconds) Access key lock-in warning:
The door lock sensor is touched while the push-
button ignition switch is “OFF” and the access key
fob is inside the vehicle. Take out the access key fob from the vehicle, and
lock the doors.
If the access key fob is in
side the vehicle, the doors
cannot be locked.
― Short beep (5 sec-
onds) Door ajar warning:
The door lock sensor is touched while the ignition
switch is in the “OFF” position and one of the doors
is opened. Close the doors securely and lock them.
If one of the doors is opened, the doors cannot be
locked.
Ding Long beep (60 sec-
onds max.) Power warning:
For AT models, the door lock sensor is touched
while you are carrying t
he access key fob, the
push-button ignition switch is in a position other
than “OFF” and the select lever is in the “P” posi-
tion. Return the access key fob inside the vehicle, or
switch the push-button ignition switch to “OFF”.
If the push-button ignition switch is not switched to
“OFF”, the doors cannot be locked.
Ding, ding ... (7 seconds) ―Access key warning:
The vehicle is driven while
the access key fob is not
inside the vehicle. Carry the access key f
ob, and drive the vehicle.
BRZ_U.book 145 ページ ２０２２年３月２９日　火曜日　午後３時５９分

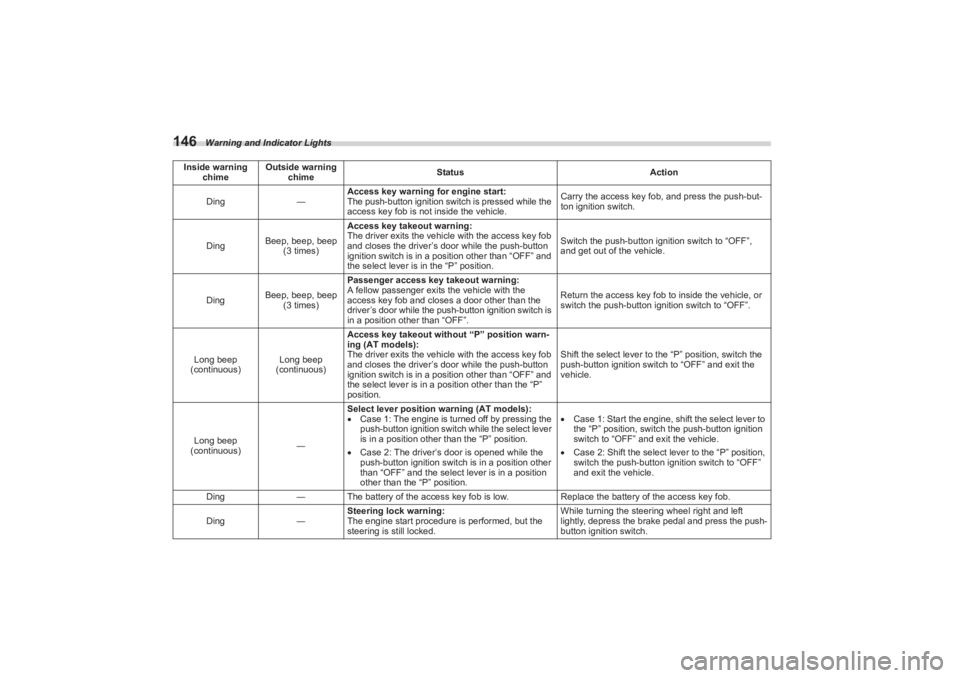

Warning and Indicator Lights
146
Ding―Access key warning for engine start:
The push-button ignition switch is pressed while the
access key fob is not
inside the vehicle. Carry the access key fob, and press the push-but-
ton ignition switch.
Ding Beep, beep, beep
(3 times) Access key takeout warning:
The driver exits the vehicl
e with the access key fob
and closes the driver’s door while the push-button
ignition switch is in a position other than “OFF” and
the select lever is in the “P” position. Switch the push-button ignition switch to “OFF”,
and get out of the vehicle.
Ding Beep, beep, beep
(3 times) Passenger access key takeout warning:
A fellow passenger exits the vehicle with the
access key fob and closes a door other than the
driver’s door while the push
-button ignition switch is
in a position other than “OFF”. Return the access key fob
to inside the vehicle, or
switch the push-button ignition switch to “OFF”.
Long beep
(continuous) Long beep
(continuous) Access key takeout without “P” position warn-
ing (AT models):
The driver exits the vehicl
e with the access key fob
and closes the driver’s door while the push-button
ignition switch is in a position other than “OFF” and
the select lever is in a position other than the “P”
position. Shift the select lever to the “P” position, switch the
push-button ignition switch to “OFF” and exit the
vehicle.
Long beep
(continuous) ―Select lever position warning (AT models):

Case 1: The engine is turned off by pressing the
push-button ignition switch while the select lever
is in a position other than the “P” position.
 Case 2: The driver’s door is opened while the
push-button ignition switch is in a position other
than “OFF” and the select lever is in a position
other than the “P” position. 
Case 1: Start the engine, shift the select lever to
the “P” position, switch the push-button ignition
switch to “OFF” and exit the vehicle.
 Case 2: Shift the select lever to the “P” position,
switch the push-button ignition switch to “OFF”
and exit the vehicle.
Ding ―The battery of the access ke y fob is low.Replace the battery of the access key fob.
Ding ―Steering lock warning:
The engine start procedure is performed, but the
steering is still locked. While turning the steering wheel right and left
lightly, depress the brake pedal and press the push-
button ignition switch.
Inside warning
chime Outside warning
chime Status
Action
BRZ_U.book 146 ページ ２０２２年３月２９日　火曜日　午後３時５９分
