2023 HONDA PILOT Owners Manual

616
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving

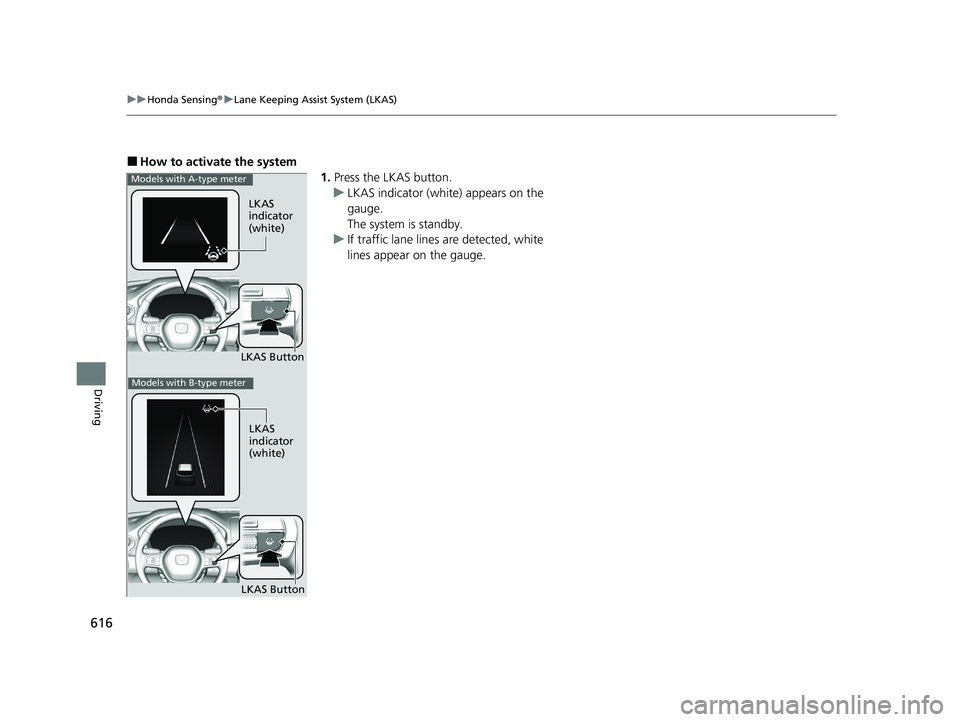

■How to activate the system
1.Press the LKAS button.
u LKAS indicator (white) appears on the
gauge.
The system is standby.
u If traffic lane lines are detected, white
lines appear on the gauge.
LKAS
indicator
(white)
LKAS Button
Models with A-type meter
LKAS
indicator
(white)
LKAS Button
Models with B-type meter
23 PILOT-31T906000_03.book 616 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

617
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving

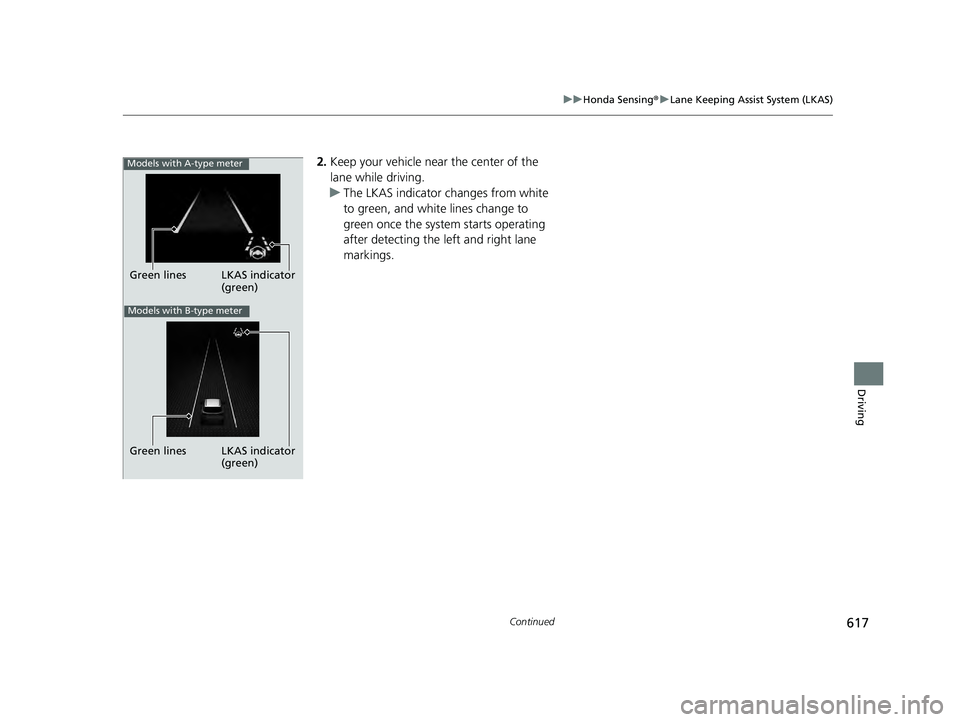

2. Keep your vehicle near the center of the
lane while driving.
u The LKAS indicator changes from white
to green, and white lines change to
green once the system starts operating
after detecting the left and right lane
markings.
LKAS indicator
(green)
Green lines
Models with A-type meter
Models with B-type meter
LKAS indicator
(green)Green lines
23 PILOT-31T906000_03.book 617 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

618
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
Press the LKAS button.
The LKAS is turned off every time you stop the
engine, even if you turned it on the last time
you drove the vehicle.

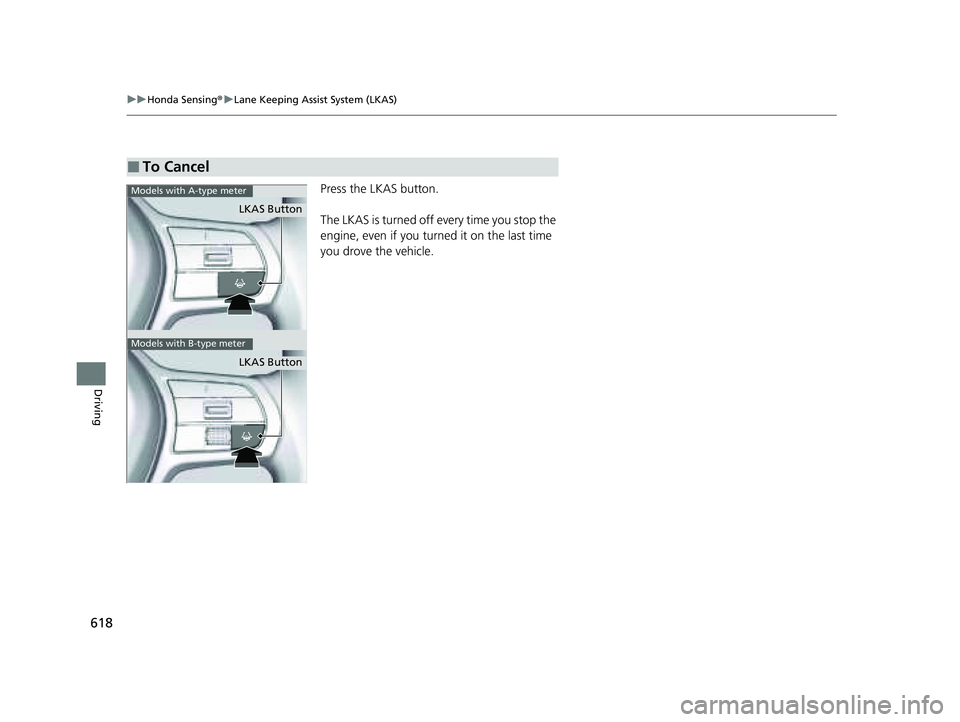

■To Cancel
LKAS Button
Models with A-type meter
LKAS Button
Models with B-type meter
23 PILOT-31T906000_03.book 618 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued619
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving

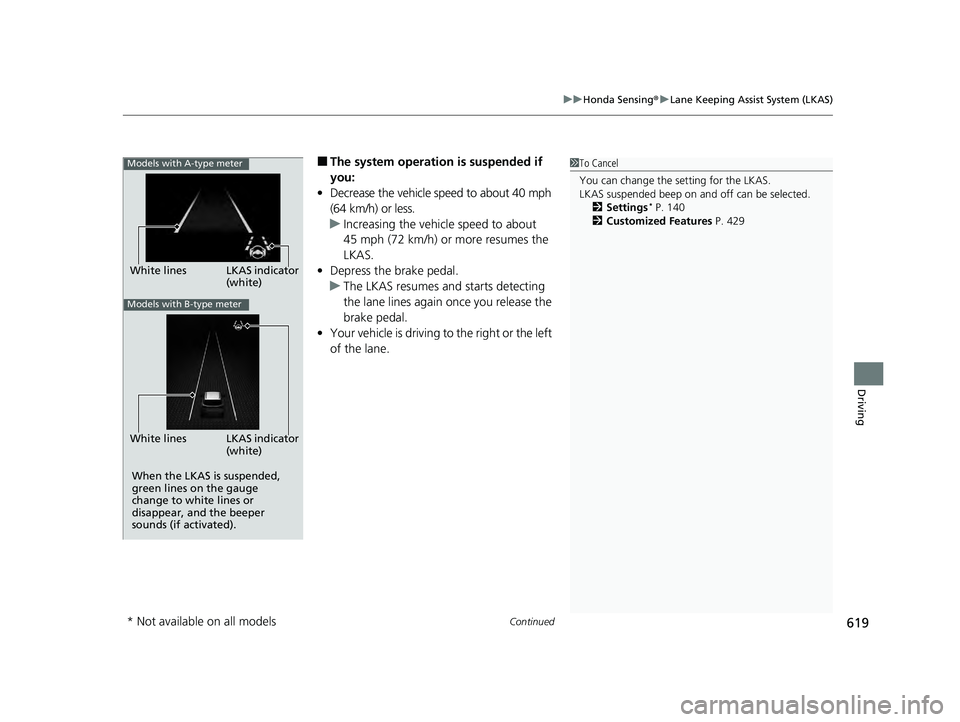

■The system operatio n is suspended if
you:
• Decrease the vehicle speed to about 40 mph
(64 km/h) or less.
u Increasing the vehicle speed to about
45 mph (72 km/h) or more resumes the
LKAS.
• Depress the brake pedal.
u The LKAS resumes and starts detecting
the lane lines again once you release the
brake pedal.
• Your vehicle is driving to the right or the left
of the lane.1To Cancel
You can change the setting for the LKAS.
LKAS suspended beep on and off can be selected.
2 Settings
* P. 140
2 Customized Features P. 429
When the LKAS is suspended,
green lines on the gauge
change to white lines or
disappear, and the beeper
sounds (if activated).LKAS indicator
(white)
White lines
Models with A-type meter
LKAS indicator
(white)
White lines
Models with B-type meter
* Not available on all models
23 PILOT-31T906000_03.book 619 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

620
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving
■The LKAS may be automa tically suspended when:
• The system fails to detect lane lines.
• The steering wheel is turned quickly.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 94 mph (150 km/h).
• The ABS or VSA ® system engages.
Once these conditions no longer exist, the LKAS automatically resumes.
■The LKAS may be automa tically canceled when:
In the following cases, traffic lane lines may disappear on the gauge, the beeper may
sound, and the LKAS may be automatically canceled:
• The camera temperature gets extremely high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
23 PILOT-31T906000_03.book 620 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

621
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving

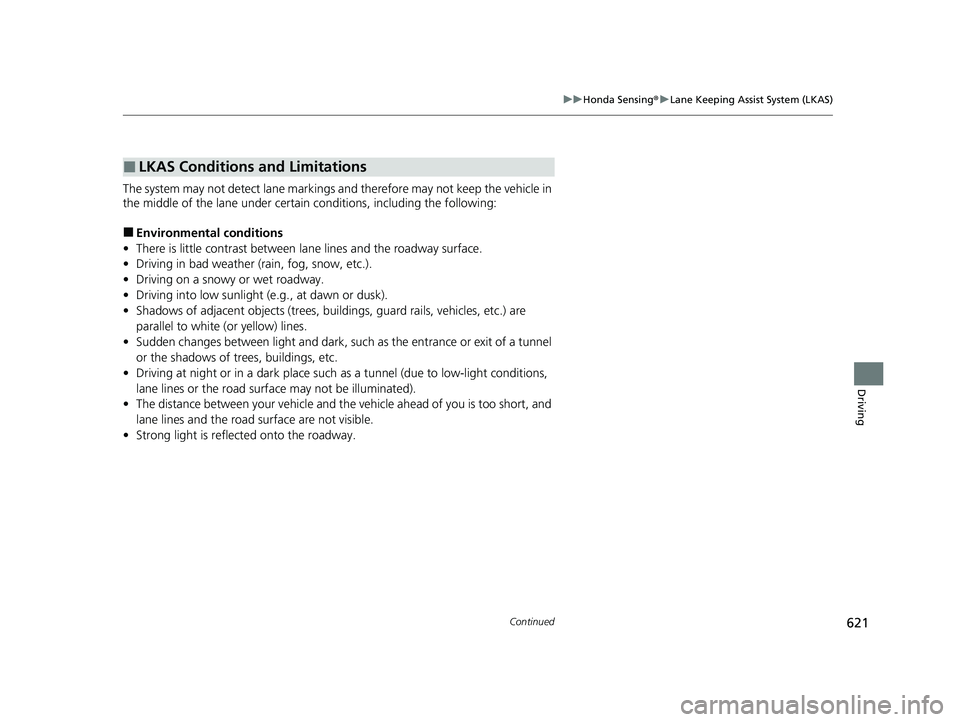

The system may not detect lane markings and therefore may not keep the vehicle in
the middle of the lane under certain conditions, including the following:
■Environmental conditions
• There is little contrast between lane lines and the roadway surface.
• Driving in bad weather (rain, fog, snow, etc.).
• Driving on a snowy or wet roadway.
• Driving into low sunlight (e.g., at dawn or dusk).
• Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white (or yellow) lines.
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines or the road surf ace may not be illuminated).
• The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.
• Strong light is reflec ted onto the roadway.
■LKAS Conditions and Limitations
23 PILOT-31T906000_03.book 621 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

622
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Driving

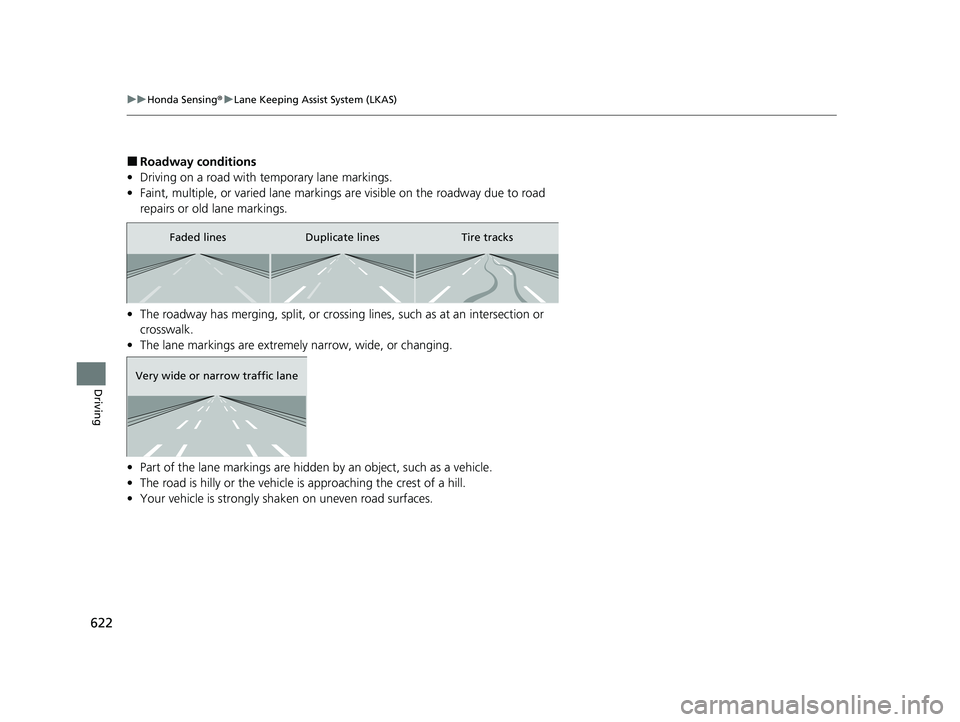

■Roadway conditions
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.
• The lane markings are extremely narrow, wide, or changing.
• Part of the lane markings are hidden by an object, such as a vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Your vehicle is strongly shaken on uneven road surfaces.
Faded lines Duplicate lines Tire tracks
Very wide or narrow traffic lane
23 PILOT-31T906000_03.book 622 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

623
uuHonda Sensing ®u Lane Keeping Assist System (LKAS)
Continued
Driving

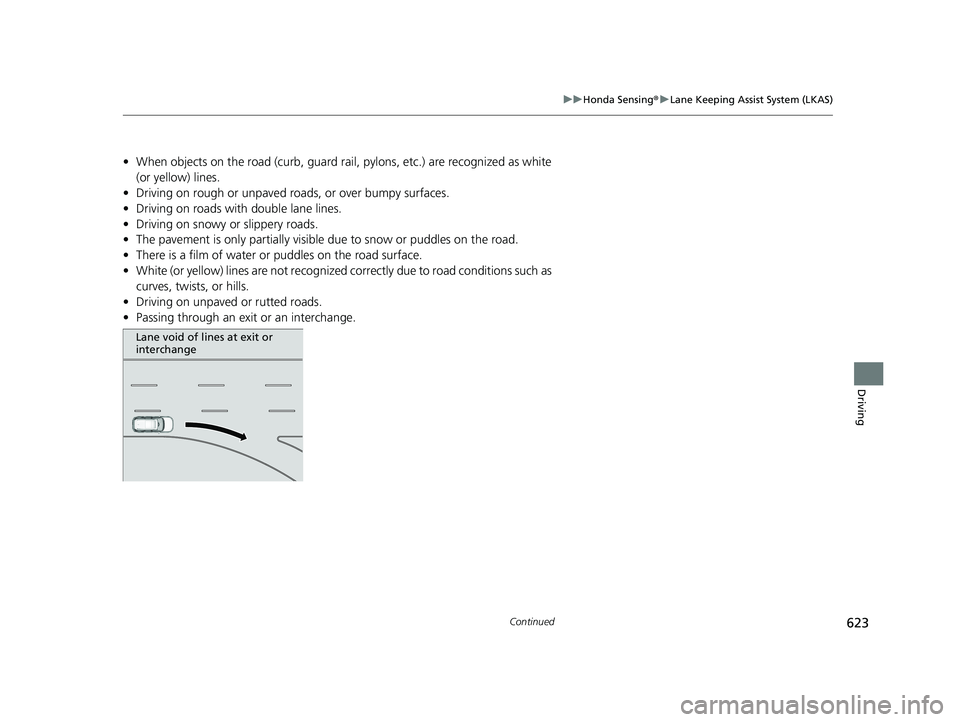

• When objects on the road (curb, guard rail, pylons, etc.) are recognized as white
(or yellow) lines.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• Driving on roads with double lane lines.
• Driving on snowy or slippery roads.
• The pavement is only partially visible due to snow or puddles on the road.
• There is a film of water or puddles on the road surface.
• White (or yellow) lines are not recognized correctly due to road conditions such as
curves, twists, or hills.
• Driving on unpaved or rutted roads.
• Passing through an exit or an interchange.
Lane void of lines at exit or
interchange
23 PILOT-31T906000_03.book 623 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
