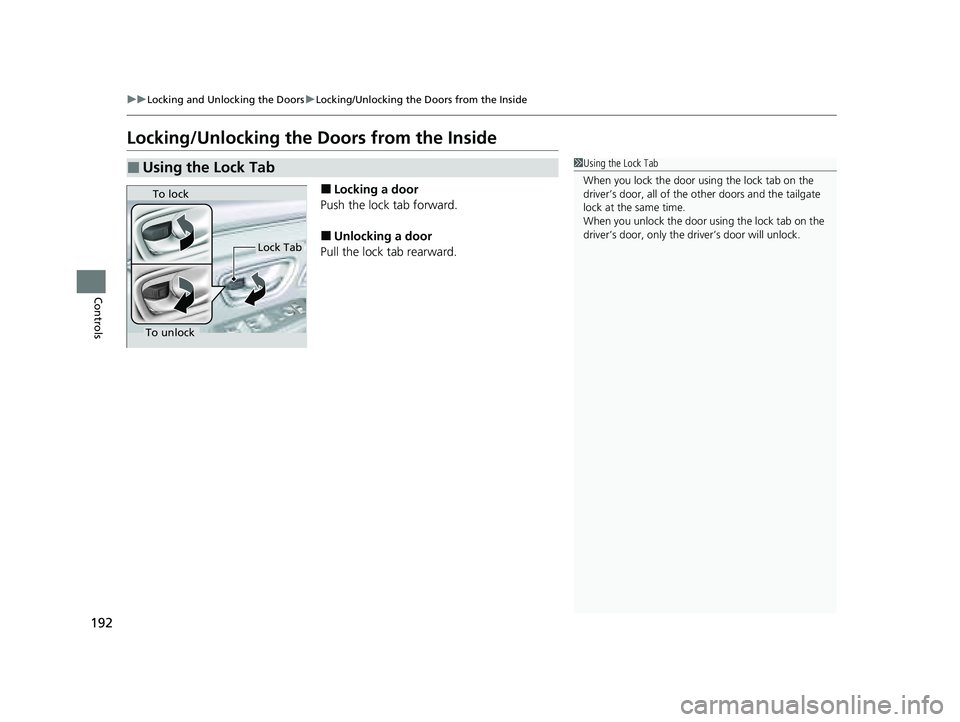

2023 HONDA PILOT Owners Manual

192
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To unlock
Lock Tab
To lock
23 PILOT-31T906000_03.book 192 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

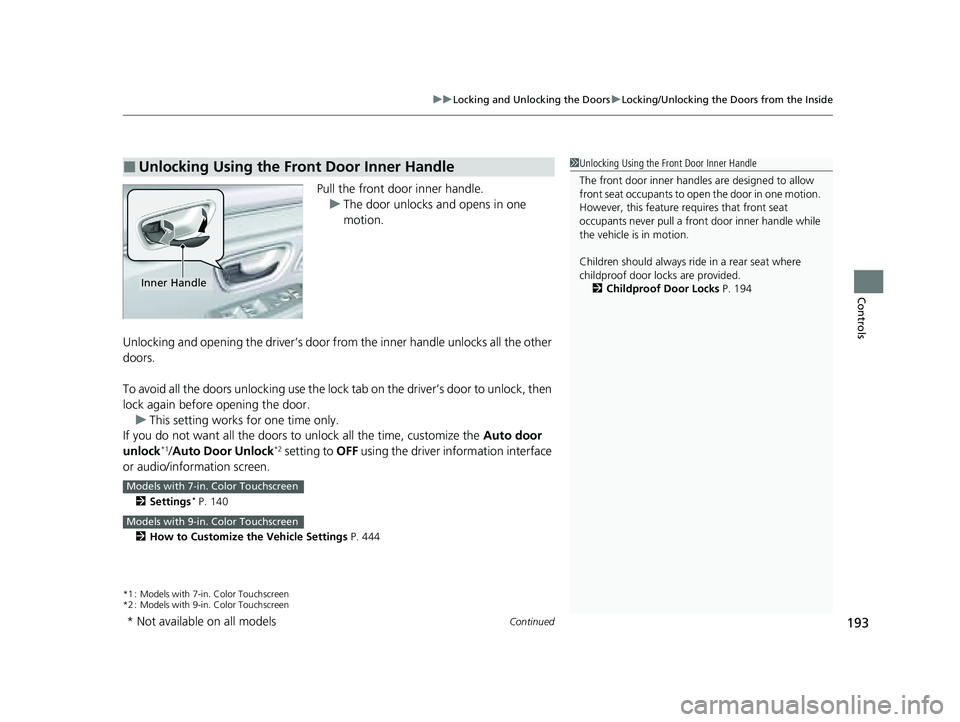

Continued193
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors unlocking use the lock tab on the driver’s door to unlock, then
lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to unlock all the time, customize the Auto door
unlock
*1/ Auto Door Unlock*2 setting to OFF using the driver information interface
or audio/information screen.
2 Settings* P. 140
2 How to Customize the Vehicle Settings P. 444
*1 : Models with 7-in. Color Touchscreen
*2 : Models with 9-in. Color Touchscreen
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to ope n the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 194
Inner Handle
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 PILOT-31T906000_03.book 193 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

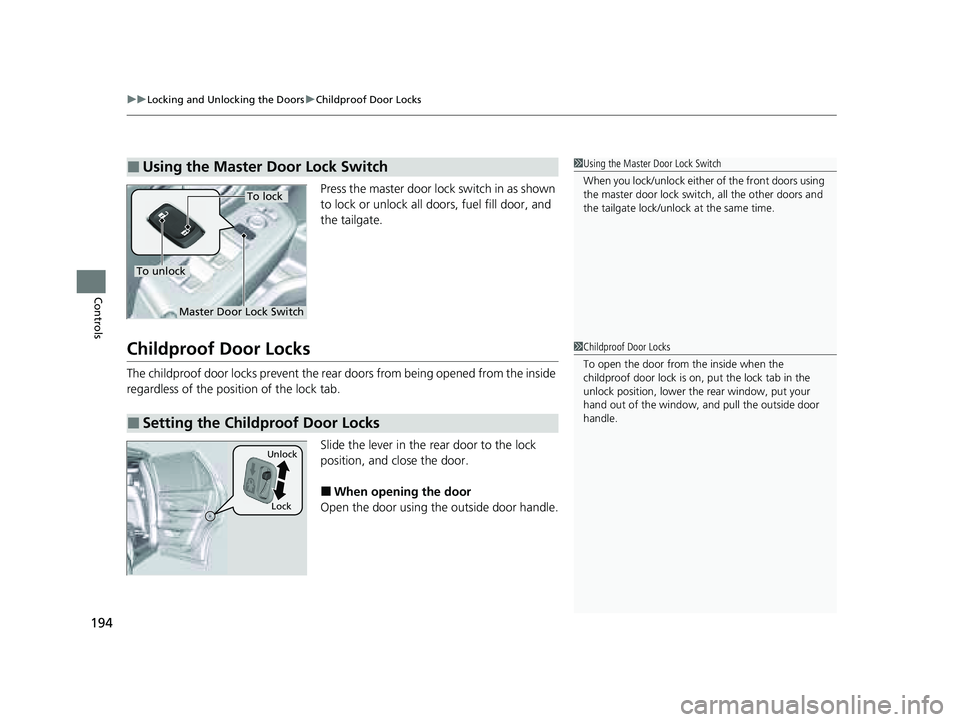

uuLocking and Unlocking the Doors uChildproof Door Locks
194
Controls
Press the master door lock switch in as shown
to lock or unlock all doors, fuel fill door, and
the tailgate.
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the door
Open the door using the outside door handle.
■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock either of the front doors using
the master door lock swit ch, all the other doors and
the tailgate lock/unlock at the same time.
To unlock
Master Door Lock Switch
To lock
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
Lock
Unlock
23 PILOT-31T906000_03.book 194 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

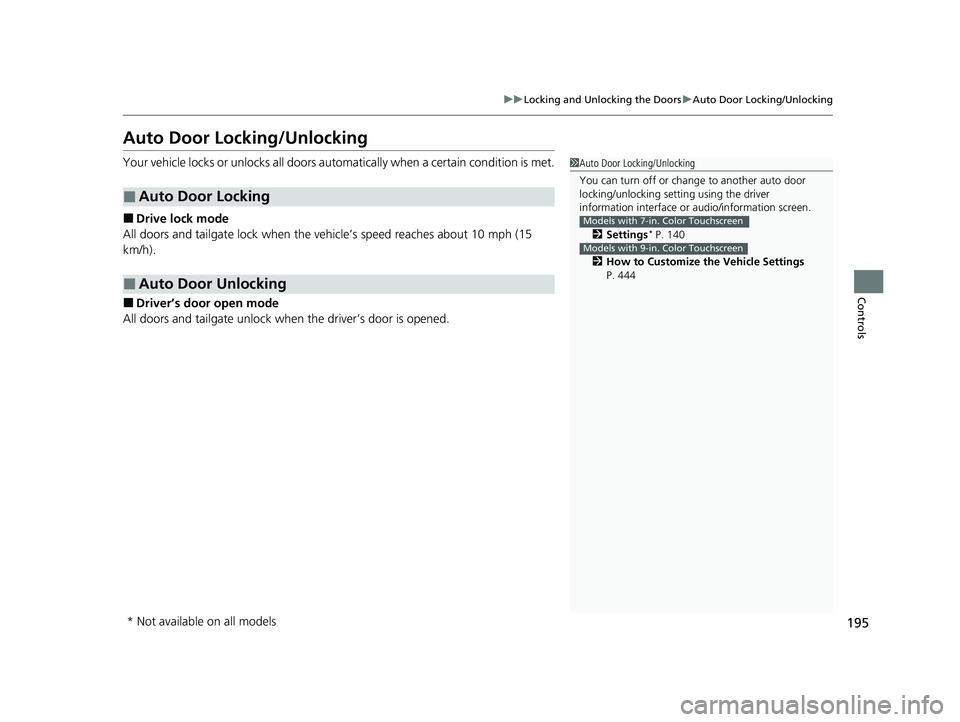

195
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks or unlocks all doors automatically when a certain condition is met.
■Drive lock mode
All doors and tailgate lock when the ve hicle’s speed reaches about 10 mph (15
km/h).
■Driver’s door open mode
All doors and tailgate unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface or audio/information screen.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 PILOT-31T906000_03.book 195 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

196
Controls
Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
•Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the tailgate to close.
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 95
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or picking up cargo from the
cargo area, or by using a forward and back kicking
motion under the center of the rear bumper for
hands free access
*, while the engine is idling, do not
stand in front of the ex haust pipe. You may get
burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.Models without power tailgate
All models
* Not available on all models
23 PILOT-31T906000_03.book 196 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

197
uuTailgate uOpening/Closing the Tailgate
Continued
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or you press
the tailgate unlock button* on the remote
transmitter, the tailgate is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
If you close the tailgate when all the doors are
locked, the tailgate locks automatically.
1 Precautions for Opening/Closing the Tailgate
Make sure cargo or othe r items do not touch the
tailgate support struts.
Tailgate Support Struts
Outer Handle
Inner Handle
1 Opening/Closing the Tailgate
•Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the keyless remote, you
can unlock the tailgate wh ile someone else with
the remote is within range.
•Do not leave the keyless re mote inside the cargo
area and close the tailgate. The beeper sounds and
the tailgate cannot be closed.
* Not available on all models
23 PILOT-31T906000_03.book 197 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuTailgate uOpening/Closing the Tailgate
198
Controls
Press the tailgate unlock button to unlock the
tailgate.
■Using the Remote Transmitter*1Using the Remote Transmitter*
If you have unlocked and opened the tailgate using
the remote transmitter, when closing, the tailgate
locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
* Not available on all models
23 PILOT-31T906000_03.book 198 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

199
uuTailgate uOpening/Closing the Power Tailgate*
Continued
Controls
Opening/Closing the Power Tailgate*
The power tailgate can be operated by pr essing the power tailgate button on the
remote transmitter, pressing the power tailga te button in the driver’s side control
panel, pressing the outer handle on the ta ilgate, or by using a forward and back
kicking motion under the center of the rear bumper for hands free access
*.
The power tailgate can be opened/clo sed when the transmission is in
(P.
1Opening/Closing the Power Tailgate*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.•The vehicle is swaying in a strong wind.
•The tailgate or the roof is covered with snow or ice.
3WARNING
Opening or closing a power tailgate while
any part of a passenger is in the tailgate’s
operating path can cause serious injury.
Make sure all passengers or objects are
clear of the tailgate operating range
before opening or closing the tailgate.
* Not available on all models
23 PILOT-31T906000_03.book 199 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
