2023 HONDA PILOT Owners Manual

uuFuses uInspecting and Changing Fuses
784
Handling the Unexpected
4. Check the combined fuses in the engine
compartment fuse box.
u Look into the space between the fuses.
u If the fuse is blown, have it replaced by a
dealer.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
23 PILOT-31T906000_03.book 784 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

785
Handling the Unexpected

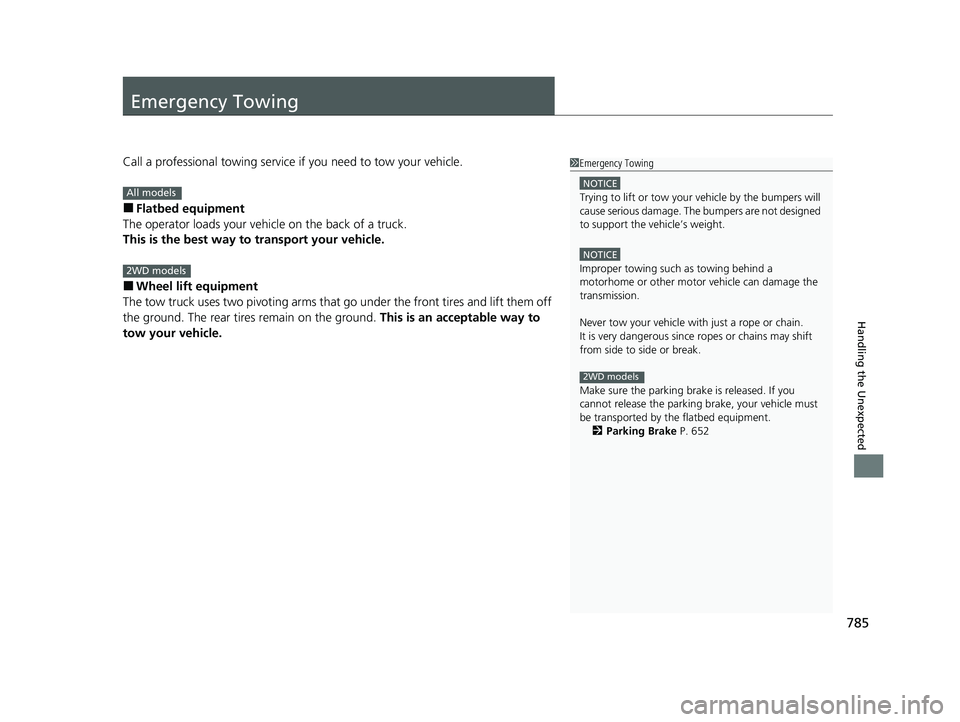

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flatbed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flatbed equipment. 2 Parking Brake P. 652
2WD models
All models
2WD models
23 PILOT-31T906000_03.book 785 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

786
Handling the Unexpected
If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Push on the tabs, then remove the cover.
3. Pull the release cord as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
4. Open the fuel fill door.
2 How to Refuel P. 687
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Tab
Release Cord
23 PILOT-31T906000_03.book 786 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

787
Handling the Unexpected
If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Lever
Models without power tailgate
Screwdriver
23 PILOT-31T906000_03.book 787 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

788
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.1.Turn off the engine.
2. Open the fuel fill door.
2 How to Refuel P. 687
3.Take the funnel out of the cargo area.
2 Types of Tools P. 750
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
23 PILOT-31T906000_03.book 788 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

789
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 790
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 792
Devices that Emit Radio Waves ....... 793
Reporting Safety Defects ................. 794Emissions Testing
Testing of Readiness Codes.............. 795
Warranty Coverages ........................ 797
Authorized Manuals ......................... 800
Customer Service Information ......... 801
Open Source License Meter Open Source License ............. 802
TCU Open Source License
*............... 802
Front Sensor Camera Open Source License .. 803
* Not available on all models
23 PILOT-31T906000_03.book 789 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

790
Information
Specifications
■Vehicle Specifications
*1: Models without second row center seat
*2: Models with second row center seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,444 lbs (3,830 kg)*3
10,141 lbs (4,600 kg)*4
Canada:4,600 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
*1: Models without surround view camera system
*2: Models with surround view camera system
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 17.8 – 19.6 oz (505 – 555 g)
Lubricant TypeRB100EV-01 (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.7 cu-in (3,471 cm3)
Spark Plugs NGK DILZKAR7H11H
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 18.5 US gal (70.0 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
4.8 US qt (4.5 L)*2
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LEDFront Turn Signal LightsLEDFront Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights*
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light LED
Puddle Lights*LED
Interior Lights
Front, Second Row, and Third Row Map
Lights LED
Ambient Lights LED
Vanity Mirror Lights
*2.3 W
Door Courtesy Lights*LED
Door Inner Handle Lights*LED
Door Pocket Lights*LED
Foot Lights*LED
Instrument Panel Tray Lights*LED
Glove Box Light LED
Cargo Area Light LED
* Not available on all models
23 PILOT-31T906000_03.book 790 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

791
uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
*1: 2WD models
*2: AWD models
■
Rear Differential Fluid*
■Transfer Assembly Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF-TYPE 2.0
Capacity Change 3.9 US qt (3.7 L)*1
4.4 US qt (4.2 L)*2
SpecifiedHonda DPSF-II
Capacity Change 1.76 US qt (1.67 L)
SpecifiedHonda HGO-1CapacityChange0.58 US qt (0.55 L)
■ Engine Oil
■ Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-20·API service SN or higher grade 0W-20
Capacity
Change5.5 US qt (5.2 L)Change
including
filter5.8 US qt (5.5 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled water
Capacity2.03 US gal (7.67 L)(change including the remaining 0.223 US gal
(0.845 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 18 inch wheel
*3: Models with 20 inch wheel
RegularSize*1255/60R18 108H
265/60R18 110T
255/50R20 105H
Pressure35 (240 [2.4])psi (kPa [kgf/cm2])
Compact
Spare*
SizeT155/85D18 115MPressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Spare
(Full-size
tire)
*
Size265/60R18 110TPressure
psi (kPa [kgf/cm2])35 (240 [2.4])
Wheel Size Regular
18 x 8J
*2
20 x 8J*3
Compact Spare*18 x 4T
Full-size Spare*18 x 8J
* Not available on all models
