2023 HONDA PILOT Owners Manual

440
uuCustomized Features u
Features
■Display
Customizable Features Descri ption Selectable Settings
BrightnessChanges the brightness of the audio/information screen.—
Contrast Changes the contrast of the audio/information screen. —
Black LevelChanges the black level of the audio/information screen.—
Default Resets all customized settings for the brightness,
contrast, and black level.
—
23 PILOT-31T906000_03.book 440 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

441
uuCustomized Features u
Continued
Features
■Sound
*1:Models with BOSE AMP
*2:Models with Normal AMP Customizable Features Description Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2
Adjusting the Sound P. 346—
Midrange
Bass
Audio Zones & Balance / Fader*1
Bose Centerpoint*1
Bose Dynamic Speed Compensation*1
Balance / Fader*2
Speed Volume Compensation*2
23 PILOT-31T906000_03.book 441 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

442
uuCustomized Features u
Features
■Camera
*1:Default Setting Customizable Features Desc
ription Selectable Settings
Rear Camera*
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Multi-View Rear Camera* P. 672
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera* P. 672
ON*1/OFF
Multi
View
Camera
*
Guidelines
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Surround View Camera System* P. 674
ON*1/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Surround View Camera System* P. 674
ON*1/OFF
Customize
Show after shifting
from ReverseSelects whether to display the forward camera image
after shifting from
(R to (D.ON /OFF*1
Auto display when
obstacle is detectedDisplays the forward camera image when a parking
sensor detects an obstacle.ON*1/OFF
Cross Traffic Monitor
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor* P. 668
ON*1/OFF
* Not available on all models
23 PILOT-31T906000_03.book 442 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

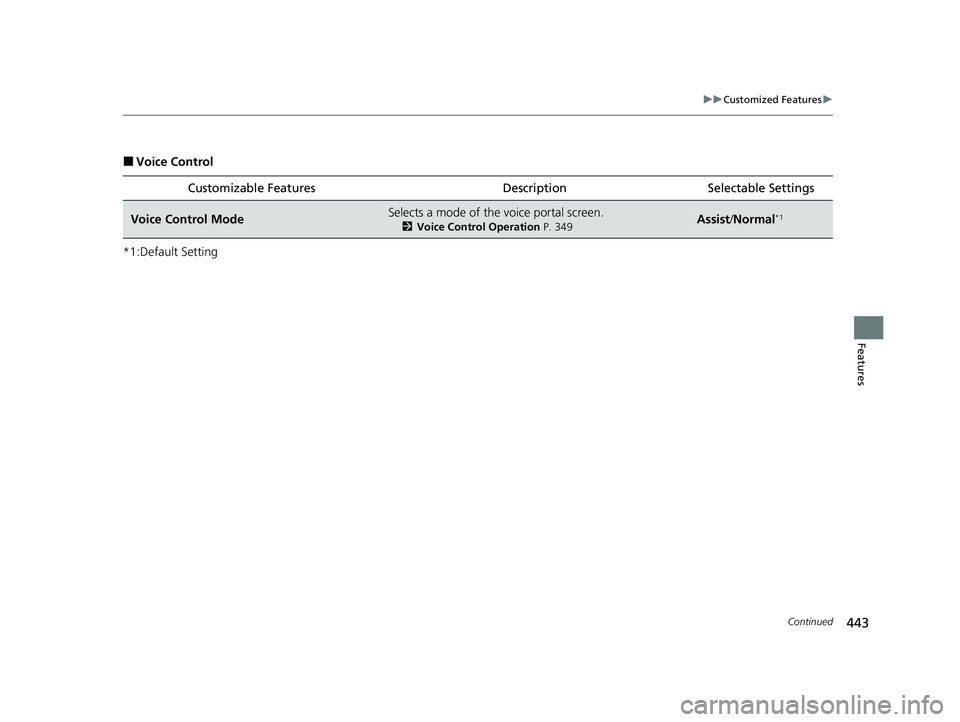

443
uuCustomized Features u
Continued
Features
■Voice Control
*1:Default Setting Customizable Features
Description Selectable Settings
Voice Control ModeSelects a mode of the voice portal screen.
2Voice Control Operation P. 349Assist/Normal*1
23 PILOT-31T906000_03.book 443 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

444
uuCustomized Features u
Features
With the power mode in ON, pre ss the button, and then select Vehicle Settings
and select a setting item.
■How to Customize the Vehicle Settings
Audio/Information Screen
23 PILOT-31T906000_03.book 444 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

445
uuCustomized Features u
Continued
Features
■Customization flow
Press the button.
Forward Collision Warning Distance
Head-up Warning*
Traffic Sign Recognition System Display Setting
ACC Forward Vehicle Detect Beep
Road Departure Mitigation Setting
Lane Keeping Assist Suspend Beep
Traffic Sign Recognition System Speed Limit Warning
Speed Limit Warning Threshold Setting
Driver Attention Monitor
Driver Assist System Setup
Select Vehicle Settings .
Rear Sensor Setting
Blind Spot Info
Driver Assist System Setup
* Not available on all models
23 PILOT-31T906000_03.book 445 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

446
uuCustomized Features u
FeaturesTurn By Turn Auto Display
Speed/Distance Units
Keyless Access Light Flash
Rear Seat Reminder
Door Unlock Mode
Keyless Access Beep
Remote Start System ON/OFF
Lockout Protection
Keyless Access Setup
Meter Setup
(Meter/HUD Setup )Adjust Outside Temp. Display
"Trip A" Reset Timing
"Trip B" Reset Timing
Adjust Alarm Volume
Fuel Efficiency Backlight
Tachometer*
Reverse Alert Tone
Memory Position LinkDriving Position Setup
Seat Position Movement At Entry/Exit
* Not available on all models
23 PILOT-31T906000_03.book 446 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

447
uuCustomized Features u
Continued
FeaturesAuto Door Unlock
Auto Door Lock
Walk Away Auto Lock
Lock Presetting
Keyless Lock Answer Back
Door/Window Setup
Auto High Beam
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
Auto Headlight On with Wiper On
Auto Folding Door Mirror*
Keyless Open ModePower Tailgate Setup
Select Reset ItemsMaintenance Info.
Power Open By Outer Handle
Hands Free Access Function*
Remote Window Control
Lighting Setup
Security Relock Timer
* Not available on all models
23 PILOT-31T906000_03.book 447 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
