2023 HONDA PILOT Owners Manual

144
uuGauges and Displays uDriver Information Interface (A-type Meter)
Instrument Panel

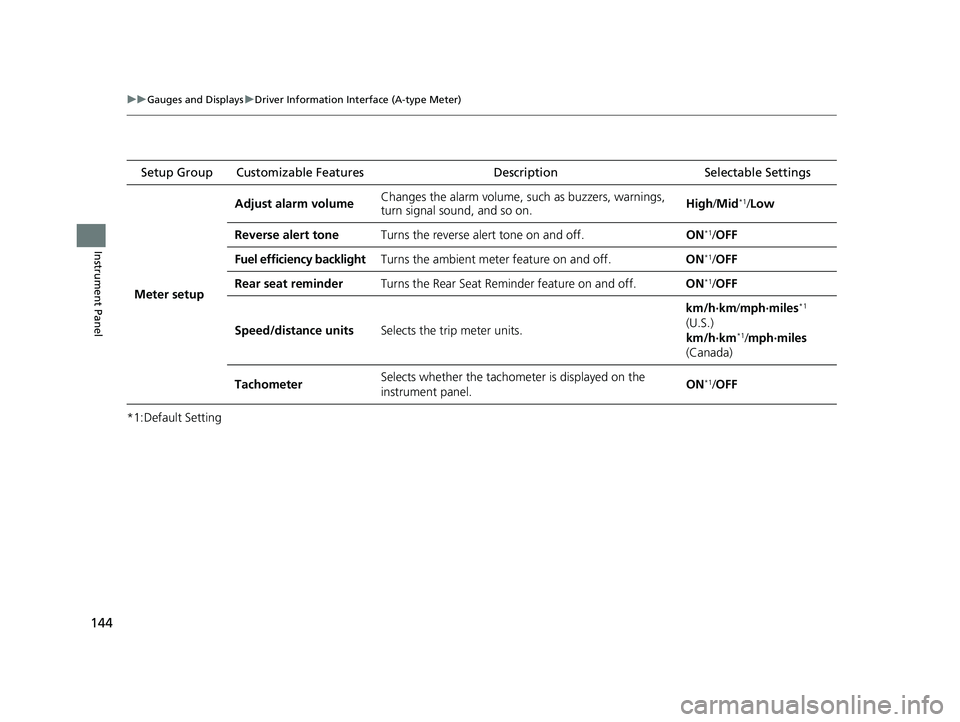

*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Meter setup Adjust alarm volume
Changes the alarm volume, su
ch as buzzers, warnings,
turn signal sound, and so on. High
/Mid
*1/Low
Reverse alert tone Turns the reverse alert tone on and off. ON
*1/OFF
Fuel efficiency backlight Turns the ambient meter feature on and off. ON
*1/OFF
Rear seat reminder Turns the Rear Seat Reminder feature on and off. ON
*1/OFF
Speed/distance units Selects the trip meter units. km/h∙km/
mph∙miles
*1
(U.S.)
km/h∙km
*1/ mph∙miles
(Canada)
Tachometer Selects whether the tachomet
er is displayed on the
instrument panel. ON
*1/
OFF
23 PILOT-31T906000_03.book 144 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

145
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
Keyless access
setup
Door unlock modeChanges which doors unlock when you grab the driver’s
door handle.Driver door only*1/All
doors
Keyless access light
flashCauses some exterior lights to flash when you unlock/
lock the doors.ON*1/ OFF
Keyless access beepCauses the beeper to sound when you unlock/lock the
doors.ON*1/OFF
Remote start system
ON/OFF*Turns the remote engine start feature on and off.ON*1/OFF
Lighting setup Auto high-beam
Turns the auto high-beam on and off. ON
*1/OFF
Interior light dimming
time Changes the length of time
the interior lights stay on
after you close the doors. 60sec
/30sec
*1/ 15sec
Headlight auto off
timer Changes the length of time
the exterior lights stay on
after you close the driver’s door. 60sec
/30sec /15sec
*1/0sec
Auto light sensitivity
*Changes the timing for th e headlights to come on. Max/High /Mid*1/Low /Min
Auto headlight ON
with wiper ON Changes the settings for the
wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position. ON
*1/
OFF
* Not available on all models
23 PILOT-31T906000_03.book 145 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

146
uuGauges and Displays uDriver Information Interface (A-type Meter)
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Door setup
Auto door lockChanges the setting for when the doors
automatically lock.With vehicle speed*1/
Shift from P /OFF
Auto door unlockChanges the setting for when the doors
automatically unlock.All doors when driver’s door opens*1/
All doors when shifted to Park /All
doors when ignition switched OFF /OFF
Walk away auto lock
Changes the settings for the automatic
locking the doors wh en you walk away
from the vehicle while carrying the
keyless remote.
ON /OFF*1
Keyless lock answer
backLOCK/UNLOCK- The ex terior lights flash.
LOCK (2nd push)- The beeper sounds.ON*1/ OFF
Security relock timer
Changes the time it takes for the doors to
relock and the security system to set after
you unlock the vehicle without opening
any door.
30sec*1/60sec /90sec
Keyless remote power
window controlTurns remote window control using the
keyless remote on and off.ON*1/ OFF
Lockout preventionChanges the settings for the lockout
protection function.ON*1/OFF
Lock presettingChanges the settings for the Lock
Presetting function.ON*1/OFF
23 PILOT-31T906000_03.book 146 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

147
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Power
tailgate
setup
*
Keyless open mode Changes the keyless setting for when the
power tailgate opens. Anytime*1/
When unlocked
Power open by outer
handle Changes the setting to open power
tailgate by tailgate outer handle.
ON(Power/Manual)
*1/
OFF(Manual only)
Maintenance
reset—
Resets the Maintenance Minder display
when you have performed the
maintenance service.
(Selects Reset Items)
Default all —Cancels customized changes you have
made or restores them to their default
setting. Cancel
/Set
* Not available on all models
23 PILOT-31T906000_03.book 147 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

148
uuGauges and Displays uDriver Information Interface (A-type Meter)
Instrument Panel

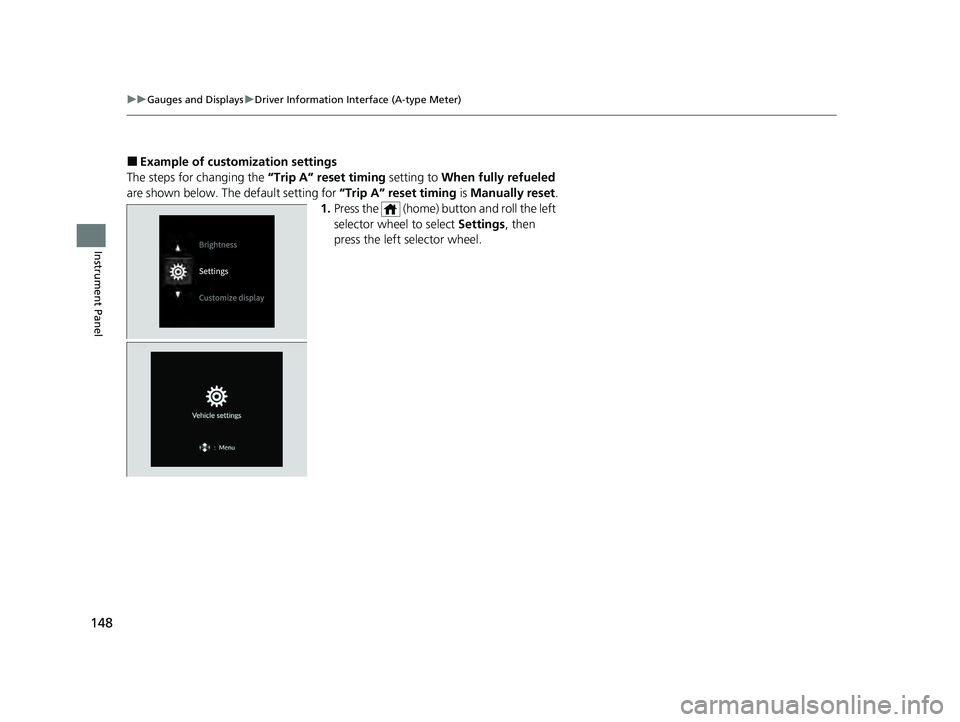

■Example of customization settings
The steps for changing the “Trip A” reset timing setting to When fully refueled
are shown below. The default setting for “Trip A” reset timing is Manually reset.
1. Press the (home) button and roll the left
selector wheel to select Settings, then
press the left selector wheel.
23 PILOT-31T906000_03.book 148 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

149
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel

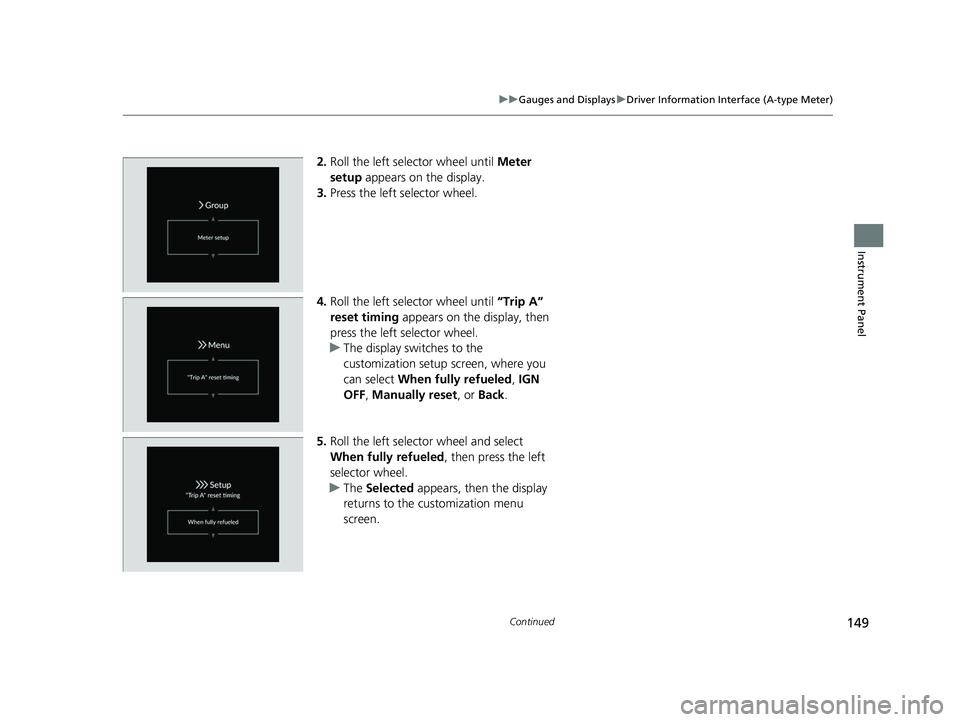

2. Roll the left selector wheel until Meter
setup appears on the display.
3. Press the left selector wheel.
4. Roll the left selector wheel until “Trip A”
reset timing appears on the display, then
press the left selector wheel.
u The display swit ches to the
customization setup screen, where you
can select When fully refueled , IGN
OFF , Manually reset , or Back .
5. Roll the left selector wheel and select
When fully refueled , then press the left
selector wheel.
u The Selected appears, then the display
returns to the customization menu
screen.
23 PILOT-31T906000_03.book 149 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

150
uuGauges and Displays uDriver Information Interface (A-type Meter)
Instrument Panel

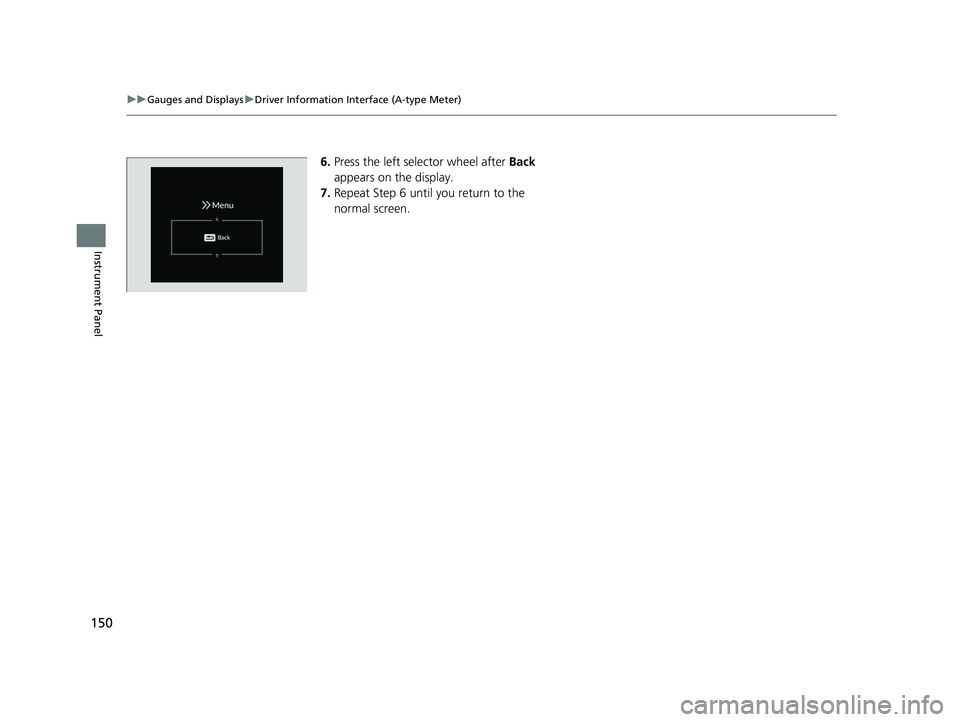

6. Press the left selector wheel after Back
appears on the display.
7. Repeat Step 6 until you return to the
normal screen.
23 PILOT-31T906000_03.book 150 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

151
uuGauges and Displays uDriver Information Interface Left Side Area (B-type-Meter)
Continued
Instrument Panel
Driver Information Interface Left Side Area (B-type-
Meter)
Shows the current mode for audio and phone information, etc.
2Audio Remote Controls P. 296
2 Bluetooth ® HandsFreeLink ® P. 479
Shows the clock.
■Clock1 Clock
You can adjust the time manually and change the
clock display to show the 12 hour clock or 24 hour
clock. 2 Clock P. 176
You can choose whether the clock is displayed on the
driver information interface. 2 Customize Display P. 152
