2023 HONDA PILOT Owners Manual

32
Quick Reference Guide
Maintenance (P691)
Under the Hood (P705)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P718)
●Inspect all lights regularly.
Wiper Blades (P723)
●Replace blades if they leave streaks
across the windshield or become noisy.
Tires (P728)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 PILOT-31T906000_03.book 32 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Quick Reference Guide
33
Handling the Unexpected (P749)
Flat Tire (P751)
●Park in a safe location and replace the
flat tire with the spare tire located under
the cargo area.
Indicators Come On (P771)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P762)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P778)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P769)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P785)
●Call a professional towing service if you
need to tow your vehicle.
23 PILOT-31T906000_03.book 33 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

34
Quick Reference Guide
What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P659)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
lock position. If so, open the rear
door with the outside door handle.
To cancel this function, slide the
lever up to the unlock position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
●Auto Idle Stop is in operation.
23 PILOT-31T906000_03.book 34 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

35
Quick Reference Guide
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P184)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pushing the electric
parking brake switch does
not release the parking
brake. Why?Push the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P776)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
23 PILOT-31T906000_03.book 35 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

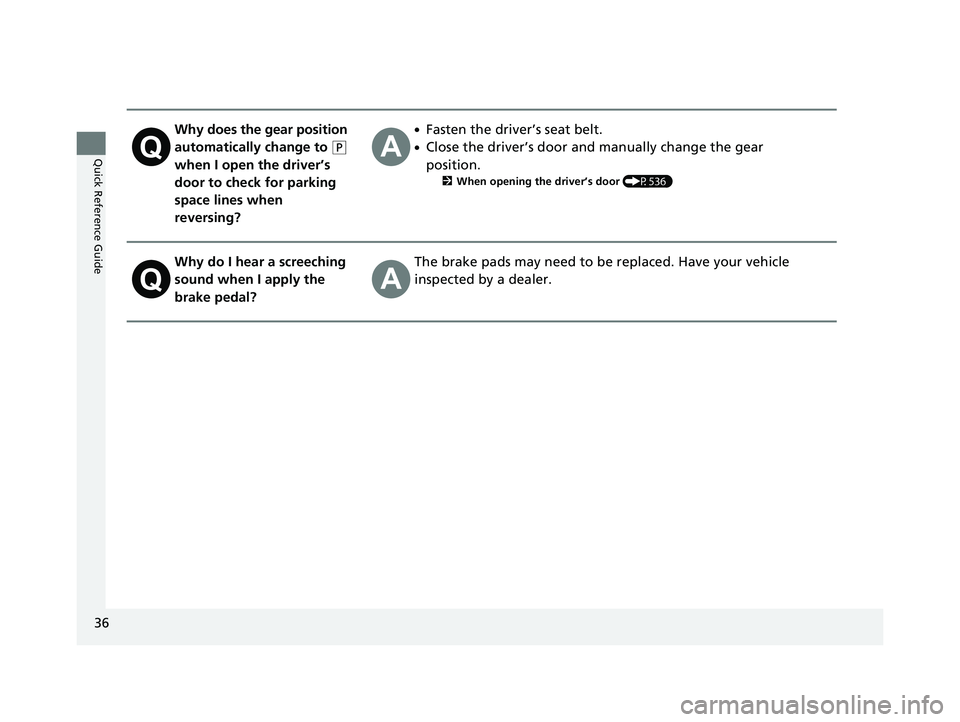

36
Quick Reference Guide
Why does the gear position
automatically change to
(P
when I open the driver’s
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver’s door and manually change the gear
position.
2 When opening the driver’s door (P536)
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
23 PILOT-31T906000_03.book 36 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

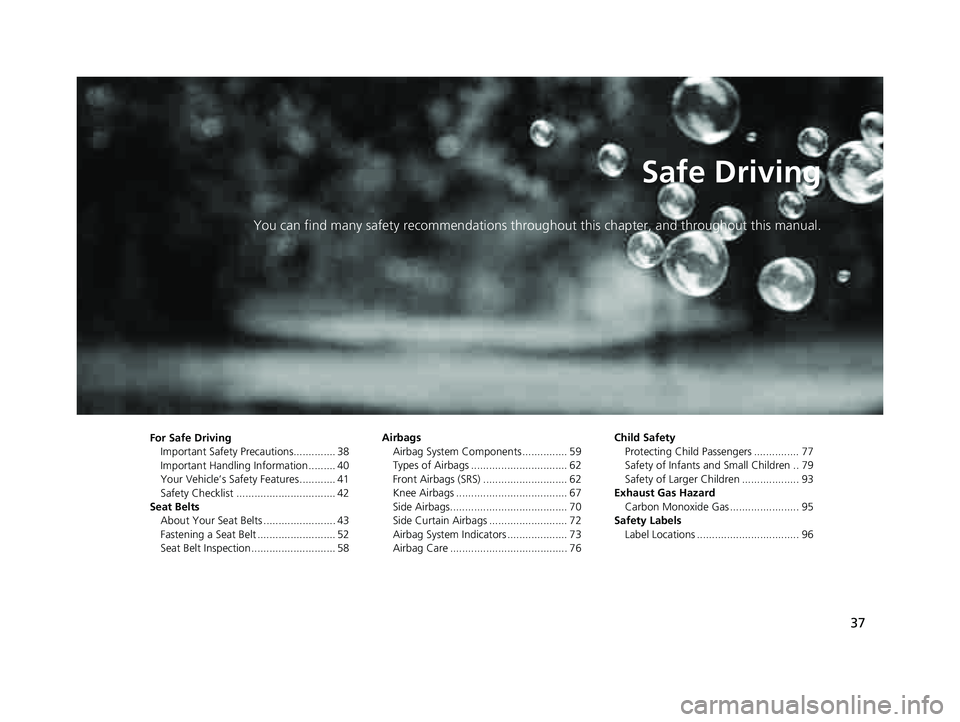

37
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe DrivingImportant Safety Precautions.............. 38
Important Handling Information ......... 40
Your Vehicle’s Safety Features ............ 41
Safety Checklist ................................. 42
Seat Belts About Your Seat Belts ........................ 43
Fastening a Seat Belt .......................... 52
Seat Belt Inspection ............................ 58 Airbags
Airbag System Components ............... 59
Types of Airbags ................................ 62
Front Airbags (SRS) ............................ 62
Knee Airbags ..................................... 67
Side Airbags....................................... 70
Side Curtain Airbags .......................... 72
Airbag System Indicators .................... 73
Airbag Care ....................................... 76 Child Safety
Protecting Child Passengers ............... 77
Safety of Infants a nd Small Children .. 79
Safety of Larger Children ................... 93
Exhaust Gas Hazard Carbon Monoxide Gas ....................... 95
Safety Labels Label Locations .................................. 96
23 PILOT-31T906000_03.book 37 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

38
Safe Driving
For Safe Driving
The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■Restrain all children
Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children shoul d be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.
■Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not prop erly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■Don’t drink and drive
Alcohol and driving don’t mix. Even one dr ink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.
1Important Safety Precautions
Some states, provinces and te rritories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.
23 PILOT-31T906000_03.book 38 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

39
uuFor Safe Driving uImportant Safety Precautions
Safe Driving
■Pay appropriate attention to the task of driving safely
Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■Keep your vehicle in safe condition
Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regul arly scheduled maintenance.
■Do not leave children unattended in the vehicle
Children, pets, and people needing assistance left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in wh ich they and/or another person(s) can be
injured or killed. Also, depending on the am bient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
23 PILOT-31T906000_03.book 39 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
