2023 HONDA PILOT Owners Manual

uuChild Safety uSafety of Infants and Small Children
80
Safe DrivingIf a child has exceeded the weight and heig ht limitations of a rear-facing child seat,
the child should be properly restrained in a firmly secured forward-facing child seat
until they exceed the weight and height limitations for the forward-facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in the front seat can be hazardous, even with
advanced front airbags that automatically turn the passenger’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
3WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
23 PILOT-31T906000_03.book 80 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued81
uuChild Safety uSafety of Infants and Small Children
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type connector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/shoulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Pl ease read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-compatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
23 PILOT-31T906000_03.book 81 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuChild Safety uSafety of Infants and Small Children
82

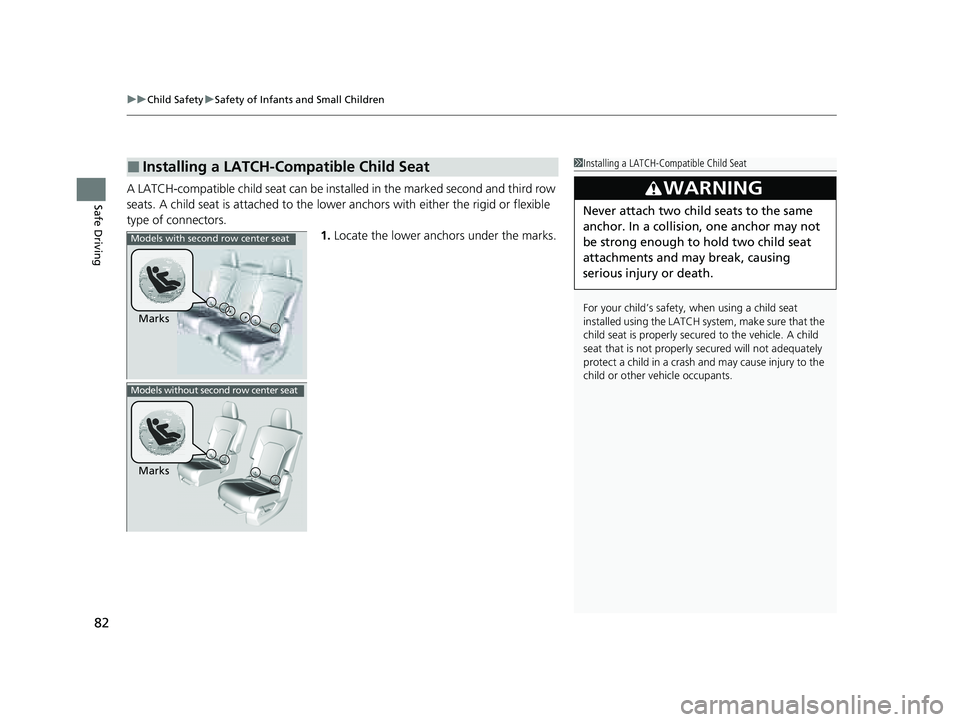

Safe DrivingA LATCH-compatible child seat can be inst alled in the marked second and third row
seats. A child seat is attached to the lowe r anchors with either the rigid or flexible
type of connectors. 1.Locate the lower anchors under the marks.
■Installing a LATCH-Compatible Child Seat1Installing a LATCH-Compatible Child Seat
For your child’s safety, when using a child seat
installed using the LATCH system, make sure that the
child seat is properly secured to the vehicle. A child
seat that is not properly secured will not adequately
protect a child in a crash and may cause injury to the
child or other vehicle occupants.
3WARNING
Never attach two child seats to the same
anchor. In a collision, one anchor may not
be strong enough to hold two child seat
attachments and may break, causing
serious injury or death.
Marks
Models with second row center seat
Marks
Models without second row center seat
23 PILOT-31T906000_03.book 82 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

83
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

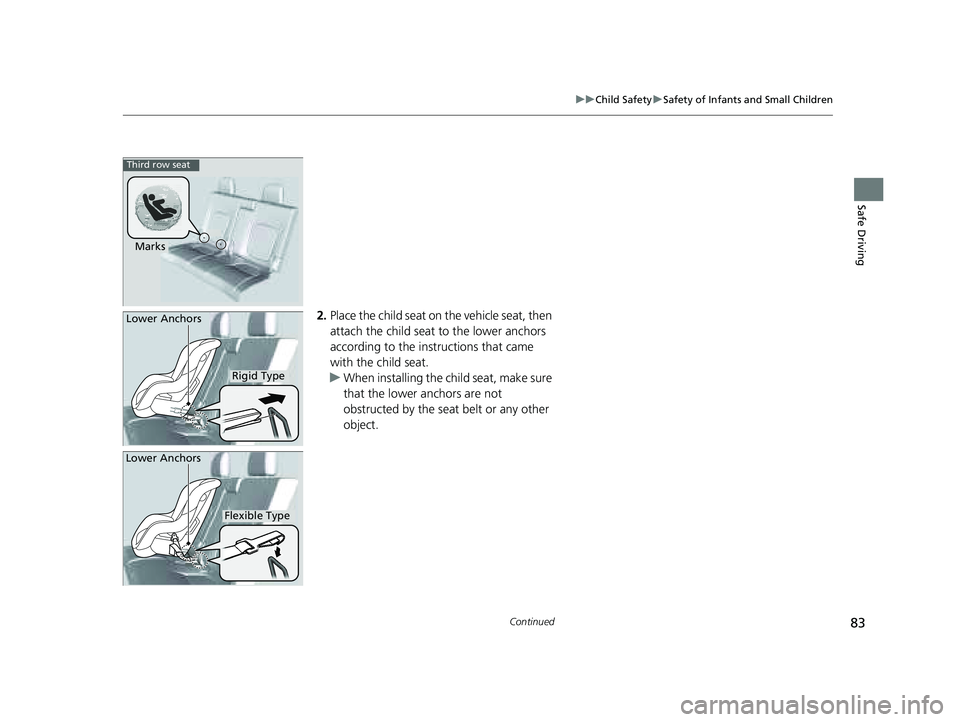

2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came
with the child seat.
u When installing the child seat, make sure
that the lower anchors are not
obstructed by the seat belt or any other
object.
Marks
Third row seat
Rigid Type
Lower Anchors
Flexible Type
Lower Anchors
23 PILOT-31T906000_03.book 83 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

84
uuChild Safety uSafety of Infants and Small Children
Safe Driving

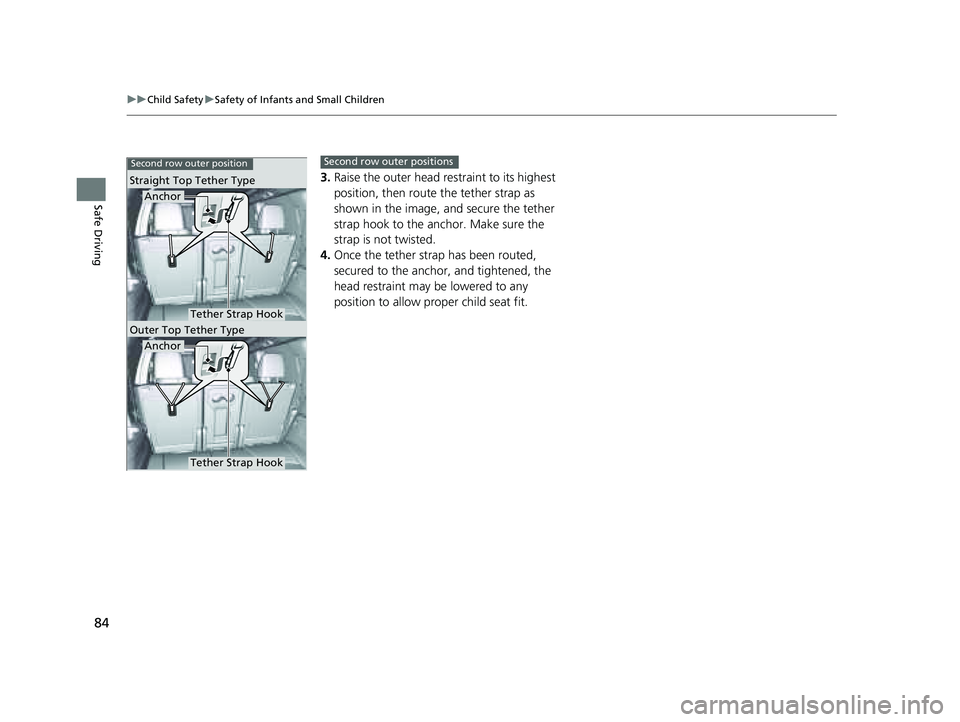

3. Raise the outer head re straint to its highest
position, then route the tether strap as
shown in the image, and secure the tether
strap hook to the anchor. Make sure the
strap is not twisted.
4. Once the tether strap has been routed,
secured to the anchor, and tightened, the
head restraint may be lowered to any
position to allow proper child seat fit.
Second row outer position
Straight Top Tether Type
Outer Top Tether Type
Anchor
Tether Strap Hook
Anchor
Tether Strap Hook
Second row outer positions
23 PILOT-31T906000_03.book 84 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

85
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving

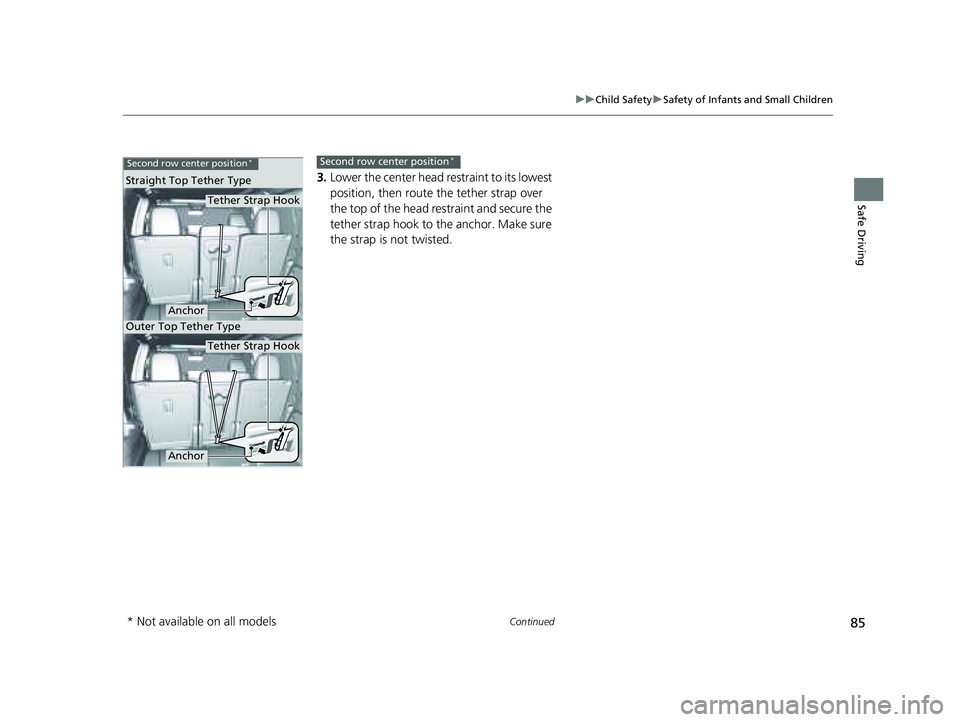

3. Lower the center head re straint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
Second row center position*
Straight Top Tether Type
Outer Top Tether Type
Anchor
Tether Strap Hook
Anchor
Tether Strap Hook
Second row center position*
* Not available on all models
23 PILOT-31T906000_03.book 85 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

86
uuChild Safety uSafety of Infants and Small Children
Safe Driving

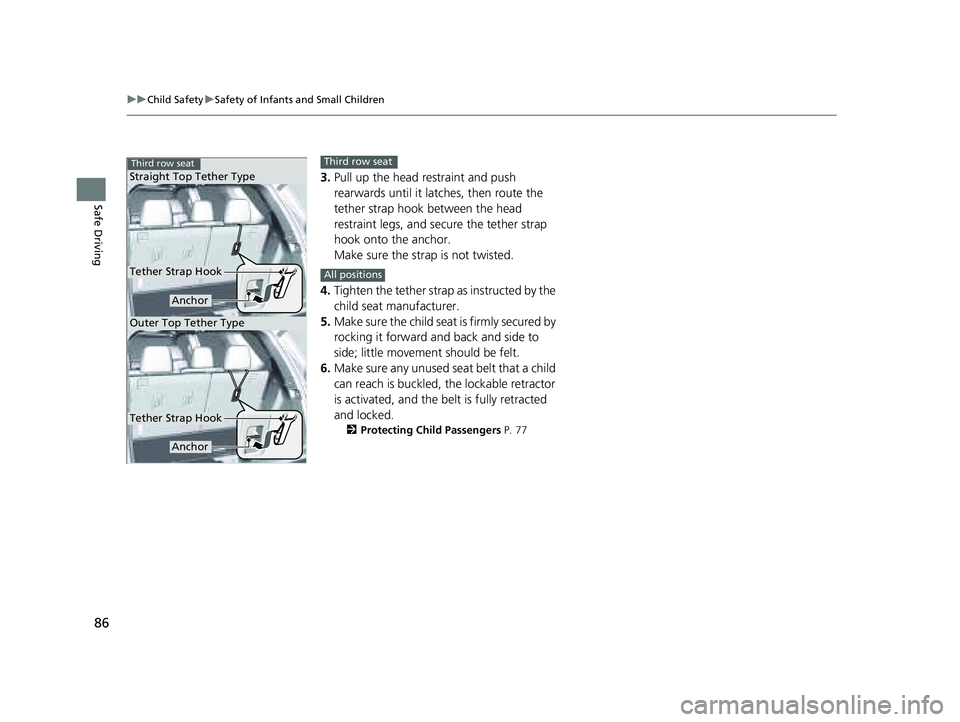

3. Pull up the head restraint and push
rearwards until it latc hes, then route the
tether strap hook between the head
restraint legs, and secure the tether strap
hook onto the anchor.
Make sure the strap is not twisted.
4. Tighten the tether strap as instructed by the
child seat manufacturer.
5. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
6. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 77
Third row seatStraight Top Tether Type
Anchor
Outer Top Tether Type
Anchor
Tether Strap Hook
Tether Strap Hook
Third row seat
All positions
23 PILOT-31T906000_03.book 86 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued87
uuChild Safety uSafety of Infants and Small Children

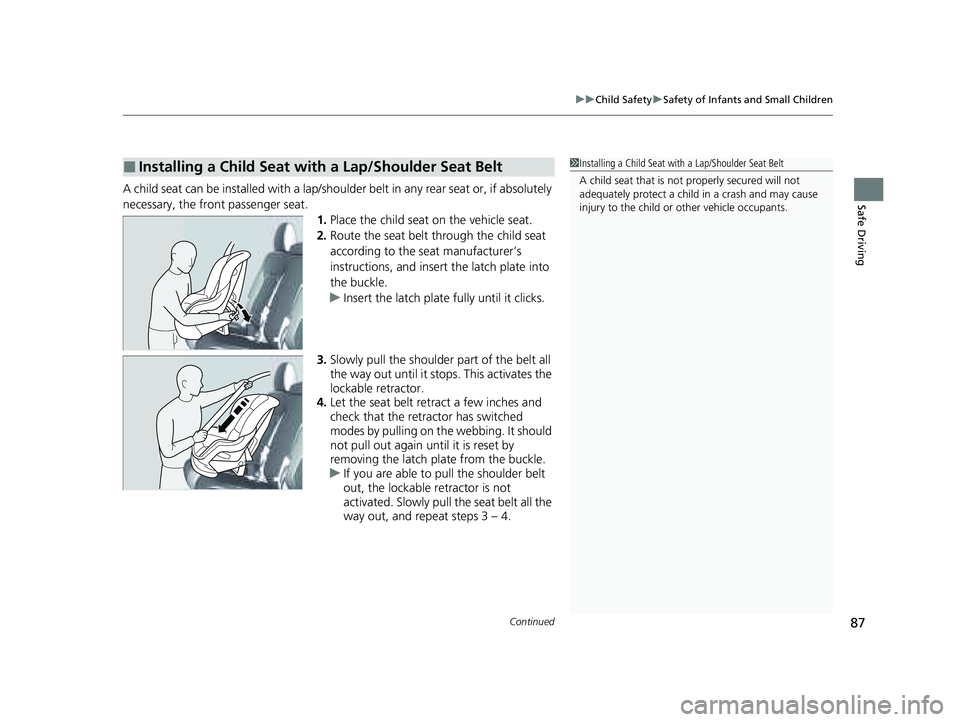

Safe DrivingA child seat can be installed with a lap/should er belt in any rear seat or, if absolutely
necessary, the front passenger seat. 1.Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat
according to the seat manufacturer’s
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all
the way out until it stops. This activates the
lockable retractor.
4. Let the seat belt retract a few inches and
check that the retractor has switched
modes by pulling on the webbing. It should
not pull out again until it is reset by
removing the latch pl ate from the buckle.
u If you are able to pull the shoulder belt
out, the lockable retractor is not
activated. Slowly pull the seat belt all the
way out, and repeat steps 3 – 4.
■Installing a Child Seat with a Lap/Shoulder Seat Belt1Installing a Child Seat with a Lap/Shoulder Seat Belt
A child seat that is not properly secured will not
adequately protect a child in a crash and may cause
injury to the child or other vehicle occupants.
