2023 HONDA PILOT Owners Manual

240
uuSeats uFront Seats
Controls

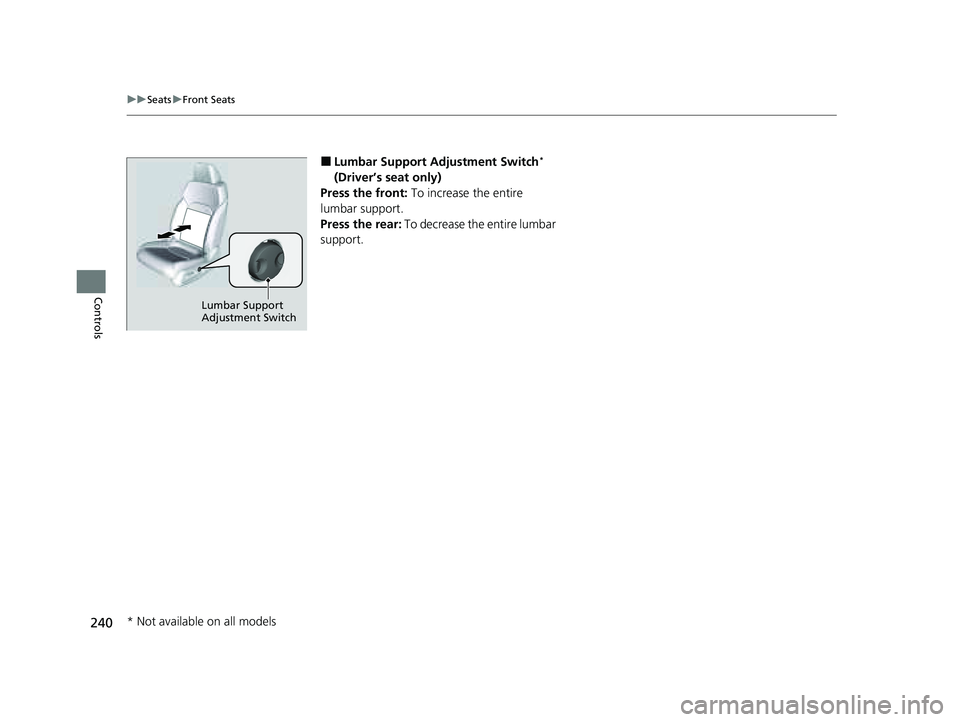

■Lumbar Support Ad justment Switch*
(Driver’s seat only)
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
Lumbar Support
Adjustment Switch
* Not available on all models
23 PILOT-31T906000_03.book 240 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

241
uuSeats uFront Seats
Continued
Controls

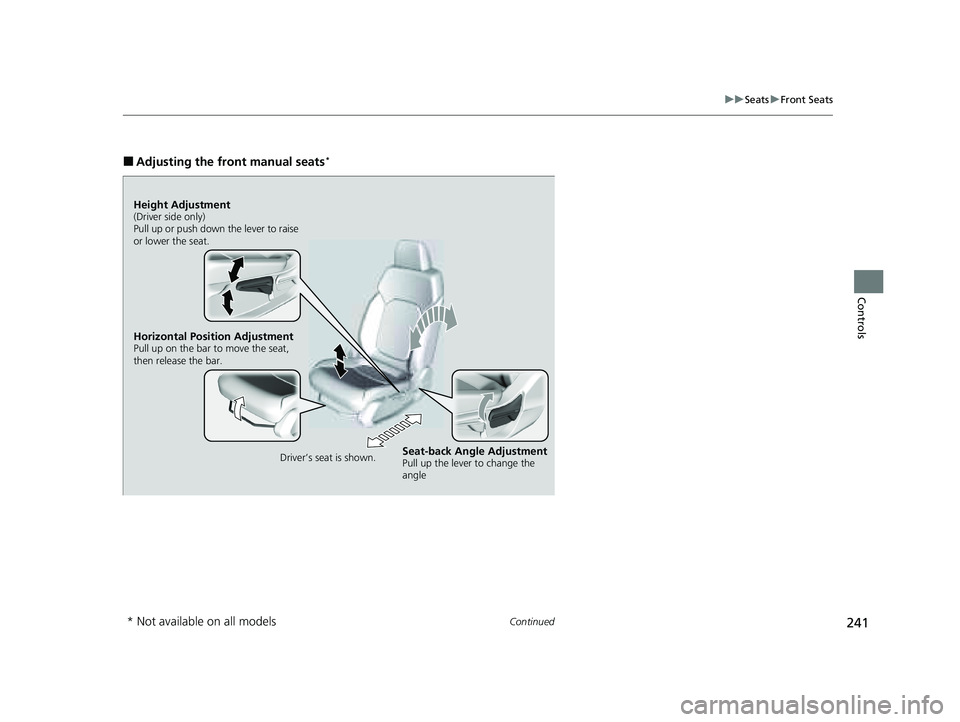

■Adjusting the front manual seats*
Horizontal Position AdjustmentPull up on the bar to move the seat,
then release the bar.
Driver’s seat is shown.
Seat-back Angle AdjustmentPull up the lever to change the
angle
Height Adjustment(Driver side only)
Pull up or push down the lever to raise
or lower the seat.
* Not available on all models
23 PILOT-31T906000_03.book 241 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSeats uFront Seats
242
Controls

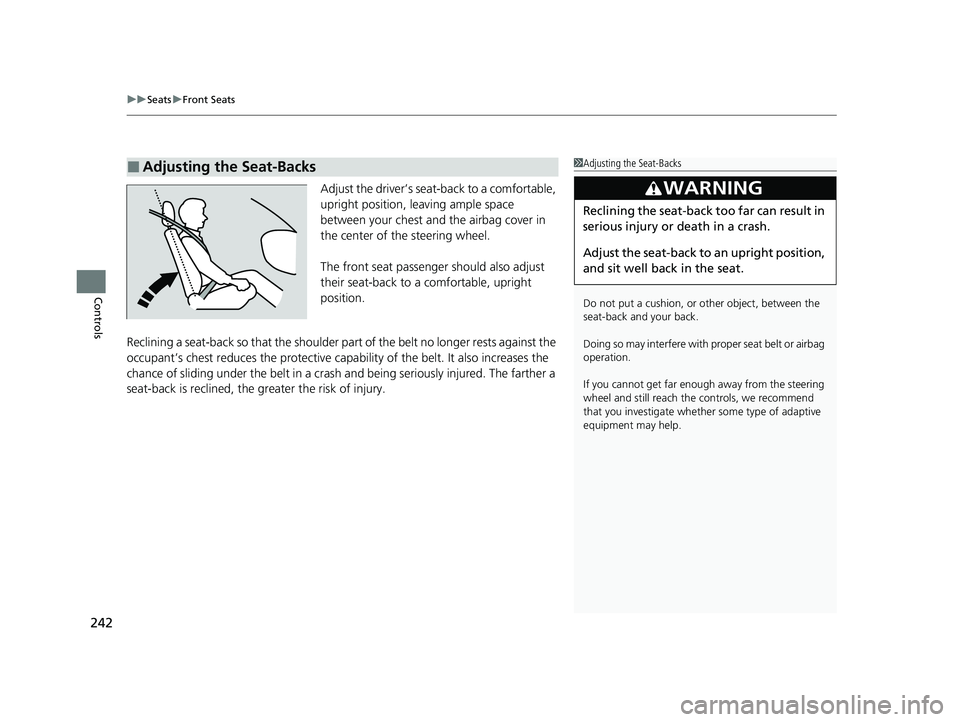

Adjust the driver’s sea t-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capa bility of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the gr eater the risk of injury.
■Adjusting the Seat-Backs1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with pr oper seat belt or airbag
operation.
If you cannot get far e nough away from the steering
wheel and still reach th e controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
23 PILOT-31T906000_03.book 242 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

243
uuSeats uSecond Row Seats
Continued
Controls

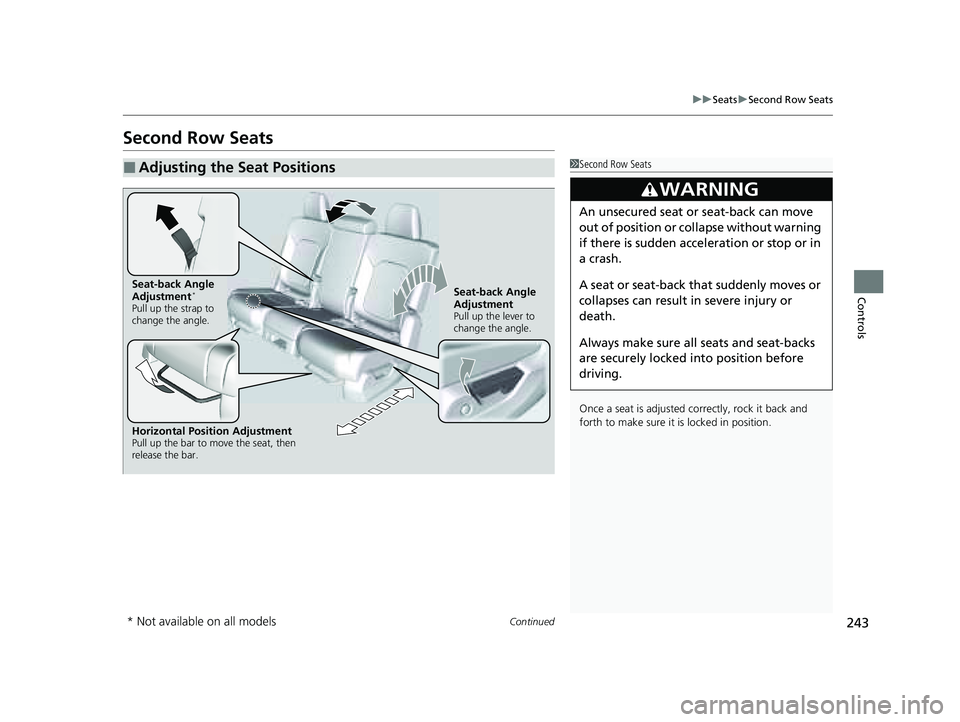

Second Row Seats
■Adjusting the Seat Positions1Second Row Seats
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
3WARNING
An unsecured seat or seat-back can move
out of position or collapse without warning
if there is sudden acce leration or stop or in
a crash.
A seat or seat-back that suddenly moves or
collapses can result in severe injury or
death.
Always make sure all seats and seat-backs
are securely locked in to position before
driving.
Seat-back Angle
Adjustment*
Pull up the strap to
change the angle.
Horizontal Position AdjustmentPull up the bar to move the seat, then
release the bar.
Seat-back Angle
Adjustment
Pull up the lever to
change the angle.
* Not available on all models
23 PILOT-31T906000_03.book 243 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSeats uSecond Row Seats
244
Controls
The second row outer seat-backs can be folded down to make room for cargo.
1. Store the center seat belt first. Insert the la tch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the ceiling.
2 Seat Belt with Detachable Anchor P. 54
3.Lower the head restraint to its lowest position.
4.Move the seat to it s rearmost position.
5. Pull the seat-back angle adjustment lever,
then fold the seat-back down.
To return the seat to th e original position, pull
up the seat-back in the upright position.
■Folding Down the Second Row Outer Seat1 Folding Down the Second Row Outer Seat
Make sure that the folded seat-back does not press
against the front passenger’s seat, as this can cause
the weight sensors in the front passenger’s seat to
work improperly. 2 Passenger Airbag Off Indicator P. 74
The front seat(s) must be far enough forward so they
do not interfere with the second row seats as they
fold down.
To lock the seat-back upri ght, push it backwards until
it locks.
Make sure the seat-back, head restraints and seat
cushion are securely latche d back into place before
driving.
Make sure the center shoulde r belt is re-positioned in
the holding slot.
Seat-back Angle
Adjustment Lever
23 PILOT-31T906000_03.book 244 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued245
uuSeats uSecond Row Seats
Controls

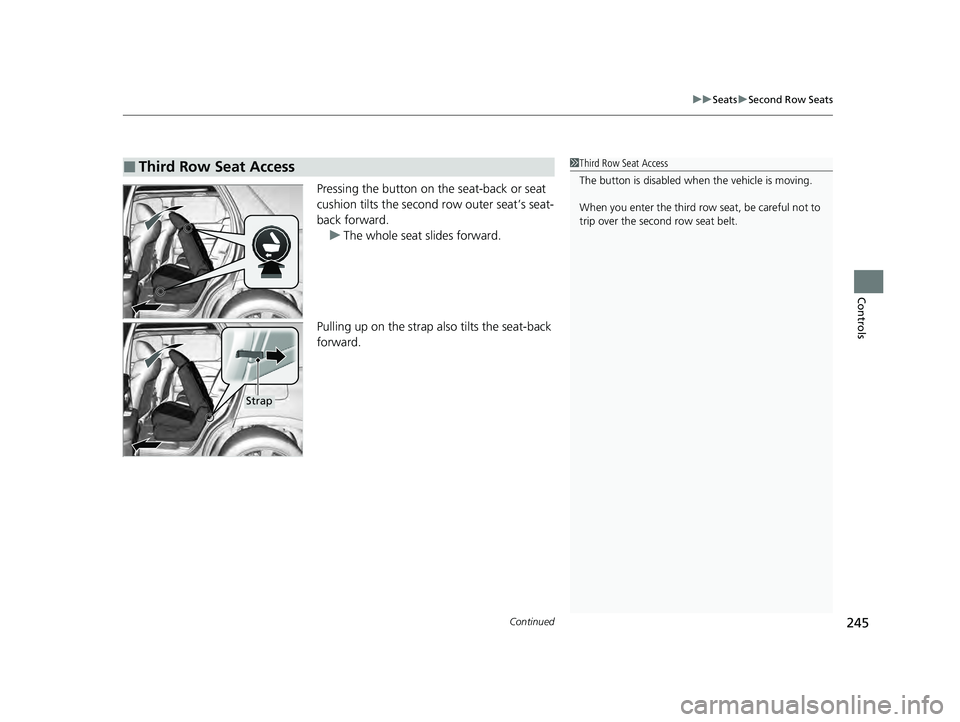

Pressing the button on the seat-back or seat
cushion tilts the second row outer seat’s seat-
back forward.
u The whole seat slides forward.
Pulling up on the strap also tilts the seat-back
forward.
■Third Row Seat Access1 Third Row Seat Access
The button is disabled wh en the vehicle is moving.
When you enter the third row seat, be careful not to
trip over the second row seat belt.
Strap
23 PILOT-31T906000_03.book 245 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSeats uSecond Row Seats
246
Controls

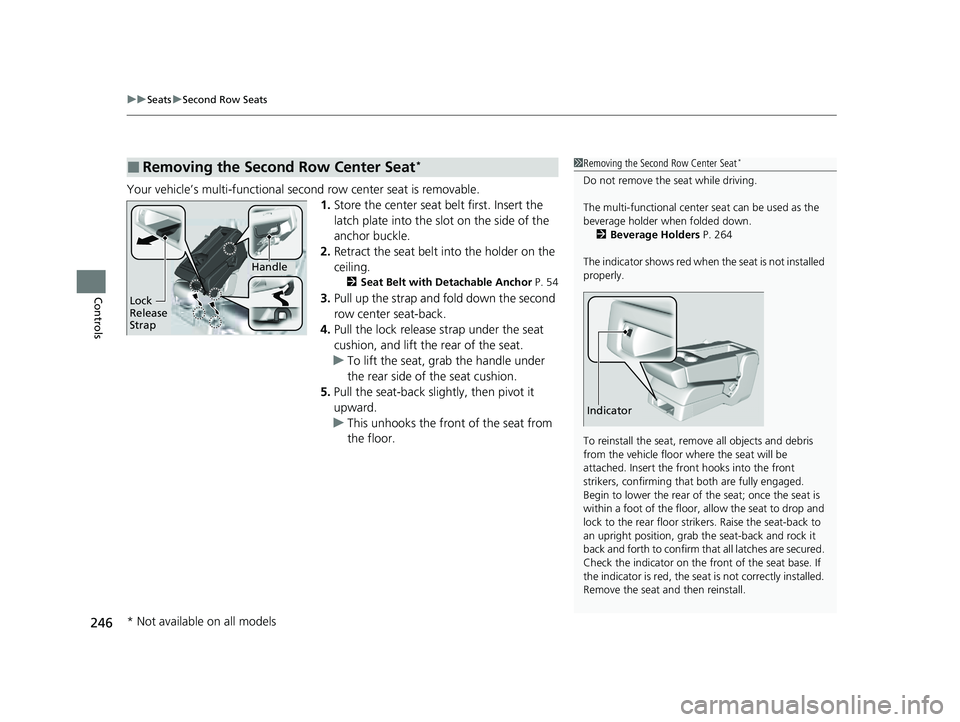

Your vehicle’s multi-functional second row center seat is removable.
1.Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 54
3.Pull up the strap and fold down the second
row center seat-back.
4. Pull the lock release strap under the seat
cushion, and lift the rear of the seat.
u To lift the seat, grab the handle under
the rear side of the seat cushion.
5. Pull the seat-back slig htly, then pivot it
upward.
u This unhooks the front of the seat from
the floor.
■Removing the Second Row Center Seat*1Removing the Second Row Center Seat*
Do not remove the seat while driving.
The multi-functional center seat can be used as the
beverage holder when folded down. 2 Beverage Holders P. 264
The indicator shows red when the seat is not installed
properly.
To reinstall the seat, remove all objects and debris
from the vehicle floor where the seat will be
attached. Insert the front hooks into the front
strikers, confirming that both are fully engaged.
Begin to lower the rear of the seat; once the seat is
within a foot of the floor, allow the seat to drop and
lock to the rear floor strikers. Raise the seat-back to
an upright position, grab the seat-back and rock it
back and forth to confirm that all latches are secured.
Check the indicator on the fr ont of the seat base. If
the indicator is red, the seat is not correctly installed.
Remove the seat and then reinstall.
Indicator
Lock
Release
Strap
Handle
* Not available on all models
23 PILOT-31T906000_03.book 246 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued247
uuSeats uSecond Row Seats
Controls

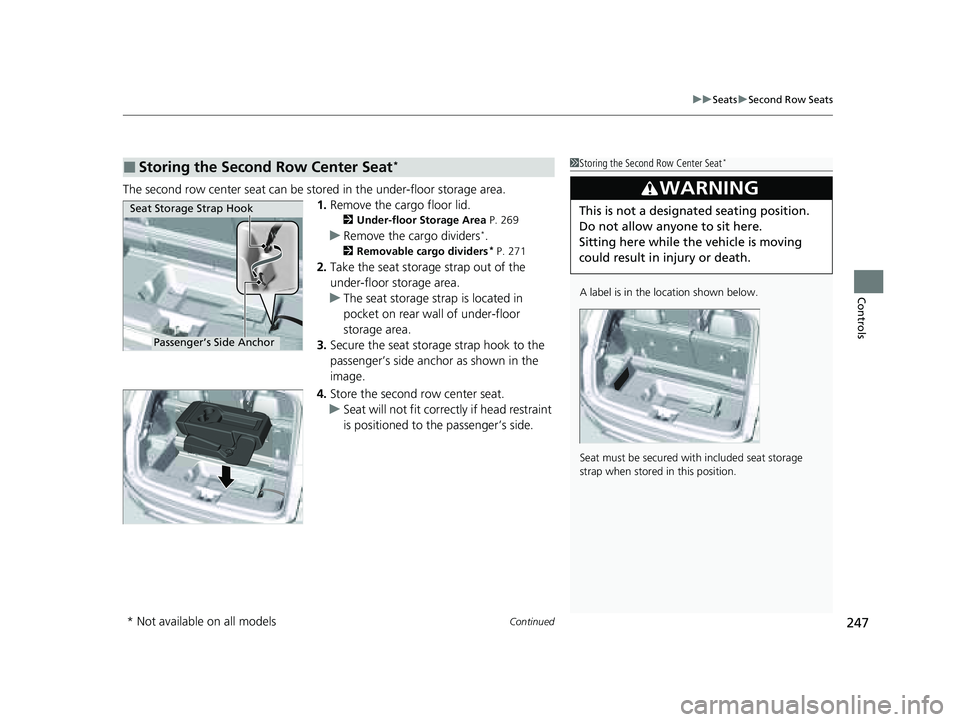

The second row center seat can be stored in the under-floor storage area.
1.Remove the cargo floor lid.
2 Under-floor Storage Area P. 269
uRemove the cargo dividers*.
2 Removable cargo dividers* P. 271
2.Take the seat storage strap out of the
under-floor storage area.
u The seat storage strap is located in
pocket on rear wall of under-floor
storage area.
3. Secure the seat storage strap hook to the
passenger’s side anchor as shown in the
image.
4. Store the second row center seat.
u Seat will not fit correctly if head restraint
is positioned to the passenger’s side.
■Storing the Second Row Center Seat*1Storing the Second Row Center Seat*
A label is in the location shown below.
Seat must be secured with included seat storage
strap when stored in this position.
3WARNING
This is not a designated seating position.
Do not allow anyone to sit here.
Sitting here while th e vehicle is moving
could result in injury or death.Seat Storage Strap Hook
Passenger’s Side Anchor
* Not available on all models
23 PILOT-31T906000_03.book 247 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
