2023 HONDA PILOT Owners Manual

uuChild Safety uSafety of Infants and Small Children

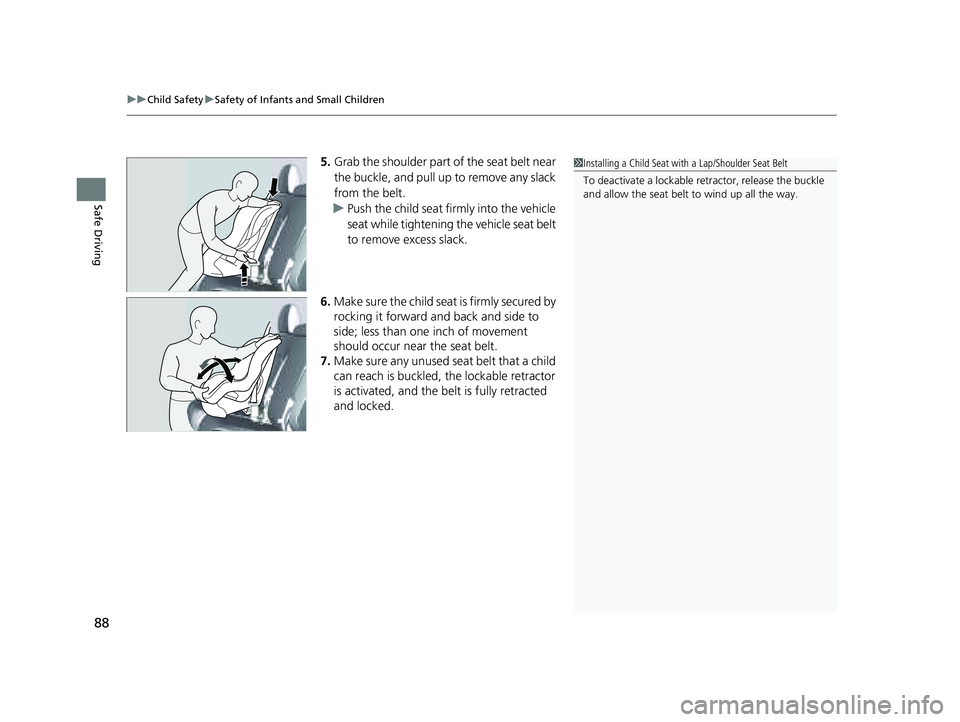

88
Safe Driving
5. Grab the shoulder part of the seat belt near
the buckle, and pull up to remove any slack
from the belt.
u Push the child seat firmly into the vehicle
seat while tightening the vehicle seat belt
to remove excess slack.
6. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; less than one inch of movement
should occur near the seat belt.
7. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.1 Installing a Child Seat with a Lap/Shoulder Seat Belt
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
23 PILOT-31T906000_03.book 88 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued89
uuChild Safety uSafety of Infants and Small Children
Safe DrivingA tether anchor point is provided behind each
second and third row seating position.
If you have a child s eat that comes with a
tether but can be installed with a seat belt, the
tether may be used for additional security.
■Adding Security with a Tether
Tether Anchor Points
Models with second row center seat
1 Adding Security with a Tether
Always use a tether for forward-facing child seats
whether using the seat belt or lower anchors.
Models without second row center seat
Tether Anchor Points
Tether Anchor Points
Third row seat
23 PILOT-31T906000_03.book 89 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

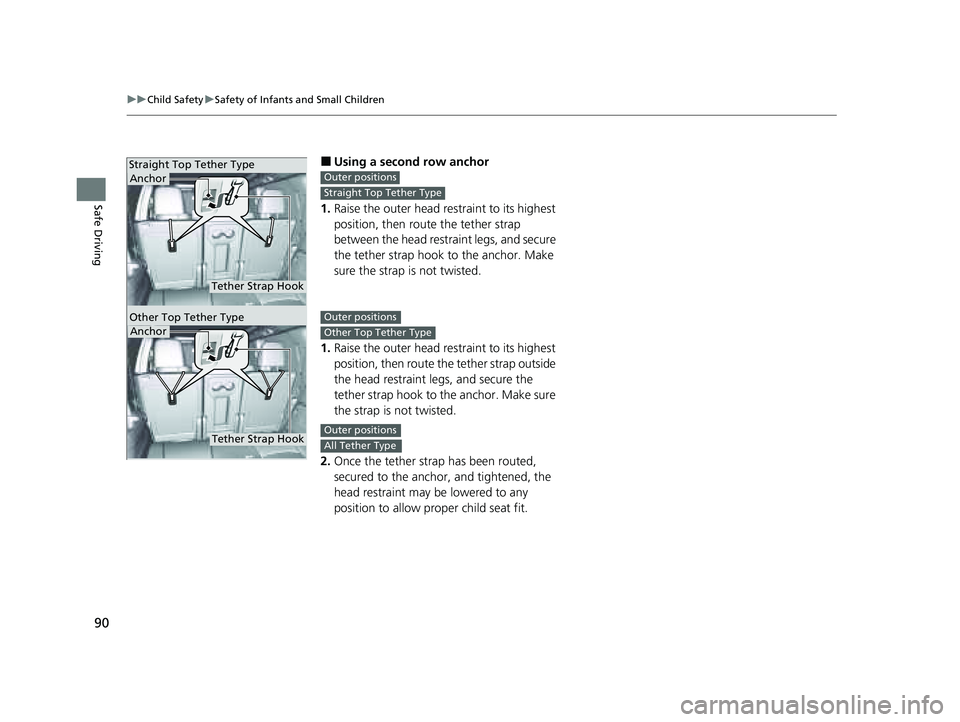

90
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using a second row anchor
1. Raise the outer head re straint to its highest
position, then rout e the tether strap
between the head restraint legs, and secure
the tether strap hook to the anchor. Make
sure the strap is not twisted.
1. Raise the outer head re straint to its highest
position, then route the tether strap outside
the head restraint legs, and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
2. Once the tether strap has been routed,
secured to the anchor, and tightened, the
head restraint may be lowered to any
position to allow proper child seat fit.
Tether Strap Hook
Anchor
Straight Top Tether Type
Tether Strap Hook
Anchor
Other Top Tether Type
Outer positions
Straight Top Tether Type
Outer positions
Other Top Tether Type
Outer positions
All Tether Type
23 PILOT-31T906000_03.book 90 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

91
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
1. Lower the center head re straint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor. Make sure
the strap is not twisted.
2. Tighten the tether strap as instructed by the
child seat manufacturer.
3. Make sure the child seat is firmly secured by
rocking it forward and back and side to
side; little movement should be felt.
4. Make sure any unused seat belt that a child
can reach is buckled, the lockable retractor
is activated, and the be lt is fully retracted
and locked.
2 Protecting Child Passengers P. 77
Straight Top Tether Type
Tether Strap Hook
Anchor
Other Top Tether Type
Tether Strap Hook
Models with second row center seat
Anchor
Center position*
All positions
* Not available on all models
23 PILOT-31T906000_03.book 91 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

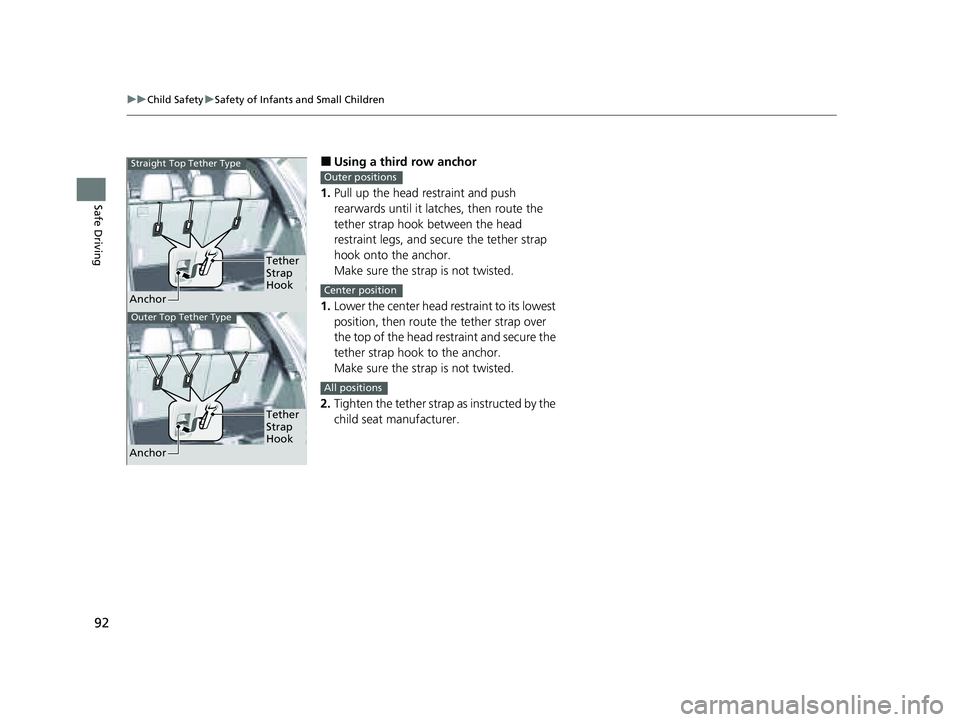

92
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■Using a third row anchor
1. Pull up the head restraint and push
rearwards until it latc hes, then route the
tether strap hook between the head
restraint legs, and secure the tether strap
hook onto the anchor.
Make sure the strap is not twisted.
1. Lower the center head restraint to its lowest
position, then route the tether strap over
the top of the head restraint and secure the
tether strap hook to the anchor.
Make sure the strap is not twisted.
2. Tighten the tether strap as instructed by the
child seat manufacturer.
Tether
Strap
Hook
Anchor
Straight Top Tether Type
Tether
Strap
Hook
Anchor
Outer Top Tether Type
Outer positions
Center position
All positions
23 PILOT-31T906000_03.book 92 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

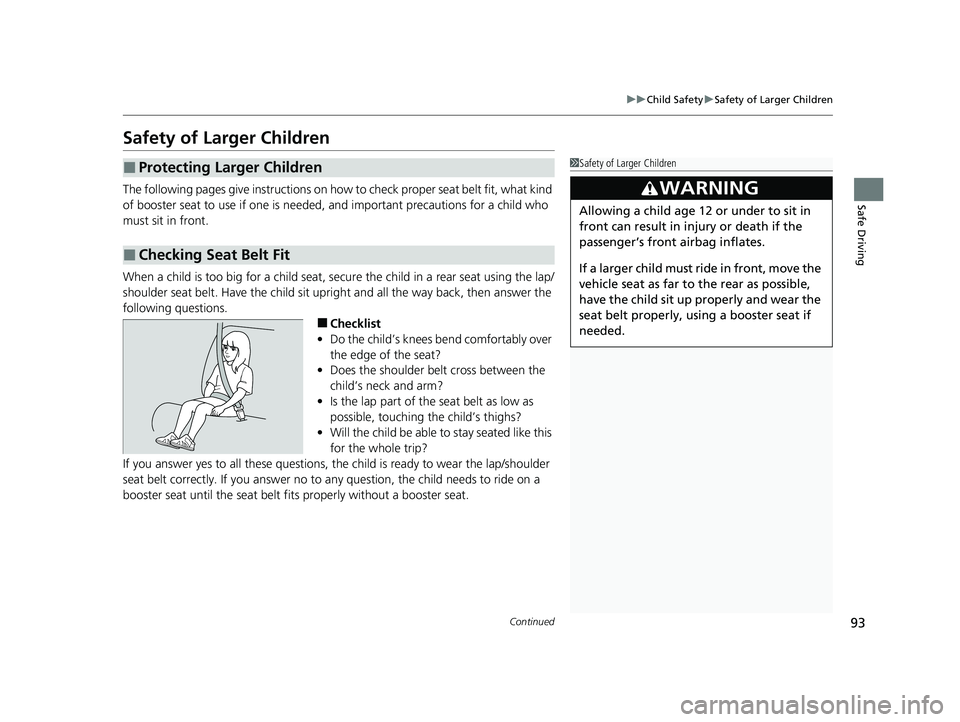

93
uuChild Safety uSafety of Larger Children
Continued
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child seat, secure the child in a rear seat using the lap/
shoulder seat belt. Have the child sit upri ght and all the way back, then answer the
following questions.
■Checklist
• Do the child’s knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child’s neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child’s thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, th e child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■Protecting Larger Children
■Checking Seat Belt Fit
1 Safety of Larger Children
3WARNING
Allowing a child age 12 or under to sit in
front can result in injury or death if the
passenger’s front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
23 PILOT-31T906000_03.book 93 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuChild Safety uSafety of Larger Children

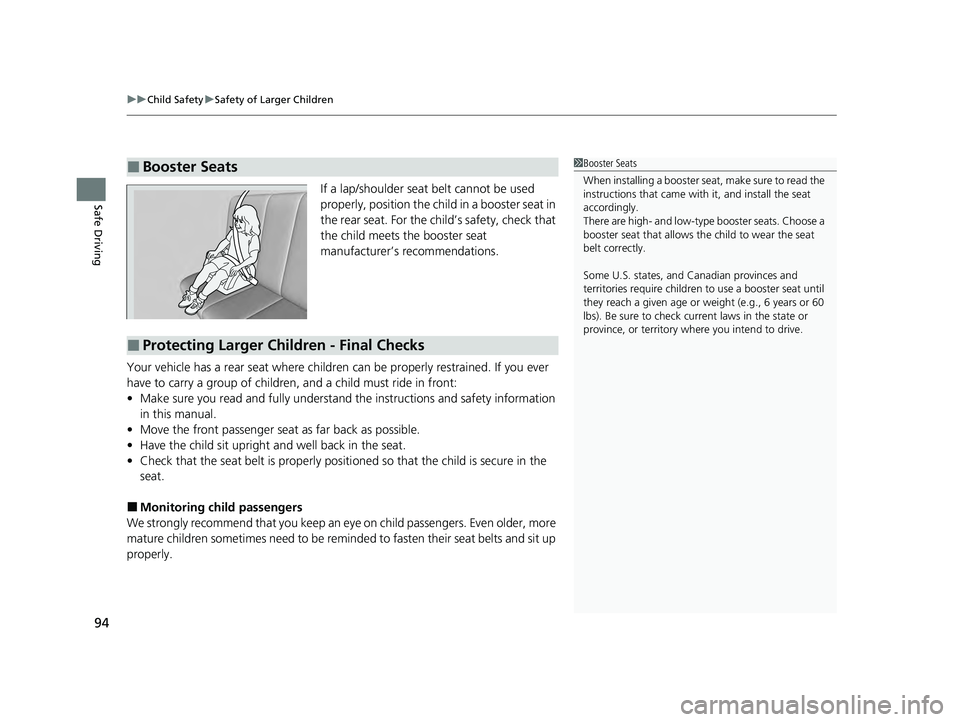

94
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the ch ild’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and full y understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat , make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states, and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g., 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children - Final Checks
23 PILOT-31T906000_03.book 94 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

95
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
23 PILOT-31T906000_03.book 95 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
