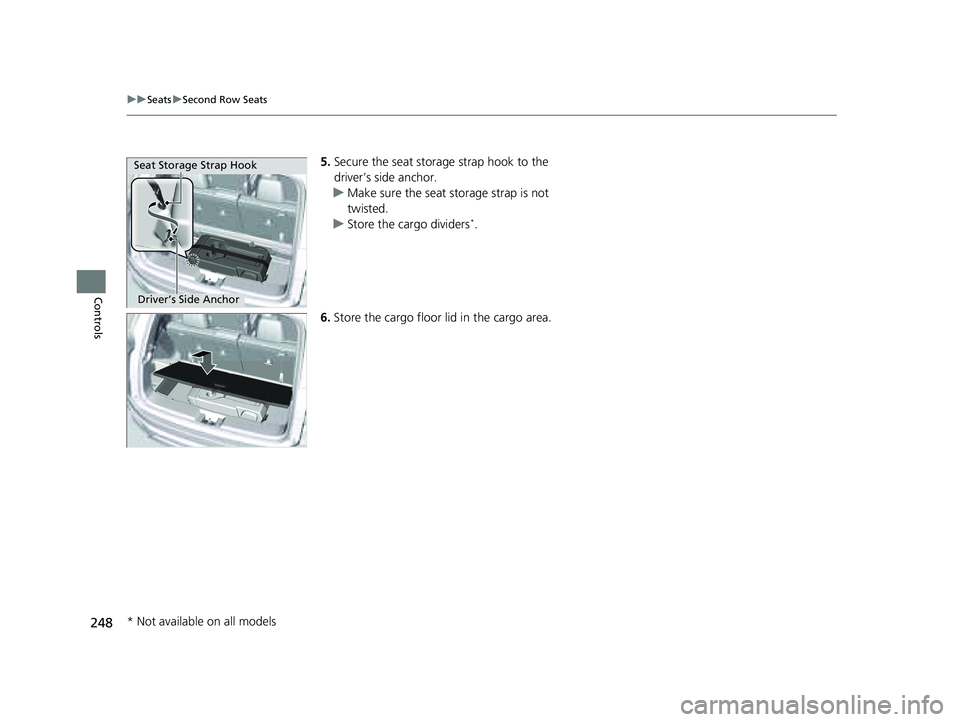

2023 HONDA PILOT Owners Manual

248
uuSeats uSecond Row Seats
Controls
5. Secure the seat storage strap hook to the
driver’s side anchor.
u Make sure the seat storage strap is not
twisted.
u Store the cargo dividers
*.
6. Store the cargo floor lid in the cargo area.
Seat Storage Strap Hook
Driver’s Side Anchor
* Not available on all models
23 PILOT-31T906000_03.book 248 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

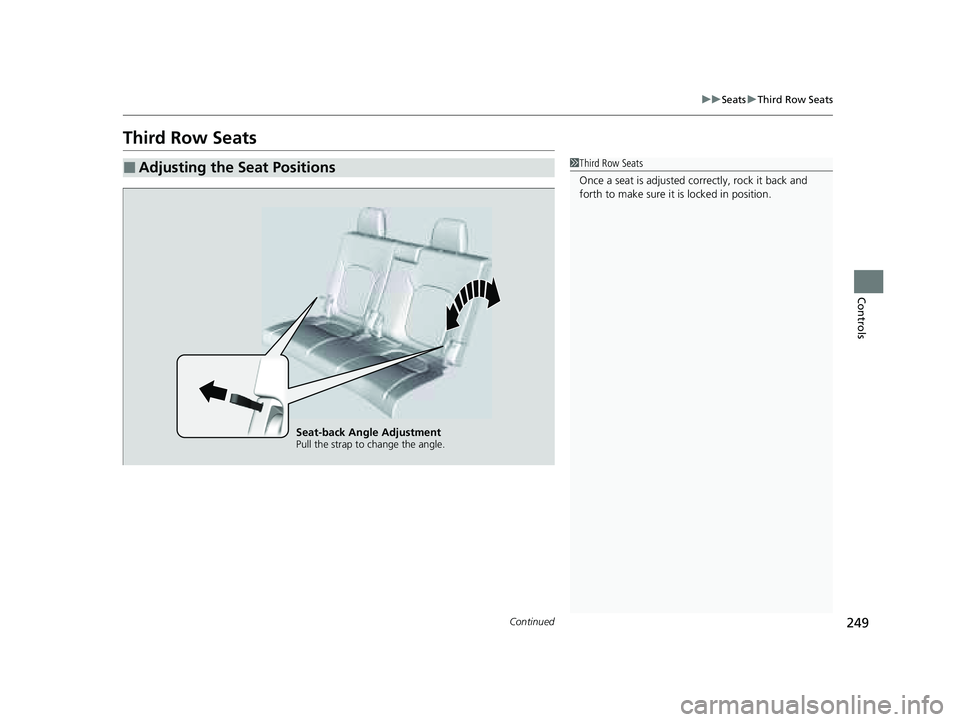

249
uuSeats uThird Row Seats
Continued
Controls
Third Row Seats
■Adjusting the Seat Positions1Third Row Seats
Once a seat is adjusted co rrectly, rock it back and
forth to make sure it is locked in position.
Seat-back Angle AdjustmentPull the strap to change the angle.
23 PILOT-31T906000_03.book 249 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

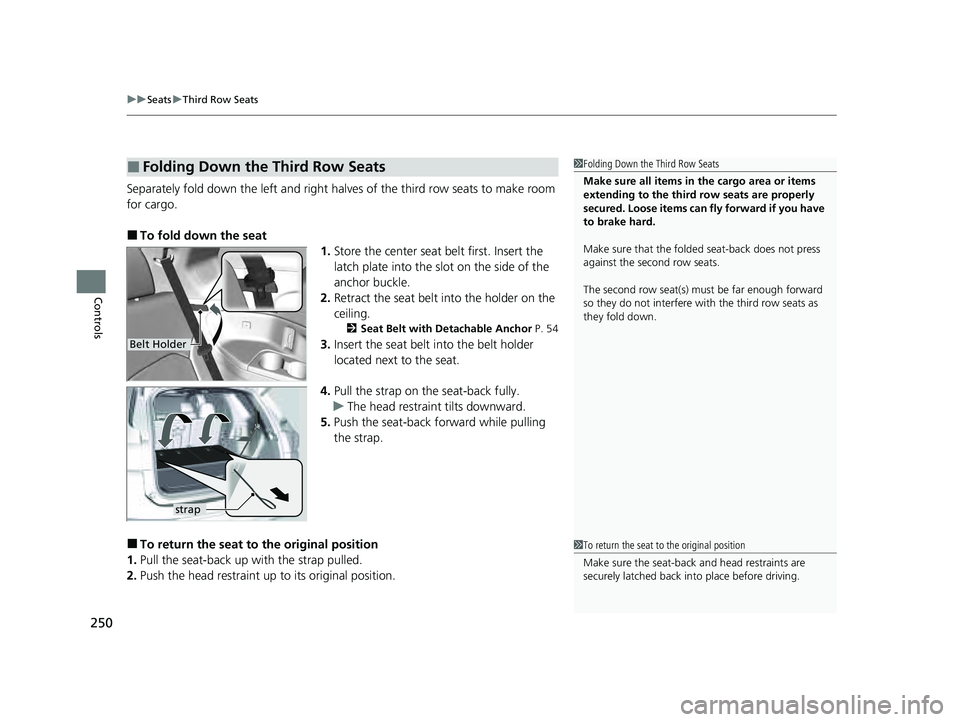

uuSeats uThird Row Seats
250
Controls
Separately fold down the left and right halv es of the third row seats to make room
for cargo.
■To fold down the seat 1.Store the center seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 54
3.Insert the seat belt into the belt holder
located next to the seat.
4. Pull the strap on the seat-back fully.
u The head restraint tilts downward.
5. Push the seat-back forward while pulling
the strap.
■To return the seat to the original position
1. Pull the seat-back up with the strap pulled.
2. Push the head restraint up to its original position.
■Folding Down the Third Row Seats1Folding Down the Third Row Seats
Make sure all items in the cargo area or items
extending to the third row seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Make sure that the folded seat-back does not press
against the second row seats.
The second row seat(s) must be far enough forward
so they do not interfere with the third row seats as
they fold down.
Belt Holder
strap
1To return the seat to the original position
Make sure the seat-back and head restraints are
securely latched back in to place before driving.
23 PILOT-31T906000_03.book 250 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

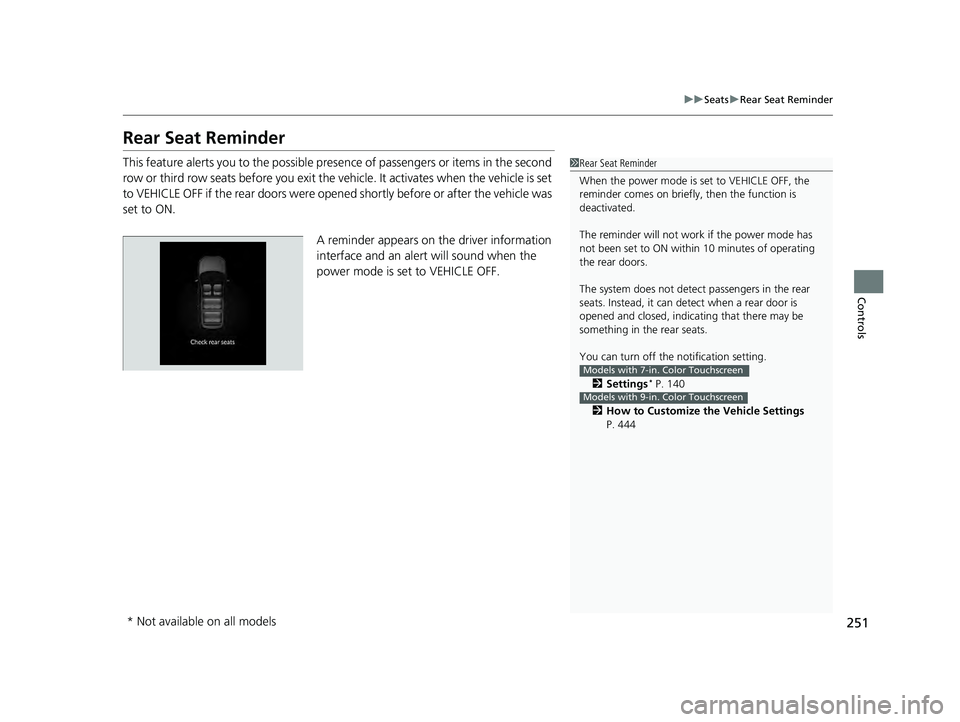

251
uuSeats uRear Seat Reminder
Controls
Rear Seat Reminder
This feature alerts you to th e possible presence of passengers or items in the second
row or third row seats before you exit the ve hicle. It activates when the vehicle is set
to VEHICLE OFF if the rear doors were open ed shortly before or after the vehicle was
set to ON.
A reminder appears on the driver information
interface and an alert will sound when the
power mode is set to VEHICLE OFF.1Rear Seat Reminder
When the power mode is set to VEHICLE OFF, the
reminder comes on briefly, then the function is
deactivated.
The reminder will not work if the power mode has
not been set to ON within 10 minutes of operating
the rear doors.
The system does not detect passengers in the rear
seats. Instead, it can detect when a rear door is
opened and closed, indica ting that there may be
something in the rear seats.
You can turn off the notification setting.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 PILOT-31T906000_03.book 251 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

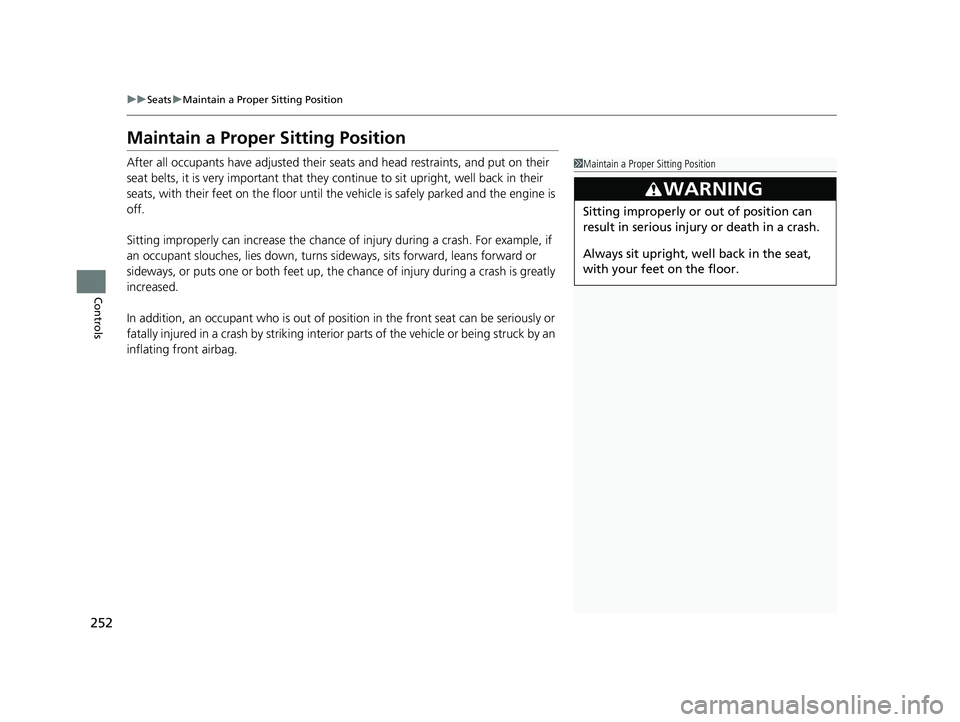

252
uuSeats uMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor until the vehicle is safely parked and the engine is
off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns si deways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.1 Maintain a Proper Sitting Position
3WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
23 PILOT-31T906000_03.book 252 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

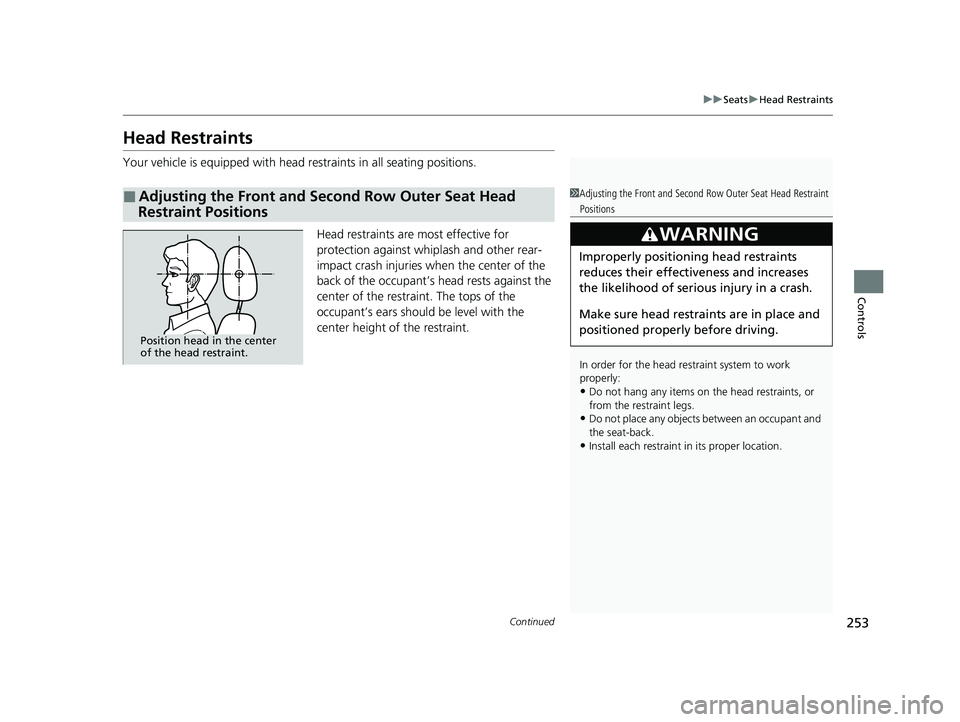

253
uuSeats uHead Restraints
Continued
Controls
Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
■Adjusting the Front and Second Row Outer Seat Head
Restraint Positions1 Adjusting the Front an d Second Row Outer Seat Head Restraint
Positions
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any objects between an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
23 PILOT-31T906000_03.book 253 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

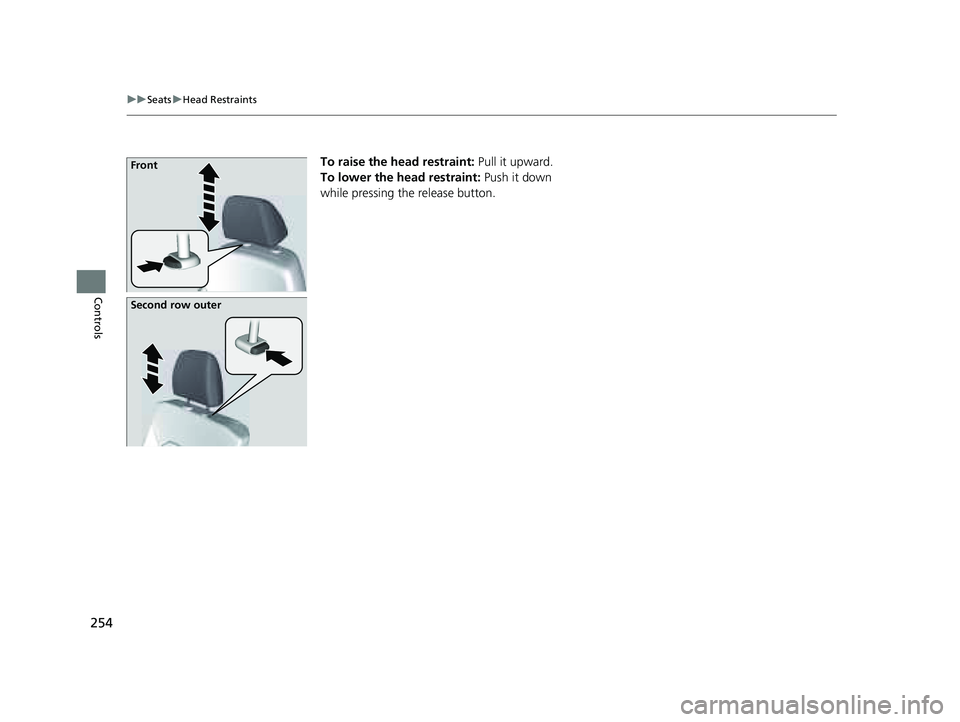

254
uuSeats uHead Restraints
Controls
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.Front
Second row outer
23 PILOT-31T906000_03.book 254 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

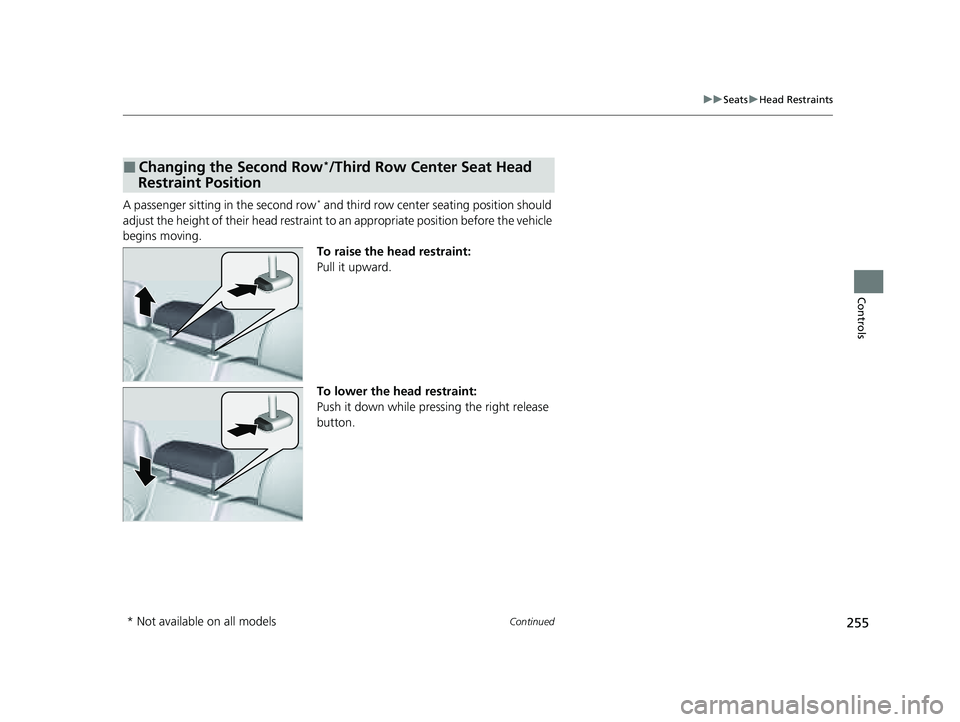

255
uuSeats uHead Restraints
Continued
Controls
A passenger sitting in the second row* and third row center seating position should
adjust the height of their head restraint to an appropriate position before the vehicle
begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the right release
button.
■Changing the Second Row*/Third Row Center Seat Head
Restraint Position
* Not available on all models
23 PILOT-31T906000_03.book 255 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
