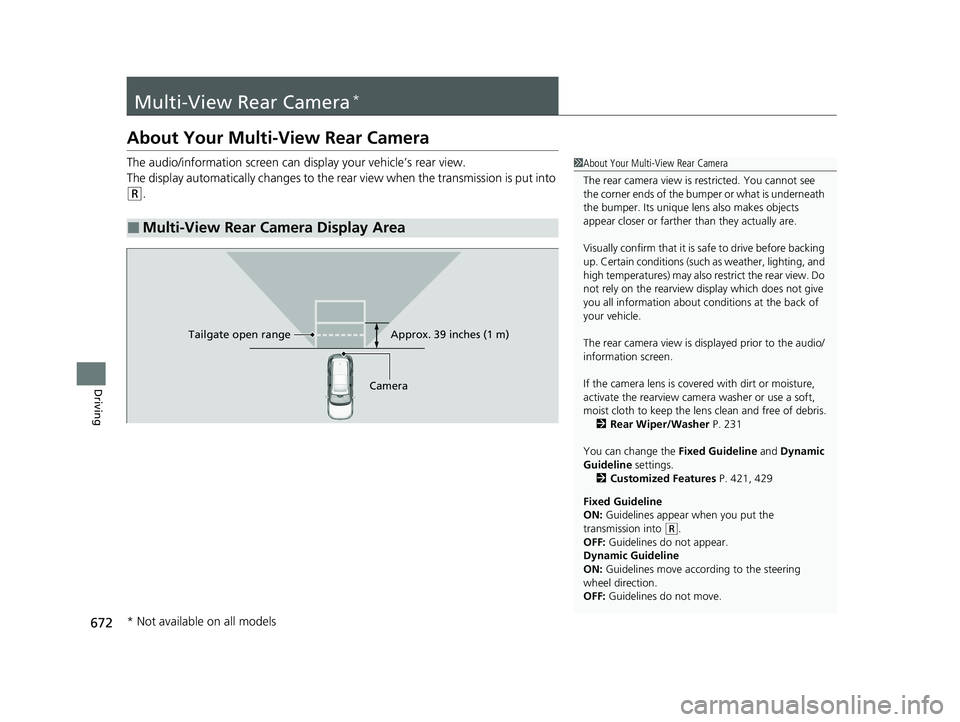

Multi-View Rear Camera*
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view.
The display automatically changes to the rear view when the transmission is put into
(R.
■Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique le ns also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
The rear camera view is di splayed prior to the audio/
information screen.
If the camera lens is cove red with dirt or moisture,
activate the rearview camera washer or use a soft,
moist cloth to keep the lens clean and free of debris.
2 Rear Wiper/Washer P. 231
You can change the Fixed Guideline and Dynamic
Guideline settings. 2 Customized Features P. 421, 429
Fixed Guideline
ON: Guidelines appear when you put the
transmission into
( R.
OFF: Guidelines do not appear.
Dynamic Guideline
ON: Guidelines move according to the steering
wheel direction.
OFF: Guidelines do not move.
Approx. 39 inches (1 m)
Camera
Tailgate open range
* Not available on all models
23 PILOT-31T906000_03.book 672 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

673
uuMulti-View Rear Camera*uAbout Your Multi-View Rear Camera
Driving
You can view three different camera modes on the audio/information screen.
Touch the appropriate icon to switch the mode.
• If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next ti me you put the transmission into
(R.
• If you were using Top down view mode before you turned off the engine, Wide
view mode will be activated the next time you set the power mode to ON and put
the transmission into
(R.
• If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of
(R, Wide view mode will be activated the next time you
put the transmission into
(R.
• If you were using Top down view mode and put the transmission back into
(R
within 10 seconds after you took it out of
(R, Top down view mode will be
activated.
Bumper BumperBumper
Wide view modeNormal view modeTop down view mode
1About Your Multi-View Rear Camera
If the vehicle’s rear view is not displayed on the audio/
information screen while the shift position is in
( R,
there may be a problem with the system. Have your
vehicle checked by a dealer immediately.
23 PILOT-31T906000_03.book 673 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

674
Driving

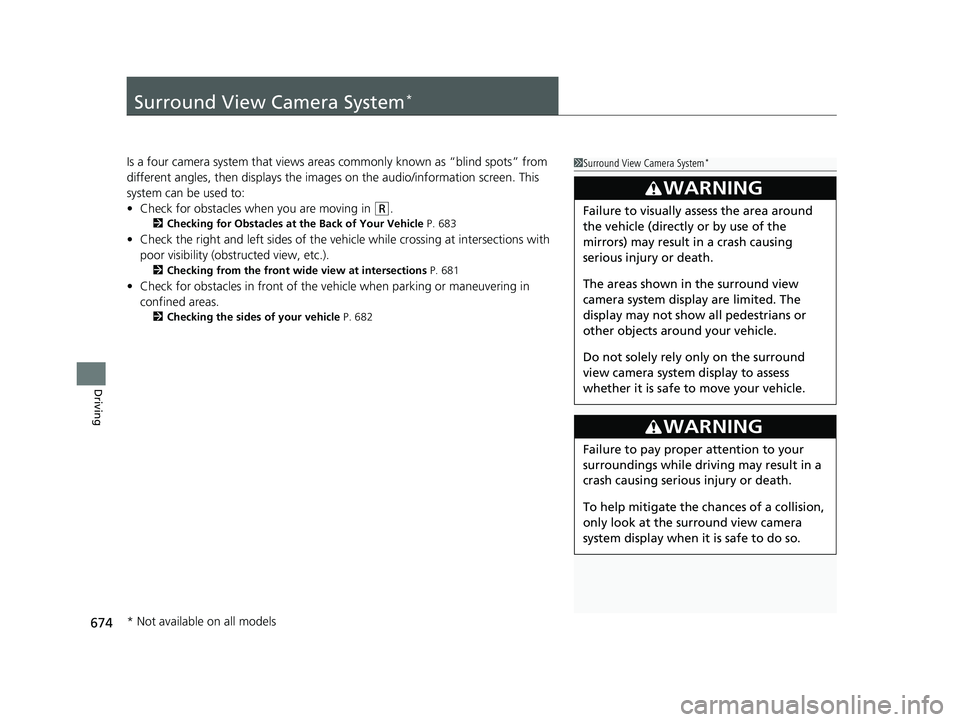

Surround View Camera System*
Is a four camera system that views areas commonly known as “blind spots” from
different angles, then displays the images on the audio/information screen. This
system can be used to:
• Check for obstacles when you are moving in
(R.
2 Checking for Obstacles at the Back of Your Vehicle P. 683
•Check the right and left sides of the vehicle while crossing at intersections with
poor visibility (obstructed view, etc.).
2 Checking from the front wide view at intersections P. 681
•Check for obstacles in front of the ve hicle when parking or maneuvering in
confined areas.
2 Checking the sides of your vehicle P. 682
1Surround View Camera System*
3WARNING
Failure to visually assess the area around
the vehicle (directly or by use of the
mirrors) may result in a crash causing
serious injury or death.
The areas shown in the surround view
camera system display are limited. The
display may not show all pedestrians or
other objects around your vehicle.
Do not solely rely only on the surround
view camera system display to assess
whether it is safe to move your vehicle.
3WARNING
Failure to pay proper attention to your
surroundings while driving may result in a
crash causing serious injury or death.
To help mitigate the ch ances of a collision,
only look at the surround view camera
system display when it is safe to do so.
* Not available on all models
23 PILOT-31T906000_03.book 674 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

675
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Continued
Driving
Displaying an Image From the Surround View
Cameras
■For frontal views:
Press the CAMERA button when the vehicle is
stationary or moving at 12 mph (20 km/h) or
slower.
■For rear reviews:
Change the shift position to
(R when the
vehicle is stationary. Press the CAMERA
button to switch to rear view mode.
You can customize the display setting.
2 Customized Features P. 429
1Surround View Camera System*
The surround view camera system does not eliminate
all blind spots. The system is for your convenience only.
Always keep the camera lenses clean and free from
debris.
If the front or rear camera lens is covered with dirt or
moisture, activate the front view or rearview camera
washer or use a soft, moist cloth to keep the lens clean
and free of debris. 2 Windshield Wipers/Washers P. 229
2 Rear Wiper/Washer P. 231
When the parking sensor system detects any
obstacles, the indica tor will display.
2 Parking Sensor System
* P. 663
When a vehicle is detected approaching from a rear
corner, Cross Traffic Monitor alerts you.
2 Cross Traffic Monitor
* P. 668
CAMERA
Button
* Not available on all models
23 PILOT-31T906000_03.book 675 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
676
Driving

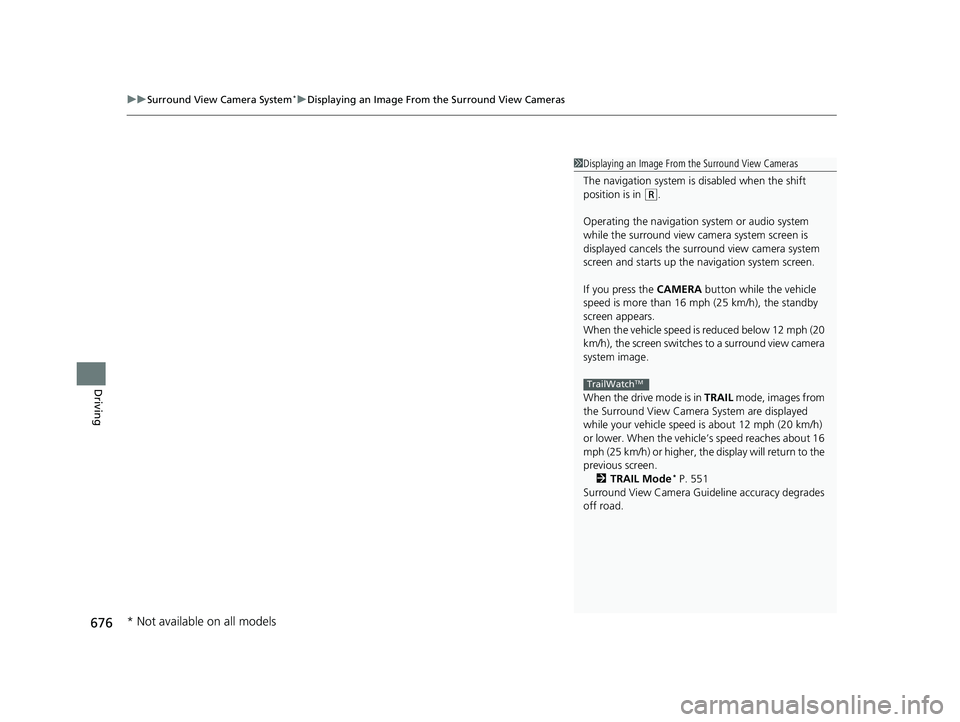

1Displaying an Image From the Surround View Cameras
The navigation system is disabled when the shift
position is in
(R.
Operating the navigation system or audio system
while the surround view camera system screen is
displayed cancels the surr ound view camera system
screen and starts up the navigation system screen.
If you press the CAMERA button while the vehicle
speed is more than 16 mph (25 km/h), the standby
screen appears.
When the vehicle speed is reduced below 12 mph (20
km/h), the screen switches to a surround view camera
system image.
When the drive mode is in TRAIL mode, images from
the Surround View Camera System are displayed
while your vehicle speed is about 12 mph (20 km/h)
or lower. When the vehicle’s speed reaches about 16
mph (25 km/h) or higher, the display will return to the
previous screen. 2 TRAIL Mode
* P. 551
Surround View Camera Guideline accuracy degrades
off road.
TrailWatchTM
* Not available on all models
23 PILOT-31T906000_03.book 676 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

677
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Continued
Driving

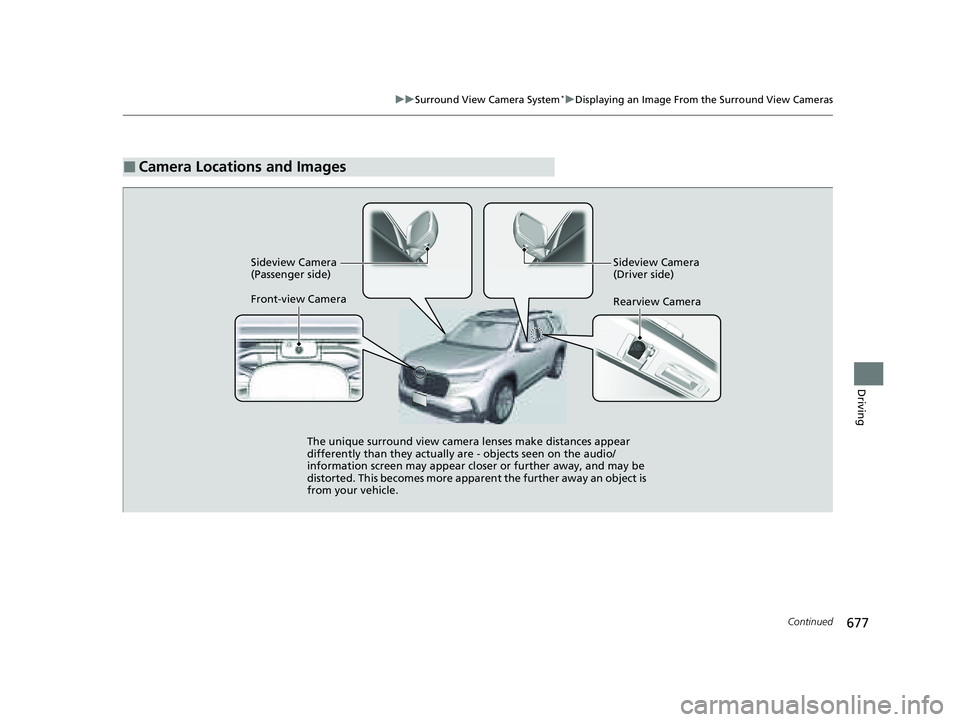

■Camera Locations and Images
Sideview Camera
(Passenger side) Sideview Camera
(Driver side)
The unique surround view camera lenses make distances appear
differently than they actually are - objects seen on the audio/
information screen may appear closer or further away, and may be
distorted. This becomes more apparent the further away an object is
from your vehicle.
Front-view Camera
Rearview Camera
23 PILOT-31T906000_03.book 677 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

678
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Driving

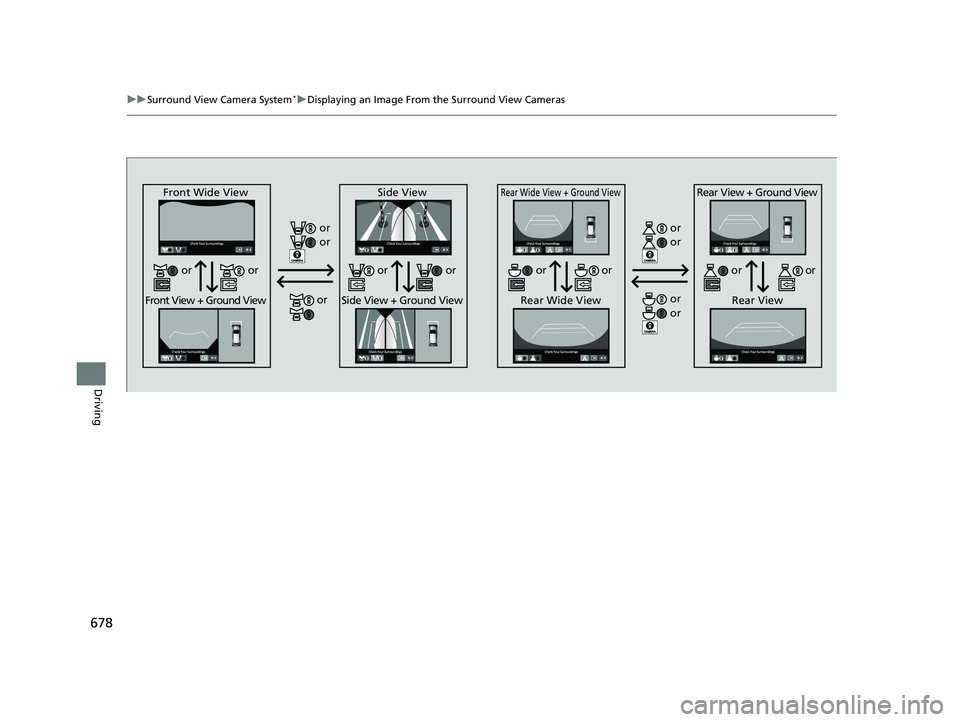

Front Wide View
Front View + Ground View Side View
Side View + Ground ViewRear Wide View + Ground View
Rear Wide View Rear View + Ground View
Rear View
or
or
or
or
or
or or or or
or
or
or
or
or or
23 PILOT-31T906000_03.book 678 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

679
uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Driving
The following can be displaye d when the system is on.
Fixed Guideline : Helps you to get a sense of a distance between your vehicle and
the rear surroundings. The distance may appear differently than the actual distance.
Dynamic Guideline : Indicates vehicle direction while the steering wheel is in the
current position.

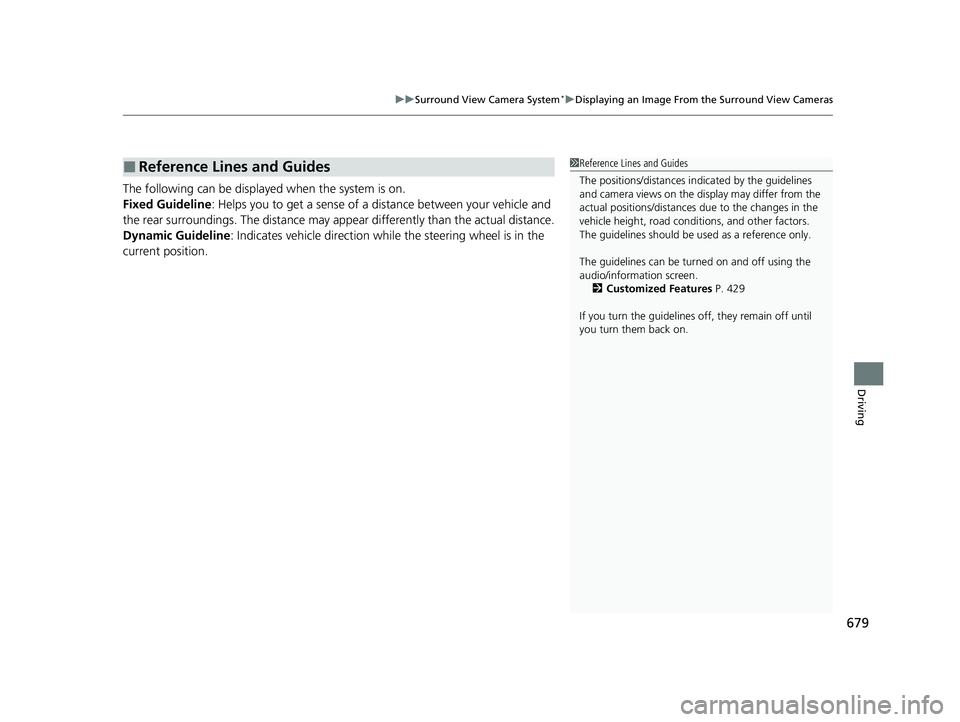

■Reference Lines and Guides1 Reference Lines and Guides
The positions/distances i ndicated by the guidelines
and camera views on the display may differ from the
actual positions/distances due to the changes in the
vehicle height, road condi tions, and other factors.
The guidelines should be us ed as a reference only.
The guidelines can be turn ed on and off using the
audio/information screen.
2 Customized Features P. 429
If you turn the guidelines off, they remain off until
you turn them back on.
