2023 HONDA PILOT Owners Manual

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
184
Controls
■Locking the doors an d tailgate (Walk
away auto lock ®)
When you walk away from the vehicle with all
doors and tailgate closed while carrying the
keyless remote, the doors and tailgate will
automatically lock.
The auto lock function activates when all
doors and tailgate are closed or all doors are
closed and tailgate begins power close
operation
*, and the keyless remote is within
about 5 feet (1.5 m) radi us of the outside door
handle or tailgate outer handle.
Exit vehicle while carrying keyless remote and
close door(s) and tailgate.
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the keyless remote beyond about 5
feet (1.5 m) from the vehicle and remain
outside this range fo r 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.
1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the driver inform ation interface or audio/
information screen.
If you set the auto lock function to ON using the
driver information interf ace or audio/information
screen, only the remote transmitter that was used to
unlock the driver’s door prio r to the setting change
can activate auto lock.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicato r on the keyless remote
will continue to flash until the doors and tailgate are
locked.
When you stay beside the vehicle within the
operation range, the door s and tailgate will
automatically lock approx imately 30 seconds after
the auto lock function activating beeper sounds.
When you open a door or tailgate after the auto lock
function activating beeper sounds, the auto lock
function will be canceled.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
The activation range of
the auto lock function is
about 5 feet (1.5 m)
* Not available on all models
23 PILOT-31T906000_03.book 184 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued185
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds an d the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicl e without using the auto lock
function.
• With the keyless remote on you, move out
of the auto lock function operation range.
• Open any door.1Locking the doors and tailg ate (Walk away auto lock®)
Under the following circumstances, the auto lock
function will not activate:
•The remote is inside the vehicle.
•The remote is taken out of its operational range
before all the doors an d tailgate are closed.
If you use the power tail gate walk away close
function when all the doors are closed, the auto lock
function will also be activated.
u When you walk away from the vehicle while the
power tailgate is automatically closing, it will
continue to lock automatically.
2 Power Tailgate Walk Away Close
* P. 201
The auto lock function does not operate when any of
the following conditions are met.
•The keyless remote is inside the vehicle.
•A door, tailgate, or th e hood is not closed.
•The power mode is set to any mode other than
OFF.
•The keyless remote is not located within a radius of
about 5 feet (1.5 m) from the vehicle when you get
out of the vehicle and cl ose the doors and tailgate.
u
The beeper will not sound.
u The beeper will sound.
Models with power tailgate walk away close
All models
* Not available on all models
23 PILOT-31T906000_03.book 185 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
186
Controls
1Locking the doors and tailg ate (Walk away auto lock®)

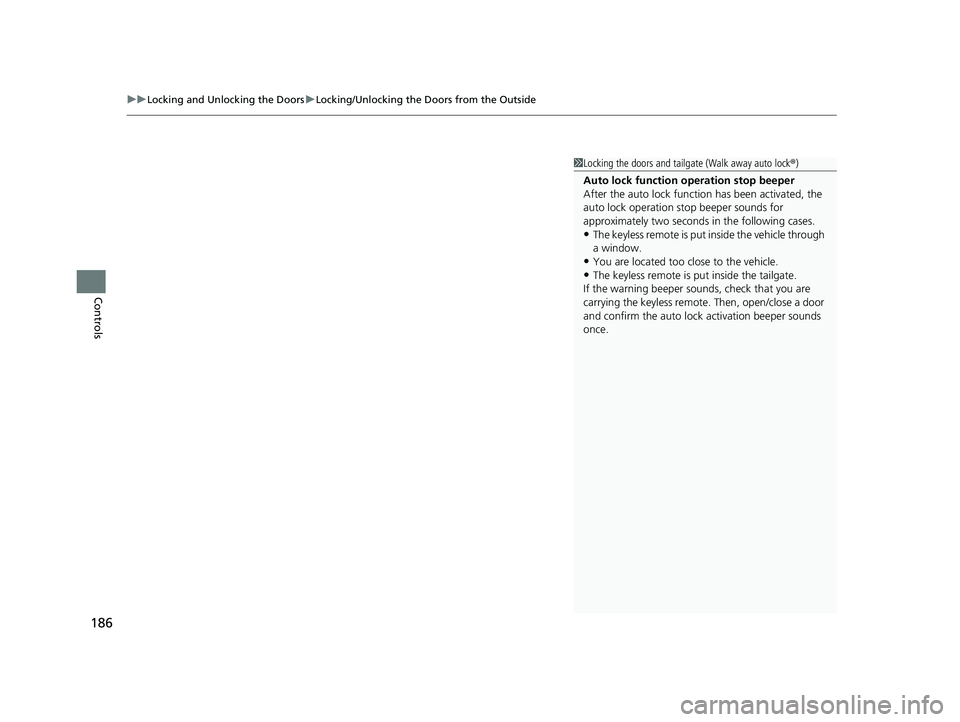

Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The keyless remote is put inside the vehicle through
a window.
•You are located too close to the vehicle.•The keyless remote is put inside the tailgate.
If the warning beeper sounds, check that you are
carrying the keyless remote. Then, open/close a door
and confirm the auto lock activation beeper sounds
once.
23 PILOT-31T906000_03.book 186 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued187
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors,
fuel fill door, and tailgate lock, and the
security system sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors and tailgate
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door and fuel fill door unlock.
Twice: u The remaining doors and tailgate unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Remote Battery P. 739
You can customize the door unlock mode setting. 2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
LED
Unlock
Button
Lock
Button
* Not available on all models
23 PILOT-31T906000_03.book 187 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
188
Controls

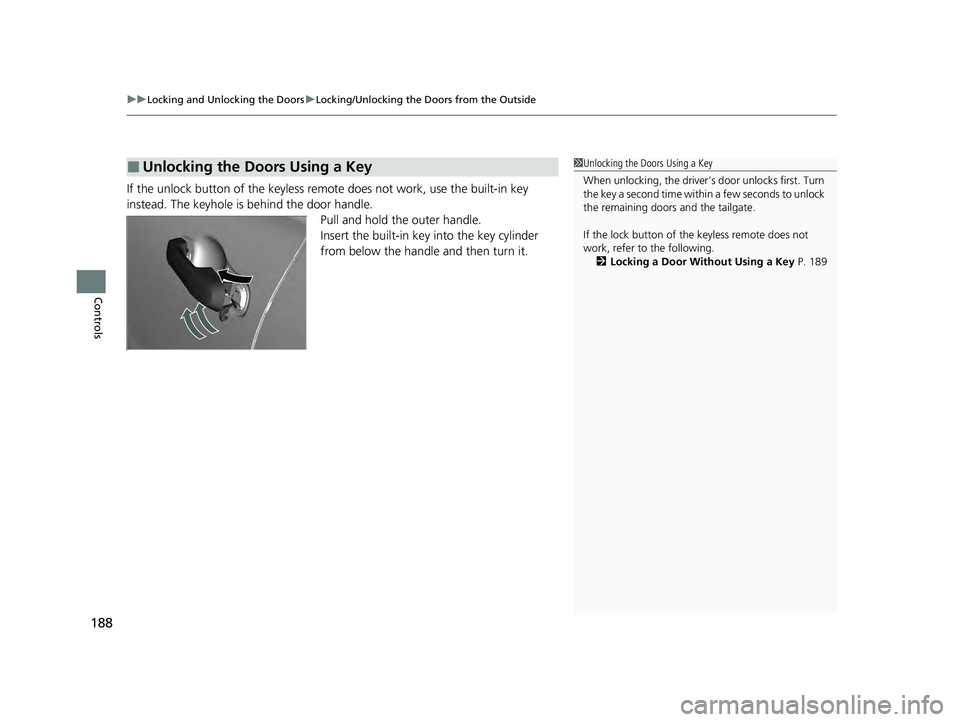

If the unlock button of the keyless re mote does not work, use the built-in key
instead. The keyhole is behind the door handle. Pull and hold the outer handle.
Insert the built-in key into the key cylinder
from below the handle and then turn it.
■Unlocking the Doors Using a Key1Unlocking the Doors Using a Key
When unlocking, the driver’s door unlocks first. Turn
the key a second time within a few seconds to unlock
the remaining doors and the tailgate.
If the lock button of th e keyless remote does not
work, refer to the following. 2 Locking a Door Without Using a Key P. 189
23 PILOT-31T906000_03.book 188 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued189
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

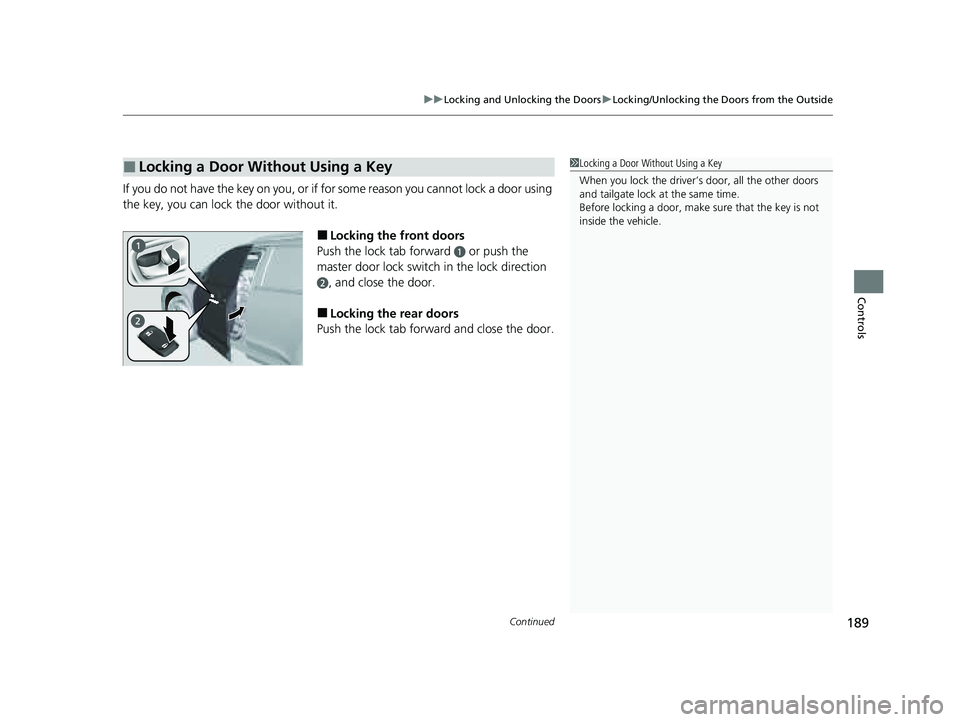

If you do not have the key on you, or if fo r some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
23 PILOT-31T906000_03.book 189 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
190
Controls

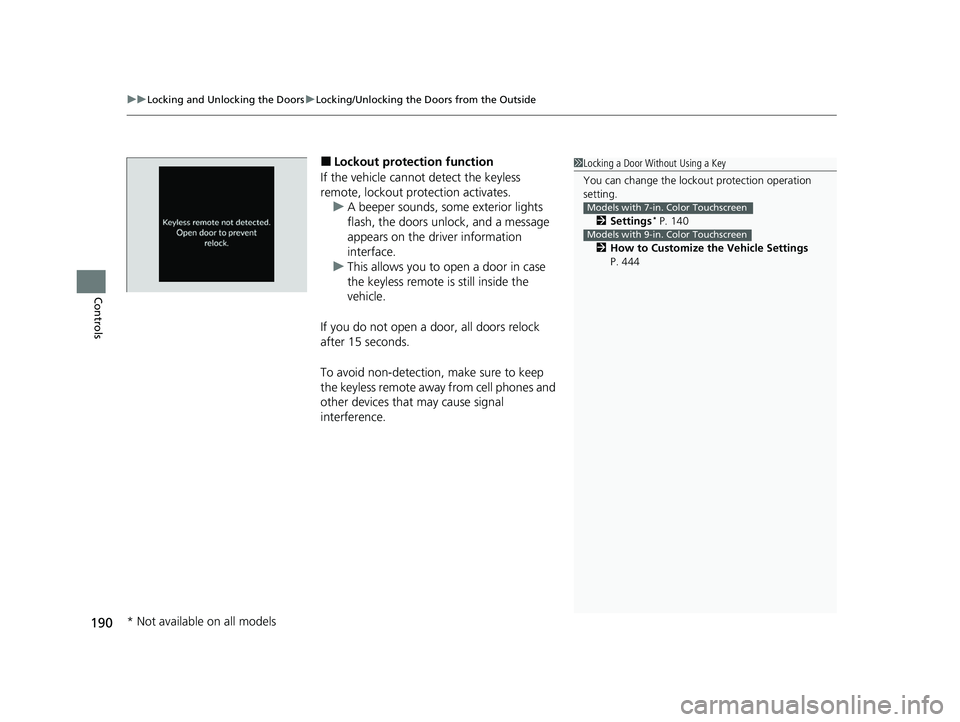

■Lockout protection function
If the vehicle cannot detect the keyless
remote, lockout protection activates. u A beeper sounds, some exterior lights
flash, the doors unlock, and a message
appears on the driver information
interface.
u This allows you to open a door in case
the keyless remote is still inside the
vehicle.
If you do not open a door, all doors relock
after 15 seconds.
To avoid non-detection, make sure to keep
the keyless remote away from cell phones and
other devices that may cause signal
interference.1 Locking a Door Without Using a Key
You can change the lockout protection operation
setting.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
* Not available on all models
23 PILOT-31T906000_03.book 190 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

191
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
The vehicle will automatically lock after you
lock the doors in advance then close the doors
and tailgate.
Activate lock presetting after closing the
driver’s door.
1. Touch the door lock sensor on the front
door or press the lock button on the remote
transmitter.
u Alert sounds and lock presetting is
activated.
2. Close all doors and the tailgate.
u Some exterior lights flash and a beeper
sounds when vehicle locks.
Make sure the doors and tailgate are locked
before moving away from the vehicle.
■Locking the doors and tailgate (lock presetting)1 Locking the doors and tailgate (lock presetting)
Lock presetting will be reset if a door or the tailgate is
opened before the vehicle has locked completely.
Before locking a door, make sure that the key is not
inside the vehicle.
You can turn this function on and off.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
3WARNING
Opening or closing the power tailgate on
someone’s hands or fingers can cause
serious injury. Make sure all hands and
fingers, especially children’s, are clear of
the power tailgate.
Models with power tailgate
All models
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Door Lock
Sensor
* Not available on all models
23 PILOT-31T906000_03.book 191 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
