2023 HONDA PILOT Owners Manual

48
uuSeat Belts uAbout Your Seat Belts
Safe Driving

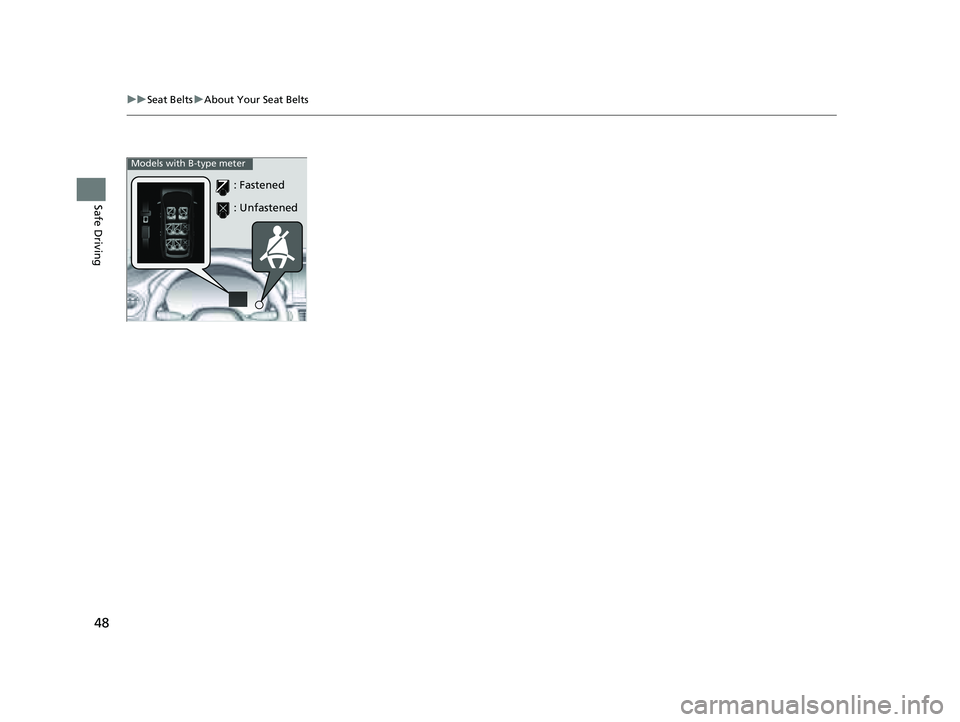

Models with B-type meter
: Fastened
: Unfastened
23 PILOT-31T906000_03.book 48 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued49
uuSeat Belts uAbout Your Seat Belts
Safe Driving
A transceiver is installed in the removable seat
to wirelessly communicate the seat belt
fastening information to the vehicle. It will
automatically connect to the vehicle whenever
the seat is in or near its installation position.
Radio waves are transmitted to and from a
transceiver in the removable seat in order to
obtain the seat belt status.
In the following cases, the seat belt may be
displayed as unfastened even if it is fastened:
• Strong radio waves are being transmitted
by nearby equipment, such as a wireless
phone charger.
• Telecommunications equipment, a laptop
computer, cell phone, wireless device, or
another high-powered electronic device is
placed in, under, or close to the removable
seat.
• A metallic object is covering all or part of
the seat, or a large metallic object is placed
in the cabin in a way that is blocking the
vehicle’s antennas from communicating
with the transmitter in the seat.
• The battery in the transceiver dies.
1Seat Belt Reminder
Electronic devices can create radio frequencies which
interfere with the wireless seat belt reminder
communication. If the system does not function as
expected, please check that such items are not in,
under or adjacent to the removable seat. Then turn
the ignition off and then on again. If the malfunction
continues, please see your dealer.
The transceiver has a spec ially designed coin-cell
battery that needs to be replaced periodically. Battery
life is about five years, but this varies depending on
regularity of use.
The battery can be consumed whenever the seat
transceiver is receiving strong radio waves. Avoid
placing high powered electric al devices in or near the
removable seat, such as ga ming consoles or wireless
chargers.
If the battery is low or the seat belt reminder is no
longer working, please see your dealer to have the
battery replaced.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the seat belt
transceiver can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Transceiver
Models equipped with a removable seat
23 PILOT-31T906000_03.book 49 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

50
uuSeat Belts uAbout Your Seat Belts
Safe Driving
If the vehicle loses connection with the
transceiver while the seat belt is fastened, the
information for that seat will change to
unfastened, and a “Seat belt reminder system
problem” warning will be displayed.
23 PILOT-31T906000_03.book 50 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

51
uuSeat Belts uAbout Your Seat Belts

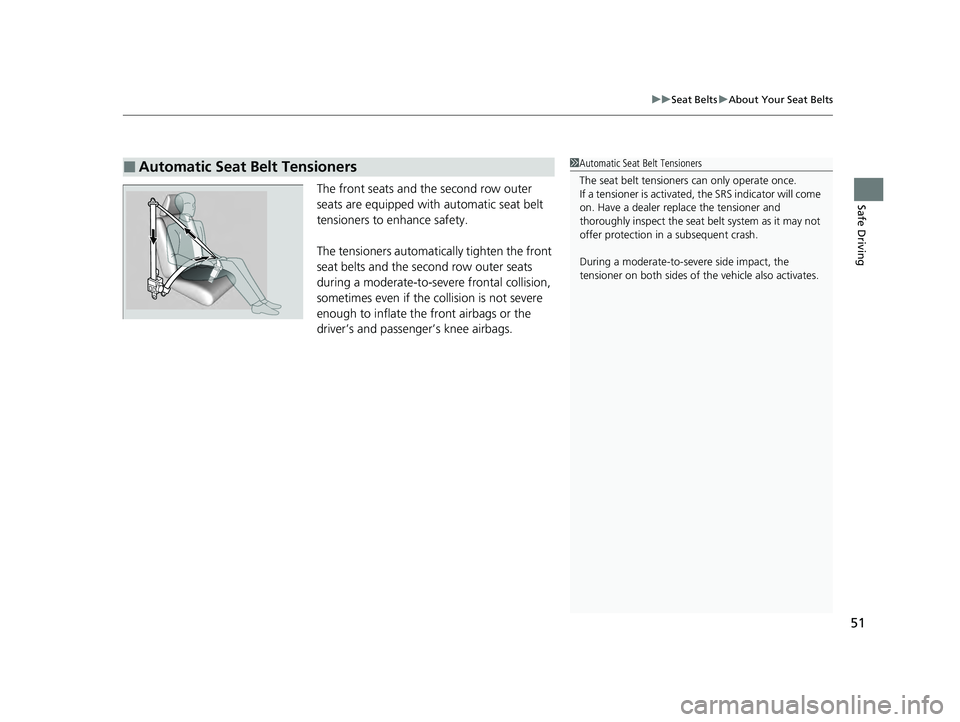

Safe DrivingThe front seats and the second row outer
seats are equipped with automatic seat belt
tensioners to enhance safety.
The tensioners automatically tighten the front
seat belts and the second row outer seats
during a moderate-to-severe frontal collision,
sometimes even if the collision is not severe
enough to inflate the front airbags or the
driver’s and passenger’s knee airbags.
■Automatic Seat Belt Tensioners1Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
During a moderate-to-sev ere side impact, the
tensioner on both sides of th e vehicle also activates.
23 PILOT-31T906000_03.book 51 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

52
uuSeat Belts uFastening a Seat Belt
Safe Driving
Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat:
2 Seats P. 239
1.Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
u Make sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat be lt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign obj ects into the buckle or
retractor mechanism.
If the seat belt appears to be locked in a fully
retracted position, firmly pull out on the shoulder belt
once, then push it back in.
Then smoothly pull it out of the retractor and fasten.
If you are unable to release the seat belt from a fully
retracted position, do not allow anyone to sit in the
seat, and take your vehicle to a dealer for repair.
2 About Your Seat Belts P. 43
2 Seat Belt Inspection P. 58
Pull out slowly.
Correct
Seated
Posture.
Latch
Plate
Buckle
23 PILOT-31T906000_03.book 52 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued53
uuSeat Belts uFastening a Seat Belt
Safe Driving
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. This spreads the forces
of a crash over the strongest bones in your
upper body.
The front seats have adjustab le shoulder anchors to accommodate taller and shorter
occupants.
1.Move the anchor up and down while
pulling the shoulder anchor outward.
2. Position the anchor so that the belt rests
across the center of your chest and over
your shoulder.1 Fastening a Seat Belt
To release the belt, push the red PRESS button and
then guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is properly
stowed so that it will not get caught in the closing
door.
3WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned be fore driving.Lap belt
as low as
possible
■Adjusting the Shoulder Anchor1Adjusting the Shoulder Anchor
The shoulder anchor height can be adjusted to four
levels. If the belt contacts your neck, lower the height
one level at a time.
After an adjustment, make sure that the shoulder
anchor position is secure.
Pull
outward
23 PILOT-31T906000_03.book 53 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSeat Belts uFastening a Seat Belt
54

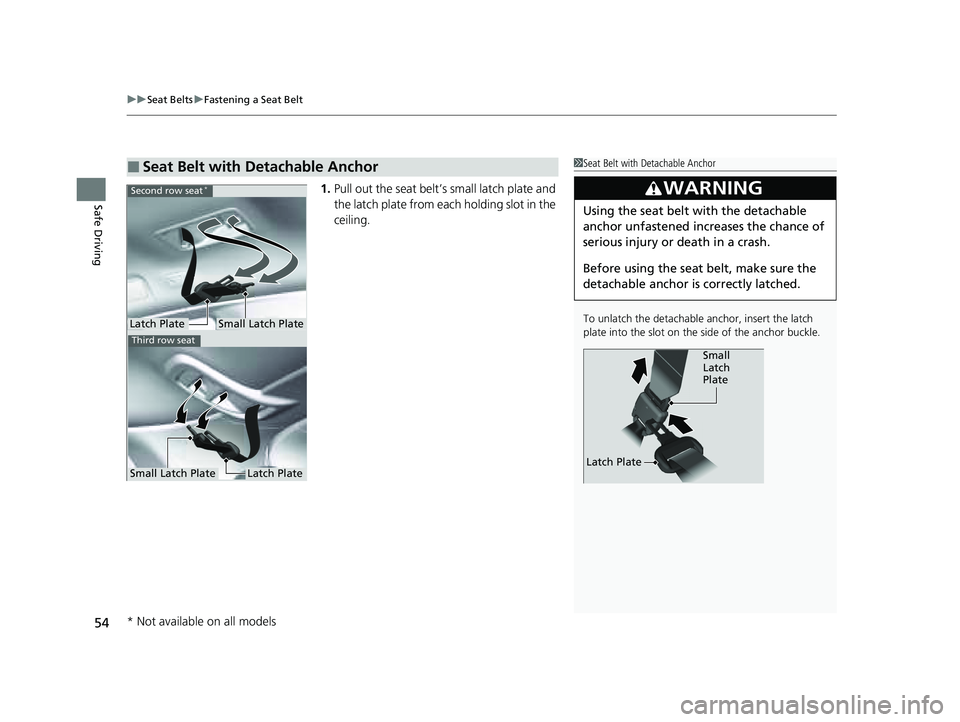

Safe Driving1. Pull out the seat belt’s small latch plate and
the latch plate from each holding slot in the
ceiling.
■Seat Belt with Detachable Anchor1Seat Belt with Detachable Anchor
To unlatch the detachable anchor, insert the latch
plate into the slot on the side of the anchor buckle.
3WARNING
Using the seat belt with the detachable
anchor unfastened increases the chance of
serious injury or death in a crash.
Before using the seat belt, make sure the
detachable anchor is correctly latched.
Small
Latch
Plate
Latch Plate
Small Latch PlateLatch Plate
Second row seat*
Small Latch PlateLatch Plate
Third row seat
* Not available on all models
23 PILOT-31T906000_03.book 54 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

55
uuSeat Belts uFastening a Seat Belt
Continued
Safe Driving

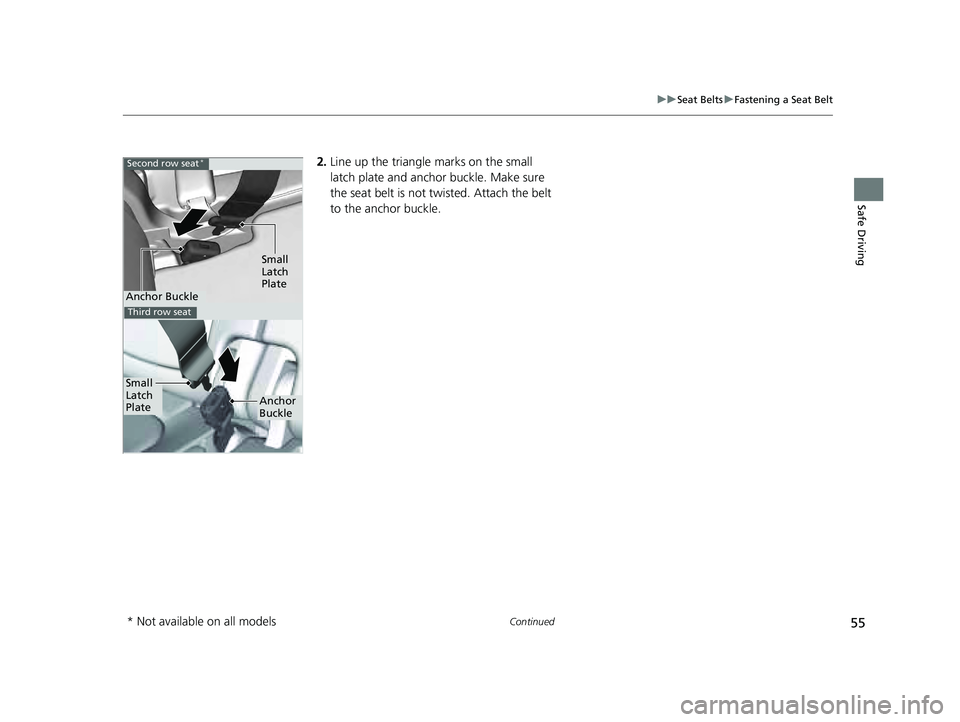

2. Line up the triangle marks on the small
latch plate and anchor buckle. Make sure
the seat belt is not tw isted. Attach the belt
to the anchor buckle.
Small
Latch
Plate
Anchor Buckle
Second row seat*
Third row seat
Small
Latch
Plate
Anchor
Buckle
* Not available on all models
