2023 HONDA PILOT Owners Manual

16
Quick Reference Guide
Instrument Panel (P97)
Indicators (P98)/Gauges (P121)/Driver Information Interface (P125, 151, 154)
M (sequential mode) Indicator/Gear Selection Indicator (P103)
Models with A-type meter
Gear Position Indicator/Transmission System Indicator (P103, 104)
Fuel Gauge (P122)
Driver Information Interface
(P125)
Tachometer
(P122) Speedometer
(P121)
Traffic Sign Recognition System
(P123)
Odometer
(P122)
Outside Temperature
(P123)
23 PILOT-31T906000_03.book 16 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

17
Quick Reference Guide●You can change the gauge design.
Change gauge design (P168)
Models with B-type meter
Gear Position Indicator/Transmission System Indicator (P103, 104)
M (sequential mode) Indicator/Gear Selection Indicator (P103)
Fuel Gauge
(P122)
Driver Information Interface (Right Side Area)
(P154)
Tachometer (P122) Speedometer (P121)
Traffic Sign Recognition System
(P123)
Odometer (P122)
Temperature Gauge
(P122)
Driver Information Interface (Left Side Area)
(P151)
Outside Temperature (P123)
Head-Up Display* (P169)
* Not available on all models
23 PILOT-31T906000_03.book 17 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

18
Quick Reference Guide
Controls (P175)
Clock (P176)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings.
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The clock is automatically updated through
the audio system.
ENGINE START/STOP
Button
(P217)
Press the button to change the vehicle’s
power mode.
34
23 PILOT-31T906000_03.book 18 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

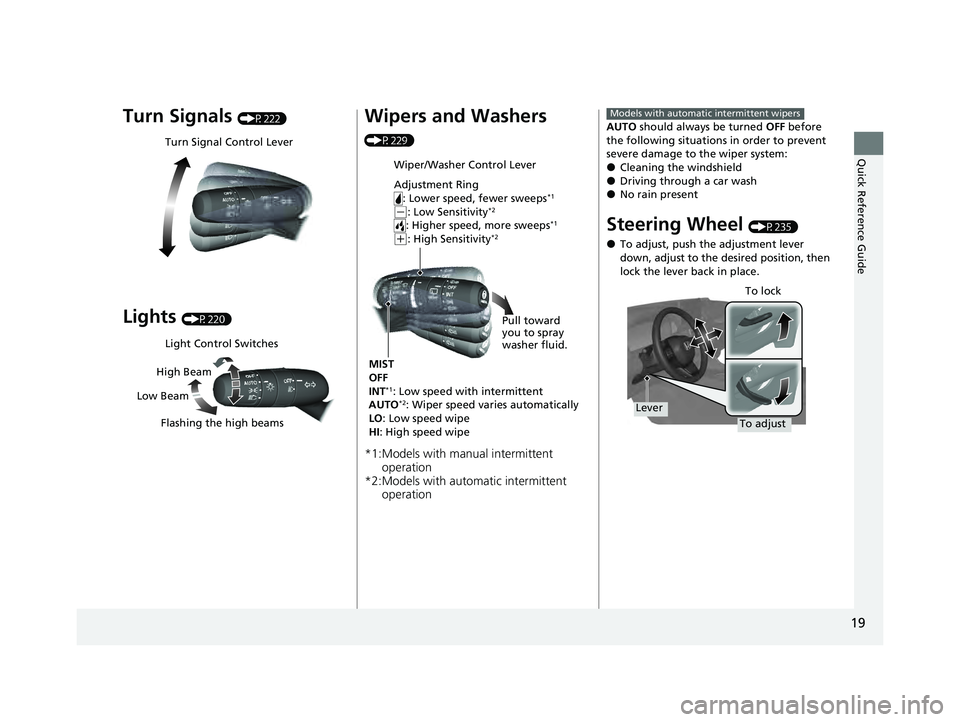

19
Quick Reference Guide
Turn Signals (P222)
Lights (P220)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing the high beams
Wipers and Washers
(P229)
*1:Models with manual intermittent operation
*2:Models with automatic intermittent operation
Wiper/Washer Control Lever
Adjustment Ring
: Lower speed, fewer sweeps
*1
(-: Low Sensitivity*2
: Higher speed, more sweeps*1
(+: High Sensitivity*2
MIST
OFF
INT
*1: Low speed with intermittent
AUTO*2: Wiper speed varies automatically
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P235)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Models with automatic intermittent wipers
To adjust To lock
Lever
23 PILOT-31T906000_03.book 19 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

20
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P193)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P 196)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
keyless remote on you.
●Press and hold the power tailgate button
on the driver’s side control panel or the
remote transmitter to open and close the
power tailgate.
Models with power tailgate
With the remote on you, raise and lower
your foot (in a kicking motion) under the
center of the rear bumper to open or close
the tailgate.
Models with hands free access
1 sec.
Power Door Mirrors
(P 237)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button to fold in and
out the door mirrors.
Models with folding button
Selector Switch
Adjustment SwitchFolding Button*
23 PILOT-31T906000_03.book 20 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

21
Quick Reference Guide
Power Windows (P 210)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switches
Indicator
* Not available on all models
23 PILOT-31T906000_03.book 21 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

22
Quick Reference Guide
Climate Control System (P283)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Floor and windshield defroster
vents Floor vents Dashboard and floor vents’, and
back of the console
compartment Dashboard vents’ and back of
the console compartment
AUTO Button Passenger’s Side
Temperature
Control Dial
(ON/OFF) Button
(Windshield Defroster)
Button
SYNC
(Synchronization)
Button
Fan Control Dial
Driver’s Side
Temperature
Control Dial
MODE
Control Button A/C
(Air Conditioning) Button
(Recirculation)
Button
REAR LOCK Button*
REAR SETTINGS ButtonREAR (ON/OFF)
Button
Rear Climate Control (P287)●Press the rear AUTO button to activate
the rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons Rear Fan
Control Buttons
AUTO Button
(ON/OFF)
Button
MODE Control
Button
Rear floor vents Back of console, rear floor, and
3rd row vents’ Back of console and 3rd row vents’
23 PILOT-31T906000_03.book 22 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

23
Quick Reference Guide
Features (P291)
Audio Remote Controls
(P 296)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android AutoBluetooth®Audio
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with 7-in. Color Touchscreen
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
Models with 9-in. Color Touchscreen
Models with A-type meter
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
(Home) Button
Models with B-type meter
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
* Not available on all models
