108
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Low Tire Pressure/
TPMS Indicator
●Comes on if the tire pressure of any of the
tires becomes low.●Comes on while driving - Stop in a safe place,
check tire pressures, a nd inflate the tire(s) if
necessary.
●Blinks for about one minute, and then stays
on if there is a problem with the TPMS with
Tire Fill Assist, or when a spare tire is
temporarily installed.●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted with a
spare tire, get your regular tire repaired or replaced
and put back on your vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators• Blinks when you oper ate the turn signal
lever.
• Blinks along with all turn signals when you
press the hazard warning button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 718, 719
Lights On Indicator•Comes on when the parking, tail, and
other external lights are on.2 Lights P. 220
High Beam
Indicator•Comes on when the high beam headlights
are on.—
Auto High-Beam
Indicator•Comes on when all the operating
conditions of the auto high-beam are met.2 Auto High-Beam P. 226
Fog Light
Indicator*
•Comes on when the fog lights are on.2 Fog Lights* P. 224
* Not available on all models
23 PILOT-31T906000_03.book 108 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

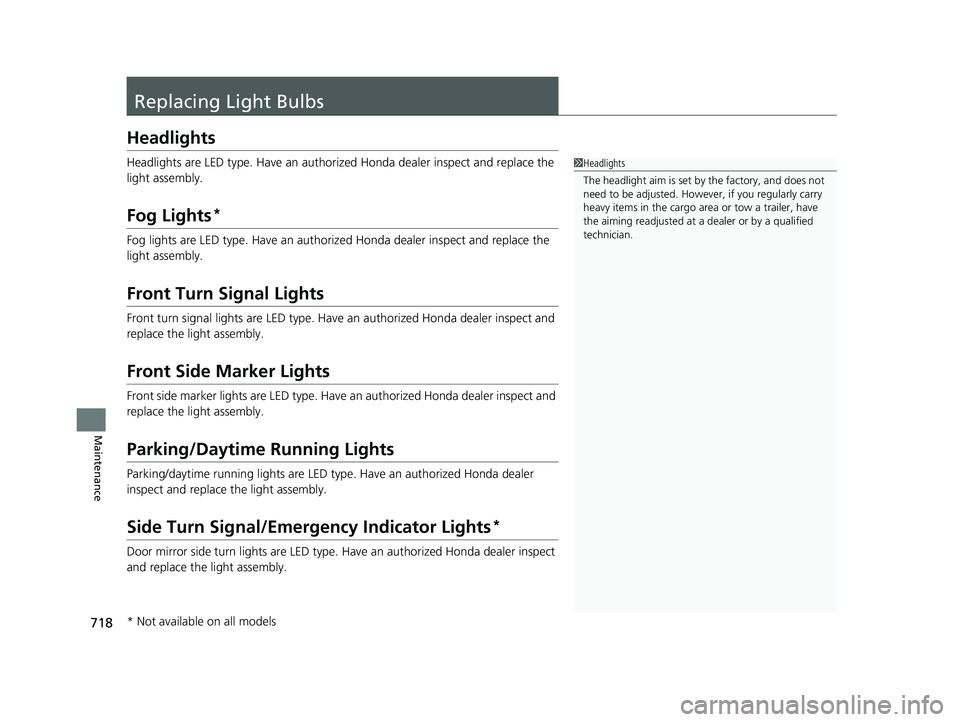

718
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
* Not available on all models
23 PILOT-31T906000_03.book 718 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

790
Information
Specifications
■Vehicle Specifications
*1: Models without second row center seat
*2: Models with second row center seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,444 lbs (3,830 kg)*3
10,141 lbs (4,600 kg)*4
Canada:4,600 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
*1: Models without surround view camera system
*2: Models with surround view camera system
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 17.8 – 19.6 oz (505 – 555 g)
Lubricant TypeRB100EV-01 (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.7 cu-in (3,471 cm3)
Spark Plugs NGK DILZKAR7H11H
TypeUnleaded gasoline, pump octane number
87 or higher
Fuel Tank Capacity 18.5 US gal (70.0 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
4.8 US qt (4.5 L)*2
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LEDHeadlights (High Beam)LEDFog Lights*LEDFront Turn Signal LightsLEDFront Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights*
(on Door Mirrors)LED
Brake Lights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W (Amber)
High-Mount Brake LightLED
Rear License Plate Light LED
Puddle Lights*LED
Interior Lights
Front, Second Row, and Third Row Map
Lights LED
Ambient Lights LED
Vanity Mirror Lights
*2.3 W
Door Courtesy Lights*LED
Door Inner Handle Lights*LED
Door Pocket Lights*LED
Foot Lights*LED
Instrument Panel Tray Lights*LED
Glove Box Light LED
Cargo Area Light LED
* Not available on all models
23 PILOT-31T906000_03.book 790 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

805
Index
Automatic Transmission.......................... 532
Creeping................................................. 532
Fluid ....................................................... 716
Kickdown ............................................... 532
Operating the Shift Button ...................... 535
Shifting ................................................... 533
Average Fuel Economy .................... 128, 157
Average Speed ................................. 130, 159
AWD Torque Distribution Monitor ........................................... 135, 163
B
Battery...................................................... 737
Charging System Indicator .............. 103, 772
If the Battery Is Dead............................... 767
Maintenance (Checking the Battery) ....... 737
Maintenance (Replacing) ......................... 739
Belts (Seat) .................................................. 43
Beverage Holders ..................................... 264
Blind Spot Information System ............... 563
Bluetooth ® Audio ............................. 312, 373
Bluetooth ® HandsFreeLink ®........... 459, 479
Booster Seats (For Children) ...................... 94
Brake System ............................................ 652
Anti-lock Brake System (ABS) .................. 659
Automatic Brake Hold ............................. 656
Brake Assist System................................. 660
Fluid ....................................................... 717
Foot Brake .............................................. 655
Indicator (Amber) ............................ 102, 775 Indicator (Red) ................. 100, 101, 773, 775
Parking Brake .......................................... 652
Brightness ......................................... 138, 166
Bulb Replacement .................................... 718
Brake Lights, Taillights, Rear Side Marker
Lights, and Rear Turn Signal Light
Bulbs ..................................................... 719
Fog Lights ................................................ 718
Front Side Marker Lights .......................... 718
Front Turn Signal Lights ........................... 718
Headlights ............................................... 718
High-Mount Brake Light .......................... 722
Parking/Daytime Running Lights .............. 718
Puddle Lights ........................................... 722
Rear License Plate Light ........................... 721
Side Turn Signal/Em ergency Indicator
Lights .................................................... 718
Taillight and Back-Up Light Bulbs ............. 721
Bulb Specifications ................................... 790
C
CabinTalk®............................................... 499
CAMERA Button ....................................... 675
Car Wash Mode ........................................ 537
Carbon Monoxide Gas ................................ 95
Cargo Hooks ............................................. 268
Carrying Cargo .................................. 503, 505
Certification Label .................................... 792
Changing Bulbs ......................................... 718
Charging System Indicator ............... 103, 772Child Safety
................................................. 77
Childproof Door Locks............................. 194
Child Seat .................................................... 77
Booster Seats ............................................ 94
Child Seat for Infants................................. 79
Child Seat for Small Children ..................... 80
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 87
Larger Children ......................................... 93
Rear-facing Child Seat ............................... 79
Selecting a Child Seat ................................ 81
Childproof Door Locks ............................. 194
Cleaning the Exterior ............................... 744
Cleaning the Interior ................................ 742
Climate Control System ............................ 283
Defrosting the Windshield and Windows ............................................... 285
Dust and Pollen Filter............................... 741
Sensors ................................................... 289
Synchronized Mode................................. 286
Using Automatic Climate Control ............ 283
Clock .......................................................... 176
CMBS (Collision Mitigation Braking System) .................................................... 572
Coat Hook ................................................. 266
Collision Mitigation Braking System (CMBS) ..................................................... 572
Compact Spare Tire .......................... 751, 791
Console Compartment ............................. 263
Controls ..................................................... 175
