2019 TOYOTA SUPRA Owners Manual

297
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3As soon as there is an opportu-
nity, check the tyre inflation
pressure in all four tyres.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
Tyre Pressure Monitor might not have
been reset. Perform a reset.
■Possible driving distance with
a deflated tyre
The possible driving distance varies
depending on the load and stresses
the vehicle is subjected to, for
example speed, road properties,
outside temperature. The driving
distance can be shorter or, if the
driving style is more careful, longer.
If the vehicle is moderately loaded
and used under favourable condi-
tions, it is possible to travel up to 80
km, 50 miles.
■Driving properties with dam-
aged tyres
On a journey with damaged tyres,
handling characteristics change
and may result in the following situ-
ations, for example:
• The vehicle losing traction more
quickly.
• Longer braking distances.
• Different self-steering character-
istics.
Adapt your driving style. Avoid
abrupt steering or driving over
obstacles, for example kerbs or
potholes.
■Final tyre failure
Vibration or loud noises during the journey may be an indication that
the tyre has finally failed.
Reduce your speed and stop the
vehicle. Parts of the tyre could
detach, which might lead to an acci-
dent.
Do not continue driving, but contact
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
The tyre inflation pressure depends
on the temperature of the tyre.
The tyre inflation pressure
increases as the tyre temperature
increases, for example during driv-
ing or due to exposure to sunlight.
Tyre inflation pressure decreases if
the tyre temperature drops.
Through this behaviour, a warning
may be triggered if there are major
temperature drops, due to the given
warning limits.
After a temperature-related warn-
ing, the specified pressures are dis-
played again on the Control Display
after a short distance.
No warning can be given by the
system of extreme, sudden tyre fail-
ure caused by external factors.System limits
Temperature
Sudden loss of tyre inflation pres-
sure

298
Supra Owner's Manual5-1. MOBILITY
Tyres with special approval: the
system will not function correctly if
a reset has not been carried out, for
example, a flat tyre is reported in
spite of the correct tyre pressure.
• A wheel without TPM wheel elec-
tronics is fitted, for example
emergency wheel: have the
wheels checked if necessary.
• Malfunction: have the system
checked.
• Fault due to systems or devices
with the same radio frequency:
the system is automatically reac-
tivated upon leaving the field of
interference.
• In the case of tyres with special
approval: the system was unable
to complete the reset. Perform a
system reset again.For run-flat tyres or when using a
flat tyre kit, it is not always neces-
sary to change a wheel immedi-
ately if tyre inflation pressure is lost
due to a flat tyre.
If required, the tools for changing
wheels are available as optional
accessories from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Reset not carried out
Malfunction
Message
The yellow warning lamp
flashes and is then illumi-
nated continuously. A
vehicle message is
shown. Tyre pressure
losses cannot be
detected.
Measure
Wheel change
General
Safety notes
WARNING
The jack is only intended for raising
the vehicle briefly during a wheel
change. Even if the safety measures
are complied with, there is a risk of
the raised vehicle falling over due
tothe jack slipping. There is a danger
of injury or even death. If the vehicle
is raised with the jack, do not lie
underneath the vehicle and do not
start the engine.
WARNING
Supports such as wooden blocks
under the vehicle jack can prevent it
from achieving its load capacity due
to the restricted height. The load
capacity of the wooden blocks may be
exceeded, causing the vehicle to tip
over. There is a danger of injury or
even death. Do not place supports
under the vehicle jack.

299
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
The vehicle manufacturer recom-
mends that the vehicle should addi-
tionally be protected against rolling
away during a wheel change.
WARNING
The jack, issued by the vehicle manu-
facturer, is provided in order to per-
form a wheel change in the event of a
breakdown. The jack is not designed
for frequent use; for example, chang-
ing from summer to winter tyres.
Using the jack frequently may cause it
to become jammed or damaged.
There is a danger of injury and dam-
age to property. Only use the jack to
change an emergency wheel or a
spare wheel in the event of a flat tyre.
WARNING
On soft, uneven or slippery ground,
for example, snow, ice, tiles or similar,
the jack may slip. There is a danger of
injury. Perform the wheel change on a
level, firm and non-slip surface if at all
possible.
WARNING
The jack is only optimised for raising
the vehicle and for use with the jack-
ing points on the vehicle. There is a
danger of injury. Do not lift another
vehicle or other items with the jack.
WARNING
If the jack has not been guided intot
he jacking point provided, the vehicle
might be damaged when the jack is
extended, or the jack could slip. There
is a danger of injury or damage to
property. When extending, make sure
that the jack is guided into the jacking
point adjacent to the wheelhouse.
WARNING
A vehicle raised with a jack can fall
from the jack if lateral forces are
applied. There is a danger of injury
and damage to property. If the vehi-
cleis raised, do not apply any lateral
forces to the vehicle or pull the vehi-
cle with sudden movements. Have
any wheel that is jammed removed by
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
WARNING
The jack supplied with your vehicle
should not be used for any purpose
other than wheel changing and
should never be used in conjunction
with a vehicle support stand. Raising
the vehicle for the purpose of inspec-
tion should only be performed in a
controlled workshop environment on
a hoist by trained personnel.
The jack should be used on level firm
ground wherever possible. It is rec-
ommended that the wheels of the
vehicle be chocked, and that no per-
son should remain in a vehicle that is
being jacked.
The jack of your Toyota is mainte-
nance-free. Please observe the infor-
mation marked on the jack.
Protecting the vehicle
against rolling
General

300
Supra Owner's Manual5-1. MOBILITY
Place chocks or other suitable
objects in front of and behind the
wheel directly opposite to the one
being changed.
If it is necessary to change a wheel
on a slight downhill slope, place
chocks and other suitable objects,
for example stones, under the
wheels of the front and rear axles in
the opposite direction to the direc-
tion of roll.
The wheel locking bolts have a spe-cial coding. The blots can only be
released with the adapter that
matches the coding.
The adapter of the thiefproof wheel
studs can be found in the on-board
tool kit or in an oddments tray in the
on-board tool kit.
• Wheel stud, arrow 1.
• Adapter, arrow 2.
1Place the adapter on the wheel
stud.
2Unscrew the wheel stud.
3After unscrewing the wheel
stud, remove the adapter again.
1Place the adapter on the wheel
stud. If necessary, turn the
adapter until it fits on the wheel
stud.
2Screw on the wheel stud. The
tightening torque is 140 Nm. On a level surface
On a slight downhill slope
Thiefproof wheel studs
Principle
Overview
Unscrewing
Screwing on

301
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3After screwing on the wheel
stud, remove the adapter again
and stow it.
• Park the vehicle on firm and-
non-slip ground at a safe dis-
tance from traffic.
• Switch on the hazard warning
lights.
• Apply the parking brake.
• Engage a gear or select selector
lever position P.
• As soon as the traffic permits,
have all vehicle occupants get
out of the vehicle and guide them
out of the danger area, for exam-
ple behind the crash barrier.
• Depending on the equipment,
take the wheel change tools and,
if necessary, the emergency
wheel out of the vehicle.
• If applicable, set up warning tri-
angle or flashing light at the cor-
rect distance.
• Additionally protect the vehicle
against rolling away.
• Undo the wheel studs by half a
turn.The jacking points are located in
the marked positions.
1Hold the jack with one hand,
arrow 1, and grasp the jack
crank or lever with your other
hand, arrow 2.
2Guide the jack into the rectangu-
lar recess of the jacking point Preparing the vehicleJacking points
Raising vehicle
WARNING
Your hands or fingers could get
trapped when using the jack. There is
a danger of injury. Keep your hands in
the described position when using the
jack, and do not change this position.

302
Supra Owner's Manual5-1. MOBILITY
closest to the wheel to be
changed.
3Turn the jack crank or lever
clockwise to extend the jack.
4Remove your hand from the jack
as soon as the jack is under
load and continue to turn the
jack crank or lever with one
hand.
5Make sure that the base of the
vehicle jack is extended perpen-dicular to and at right angles
underneath the jacking point.
6Make sure that the base of the
jack is extended perpendicular
to and at right angles below the
jacking point.
7Raise by cranking until the jack
is supported on the ground with
its entire surface and the wheel
in question is at most 3 cm, 1.2
inches off the ground.
Only fit one emergency wheel at
most, as required.
1Unscrew the wheel studs.
2Remove the wheel.
3Put on the new wheel or emer-
gency wheel and tighten at least
Fitting a wheel

303
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
two wheel studs crosswise until
finger-tight.
If non-original light alloy wheels not
from the vehicle manufacturer are fit-
ted, the wheel studs belonging to the
wheels may also have to be used.
4Tighten the remaining wheels
tuds until finger-tight and then
tighten all the wheel studs
crosswise.
5Turn the jack crank anticlock-
wise to retract the jack and
lower the vehicle.
6Remove the jack and stow it
securely.
1Tighten the wheel studs cross-
wise. The tightening torque
is140 Nm, approximately 101 lb
ft.
2Stow the faulty wheel in the
boot, if necessary.
Due to its size, the faulty wheel cannot
be accommodated under the boot floor.
3Check tyre inflation pressure at
the next opportunity and correct
as necessary.
4Reset the Tyre Pressure Monitor
(TPM).
5Check the tight fit of the wheel
studs using a calibrated torque
wrench.
6Drive to the nearest any author-
ized Toyota retailer or Toyota
authorized repairer, or any relia-ble repairer to have the dam-
aged tyre replaced.
In case of a flat tyre, the emergency
wheel can be used as a replace-
ment for the defective tyre. The
emergency wheel is intended for
short-term use until the defective
wheel has been replaced.
Only fit one emergency wheel at
most.
Additionally, regularly check the
tyre inflation pressure of the emer-
gency wheel in the boot and correct
the pressure if necessary. After changing the wheel
Emergency wheel
Principle
General
Safety note
WARNING
The emergency wheel has special
dimensions. When driving with an
emergency wheel, the driving proper-
ties may change, for example
reduced directional stability when
braking, longer braking distance and
modified self-steering behaviour in
the limit range. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.

304
Supra Owner's Manual5-1. MOBILITY

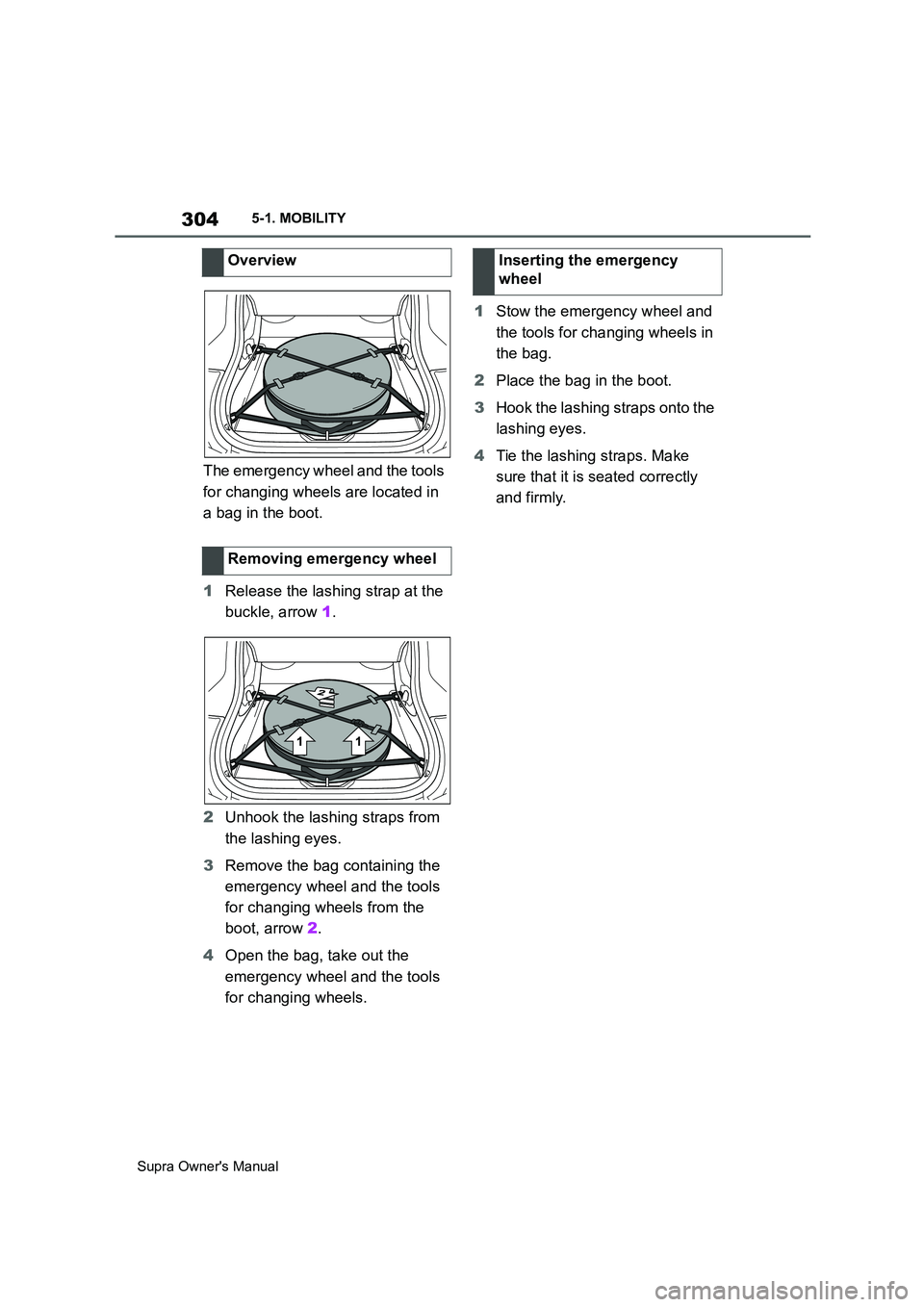

The emergency wheel and the tools
for changing wheels are located in
a bag in the boot.
1Release the lashing strap at the
buckle, arrow 1.
2Unhook the lashing straps from
the lashing eyes.
3Remove the bag containing the
emergency wheel and the tools
for changing wheels from the
boot, arrow 2.
4Open the bag, take out the
emergency wheel and the tools
for changing wheels.1Stow the emergency wheel and
the tools for changing wheels in
the bag.
2Place the bag in the boot.
3Hook the lashing straps onto the
lashing eyes.
4Tie the lashing straps. Make
sure that it is seated correctly
and firmly. Overview
Removing emergency wheel
Inserting the emergency
wheel
