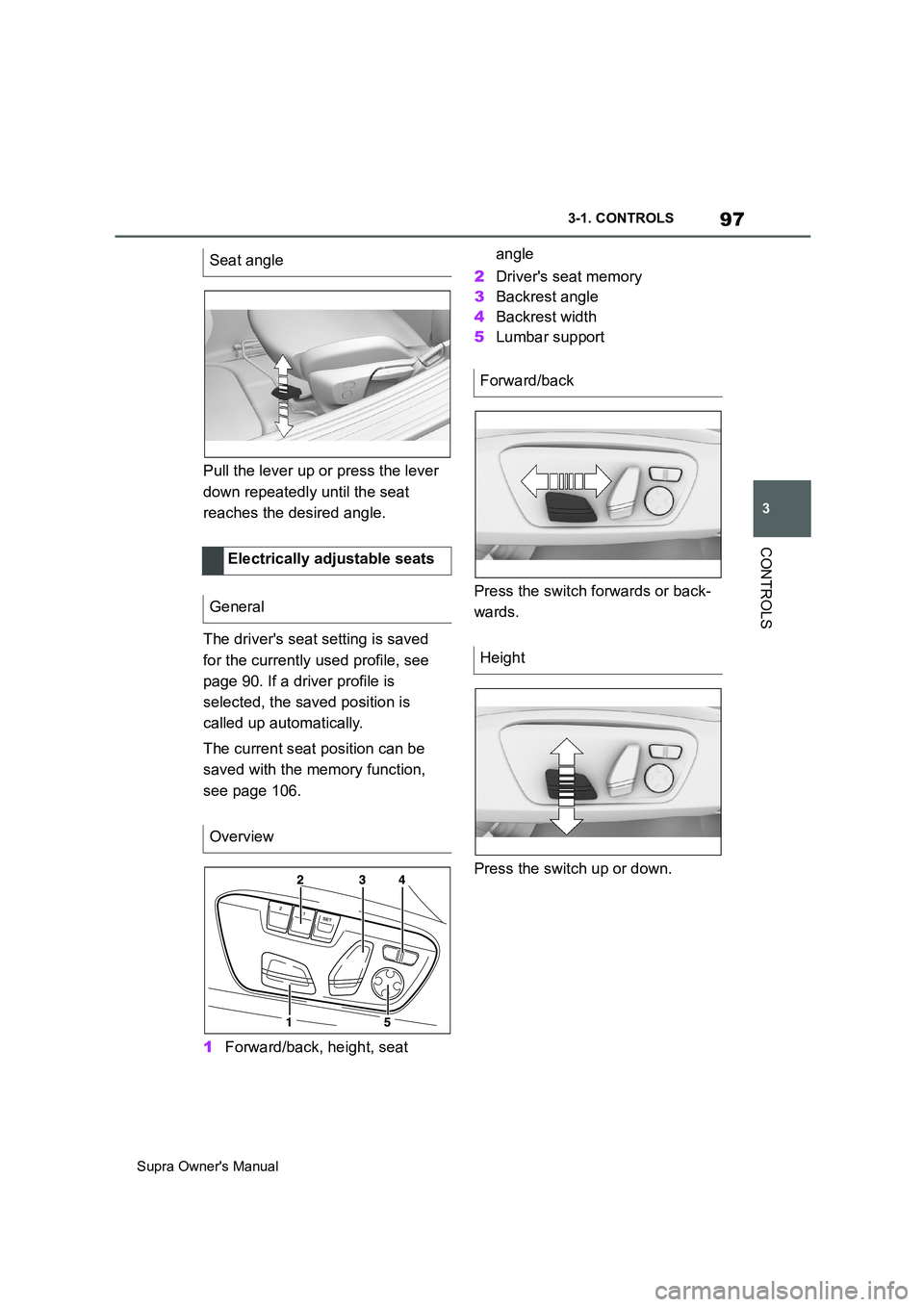

97
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS
Pull the lever up or press the lever
down repeatedly until the seat
reaches the desired angle.
The driver's seat setting is saved
for the currently used profile, see
page 90. If a driver profile is
selected, the saved position is
called up automatically.
The current seat position can be
saved with the memory function,
see page 106.
1Forward/back, height, seat angle
2Driver's seat memory
3Backrest angle
4Backrest width
5Lumbar support
Press the switch forwards or back-
wards.
Press the switch up or down. Seat angle
Electrically adjustable seats
General
Overview
Forward/back
Height

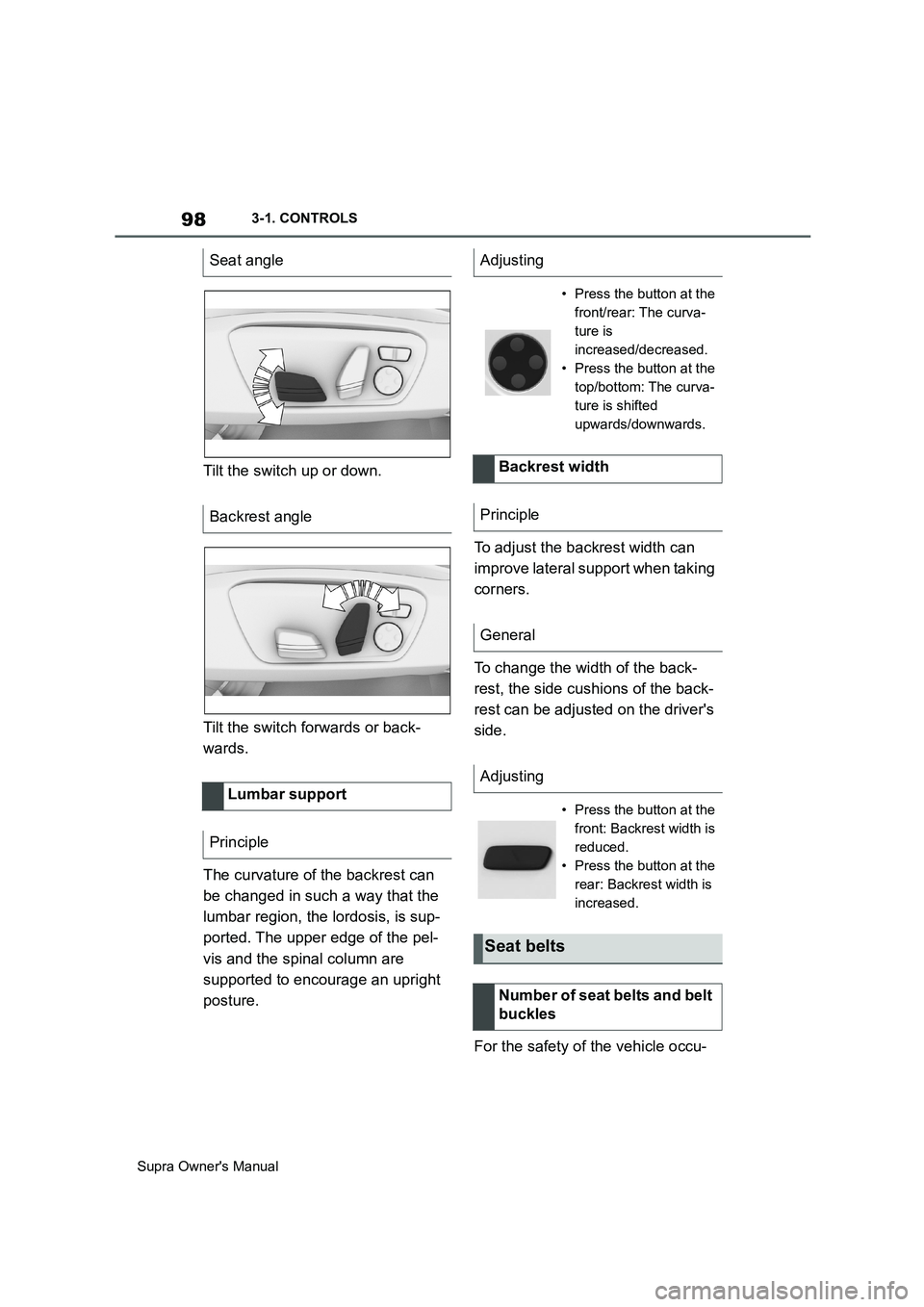

98
Supra Owner's Manual3-1. CONTROLS
Tilt the switch up or down.
Tilt the switch forwards or back-
wards.
The curvature of the backrest can
be changed in such a way that the
lumbar region, the lordosis, is sup-
ported. The upper edge of the pel-
vis and the spinal column are
supported to encourage an upright
posture.To adjust the backrest width can
improve lateral support when taking
corners.
To change the width of the back-
rest, the side cushions of the back-
rest can be adjusted on the driver's
side.
For the safety of the vehicle occu- Seat angle
Backrest angle
Lumbar support
Principle
Adjusting
• Press the button at the
front/rear: The curva-
ture is
increased/decreased.
• Press the button at the
top/bottom: The curva-
ture is shifted
upwards/downwards.
Backrest width
Principle
General
Adjusting
• Press the button at the
front: Backrest width is
reduced.
• Press the button at the
rear: Backrest width is
increased.
Seat belts
Number of seat belts and belt
buckles

99
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS
pants, the vehicle is equipped with
two seat belts. However, they can
only provide effective protection
when worn correctly.
Before a journey, always make sure
that all occupants have fastened
their seat belts. The airbags sup-
plement the seat belts as an addi-
tional safety device. The airbags
are not a substitute for the seat
belts.
The belt anchorage is suitable for
adults of any stature if the seat is
adjusted correctly.General
Safety notes
WARNING
Never restrain more than one person
with each seat belt, otherwise the pro-
tective effect of the seat belt is no
longer guaranteed. There is a danger
of injury or even death. Only restrain
one person with each seat belt. Do
not allow infants and children to travel
on the lap of another occupant.
Instead, secure the infant or child in a
child restraint system intended for this
purpose.
WARNING
The protective function of the seat
belts may be limited or may even fail
completely if the seat belts are worn
incorrectly. If a seat belt is not worn
correctly, additional injuries can be
caused, for example in the event of
an accident or braking and evasive
manoeuvres. There is a danger of
injury or even death. Make sure that
all vehicle occupants have fastened
their seat belts correctly.
WARNING
Seat belts are designed to bear upon
the body's skeleton and should be
worn low across the front of the pel-
vis, or lie against pelvis, chest and
shoulders, as applicable. Do not route
the lap section of the belt across the
abdomen.
In order to provide the protection for
which they have been designed, the
seat belts should be adjusted to fit as
snugly as possible without being
uncomfortable. A slack belt will
greatly reduce the protection afforded
to the wearer.
Do not allow the seat belt webbing to
come into contact with polishes, oils
and chemicals and particularly battery
acid. It may be safely cleaned with a
mild soap water solution. Replace the
seat belt if the webbing becomes
frayed, contaminated or damaged.
Seat belts should not be worn with
seat belt straps twisted. Each seat
belt assembly must only be used by
one occupant; carrying infants and
children on the occupant's lap is not
permitted.
It is essential to replace the entire belt
assembly if it was being worn by a
vehicle occupant when a severe
impact occurred, even if damage to
the assembly is not obvious.

100
Supra Owner's Manual3-1. CONTROLS
• Insert the seat belt into the belt
guide.
• Place the seat belt tightly over
the pelvis and shoulder, close to
the body and without twisting.
• Make sure that the seat belt is
positioned low at the hip in the
area of the pelvis. The seat belt
must not press on the abdomen.
• The seat belt must not be rubbed on sharp edges, be routed over
solid or breakable objects or be
trapped.
• Avoid bulky clothing.
• Keep the seat belt taut by occa-
sionally pulling upwards on the
upper section.
Having a correct driving posture is
essential for safe driving. Maintain-
ing a correct driving posture not
only helps reduce fatigue while
driving, but helps ensure that the
occupant protection devices, such
as the seat belts and airbags, will
operate correctly in a collision,
reducing the impact to the occu-
pants.
WARNING
No modifications or additions should
be made by the user that will either
prevent the seat belt adjusting
devices from operating to remove
slack, or prevent the seat belt assem-
bly from being adjusted to remove
slack.
WARNING
The protective function of the seat
belts may be limited or may even fail
completely in the following situations:
• The seat belts or belt buckles are
damaged, dirty or have been modi-
fied in another way.
• Belt tensioners or belt retractors
have been modified.
Seat belts can be damaged in an
accident without the damage neces-
sarily being apparent. There is a dan-
ger of injury or even death. Do not
modify seat belts, belt buckles, belt
tensioners, belt retractors and belt
anchor points and ensure that they
are kept clean. After an accident,
have the seat belts inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
Correct seat belt use
Correct driving posture
Correct use of the seat belts

101
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS
The most basic occupant protection
device is the seat belt. The airbags
are designed to supplement the
seat belts, not be used in place of
them. Wearing the seat belt cor-
rectly ensures that the occupants
are securely held in the seats and
helps prevent them from contacting
interior parts or being thrown from the vehicle in a collision. Therefore,
it is necessary for all occupants to
wear their seat belt. If a seat belt is
worn improperly, its effectiveness
as an occupant protection device
will be severely reduced. Pay atten-
tion to the following to ensure the
correct driving posture and use of
the seat belts.
Position the head restraint so that the center of it is at the same height
as the top of your ears
Make sure that the seat belt is not twisted
Adjust the seat so that your arms bend slightly at the elbow when grip-
ping the upper part of the steering wheel
Make sure that the seat belt is snug and not loose at any point
Position the lap belt as low as possible over the hips
Sit well back in the seat with the seatback uprightCorrect driving posture and use of the seat belts
A
B
C
D
E
F

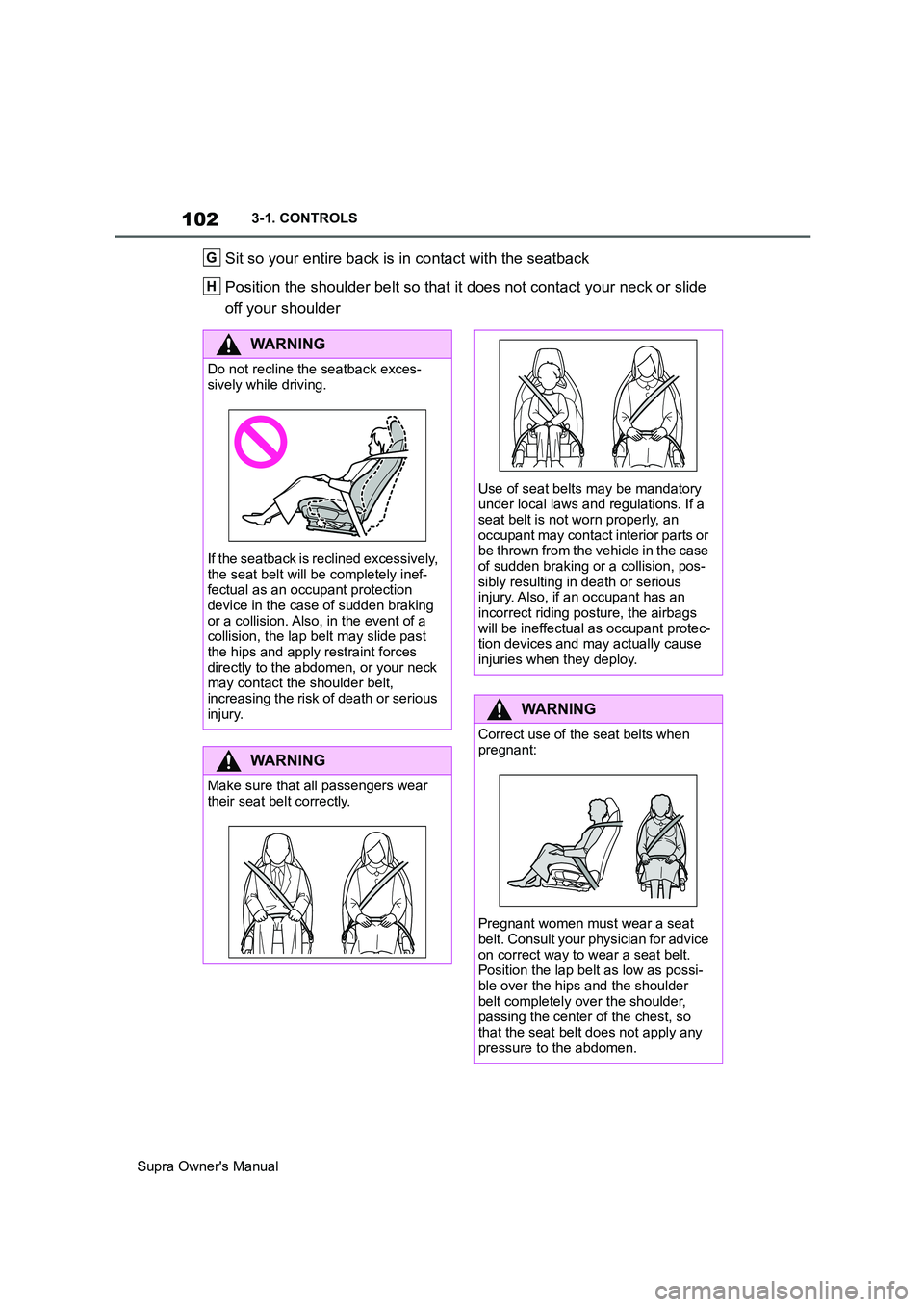

102
Supra Owner's Manual3-1. CONTROLS
Sit so your entire back is in contact with the seatback
Position the shoulder belt so that it does not contact your neck or slide
off your shoulderG
H
WARNING
Do not recline the seatback exces-
sively while driving.
If the seatback is reclined excessively,
the seat belt will be completely inef-
fectual as an occupant protection
device in the case of sudden braking
or a collision. Also, in the event of a
collision, the lap belt may slide past
the hips and apply restraint forces
directly to the abdomen, or your neck
may contact the shoulder belt,
increasing the risk of death or serious
injury.
WARNING
Make sure that all passengers wear
their seat belt correctly.
Use of seat belts may be mandatory
under local laws and regulations. If a
seat belt is not worn properly, an
occupant may contact interior parts or
be thrown from the vehicle in the case
of sudden braking or a collision, pos-
sibly resulting in death or serious
injury. Also, if an occupant has an
incorrect riding posture, the airbags
will be ineffectual as occupant protec-
tion devices and may actually cause
injuries when they deploy.
WARNING
Correct use of the seat belts when
pregnant:
Pregnant women must wear a seat
belt. Consult your physician for advice
on correct way to wear a seat belt.
Position the lap belt as low as possi-
ble over the hips and the shoulder
belt completely over the shoulder,
passing the center of the chest, so
that the seat belt does not apply any
pressure to the abdomen.

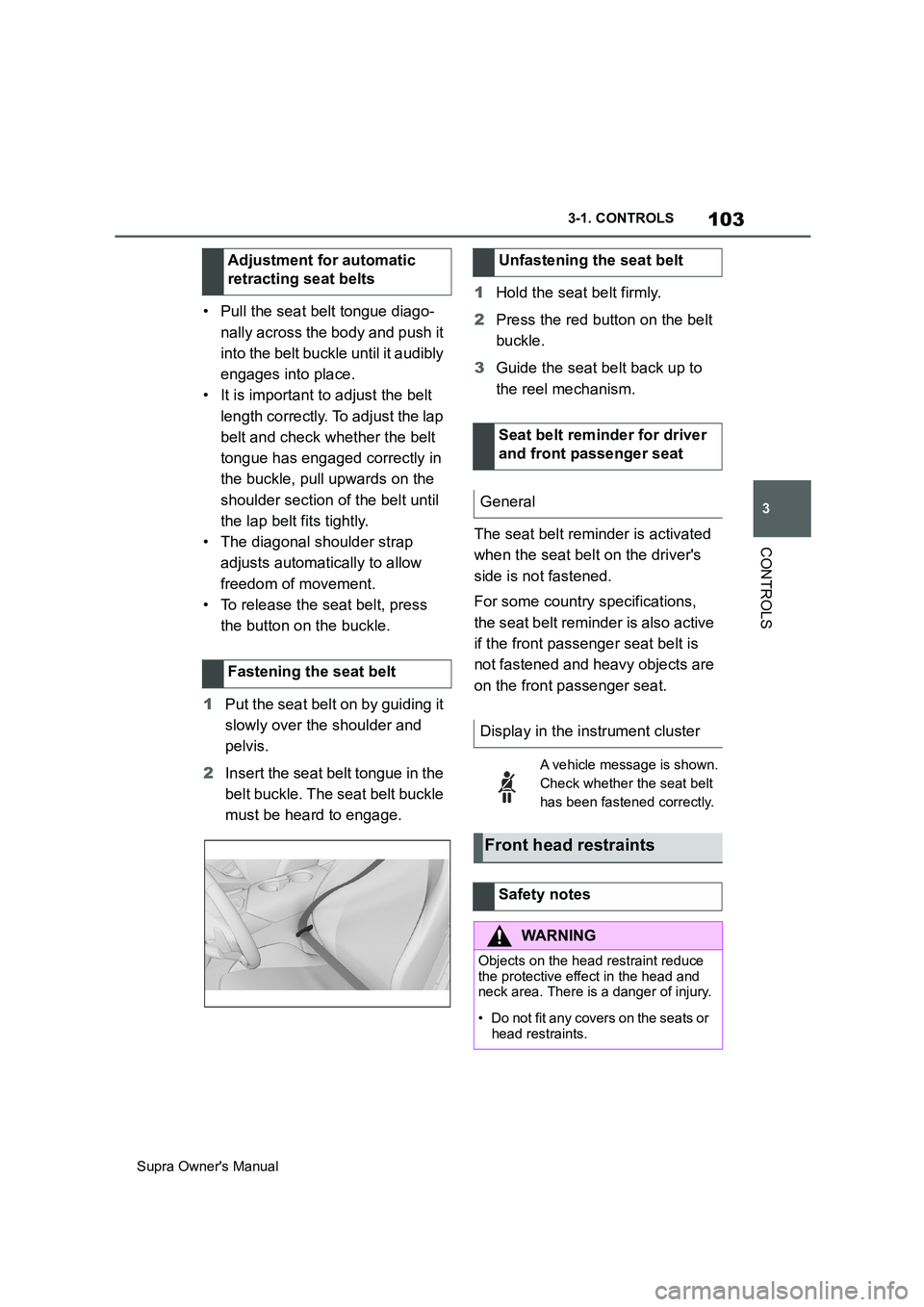

103
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS
• Pull the seat belt tongue diago-
nally across the body and push it
into the belt buckle until it audibly
engages into place.
• It is important to adjust the belt
length correctly. To adjust the lap
belt and check whether the belt
tongue has engaged correctly in
the buckle, pull upwards on the
shoulder section of the belt until
the lap belt fits tightly.
• The diagonal shoulder strap
adjusts automatically to allow
freedom of movement.
• To release the seat belt, press
the button on the buckle.
1Put the seat belt on by guiding it
slowly over the shoulder and
pelvis.
2Insert the seat belt tongue in the
belt buckle. The seat belt buckle
must be heard to engage.1Hold the seat belt firmly.
2Press the red button on the belt
buckle.
3Guide the seat belt back up to
the reel mechanism.
The seat belt reminder is activated
when the seat belt on the driver's
side is not fastened.
For some country specifications,
the seat belt reminder is also active
if the front passenger seat belt is
not fastened and heavy objects are
on the front passenger seat. Adjustment for automatic
retracting seat belts
Fastening the seat belt
Unfastening the seat belt
Seat belt reminder for driver
and front passenger seat
General
Display in the instrument cluster
A vehicle message is shown.
Check whether the seat belt
has been fastened correctly.
Front head restraints
Safety notes
WARNING
Objects on the head restraint reduce
the protective effect in the head and
neck area. There is a danger of injury.
• Do not fit any covers on the seats or
head restraints.

104
Supra Owner's Manual3-1. CONTROLS
The head restraints are integrated
into the seatback and cannot be
adjusted.
The distance from the back of the
head is set via the backrest angle.
Adjust the distance so that the head
restraint is as close as possible to
the back of the head.
The head restraints cannot be
removed.
The mirror setting is saved for the
currently used driver profile, see
page 90. If a driver profile is
selected, the saved position is
called up automatically.
The current exterior mirror position can be saved with the memory
function, see page 106.
1Adjusting
2Selecting a mirror, automatic
parking function
3Folding in and out
Press the button.
The selected mirror moves in
response to the button movement.
To switch to the other mirror:
Push the switch.
WARNING
• Do not hang objects such as coat
hangers directly on the head
restraint.
• Only use accessories that have
been classified as safe for attaching
to the head restraint.
• Do not use any accessories, for
example cushions, during the jour-
ney.
Adjusting the height
Setting the distance
Removing
Exterior mirrors
General
Safety note
WARNING
Objects reflected in the mirror are
closer than they appear. The distance
to road users behind the vehicle could
be incorrectly estimated, for example
when changing lane. There is a dan-
ger of accidents. Look over your
shoulder to estimate the distance
from following traffic.
Overview
Electrical adjustment
Selecting a mirror
