2019 TOYOTA SUPRA Owners Manual

305
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
1Filler neck for washing fluid
2Starting assistance, negative battery terminal
3Starting assistance, positive battery terminal
4Oil filler neck
5Additional coolant tank cooling
6Engine coolant tank
7Vehicle identification number
Engine compartment
Vehicle equipment
Overview

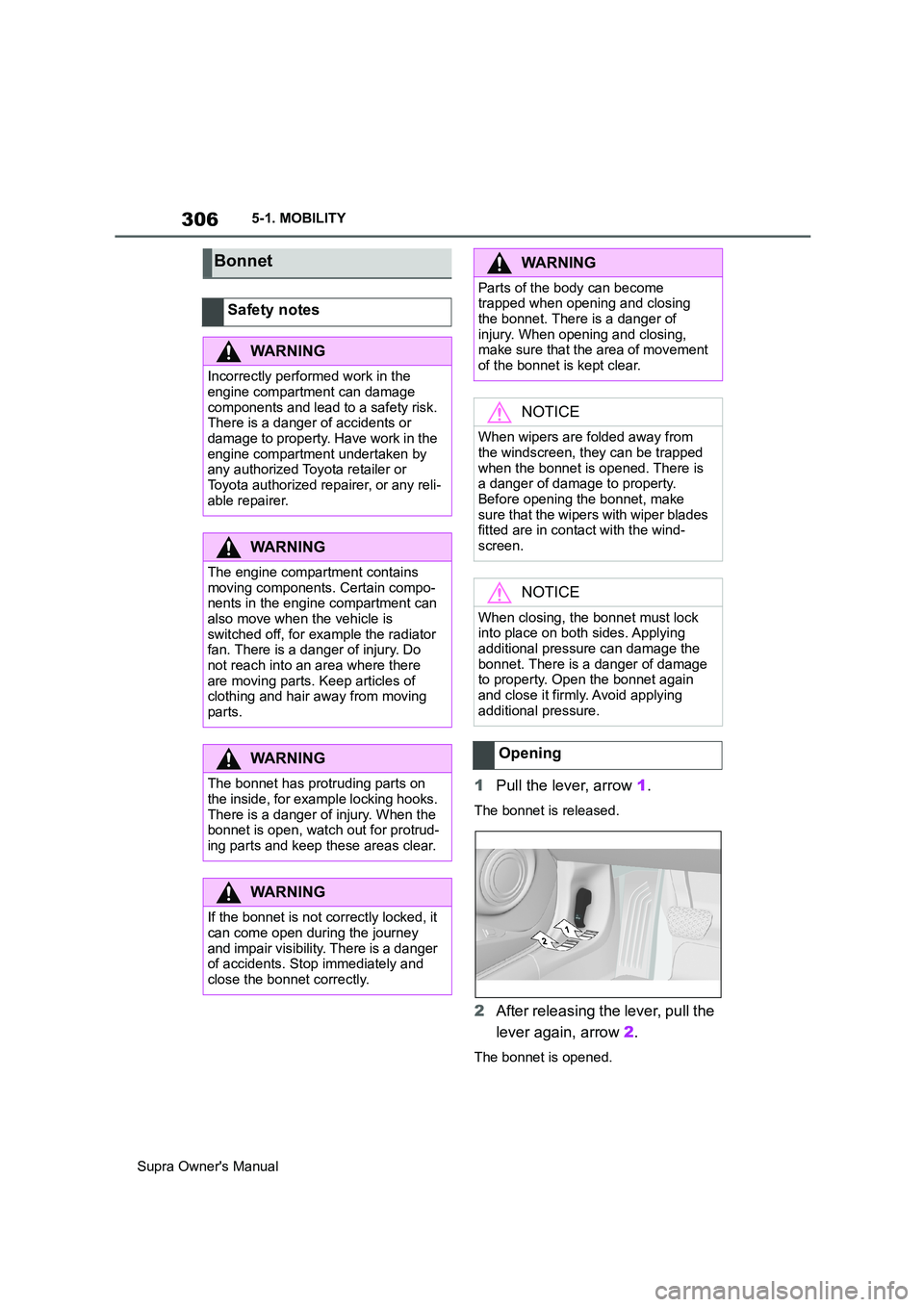

306
Supra Owner's Manual5-1. MOBILITY
1Pull the lever, arrow 1.
The bonnet is released.
2After releasing the lever, pull the
lever again, arrow 2.
The bonnet is opened.
Bonnet
Safety notes
WARNING
Incorrectly performed work in the
engine compartment can damage
components and lead to a safety risk.
There is a danger of accidents or
damage to property. Have work in the
engine compartment undertaken by
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
WARNING
The engine compartment contains
moving components. Certain compo-
nents in the engine compartment can
also move when the vehicle is
switched off, for example the radiator
fan. There is a danger of injury. Do
not reach into an area where there
are moving parts. Keep articles of
clothing and hair away from moving
parts.
WARNING
The bonnet has protruding parts on
the inside, for example locking hooks.
There is a danger of injury. When the
bonnet is open, watch out for protrud-
ing parts and keep these areas clear.
WARNING
If the bonnet is not correctly locked, it
can come open during the journey
and impair visibility. There is a danger
of accidents. Stop immediately and
close the bonnet correctly.
WARNING
Parts of the body can become
trapped when opening and closing
the bonnet. There is a danger of
injury. When opening and closing,
make sure that the area of movement
of the bonnet is kept clear.
NOTICE
When wipers are folded away from
the windscreen, they can be trapped
when the bonnet is opened. There is
a danger of damage to property.
Before opening the bonnet, make
sure that the wipers with wiper blades
fitted are in contact with the wind-
screen.
NOTICE
When closing, the bonnet must lock
into place on both sides. Applying
additional pressure can damage the
bonnet. There is a danger of damage
to property. Open the bonnet again
and close it firmly. Avoid applying
additional pressure.
Opening

307
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
3Watch out for any protruding
parts of the bonnet.
Allow the bonnet to drop from a
height of approximately 50 cm, 20
in.
The bonnet must engage on both
sides.This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Depending on the region, many fill-
ing stations sell fuel that is adapted
to winter or summer conditions.
Fuel that is sold in winter facilitates
cold starting, for example.
For optimal fuel consumption, the
petrol should be sulphur-free or low
in sulphur content.
Fuels labelled on the pump as con-
taining metal must not be used. ClosingService products
Vehicle equipment
Fuel quality
General
Petrol
General

308
Supra Owner's Manual5-1. MOBILITY
You can fill up with fuels with a
maximum ethanol content of 25 %,
for example E10 or E25.
The engine has knock control. This
means that different petrol grades
can be used.
Super, RON 95.
Unleaded petrol, RON 91.
Engine oil consumption depends on
the driving style and operating con-
ditions.
Therefore check the engine oil level
regularly each time you fill up with
fuel by taking a detailed measure-
ment.
Engine oil consumption can be
increased, for example in the fol-
lowing situations:
• Dynamic driving style.
• Running in the engine. Safety notes
NOTICE
Even small quantities of the wrong
fuel or wrong fuel additives can dam-
age the fuel system and engine. In
addition, the catalytic converter will be
permanently damaged. There is a
danger of damage to property. Do not
use the following fuel or additives with
petrol engines:
• Leaded petrol.
After filling the wrong fuel, do not
press the start/stop button. Contact
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
• Metallic additives, for example
manganese or iron.
NOTICE
Incorrect fuels can damage the fuel
system and engine. There is a danger
of damage to property. Do not refuel
with fuel with a higher ethanol content
than recommended. Do not refuel
with fuel containing methanol, for
example M5 to M100.
NOTICE
Fuel below the specified minimum
quality can adversely affect engine
function or lead to engine damage.
There is a danger of damage to prop-
erty. Do not refuel with petrol below
the specified minimum quality.
Petrol grade
Minimum grade
Engine oil
General

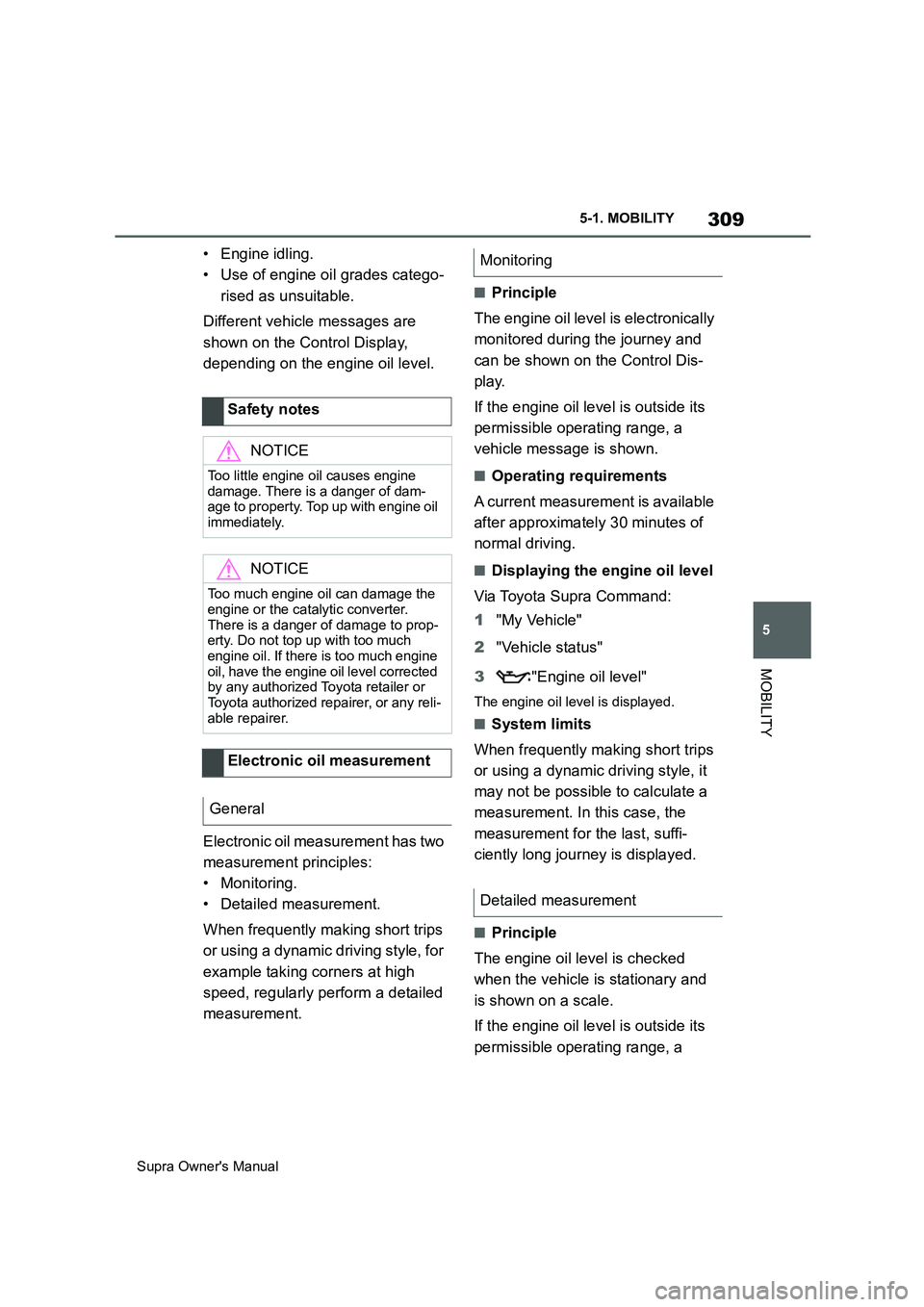

309
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
• Engine idling.
• Use of engine oil grades catego-
rised as unsuitable.
Different vehicle messages are
shown on the Control Display,
depending on the engine oil level.
Electronic oil measurement has two
measurement principles:
• Monitoring.
• Detailed measurement.
When frequently making short trips
or using a dynamic driving style, for
example taking corners at high
speed, regularly perform a detailed
measurement.
■Principle
The engine oil level is electronically
monitored during the journey and
can be shown on the Control Dis-
play.
If the engine oil level is outside its
permissible operating range, a
vehicle message is shown.
■Operating requirements
A current measurement is available
after approximately 30 minutes of
normal driving.
■Displaying the engine oil level
Via Toyota Supra Command:
1"My Vehicle"
2"Vehicle status"
3"Engine oil level"
The engine oil level is displayed.
■System limits
When frequently making short trips
or using a dynamic driving style, it
may not be possible to calculate a
measurement. In this case, the
measurement for the last, suffi-
ciently long journey is displayed.
■Principle
The engine oil level is checked
when the vehicle is stationary and
is shown on a scale.
If the engine oil level is outside its
permissible operating range, a Safety notes
NOTICE
Too little engine oil causes engine
damage. There is a danger of dam-
age to property. Top up with engine oil
immediately.
NOTICE
Too much engine oil can damage the
engine or the catalytic converter.
There is a danger of damage to prop-
erty. Do not top up with too much
engine oil. If there is too much engine
oil, have the engine oil level corrected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
Electronic oil measurement
General
Monitoring
Detailed measurement

310
Supra Owner's Manual5-1. MOBILITY
vehicle message is shown.
■General
During measurement, the idle
speed is slightly raised.
■Operating requirements
• Vehicle is standing horizontally.
• Automatic transmission: selector
lever in selector lever position N
or P and accelerator pedal not
pressed.
• Engine is running and is at oper-
ating temperature.
■Carrying out a detailed meas-
urement
Via Toyota Supra Command:
1"My Vehicle"
2"Vehicle status"
3"Engine oil level"
4"Engine oil level measurement"
5"Start measurement"
The engine oil level is checked and
shown on a scale.
Do not top up engine oil unless a
message is displayed in the instru-
ment cluster. The top-up amount is
specified in the message on the
Control Display.
Only replenish with suitable types
of engine oil, see page 311.
Safely stop the vehicle and switch off drive-ready state before topping
up with engine oil.
Do not top up with too much engine
oil.
The oil filler neck is in the engine
compartment , see page 305. Adding engine oil
General
Safety notes
WARNING
Service products, for example oils,
greases, coolants and fuels, can con-
tain substances that are harmful to
health. There is a danger of injury or
even death. Please comply with the
instructions on the containers. Do not
allow service products to come into
contact with clothing, skin or eyes. Do
not pour service products into other
bottles. Keep service products out of
the reach of children.
NOTICE
Too little engine oil causes engine
damage. There is a danger of dam-
age to property. Top up with engine oil
immediately.
NOTICE
Too much engine oil can damage the
engine or the catalytic converter.
There is a danger of damage to prop-
erty. Do not top up with too much
engine oil. If there is too much engine
oil, have the engine oil level corrected
by any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
Overview

311
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
1Open the bonnet, see page 306.
2Turn the cap anticlockwise to
open.
3Add engine oil.
4Tighten cap.
Engine oil quality is a crucial factor
determining the lifetime of the
engine.
Only replenish with the types of
engine oil that are listed.
Some engine oil grades may not be
available in all countries.Replenish with engine oils with the
following oil specifications.
If suitable engine oils are not avail-
able, up to 1 litre, approximately 2
pints, of an engine oil with the fol-
lowing oil specification can be used
for topping up:
When selecting an engine oil, make
sure that the engine oil belongs to
one of the following viscosity
classes: Adding engine oil
Engine oil grades for topping
up
General
Safety notes
NOTICE
Oil additives can damage the engine.
There is a danger of damage to prop-
erty. Do not use oil additives.
NOTICE
Using the wrong engine oil can result
in engine malfunctions and damage.
There is a danger of damage to prop-
erty. When selecting the engine oil,
make sure that the engine oil corre-
sponds to the oil specification.
Suitable engine oil grades
Petrol engine
TOYOTA GENUINE MOTOR OIL SN
0W-20 C5 for TOYOTA Supra
Alternative engine oil grades
Petrol engine
ACEA C2.
ACEA C3.
Viscosity classes
Viscosity classes
SAE 0W-20.
SAE 5W-20.
SAE 0W-30.

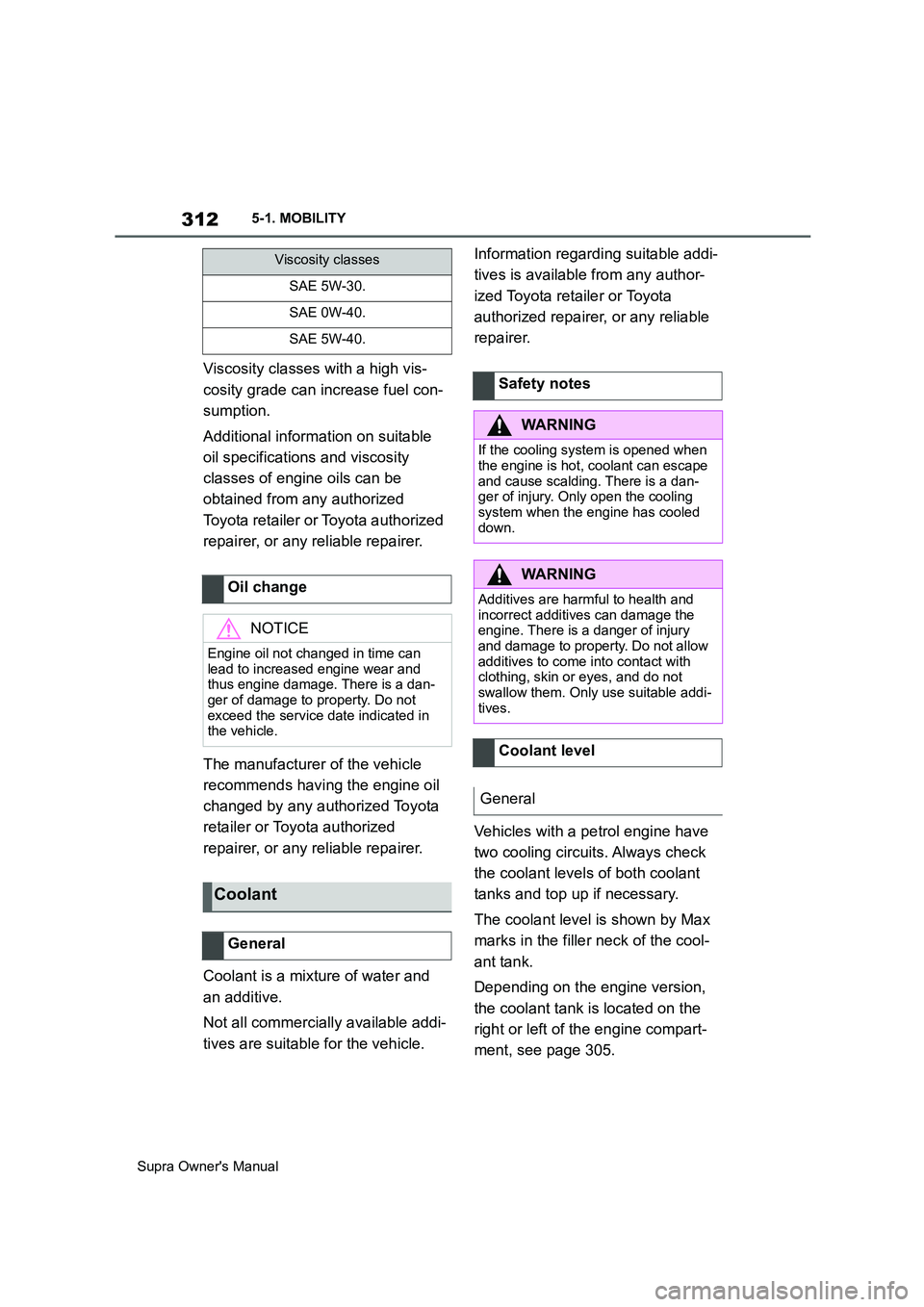

312
Supra Owner's Manual5-1. MOBILITY
Viscosity classes with a high vis-
cosity grade can increase fuel con-
sumption.
Additional information on suitable
oil specifications and viscosity
classes of engine oils can be
obtained from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
The manufacturer of the vehicle
recommends having the engine oil
changed by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
Coolant is a mixture of water and
an additive.
Not all commercially available addi-
tives are suitable for the vehicle. Information regarding suitable addi-
tives is available from any author-
ized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
Vehicles with a petrol engine have
two cooling circuits. Always check
the coolant levels of both coolant
tanks and top up if necessary.
The coolant level is shown by Max
marks in the filler neck of the cool-
ant tank.
Depending on the engine version,
the coolant tank is located on the
right or left of the engine compart-
ment, see page 305.
SAE 5W-30.
SAE 0W-40.
SAE 5W-40.
Oil change
NOTICE
Engine oil not changed in time can
lead to increased engine wear and
thus engine damage. There is a dan-
ger of damage to property. Do not
exceed the service date indicated in
the vehicle.
Coolant
General
Viscosity classes
Safety notes
WARNING
If the cooling system is opened when
the engine is hot, coolant can escape
and cause scalding. There is a dan-
ger of injury. Only open the cooling
system when the engine has cooled
down.
WARNING
Additives are harmful to health and
incorrect additives can damage the
engine. There is a danger of injury
and damage to property. Do not allow
additives to come into contact with
clothing, skin or eyes, and do not
swallow them. Only use suitable addi-
tives.
Coolant level
General
