Supra Owner's Manual3-1. CONTROLS
CONTROLS
Only certain ISOFIX child restraints
may be used in the seats intended
for this purpose. The corresponding
size class and size category are
denoted by a letter or ISO refer-
ence on a plate on the child seat.
For information about which child
restraint systems can be used on
the seats in question and if the child
restraint systems are suitable for or
comply with ISOFIX, see: seats that
are suitable for child restraint sys-
tems, see page 115.Not for Australia/New Zealand:
The brackets for the lower ISOFIX
anchors are located in the gap
between the seat and backrest.
Pull the seat belt away from the
area of the child seat mountings.
1Install the child restraint system,
see the manufacturer's instruc-
tions.
2Make sure that both ISOFIX
anchors are locked correctly in
place.
i-Size is a regulation for child
restraint systems, which is used for
the approval of child restraint sys-
tems. Suitable ISOFIX child
restraint systems
Brackets for lower ISOFIX
anchors
Safety note
WARNING
If the ISOFIX child restraint systems
are not engaged correctly, the protec-
tive effect of the ISOFIX child restraint
systems may be limited. There is a
danger of injury or even death. Make
sure the lower anchor point has
engaged correctly and the ISOFIX
child restraint system is firmly posi-
tioned against the backrest.
Position
Before fitting ISOFIX child
restraints
Fitting ISOFIX child restraint
systems
i-Size child restraint systems
General

114
Supra Owner's Manual3-1. CONTROLS
There is a mounting point for the
upper retaining strap of ISOFIX
child restraint systems.
1Direction of travel
2Head restraint
3Hook for the upper retaining
strap
4Mounting point/eyelet
5Vehicle floor
6Seat
7Upper retaining strap
SymbolMeaning
If this symbol is seen in
the vehicle, the vehicle
has been approved in
accordance with i-Size.
The symbol shows the
mounts for the system's
lower anchors.
The corresponding sym-
bol shows the mounting
point for the upper retain-
ing strap.
Mounts for the upper ISOFIX
retaining strap
Safety notes
WARNING
If the upper retaining strap is used
incorrectly with the child restraint sys-
tem, the protective effect may be
reduced. There is a danger of injury.
Make sure that the upper retaining
strap is not routed to the upper
attachment strap over sharp edges
and that it is not twisted.
NOTICE
The mounting points for the upper
retaining straps of child restraint sys-
tems are only intended for these
retaining straps. The mounting points
can be damaged if other objects are
attached. There is a danger of dam-
age to property. Only attach child
restraint systems to the upper retain-
ing straps.
Mounting points
SymbolMeaning
The corresponding sym-
bol shows the mounting
point for the upper retain-
ing strap.
Routing the retaining strap

115
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS

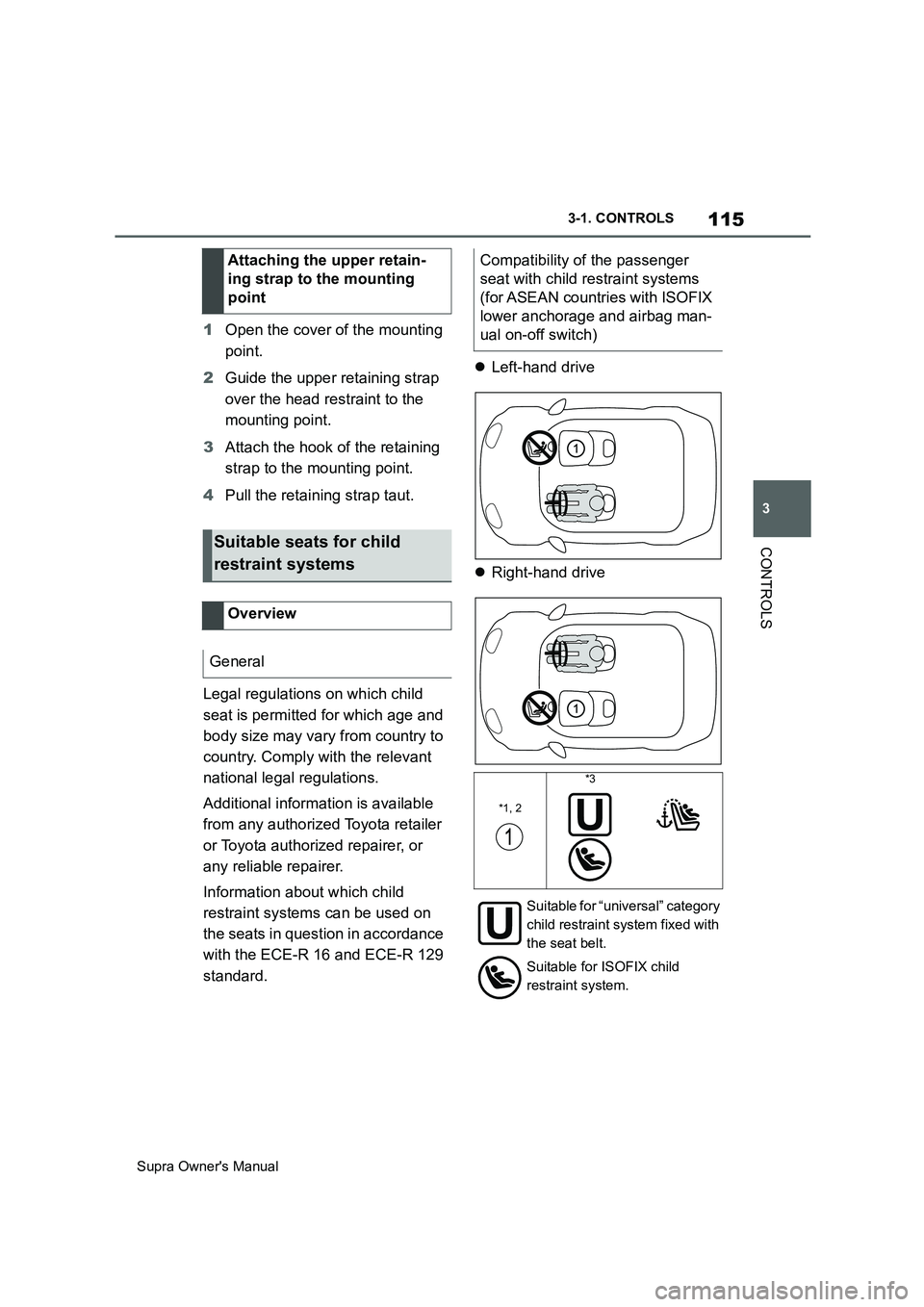

1Open the cover of the mounting
point.
2Guide the upper retaining strap
over the head restraint to the
mounting point.
3Attach the hook of the retaining
strap to the mounting point.
4Pull the retaining strap taut.
Legal regulations on which child
seat is permitted for which age and
body size may vary from country to
country. Comply with the relevant
national legal regulations.
Additional information is available
from any authorized Toyota retailer
or Toyota authorized repairer, or
any reliable repairer.
Information about which child
restraint systems can be used on
the seats in question in accordance
with the ECE-R 16 and ECE-R 129
standard.Left-hand drive
Right-hand drive Attaching the upper retain-
ing strap to the mounting
point
Suitable seats for child
restraint systems
Overview
General
Compatibility of the passenger
seat with child restraint systems
(for ASEAN countries with ISOFIX
lower anchorage and airbag man-
ual on-off switch)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for ISOFIX child
restraint system.

116
Supra Owner's Manual3-1. CONTROLS

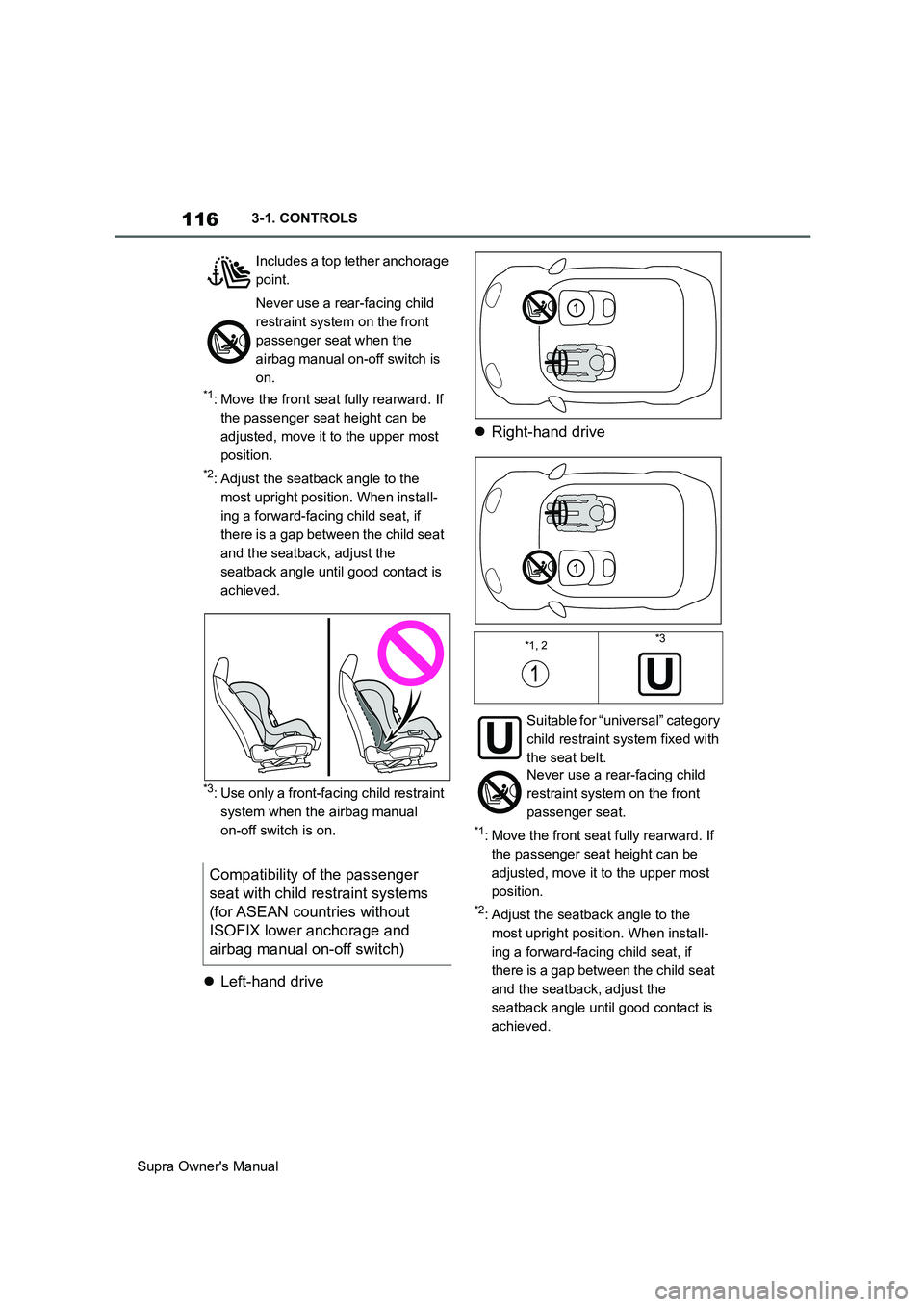

*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system when the airbag manual
on-off switch is on.
Left-hand driveRight-hand drive
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved. Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.
Compatibility of the passenger
seat with child restraint systems
(for ASEAN countries without
ISOFIX lower anchorage and
airbag manual on-off switch)
*1, 2*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Never use a rear-facing child
restraint system on the front
passenger seat.

117
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS

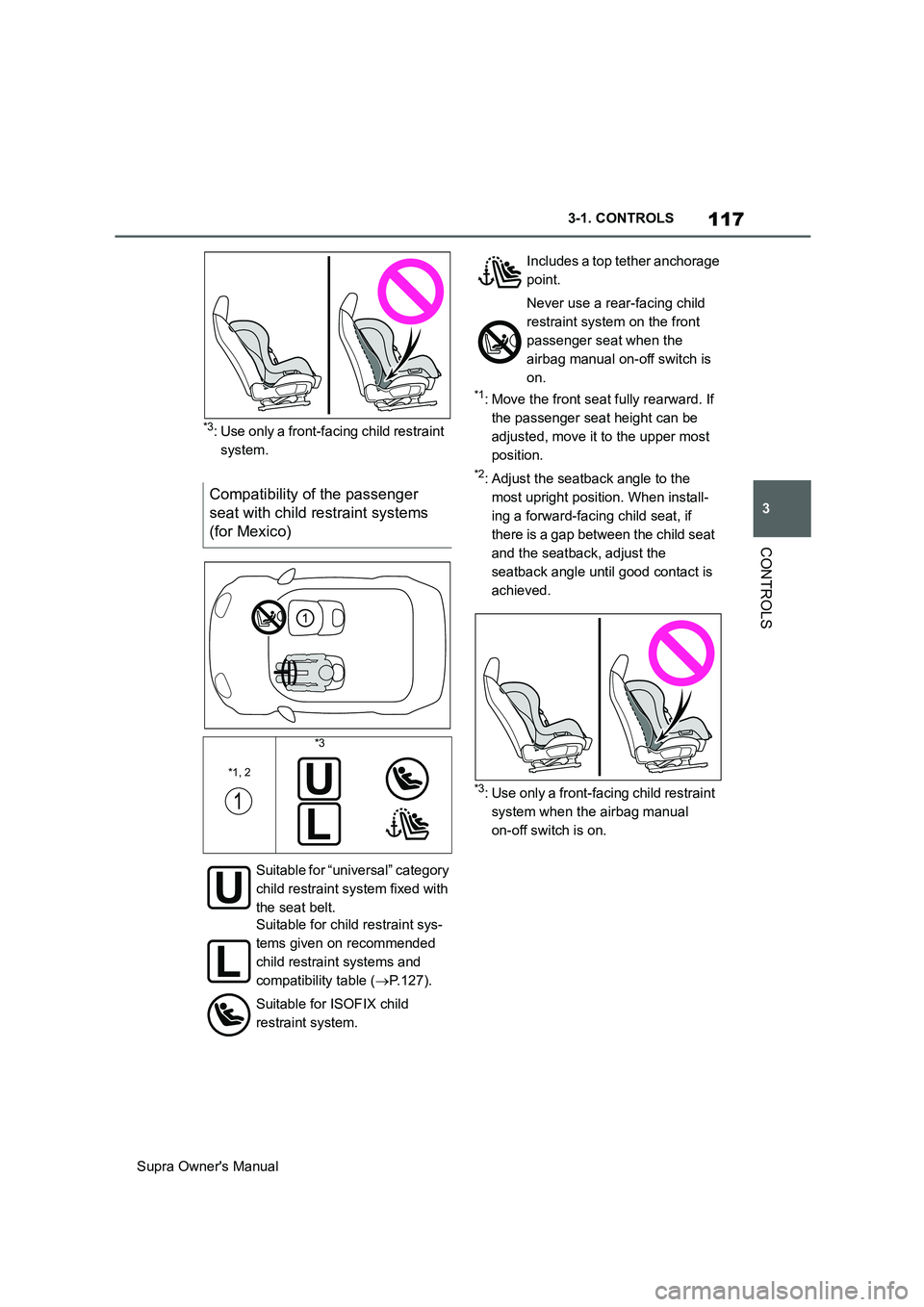

*3: Use only a front-facing child restraint
system.
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system when the airbag manual
on-off switch is on.
Compatibility of the passenger
seat with child restraint systems
(for Mexico)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table (P.127).
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.

118
Supra Owner's Manual3-1. CONTROLS
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system when the airbag manual
on-off switch is on.

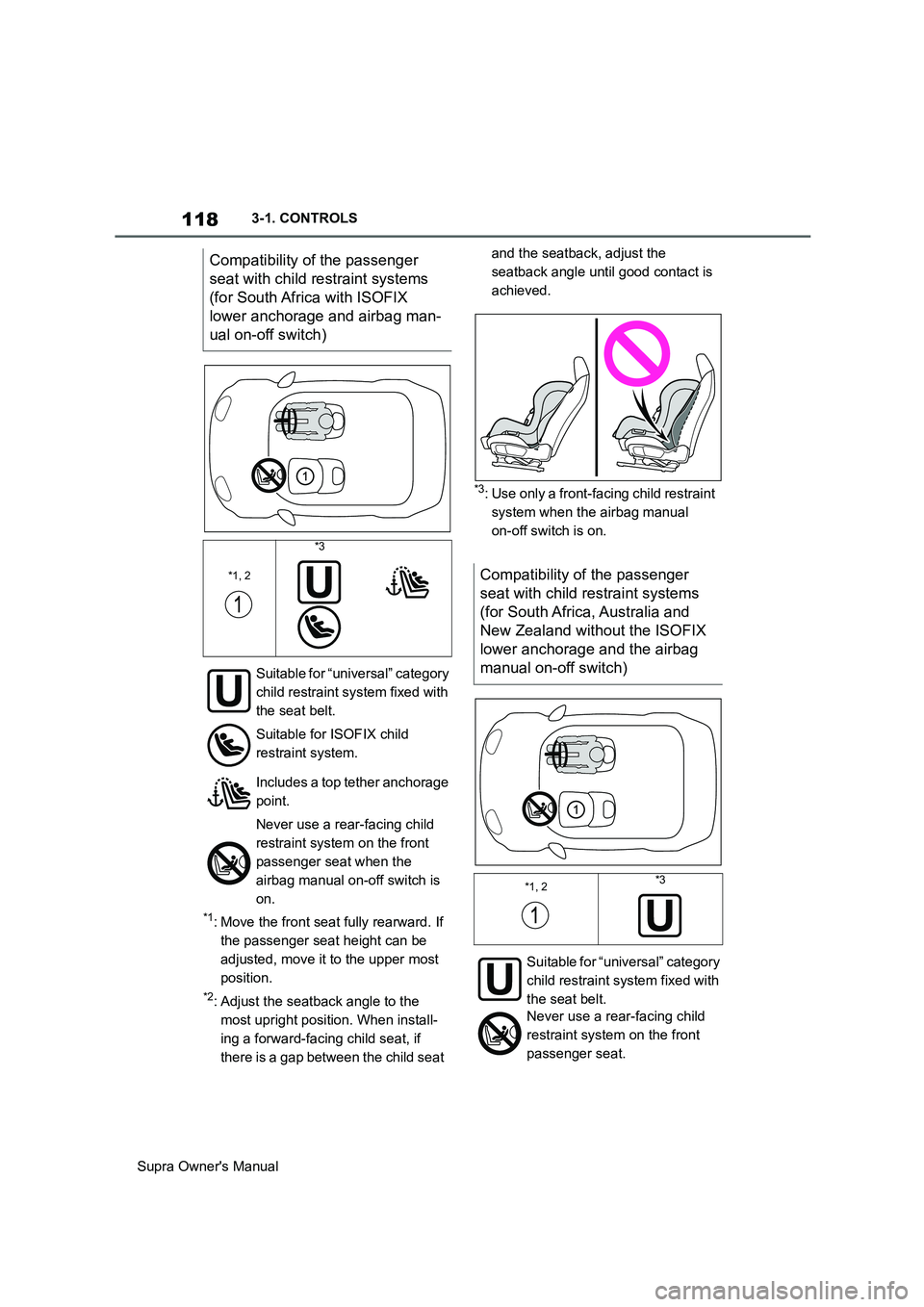

Compatibility of the passenger
seat with child restraint systems
(for South Africa with ISOFIX
lower anchorage and airbag man-
ual on-off switch)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.
Compatibility of the passenger
seat with child restraint systems
(for South Africa, Australia and
New Zealand without the ISOFIX
lower anchorage and the airbag
manual on-off switch)
*1, 2*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Never use a rear-facing child
restraint system on the front
passenger seat.

119
3
Supra Owner's Manual3-1. CONTROLS
CONTROLS

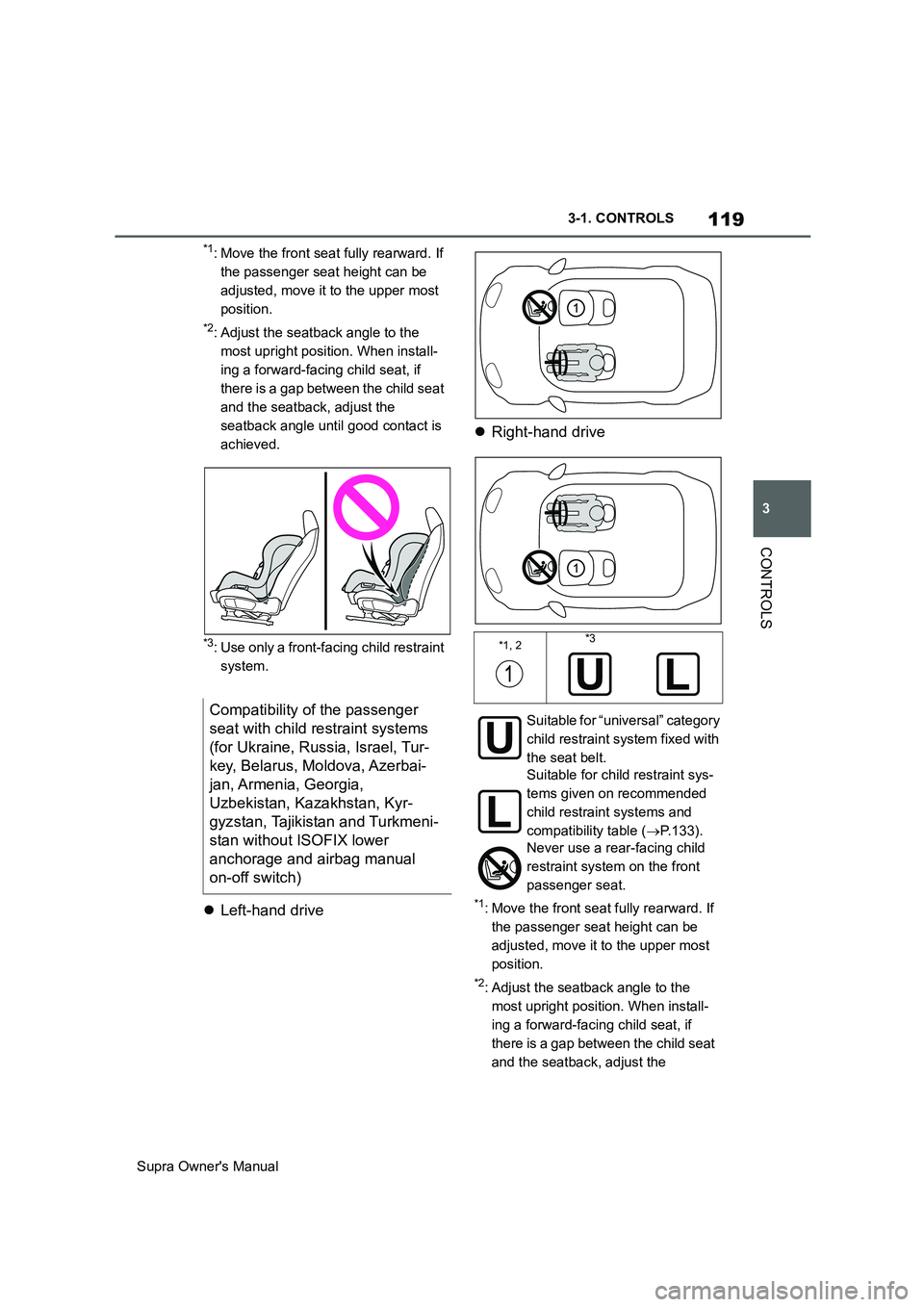

*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system.
Left-hand driveRight-hand drive*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
Compatibility of the passenger
seat with child restraint systems
(for Ukraine, Russia, Israel, Tur-
key, Belarus, Moldova, Azerbai-
jan, Armenia, Georgia,
Uzbekistan, Kazakhstan, Kyr-
gyzstan, Tajikistan and Turkmeni-
stan without ISOFIX lower
anchorage and airbag manual
on-off switch)
*1, 2*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table (P.133).
Never use a rear-facing child
restraint system on the front
passenger seat.

120
Supra Owner's Manual3-1. CONTROLS

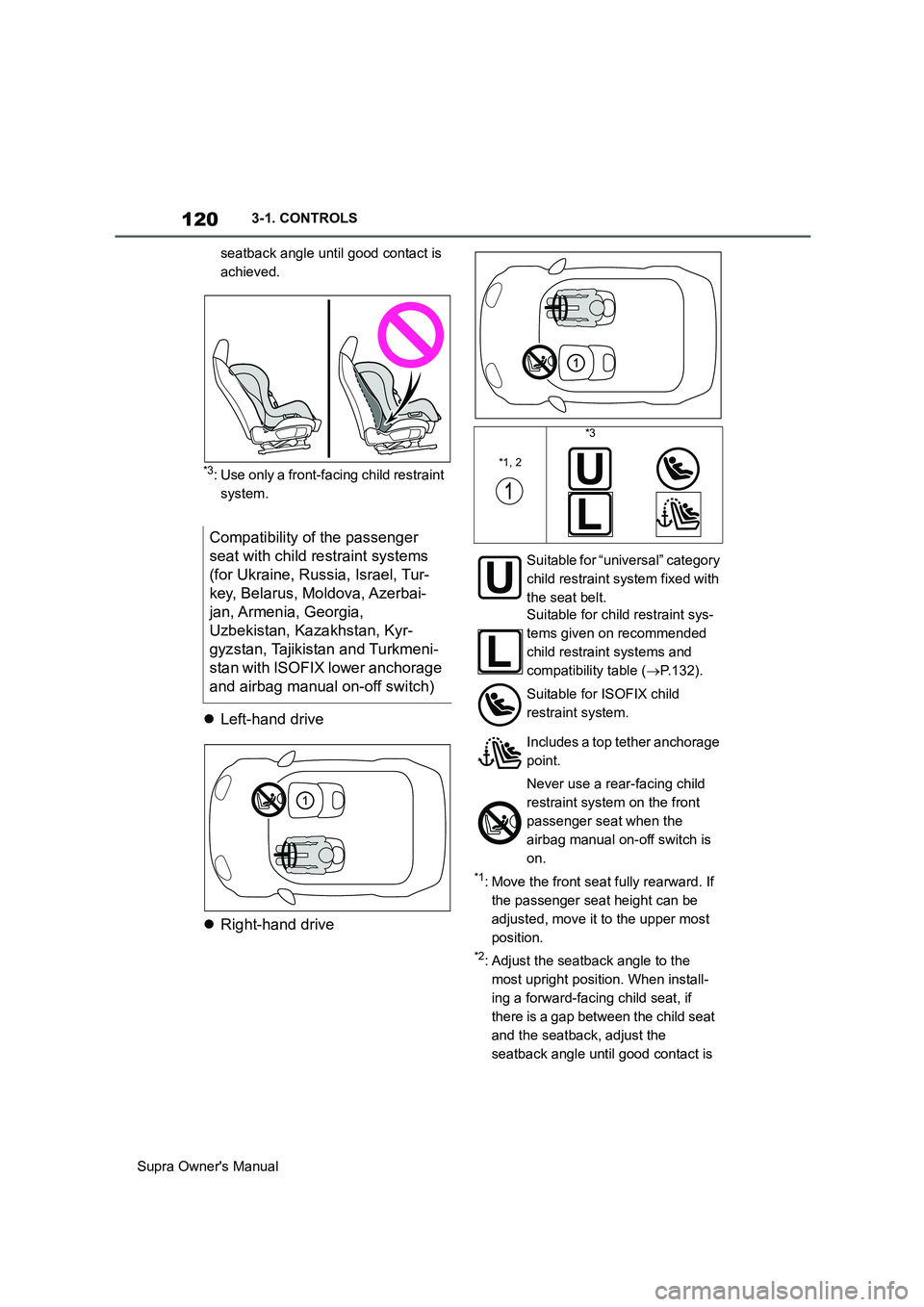

seatback angle until good contact is
achieved.
*3: Use only a front-facing child restraint
system.
Left-hand drive
Right-hand drive
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install-
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the
seatback angle until good contact is
Compatibility of the passenger
seat with child restraint systems
(for Ukraine, Russia, Israel, Tur-
key, Belarus, Moldova, Azerbai-
jan, Armenia, Georgia,
Uzbekistan, Kazakhstan, Kyr-
gyzstan, Tajikistan and Turkmeni-
stan with ISOFIX lower anchorage
and airbag manual on-off switch)
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for child restraint sys-
tems given on recommended
child restraint systems and
compatibility table (P.132).
Suitable for ISOFIX child
restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the
airbag manual on-off switch is
on.
