2019 TOYOTA SUPRA Owners Manual

329
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
jump-starting connections, see
page 344, in the engine compart-
ment and with the engine switched
off.
Battery chargers developed espe-
cially for the vehicle and suitable for
the on-board network can be
obtained from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Following an electrical power fail-
ure, some equipment will have to
be reinitialised or individual settings
will need to be updated, for exam-
ple:
Memory function: save positions
again.
Time: update.
Date: update.
Batteries filled with acid should be
transported and stored upright. Pro-
tect batteries against falling over
when in transit.The fuses are located behind a
cover on the right-hand side in the
boot.
Unlock the cover on the right-hand
side trim, arrow 1, and open, arrow
2.
The manufacturer of the vehicle
recommends having fuses changed
by any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer. Battery charger
Power failure
Disposing of the old battery
Dispose of old batteries at
any authorized Toyota
retailer or Toyota author-
ized repairer, or any relia-
ble repairer or hand them
into an authorised collect-
ing point.
Fuses
Safety note
WARNING
Incorrect or repaired fuses can over-
load electrical cables and compo-
nents. There is a risk of fire. Do not
repair blown fuses or replace them
with fuses with a different colour or
amp rating.
Accessing the fuses
Replacing fuses

330
Supra Owner's Manual5-1. MOBILITY
BDC
Front

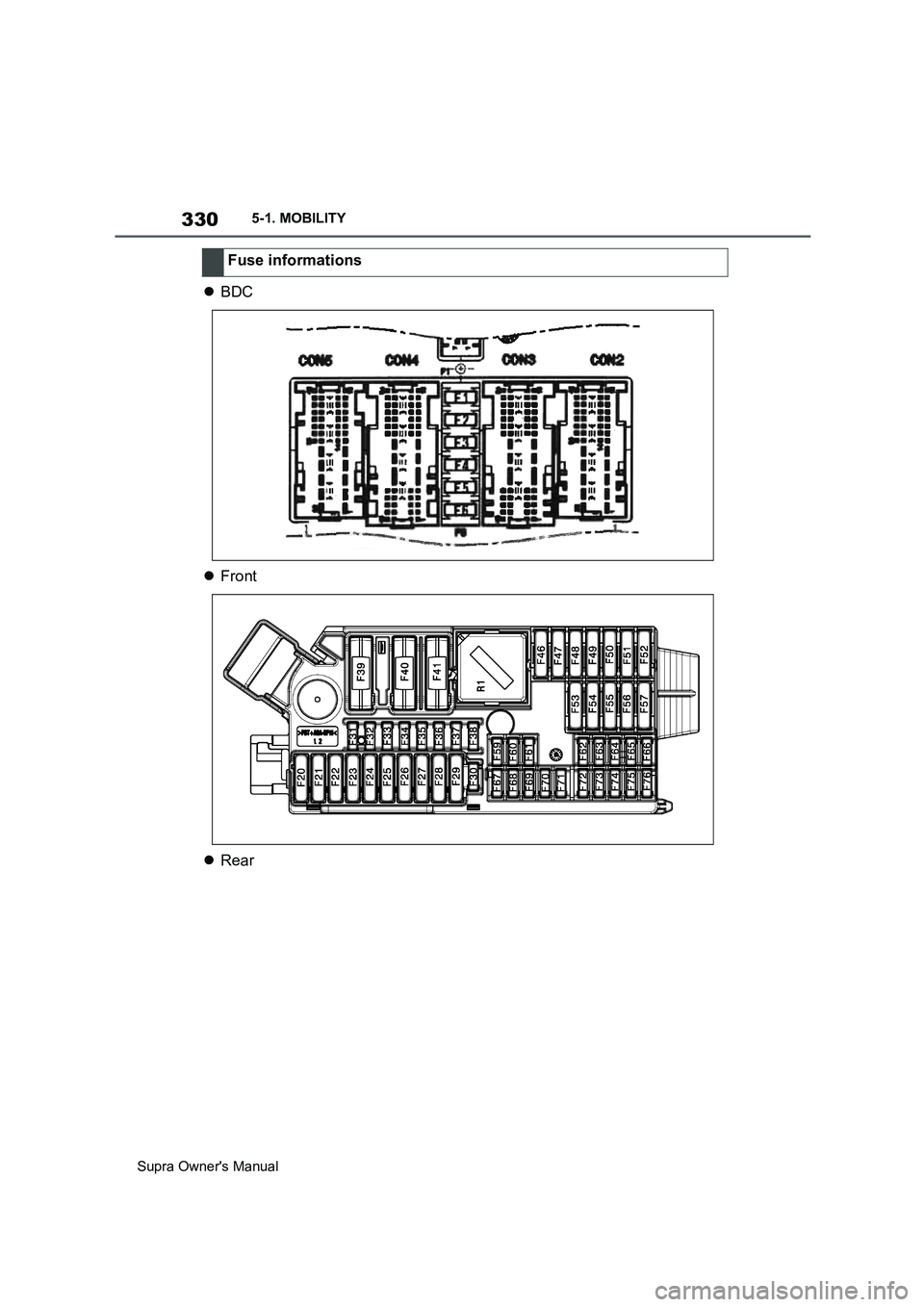

RearFuse informations

331
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY

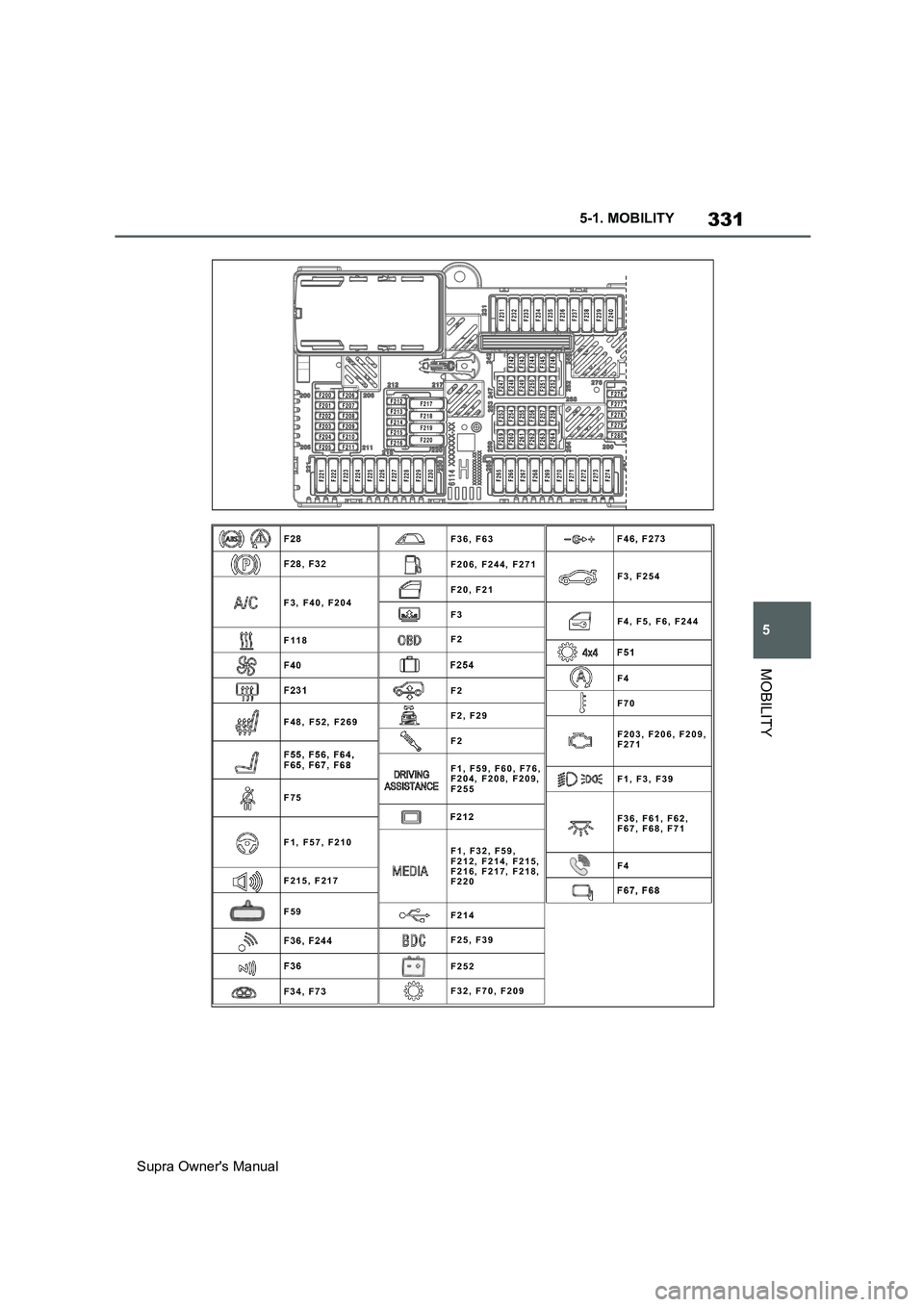

F1, F32, F59,
F212, F214, F215,
F216, F217, F218,
F220 F1, F59, F60, F76,
F204, F208, F209,
F255
F36, F61, F62,
F67, F68, F71 F36, F63
F206, F244, F271
F3, F254
F4, F5, F6, F244
F203, F206, F209,
F271 F4
F4 F1, F3, F39 F70 F20, F21
F2, F29 F3
F2
F2
F2
F214
F252 F25, F39
F32, F70, F209 F3, F40, F204
F48, F52, F269
F1, F57, F210
F215, F217 F118
F75
F59

332
Supra Owner's Manual5-1. MOBILITY
SymbolMeaning
VSC Vehicle Stability Con-
tro lSystem
Parking brake
Air conditioning
Defrost the windscreen and
remove condensation
Blower motor, Interior venti-
lation
Rear window heating
Seat heating
Seat setting
Crash-security module
Switching center column,
Light switch element, steer-
ing Operating panel Audio
HiFi amplifier, Video module
TV
Rear-view mirror
Overhead function center,
Exterior door handle elec-
tronics
Instrument cluster
Additional battery: Dual
Accumulator System (DSS)
Fuel pump control electron-
ics, Natural Vacuum Leak
Detection, Gas generator for
battery safety terminal,
Remote control receiver
Electric window opener
Heating and air-condition-
ing system
Vehicle's diagnostic port
(interface)
Interior lights in the boot
Vertical Dynamic platform
Vertical Dynamic platform
Vertical Dynamic platform
Mono Camera (Kafas)
Head Unit
Active Sound Design
USB Hub
Body Domain Controller
SymbolMeaning

333
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
Controller (Toyota Supra
Command)
Electric fan (air cooler), Con-
trolled differential lock
12 V socket, Cigarette
lighter
Interior lights in the boot
Door lock, Exterior door
handle electronics, Telem-
atic Communication Box
Electronic gear box control
Telematic Communication
Box, Exterior door handle
electronics
Electric fan, Rear Power dis-
tributor
Engine control
Switching center column,
Light switch element, Body
Domain Controller
Control panels centre con-
sole, Interior light in the
glove box, Interior light, Inte-
rior light in the sunvisor,
Exterior mirror, Selector
lever
Telematic Communication
Box, Exterior door handle
electronics passenger side
Switcher block driver's door,
Exterior mirror
SymbolMeaningBreakdown Assist
Vehicle equipment
If a malfunction occurs
while driving
WARNING
If a malfunction occurs while driving,
immediately stop the vehicle in a safe
place.

334
Supra Owner's Manual5-1. MOBILITY
WARNING
If a warning light illuminates or
flashes, or a warning message is dis-
played, immediately stop the vehicle
in a safe place. Do not open the hood
to inspect the engine, as doing so
may lead to serious injury, such as
steam burns. If a warning message is
displayed, perform the necessary pro-
cedures according to the displayed
message or explanation in the
owner’s manual.
These warning messages indicate
that a malfunction has occurred in a
system or function of the vehicle. If
you continue to drive the vehicle, the
engine may stop suddenly, possibly
leading to an accident. Also, even if
no warning lights are illuminated or
messages are displayed, if any
abnormal sounds, smells or vibrations
are detected, or of the engine stops
suddenly, refrain from opening the
hood to inspect the engine and con-
sult an authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
WARNING
If you hear a loud noise or feel some-
thing impact the underside of the
vehicle while driving, immediately
stop the vehicle in a safe place.
After stopping the vehicle in a safe
place, check the underside of the
vehicle for any leaking brake fluid, oil
or fuel. If any fluid is leaking, stop
driving immediately and have the
vehicle inspected by an authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Brake and fuel lines run under the
floor of the vehicle. If any of these
lines are damaged, the brakes may
fail or leaking fuel may ignite and
cause a fire.
WARNING
If the engine stalls while driving, sev-
eral warning lights will illuminate.
Depending on vehicle specifications,
the power-assisted brakes and power
steering may stop operating. In this
case the braking power will be
reduced and operation of the steering
wheel will become heavy. Although
the operation of the brakes and steer-
ing will not be totally lost, they will
require stronger than normal input to
operate. Stop the vehicle in a safe
place as soon as possible.

335
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
If you have been involved in a colli-
sion, perform the following:
1Immediately leave the vehicle
and move to a safe place in
order to avoid secondary colli-
sions. Make sure to turn the
engine switch off to help prevent
the vehicle from catching fire. If
the airbags have deployed
(inflated), the airbag related
parts will be extremely hot.
Avoid touching the parts with
your hands or any part of your
body.
2If someone has been injured,
contact emergency services and
request assistance. If someone
has no obvious external injuries,
but they may have a head injury,
keep their airway open while
moving them as little as possi-
ble. If there is danger of the
vehicle being involved in a sec-
ondary collision, move the
injured person to a safe place
while keeping them as horizon-
tal as possible.
WARNING
While driving, if a tire has been punc-
tured or has ruptured, firmly grip the
steering wheel, gradually reduce the
vehicle speed and stop the vehicle in
a safe place. Avoid sudden braking
and steering operations as doing so
may cause you to lose control of the
vehicle. Gradually reduce the vehicle
speed and stop the vehicle in a safe
place.
●Vehicles equipped with run-flat tires
As the sidewalls of run-flat tires are
especially stiff, it may be difficult to
feel when a tire is punctured or if the
tire pressure has decreased sud-
denly. It may also be difficult to vis-
ually tell that a tire is flat or the
inflation pressure is low.
If the tire pressure warning indicator
illuminates, while avoiding sudden
braking or steering operations,
decelerate to 80 km/h or less, care-
fully stop the vehicle in a safe place
and check the condition of each tire.
For details on how to check the condi-
tion of the tires, refer to page 278. If
any tire is damaged, contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for assistance.
The tire pressure warning indicator
may not illuminate if the inflation pres-
sure of a tire drops rapidly, such as
when a tire has burst.
If you have been involved in
a collision

336
Supra Owner's Manual5-1. MOBILITY
The button is located in the centre
console.
1Unlock the cover, arrow 1, and
fold open, arrow 2.2Remove the warning triangle.
Roadside assistance can be con-
tacted if you require help in the
event of a breakdown.
In the case of a breakdown, data on
the vehicle condition can be trans-
ferred to the roadside assistance. It
is possible that malfunctions can be
remedied directly.
Contact with roadside assistance
can also be made via a vehicle
message, see page 153.
Activated Toyota Supra Connect
contract.
Mobile reception.
Standby state is switched on.
Via Toyota Supra Command:
Hazard warning lights
Warning triangle
Roadside assistance
Principle
General
Operating requirements
Starting roadside assistance
