2019 TOYOTA SUPRA Owners Manual

337
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
1"Connected Serv."
2"Toyota Supra Assistance"
3"Roadside assistance"
A voice connection is established.
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
Press the SOS button in an emer-
gency only.
The emergency call establishes a
connection to a public emergency
call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
The emergency call is placed using
the SIM card integrated in the vehi-
cle and cannot be switched off.
For technical reasons, it might not
be possible to make an emergency
call in highly adverse conditions.Standby state is switched on.
Emergency call system is func-
tional.
If the vehicle is equipped with
automatic emergency call: the
SIM card integrated in the vehi-
cle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1Tap on cover flap.
Emergency call (except for
Russia)
Statutory emergency call
Principle
General
Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering

338
Supra Owner's Manual5-1. MOBILITY
2Press and hold the SOS button
until the LED in the button area
is illuminated green.
The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
The LED flashes green when the
connection to the emergency
number has been established.
In the case of an emergency call, data
is sent to the public rescue coordination
centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
Information about data transfer and
saving, see page
12.
Even if you can no longer hear the res-
cue coordination centre through the
loudspeakers, the rescue coordination
centre may still be able to hear you
speak.
The rescue coordination centre
ends the emergency call.
The emergency call function may
be impaired.
The LED in the emergency call but-
ton area illuminates for approx. 30
seconds. A vehicle message is shown.
Have a check performed by an any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
Press the SOS button in an emer-
gency only.
The automatic emergency call sys-
tem establishes a connection with
the Toyota emergency call centre.
Even if no emergency call through
Toyota emergency call centre is
possible, in some cases an emer-
gency call may still be established
to a public emergency call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
For technical reasons, it might not
be possible to make an emergency
call in highly adverse conditions.
Malfunction
Automatic emergency call
Principle
General

339
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Standby state is switched on.
Activated Toyota Supra Connect
contract.
Emergency call system is func-
tional.
The SIM card integrated in the
vehicle is activated.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
1Tap on cover flap.2Press and hold the SOS button
until the LED in the button area
is illuminated green.
The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
The LED flashes green when the
connection to the emergency
number has been established.
When an emergency call is sent via
Toyota Emergency Call Centre, data is
sent to the Toyota Emergency Call
Centre in order to decide what rescue
measures are required. The data may
include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
If questions posed by the Toyota Emer-
gency Call Centre remain unanswered,
rescue measures are automatically ini-
tiated.
Even if you can no longer hear the
Toyota Emergency Call Centre through
the loudspeakers, the Toyota Emer-
gency Call Centre may still be able to
hear you speak.
The Toyota Emergency Call Centre
ends the emergency call. Overview
SOS button.
Operating requirements
Automatic triggering
Manual triggering

340
Supra Owner's Manual5-1. MOBILITY
The system can be used to trigger
an emergency call automatically or
manually in emergency situations.
In compliance with the applicable
laws, the vehicle is equipped with
an automatic emergency call sys-
tem or an automatic SOS device
with automatic activation function,
which uses the National Automated
Information System or the direct
national emergency number,
depending on the country where it
is being used. Sellers, manufactur-
ers and importers of the vehicle
accept no responsibility for any
malfunctions of the automatic
emergency call system or the auto-
matic SOS device if such malfunc-
tions are caused by deficiencies of
the operator of the National Auto-
mated Emergency Call System, the
infrastructure of the National Auto-
mated Emergency Call System or
the operator of the telecommunica-
tions network, by improper use of
the automatic emergency call sys-
tem or the automatic SOS device
by the customer, or by other factors
not under the control of the seller,
manufacturer or importer of the vehicle. In compliance with the
applicable laws, neither the auto-
matic emergency call system nor
the automatic SOS device can be
deactivated.
Press the SOS button in an emer-
gency only.
The emergency call establishes a
connection to a public emergency
call number.
This depends on factors such as
the specific mobile telephone net-
work and the national regulations.
The emergency call is placed using
the SIM card integrated in the vehi-
cle and cannot be switched off.
For technical reasons, it might not
be possible to make an emergency
call in highly adverse conditions.
Standby state is switched on.
Emergency call system is func-
Emergency call (for Russia)
Statutory emergency call
Principle
General
Overview
SOS button.
Operating requirements

341
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
tional.
In certain circumstances, for exam-
ple deployment of the airbags, an
emergency call may be placed
automatically immediately after an
accident of corresponding severity.
An automatic emergency call is not
influenced by pressing the SOS
button.
If an emergency call is triggered,
other signal tones and audio
sources are set to mute, for exam-
ple Parking Sensors.
1Tap on cover flap.
2Press and hold the SOS button
until the LED in the button area
is illuminated green.
The LED is illuminated green
when the emergency call has
been activated.
If a cancellation request is displayed on
the Control Display, the emergency call
can be cancelled.
If the situation permits, wait in the vehi-
cle until voice contact has been estab-
lished.
The LED flashes green when the
connection to the emergency
number has been established.
In the case of an emergency call, data
is sent to the public rescue coordination
centre in order to decide what rescue
measures are required. The data may include, for example, the current posi-
tion of the vehicle, if this can be deter-
mined.
Even if you can no longer hear the res-
cue coordination centre through the
loudspeakers, the rescue coordination
centre may still be able to hear you
speak.
The rescue coordination centre
ends the emergency call.
When the drive-ready state is
switched on, the LED in the emer-
gency call button area illuminates
for approx. 2 seconds to indicate
that the emergency call system is
ready for operation.
■General
The operational readiness of the
emergency call system can be
checked. During the check, do not
activate any other functions. If
applicable, comply with any addi-
tional instructions regarding the
procedure via the vehicle loud-
speakers.
Toyota Supra Connect functions
might not be available for a specific
time following the check.
■Requirements
Vehicle is stationary for at least 1
minute.
Standby state is switched on.
No other services are active. Automatic triggering
Manual triggering
Operational readiness
Checking operational readiness

342
Supra Owner's Manual5-1. MOBILITY
Low-beam headlights switched
off in switch position
■Using the light switch
Make sure that the low-beam head-
lights are not switched on, for
example by the automatic driving
lights control. Therefore, perform
the check when there is sufficient
ambient brightness.
1Light switch, turn from setting
2Press SOS button. The compo-
nents of the system, for example
the microphone, are checked in
a specific sequence.
LED in the SOS button is illumi-
nated briefly, the system is func-
tional.
LED on the SOS button flashes;
the system could not be checked
successfully. Check the opera-
tional readiness once again
under the changed conditions.
If the emergency call does not work
even after a renewed system test,
have the system checked by an any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■Via Toyota Supra Command
1"My vehicle"
2 Press the button.
3"Emergency call test"
4"Start emergency call test"
5"Start system test"
The self-test of the system is started; follow the instructions on
the Control Display.
If the system has not been suc-
cessfully checked, check the opera-
tional readiness once again under
changed conditions.
If the emergency call does not work
even after a renewed system test,
have the system checked by an any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The emergency call function may
be impaired.
The LED in the emergency call but-
ton area illuminates for approx. 30
seconds. A vehicle message is
shown.
Have a check performed by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.

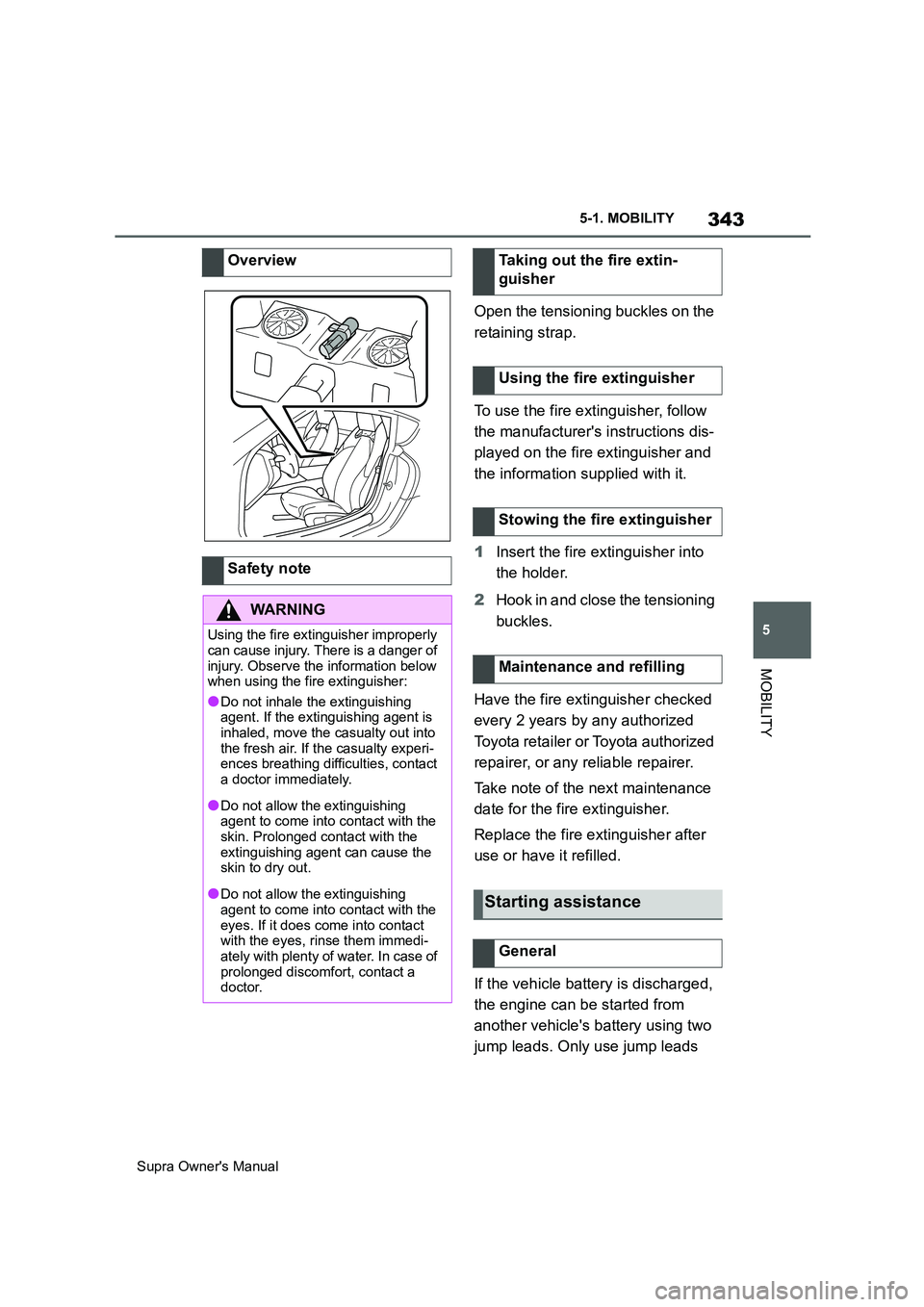

The fire extinguisher can be used to
put out vehicle fires.
Malfunction
Fire extinguisher
Principle

343
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Open the tensioning buckles on the
retaining strap.
To use the fire extinguisher, follow
the manufacturer's instructions dis-
played on the fire extinguisher and
the information supplied with it.
1Insert the fire extinguisher into
the holder.
2Hook in and close the tensioning
buckles.
Have the fire extinguisher checked
every 2 years by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Take note of the next maintenance
date for the fire extinguisher.
Replace the fire extinguisher after
use or have it refilled.
If the vehicle battery is discharged,
the engine can be started from
another vehicle's battery using two
jump leads. Only use jump leads Overview
Safety note
WARNING
Using the fire extinguisher improperly
can cause injury. There is a danger of
injury. Observe the information below
when using the fire extinguisher:
●Do not inhale the extinguishing
agent. If the extinguishing agent is
inhaled, move the casualty out into
the fresh air. If the casualty experi-
ences breathing difficulties, contact
a doctor immediately.
●Do not allow the extinguishing
agent to come into contact with the
skin. Prolonged contact with the
extinguishing agent can cause the
skin to dry out.
●Do not allow the extinguishing
agent to come into contact with the
eyes. If it does come into contact
with the eyes, rinse them immedi-
ately with plenty of water. In case of
prolonged discomfort, contact a
doctor.
Taking out the fire extin-
guisher
Using the fire extinguisher
Stowing the fire extinguisher
Maintenance and refilling
Starting assistance
General

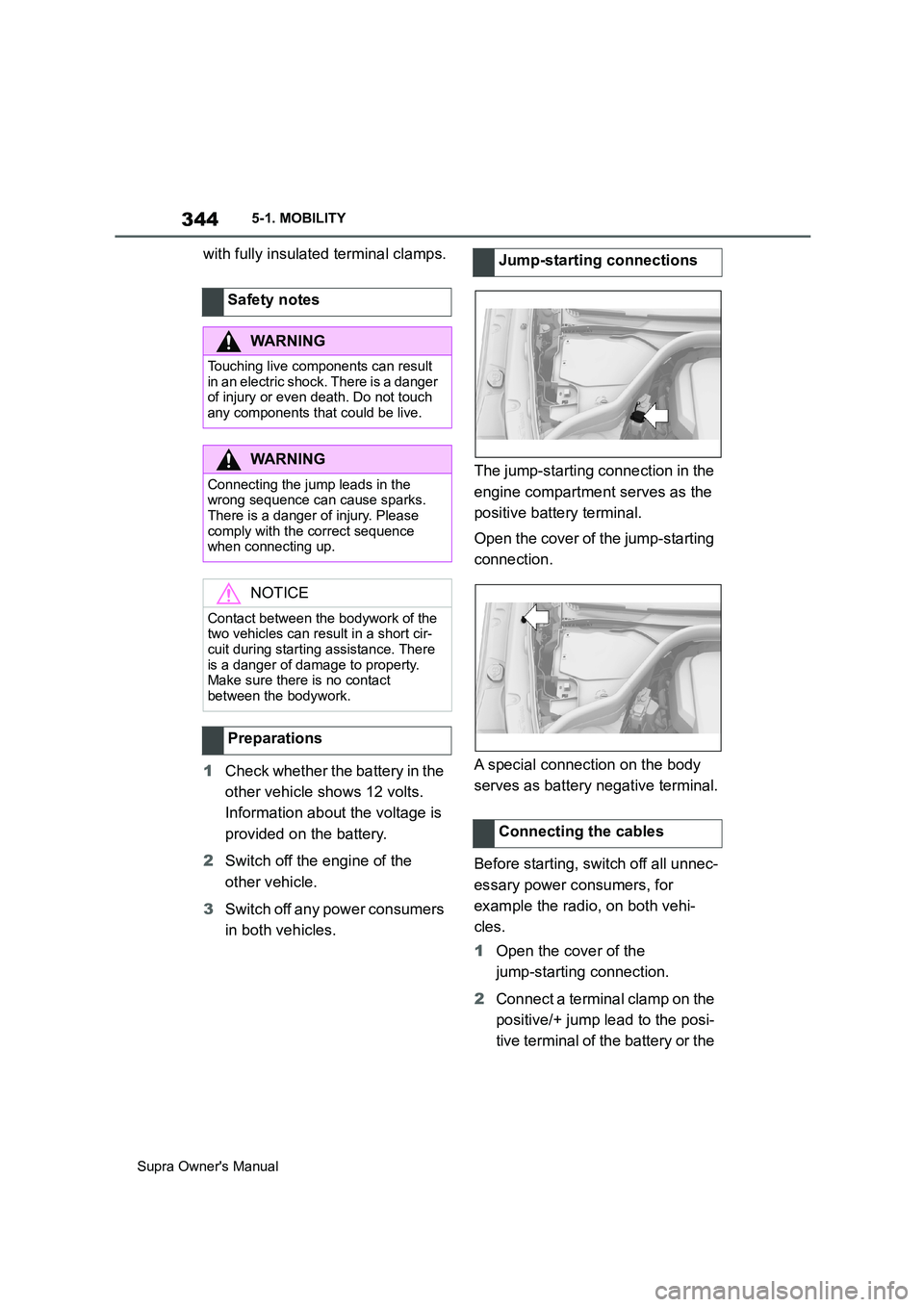

344
Supra Owner's Manual5-1. MOBILITY
with fully insulated terminal clamps.
1Check whether the battery in the
other vehicle shows 12 volts.
Information about the voltage is
provided on the battery.
2Switch off the engine of the
other vehicle.
3Switch off any power consumers
in both vehicles.The jump-starting connection in the
engine compartment serves as the
positive battery terminal.
Open the cover of the jump-starting
connection.
A special connection on the body
serves as battery negative terminal.
Before starting, switch off all unnec-
essary power consumers, for
example the radio, on both vehi-
cles.
1Open the cover of the
jump-starting connection.
2Connect a terminal clamp on the
positive/+ jump lead to the posi-
tive terminal of the battery or the Safety notes
WARNING
Touching live components can result
in an electric shock. There is a danger
of injury or even death. Do not touch
any components that could be live.
WARNING
Connecting the jump leads in the
wrong sequence can cause sparks.
There is a danger of injury. Please
comply with the correct sequence
when connecting up.
NOTICE
Contact between the bodywork of the
two vehicles can result in a short cir-
cuit during starting assistance. There
is a danger of damage to property.
Make sure there is no contact
between the bodywork.
Preparations
Jump-starting connections
Connecting the cables
