2019 TOYOTA SUPRA Owners Manual

313
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
1Allow the engine to cool down.
2Open the bonnet, see page 306.
3Turn cap on coolant tank slightly
anticlockwise, then allow the
pressure to escape.
4Open cap on coolant tank.
5The coolant level is correct if it is
just below the Max. mark in the
filler neck.
6Tighten cap.
1Allow the engine to cool down.
2Open the bonnet, see page 306.
3Turn cap on coolant tank slightly
anticlockwise, then allow the
pressure to escape.
4Open cap on coolant tank.
5If necessary, slowly top up to the
correct level; do not overfill.
6Tighten cap.
7Have the cause of coolant loss
rectified as soon as possible.
■Disposal
When disposing of coolant and
coolant additives, comply with the
relevant environmental protection
regulations.
All washer jets are supplied from
one tank.
Use a mixture of tap water and
screenwash concentrate for the
windscreen washer system, if nec-
essary with the addition of anti-
freeze.
Recommended minimum fill level: 1
litre, 1.7 Imp. pints. Checking the coolant level
Topping up
Washer fluid
General
Safety notes
WARNING
Some antifreezes can contain toxic
substances, and are flammable.
There is a risk of fire and fatal injury.
Please comply with the instructions
on the containers. Keep antifreezes
away from sources of combustion. Do
not pour service products into other
bottles. Keep service products out of
the reach of children.

314
Supra Owner's Manual5-1. MOBILITY
The reservoir for the washer fluid is
located in the engine compartment.Using undiluted screenwash con-
centrate or antifreeze made of alco-
hol may result in false indications at
low temperatures below
-15°C/+5°F.
WARNING
Washer fluid can ignite on contact
with hot parts of the engine and catch
fire. There is a danger of injury or
damage to property. Only top up
washer fluid when the engine has
cooled down. Then fully close the cap
of the washer fluid reservoir.
NOTICE
Additives containing silicone added to
the washer fluid for their water bead-
ing effect on the windows may dam-
age the washer system. There is a
danger of damage to property. Do not
add any additives containing silicone
to the washer fluid.
NOTICE
Mixing different screenwash concen-
trates or antifreezes can result in
damage to the washer system. There
is a danger of damage to property. Do
not mix different screenwash concen-
trates or antifreezes. Please comply
with the instructions and mixing ratios
stated on the containers.
Overview
Malfunction

315
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
This chapter describes all standard,
country-specific and special equip-
ment available for the model series.
It may therefore describe equip-
ment and functions which are not
installed in your vehicle, for exam-
ple on account of the optional
equipment selected or the country
specification. This also applies to
safety-relevant functions and sys-
tems. Please comply with the rele-
vant laws and regulations when
using the corresponding functions
and systems.
The maintenance system indicates
what maintenance measures are
required and thereby assists in
maintaining the road safety and
operational safety of the vehicle.
The exact work required and the
maintenance intervals may vary
depending on the country specifica-
tions. Replacement work, spare
parts, operating materials and wear
materials are calculated sepa-
rately. Additional information is
available from a Service Partner of
the manufacturer or another quali-
fied Service Partner or a specialist
workshop.Sensors and special algorithms
monitor the conditions in which the
vehicle is used. CBS uses this
information to determine the main-
tenance requirement.
The system thus enables the scope
of the maintenance work to be
adapted to the individual usage
profile.
Information on service require-
ments, see page 159, can be
shown on the Control Display.
Periods when the vehicle is out of
use with its battery disconnected
are not taken into account.
In such cases, have any
time-dependent maintenance pro-
cedures, for example for the brake
fluid and, where applicable, the
engine oil and microfilter/activated
charcoal filter, updated by a Service
Partner of the manufacturer or
another qualified Service Partner or
a specialist workshop.
Maintenance
Vehicle equipment
Maintenance System
Condition Based Service
CBS
Principle
General
Periods out of use

316
Supra Owner's Manual5-1. MOBILITY
Have maintenance and repairs car-
ried out by a Service Partner of the
manufacturer or another qualified
Service Partner or a specialist
workshop.
The maintenance work carried out
is entered in the maintenance
records and the vehicle data. As
with a service booklet, the entries
provide evidence of regular mainte-
nance.
Maintenance entered is shown on
the Control Display, see page 159.
Scheduled maintenance should be
performed at specified intervals
according to the maintenance
schedule.
For full details of your maintenance
schedule, read the "Toyota Service
Booklet" or "Toyota Warranty Booklet".
Scheduled maintenance should be
performed at specified intervals according to the maintenance
schedule.
For full details of your maintenance
schedule, refer to the "Warranty and
Service Booklet".
Scheduled maintenance should
be performed at specified inter-
vals according to the mainte-
nance schedule.
The interval for scheduled maintenance
is determined by the odometer reading
or the time interval, whichever comes
first, shown in the schedule.
Maintenance beyond the last period
should be performed at the same inter-
vals.
Where to go for maintenance
service?
It makes good sense to take your vehi-
cle to your local Toyota dealer for main-
tenance service as well as other
inspections and repairs.
Toyota technicians are well-trained spe-
cialists receiving the latest service infor-
mation through technical bulletins,
service tips and in-dealership training
programs. They learn to work on Toyota
before they work on your vehicle, rather
than while they are working on it.
Doesn’t that seem like the best way?
Your Toyota dealer has invested a lot of
money in special Toyota tools and ser-
vice equipment. It helps them to do the
job better and at less cost.
Your Toyota dealer’s service depart-
Service history
Maintenance and repairs
Entries
Displays
Scheduled maintenance (for
Europe)
Scheduled maintenance (for
Australia)
Scheduled maintenance
(except for Europe and Aus-
tralia)

317
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
ment will perform all of the scheduled
maintenance on your vehicle reliably
and economically.
Rubber hoses (for cooling and heater
system, brake system and fuel system)
should be inspected by a qualified tech-
nician according to the Toyota mainte-
nance schedule.
Rubber hoses are particularly important
maintenance items. Have any deterio-
rated or damaged hoses replaced
immediately. Note that rubber hoses
will deteriorate with age, resulting in
swelling, chafing or cracking.
No maintenance work other than
normal maintenance is required to
keep the emission levels of your
vehicle within the design limits.
Devices connected to the OBD
socket trigger the alarm system
when the vehicle is locked.
Remove any devices connected to
the OBD socket before locking the
vehicle.The OBD socket for checking emis-
sions-relevant components is
located on the driver's side.
For Australia/New Zealand:
maintenance
Socket for on-board diagno-
sis OBD
General
Safety note
NOTICE
Incorrect use of the OBD on-board
diagnosis socket can result in mal-
functions in the vehicle. There is a
danger of damage to property. Only
have service and maintenance work
involving the OBD on-board diagnosis
socket carried out by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer or
other authorised persons. Only con-
nect devices that have been tested
and found to be safe for use with the
OBD on-board diagnosis socket.
Position

318

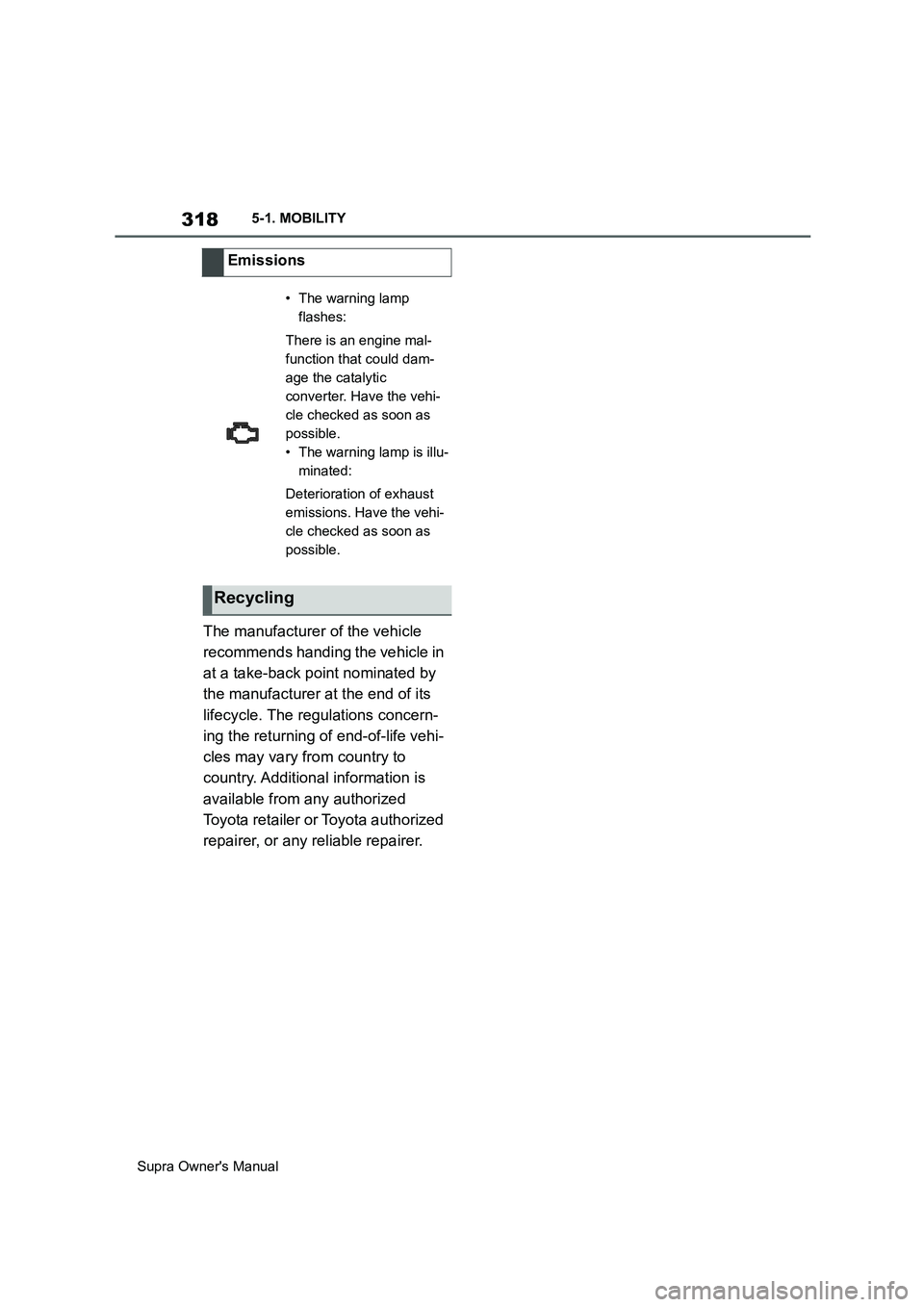

Supra Owner's Manual5-1. MOBILITY
The manufacturer of the vehicle
recommends handing the vehicle in
at a take-back point nominated by
the manufacturer at the end of its
lifecycle. The regulations concern-
ing the returning of end-of-life vehi-
cles may vary from country to
country. Additional information is
available from any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.Emissions
•The warning lamp
flashes:
There is an engine mal-
function that could dam-
age the catalytic
converter. Have the vehi-
cle checked as soon as
possible.
• The warning lamp is illu-
minated:
Deterioration of exhaust
emissions. Have the vehi-
cle checked as soon as
possible.
Recycling

319
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
Your vehicle needs to be serviced according to the normal maintenance
schedule.
Maintenance operations:
I = Inspect, correct or replace as necessary
R = Replace, change or lubricate
Scheduled maintenance (except for Europe and Aus-
tralia)
Perform maintenance by the schedule as follows:
Maintenance schedule requirements
Maintenance schedule (except for Korea, Mexico, South
Africa, Russia and Turkey)
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever
comes first.)x1000
km1224364860728496
x1000
miles7.214.421.628.83643.250.457.6
BASIC ENGINE COMPONENTS
1
Engine oil (Include
engine oil filter)
<>
RRRRRRRR12
IGNITION SYSTEM
2Spark plugsRRRR24
FUEL AND EMISSION CONTROL SYSTEMS
3Air filterRRRR24
CHASSIS AND BODY
4Brake padsReplace when the brake warning light
appears.-
5Brake fluidFirst replace at 36 months, then replace at every 24
months.

320
Supra Owner's Manual5-1. MOBILITY
6
Horn, headlight
flashers and hazard
warning flashers
II48
7Interior lightingII48
8BlowerII48
9Lighting systemII48
10Seat beltsII48
11Wiper and window
washer systemII48
12
Tire settings in the
central information
display (CID)
II48
13Tires (If necessary,
emergency wheel)II48
14Mobility SetII48
15
Warning triangle,
high-visibility jacket
and first-aid kit
II48
16
Washer fluid for the
window washer sys-
tem
II48
17Coolant level and
coolant compositionII48
18
Brake lines and the
brake line connec-
tions
II48
19
Vehicle underbody
and all other visible
components
II48
SERVICE
INTERVAL:ODOMETER READING
MONTHS(Odometer read-
ing or months,
whichever
comes first.)x1000
km1224364860728496
x1000
miles7.214.421.628.83643.250.457.6
