2019 TOYOTA SUPRA Owners Manual

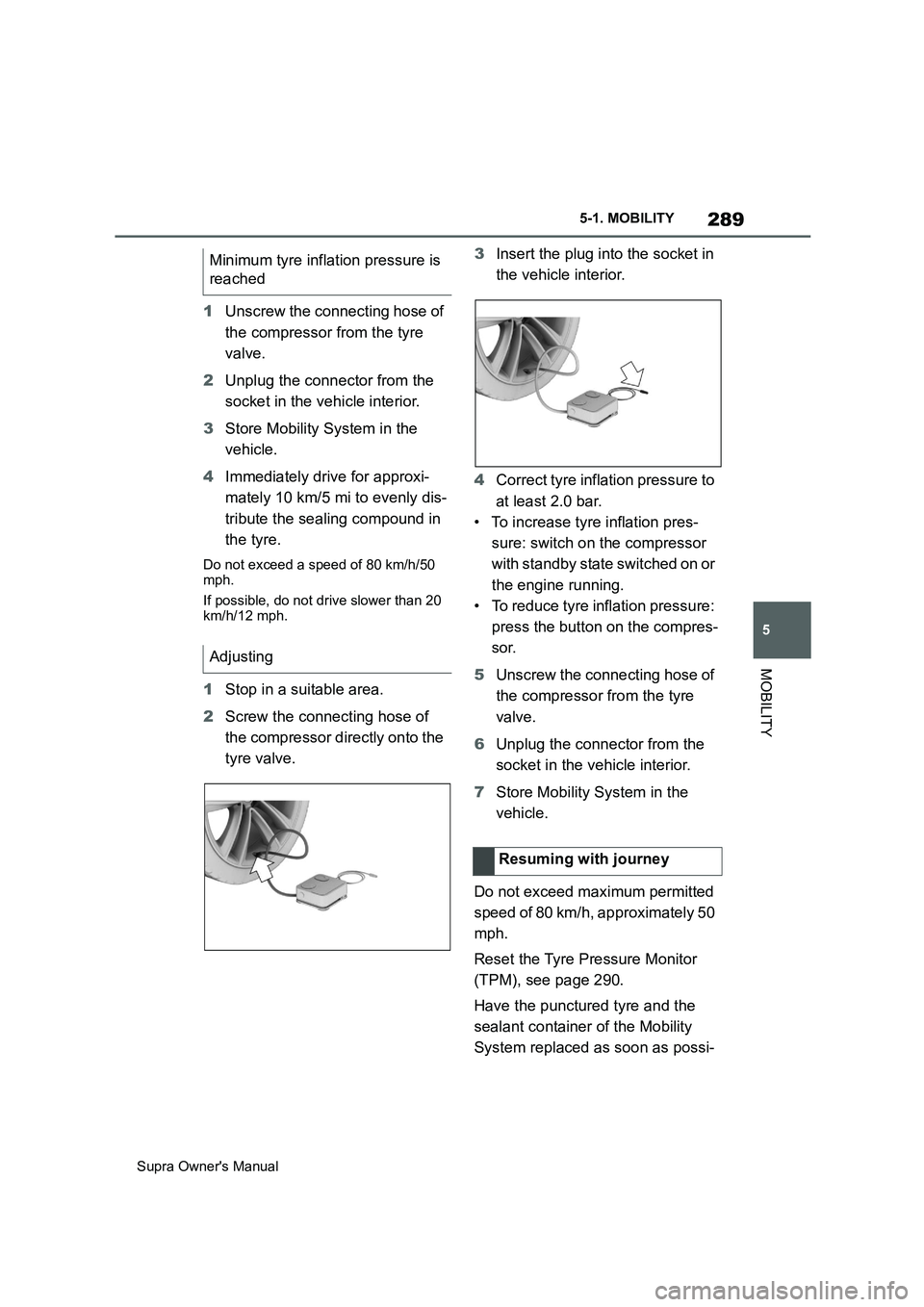

289
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
1Unscrew the connecting hose of
the compressor from the tyre
valve.
2Unplug the connector from the
socket in the vehicle interior.
3Store Mobility System in the
vehicle.
4Immediately drive for approxi-
mately 10 km/5 mi to evenly dis-
tribute the sealing compound in
the tyre.
Do not exceed a speed of 80 km/h/50
mph.
If possible, do not drive slower than 20
km/h/12 mph.
1Stop in a suitable area.
2Screw the connecting hose of
the compressor directly onto the
tyre valve.3Insert the plug into the socket in
the vehicle interior.
4Correct tyre inflation pressure to
at least 2.0 bar.
• To increase tyre inflation pres-
sure: switch on the compressor
with standby state switched on or
the engine running.
• To reduce tyre inflation pressure:
press the button on the compres-
sor.
5Unscrew the connecting hose of
the compressor from the tyre
valve.
6Unplug the connector from the
socket in the vehicle interior.
7Store Mobility System in the
vehicle.
Do not exceed maximum permitted
speed of 80 km/h, approximately 50
mph.
Reset the Tyre Pressure Monitor
(TPM), see page 290.
Have the punctured tyre and the
sealant container of the Mobility
System replaced as soon as possi- Minimum tyre inflation pressure is
reached
Adjusting
Resuming with journey

290
Supra Owner's Manual5-1. MOBILITY
ble.
Tire chains cannot be mounted.
Snow tires should be used instead.
The system monitors the tyre infla-
tion pressure in the four fitted tyres.
The system warns if the tyre infla-
tion pressure in one or more tyres
has fallen.
Sensors in the tyre valves measure
the tyre inflation pressure and tyre
temperature.
The system detects the fitted tyres
automatically. The system shows
the preset specified pressures on
the Control Display and compares
them to the current tyre inflation
pressures.
If tyres are fitted which are not
listed on the tyre inflation pressure
labels in the vehicle, see page 278, for example tyres with special
approval, the system must be
actively reset. The current tyre
inflation pressures are then
accepted as the specified values.
To operate the system, also please
comply with the other information
and notes in the chapter Tyre infla-
tion pressure, see page 278.
The following requirements must be
met for the system, otherwise relia-
ble signalling of a loss of tyre infla-
tion pressure is not ensured:
• After each tyre or wheel change,
the system has detected the fit-
ted tyres, updated the relevant
information and, after a short
journey, shown it on the Control
Display.
If the system does not detect the tyres
Snow chains
Selecting tire chains
NOTICE
■Driving with tire chains
Do not fit tire chains. Tire chains may
damage the vehicle body and sus-
pension, and adversely affect driving
performance.
Tyre Pressure Monitor (TPM)
Principle
General
Safety note
WARNING
The display showing the specified
tyre inflation pressures does not
replace the tyre inflation pressure
information on the vehicle. If incorrect
data has been entered into the tyre
settings, the specified tyre inflation
pressures will also be incorrect. As a
result, reliable signalling of a loss of
tyre inflation pressure can no longer
be guaranteed. There is a danger of
injury and damage to property. Make
sure that the tyre sizes of the fitted
tyres are displayed correctly and that
they match the specifications on the
tyres and the tyre inflation pressure
information.
Operating requirements

291
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
automatically, enter the specifications
for the fitted tyres in the tyre settings.
• In the case of tyres with special
approval:
• After every tyre or wheel change, a
reset must be carried out with the
correct tyre inflation pressure.
• A reset must be carried out after the
tyre inflation pressure has been
adjusted to a new value.
• Wheels with TPM wheel elec-
tronics.
If the system does not detect the
tyres automatically, the specifica-
tions for the fitted tyres can be
entered in the tyre settings.
The tyre sizes of the fitted tyres can
be found in the tyre inflation pres-
sure information, see page 278, or
directly on the tyres.
The tyre specifications do not have
to be re-entered if the tyre inflation
pressure is corrected.
For summer and winter tyres, the
last tyre specifications entered in
each case are saved. This means
that the settings of the sets of tyres
last used can be selected after a
tyre or wheel change.
Via Toyota Supra Command:
1"My vehicle"2"Vehicle status"
3"Tyre Pressure Monitor"
Via Toyota Supra Command:
1"Tyre settings"
2Select tyres:
• "Summer tyres"
• "Winter tyres/all-season tyres"
3"Current:"
4Select the type of tyre fitted on
the rear axle:
• Tyre size, for example 245/45
R18 96 Y.
• In the case of tyres with special
approval: "Other tyre"
5Select the load status of the
vehicle if a tyre size has been
selected.
6"Confirm settings"
The measurement of the current
tyre inflation pressure is started.
The progress of the measurement
is shown.
The status of the system, for exam-
ple whether the system is active,
can be shown on the Control Dis-
play.
Via Toyota Supra Command:
1"My vehicle" Tyre settings
General
Calling up the menu
Adjusting the settings
Status display
Current status

292

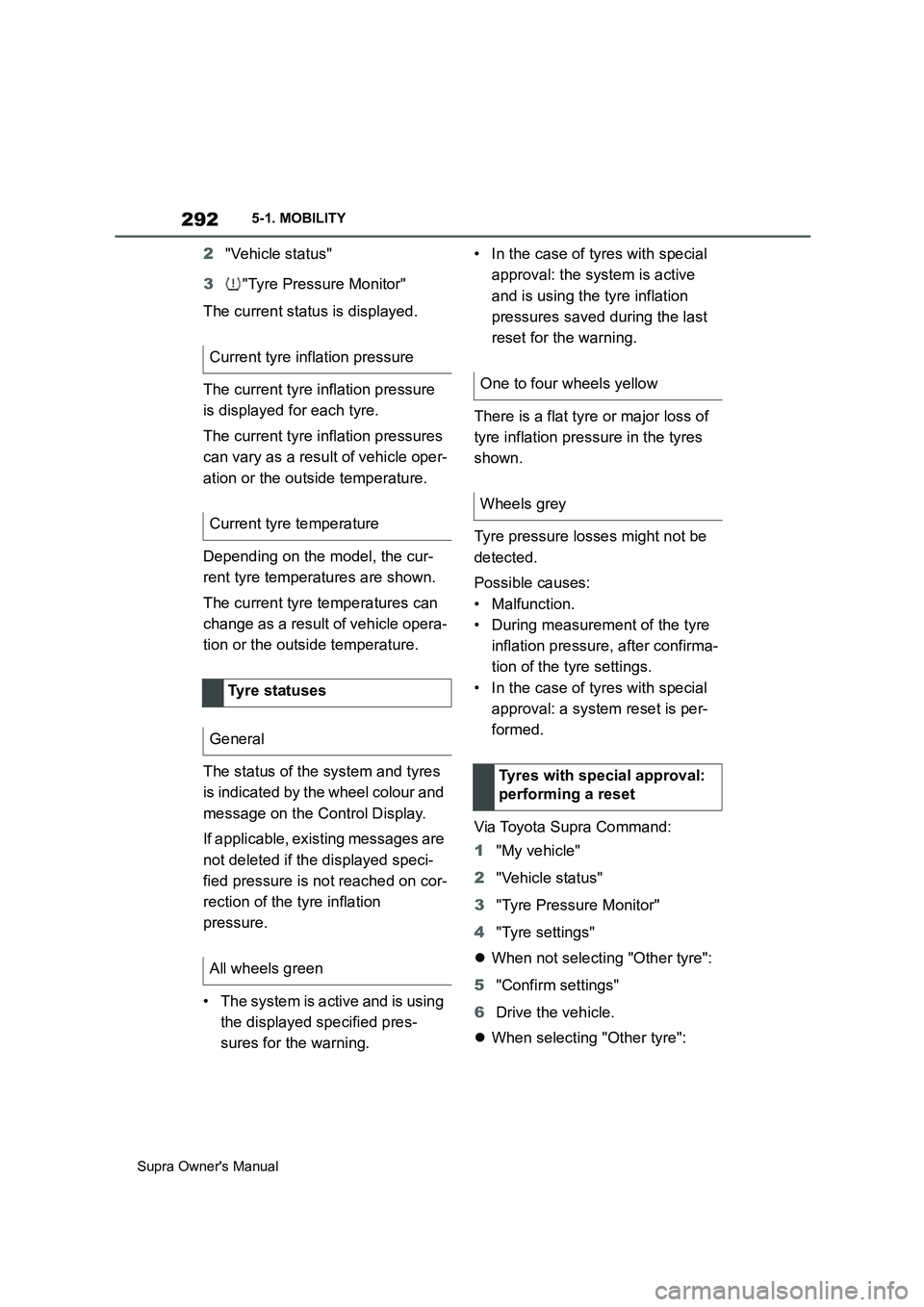

Supra Owner's Manual5-1. MOBILITY
2"Vehicle status"
3"Tyre Pressure Monitor"
The current status is displayed.
The current tyre inflation pressure
is displayed for each tyre.
The current tyre inflation pressures
can vary as a result of vehicle oper-
ation or the outside temperature.
Depending on the model, the cur-
rent tyre temperatures are shown.
The current tyre temperatures can
change as a result of vehicle opera-
tion or the outside temperature.
The status of the system and tyres
is indicated by the wheel colour and
message on the Control Display.
If applicable, existing messages are
not deleted if the displayed speci-
fied pressure is not reached on cor-
rection of the tyre inflation
pressure.
• The system is active and is using
the displayed specified pres-
sures for the warning.• In the case of tyres with special
approval: the system is active
and is using the tyre inflation
pressures saved during the last
reset for the warning.
There is a flat tyre or major loss of
tyre inflation pressure in the tyres
shown.
Tyre pressure losses might not be
detected.
Possible causes:
• Malfunction.
• During measurement of the tyre
inflation pressure, after confirma-
tion of the tyre settings.
• In the case of tyres with special
approval: a system reset is per-
formed.
Via Toyota Supra Command:
1"My vehicle"
2"Vehicle status"
3"Tyre Pressure Monitor"
4"Tyre settings"
When not selecting "Other tyre":
5"Confirm settings"
6Drive the vehicle.
When selecting "Other tyre": Current tyre inflation pressure
Current tyre temperature
Tyre statuses
General
All wheels green
One to four wheels yellow
Wheels grey
Tyres with special approval:
performing a reset

293
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
7"Tyre settings"
8Switch on drive-ready state but
do not drive off.
9Reset the tyre inflation pressure:
"Perform reset".
10Drive off.
The wheels are shown red and the
following appears on the display:
"Resetting Tyre Pressure Moni-
tor…".
After driving for a short while at
speeds above 30 km/h, 19 mph, the
set tyre pressures are accepted as
target values. The reset is com-
pleted automatically during the jour-
ney.
If the reset was successful, the
wheels are shown in green on the
Control Display and the following
appears: "Tyre Pressure Monitor
active. See label for recommended
pressures.".
You can interrupt your journey at
any time. The reset resumes auto-
matically when you continue your
journey.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
■Measure
Check the tyre inflation pressure
and adjust as necessary.
■Message
In addition, a symbol with a vehicle Messages: for tyres without
special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air was added
or there was a natural,
even loss of tyre inflation
pressure.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.

294
Supra Owner's Manual5-1. MOBILITY
message is shown on the Control
Display.
■Measure
1Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
Vehicle Stability Control VSC will be
activated if necessary as soon as a
message for low tyre inflation pres-
sure appears.
■Message
A symbol with a vehicle message is
shown on the Control Display.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
Messages: in the case of
tyres with special approval
General
Safety note
WARNING
A damaged normal tyre with too little
or no tyre inflation pressure impairs
driving characteristics, for example
steering and braking. Tyres with
run-flat properties allow a limited level
of stability to be maintained. There is
a danger of accidents. Do not con-
tinue driving if the vehicle is fitted with
normal tyres. Comply with the notes
on run-flat tyres and continuing to
drive with these tyres.
If a tyre inflation pressure test is
required

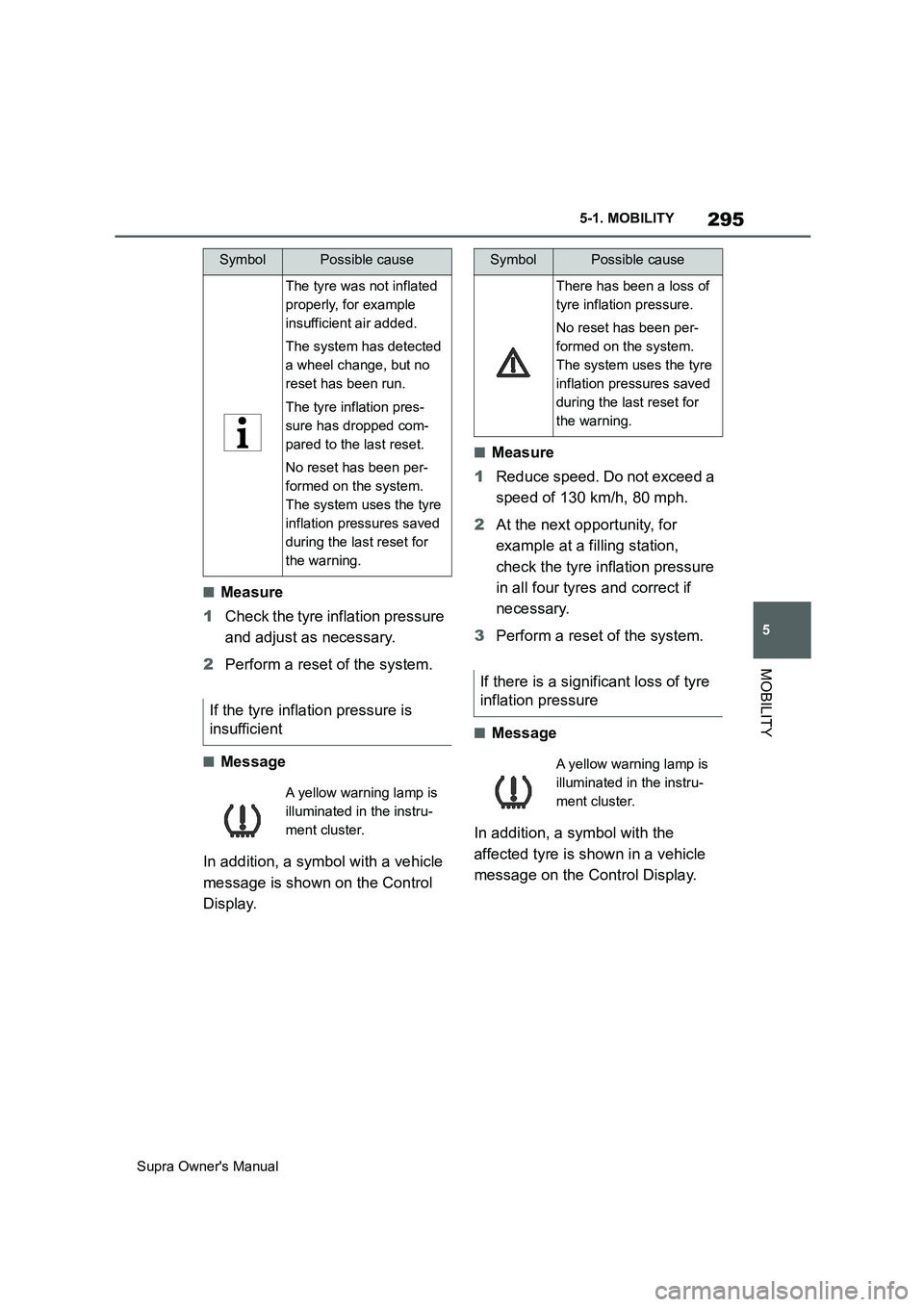

295
5
Supra Owner's Manual5-1. MOBILITY
MOBILITY
■Measure
1Check the tyre inflation pressure
and adjust as necessary.
2Perform a reset of the system.
■Message
In addition, a symbol with a vehicle
message is shown on the Control
Display.
■Measure
1Reduce speed. Do not exceed a
speed of 130 km/h, 80 mph.
2At the next opportunity, for
example at a filling station,
check the tyre inflation pressure
in all four tyres and correct if
necessary.
3Perform a reset of the system.
■Message
In addition, a symbol with the
affected tyre is shown in a vehicle
message on the Control Display.
SymbolPossible cause
The tyre was not inflated
properly, for example
insufficient air added.
The system has detected
a wheel change, but no
reset has been run.
The tyre inflation pres-
sure has dropped com-
pared to the last reset.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
If the tyre inflation pressure is
insufficient
A yellow warning lamp is
illuminated in the instru-
ment cluster.
SymbolPossible cause
There has been a loss of
tyre inflation pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
If there is a significant loss of tyre
inflation pressure
A yellow warning lamp is
illuminated in the instru-
ment cluster.

296
Supra Owner's Manual5-1. MOBILITY
■Measure
1Reduce your speed and care-
fully stop the vehicle. Avoid vio-
lent or sudden braking and
steering manoeuvres.
2Check whether the vehicle is
equipped with standard tyres or
run-flat tyres.
The symbol identifying run-flat tyres,
see page 284, is a circle with the letters
RSC on the tyre side wall.
1Identify the damaged tyre.
Check the tyre inflation pressure in all
four tyres, for example using the tyre
pressure indicator of a flat tyre kit.
In the case of tyres with special
approval: if all four tyres are inflated to
the correct tyre inflation pressures, the
TPM might not have been reset. Per-
form a reset.
If no tyre damage can be identified,
contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
2Repair the flat tyre, for example
using a flat tyre kit or by chang-
ing the wheel.
The use of sealant, for example a
flat tyre kit, can damage the TPM
wheel electronics. Have the elec-
tronics replaced at the next oppor-
tunity.
■Safety notes
■Maximum speed
If a tyre is damaged you can con-
tinue your journey, but do not
exceed a maximum speed of 80
km/h, 50 mph.
■Continuing a journey with a
flat tyre
Note the following if you continue a
journey with a flat tyre:
1Avoid violent or sudden braking
and steering manoeuvres.
2Do not exceed a speed of 80
km/h, 50 mph.
SymbolPossible cause
There is a flat tyre or sub-
stantial loss of tyre infla-
tion pressure.
No reset has been per-
formed on the system.
The system uses the tyre
inflation pressures saved
during the last reset for
the warning.
What to do in the event of a
flat tyre
Standard tyres
Run-flat tyres
WARNING
A run-flat tyre which has low tyre infla-
tion pressure or no tyre inflation pres-
sure at all will change the vehicle's
handling characteristics, for example
there may be reduced directional sta-
bility when braking, longer braking
distances and different self-steering
characteristics. There is a danger of
accidents. Drive with care and do not
exceed a speed of 80 km/h, 50 mph.
