2019 TOYOTA 86 Owners Manual

331-2. Opening, closing and locking the doors and trunk
1
Before driving ■ Notes for locking the doors
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor aga in.
● When the lock operation is performed using the lock sensor, rec ognition
signals will be shown up to two consecutive times. After this, no recogni-
tion signals will be given.
● If the door handle becomes wet when washing the vehicle while t he elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a locatio n 6 ft. (2 m) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
● If the electronic key is inside the vehicle and a door handle b ecomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
● The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
■ Notes for the unlocking function
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pullin g the door
handle again.
● Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handl e
again.
● If the door handle becomes wet when washing the vehicle while t he elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a locatio n 6 ft. (2 m) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
● If there is another electronic key in the detection area, it ma y take slightly
longer to unlock the doors after the door handle is gripped.

341-2. Opening, closing and locking the doors and trunk
■ When the vehicle is not dri ven for extended periods
● To prevent theft of the vehicle, do not leave the electronic ke y within 6 ft.
(2 m) of the vehicle.
● The smart key system can be deactivated in advance. (  P. 487)
■ Alarm
Using the smart key system to lock the doors will set the alarm system.
(  P. 82)
■ To operate the system properly
● Make sure to carry the electronic key when operating the system . Do not
get the electronic key too close to the vehicle when operating the system
from the outside of the vehicle.
Depending on the position and holding condition of the electron ic key, the
key may not be detected correctly and the system may not operat e prop-
erly. (The alarm may go off accidentally, or the door lock prev ention func-
tion may not operate.)
● Do not leave the electronic key inside the trunk.
The key confinement prevention function may not operate, depend ing on
the location of the key (close to a spare tire, the inside edge of the trunk),
conditions (inside a metal bag, close to metallic objects) and the radio
waves in the surrounding area. (  P. 48)
■ If the smart key system does not operate properly
● Locking and unlocking the doors, unlocking the trunk: Use the m echani-
cal key. (  P. 440)
● Starting the engine:  P. 441

351-2. Opening, closing and locking the doors and trunk
1
Before driving ■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
● If the battery charge becomes low, a buzzer will sound in the c abin and a
message will be displayed on the multi-information display when the
engine is stopped. (  P. 413)
● As the electronic key always receives radio waves, the battery will
become depleted even if the electronic key is not used. The fol lowing
symptoms indicate that the electronic key battery may be depleted.
Replace the battery when necessary. (  P. 363)
• The smart key system or the wireless remote control does not o perate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
● To avoid serious deterioration, do not leave the electronic key close to
any of the following electrical appliances that produce a magne tic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■ When the electronic key battery is fully depleted
 P. 363
■ If the smart key system has been d eactivated in a customized se tting
● Locking and unlocking the doors, unlocking the trunk: Use the w ireless
remote control or mechanical key. (  P. 38, 440)
● Starting the engine and changing “ENGINE START STOP” switch
modes:  P. 4 4 1
● Stopping the engine:  P. 443
■ Customization that can be configured at Toyota dealer
Settings (e.g. smart key system) can be changed.
(Customizable features:  P. 487)

361-2. Opening, closing and locking the doors and trunk
■ Certification for smart key system
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAE FCC ID: HYQ14AHP
FCC ID: Y8PSSPLF03
NOTE:
This device complies with part 15 of the FCC Rules. Operation i s subject to
the following two conditions: (1) This device may not cause har mful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada’s licence-exempt RSSs . Opera-
tion is subject to the following two conditions: (1) This devic e may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada app licables
aux appareils radio exempts de licence. L’exploitation est auto risée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage r adioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonc tionnement.

371-2. Opening, closing and locking the doors and trunk
1
Before driving WARNING■ Caution regarding interference with electronic devices
● People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators s hould main-
tain a reasonable distance between themselves and the smart key system
antennas. (  P. 27)
The radio waves may affect the operation of such devices. If ne cessary,
the entry function can be disabled. Ask your Toyota dealer for details, such
as the frequency of radio waves and timing of the emitted radio waves.
Then, consult your doctor to see if you should disable the entr y function.
● User of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implant able
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio wa ves.
Radio waves could have unexpected effects on the operation of s uch
medical devices.
Ask your Toyota dealer for details for disabling the entry func tion.

381-2. Opening, closing and locking the doors and trunk

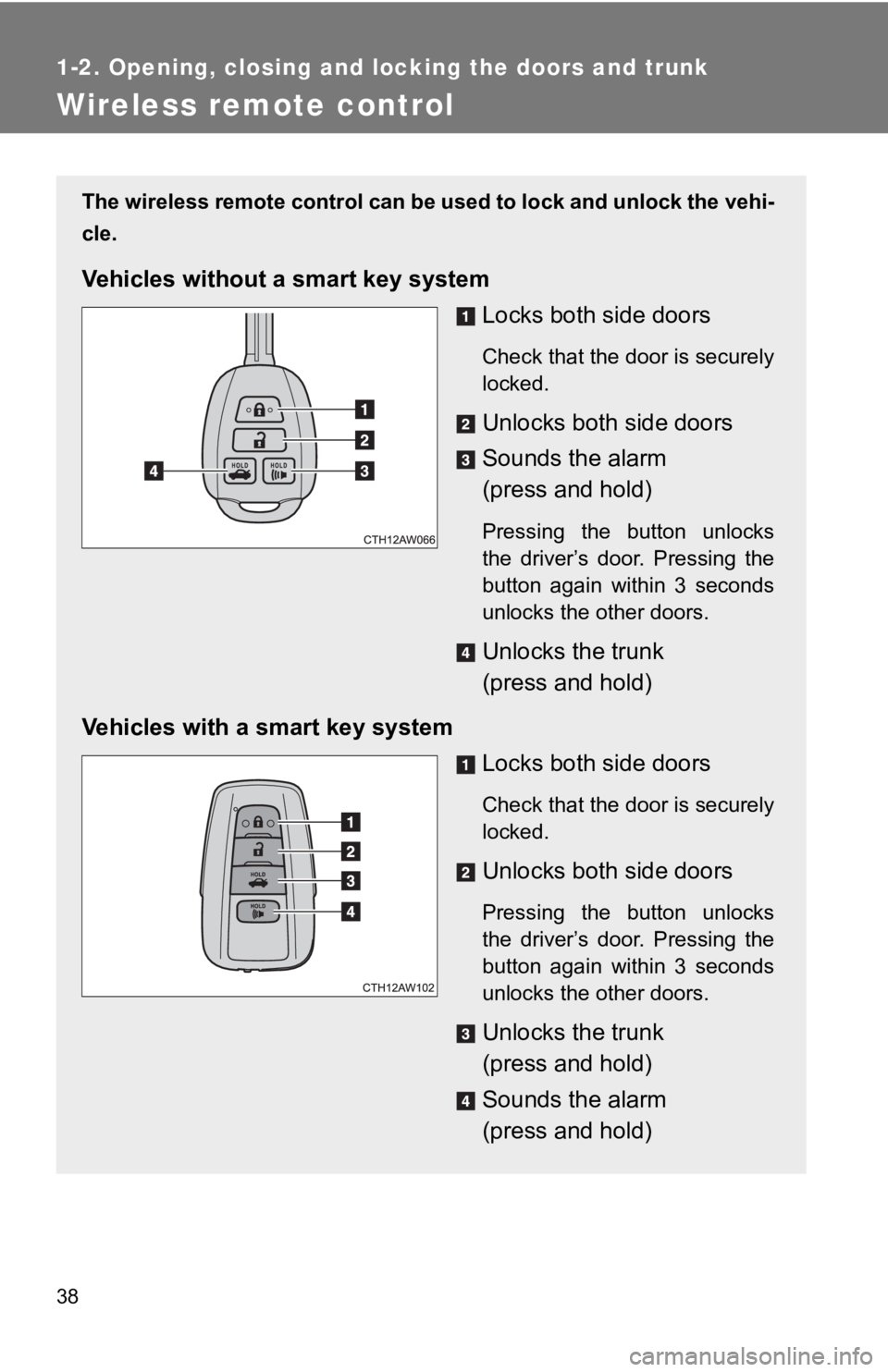

Wireless remote control The wireless remote control can b e used to lock and unlock the vehi-
cle.
Vehicles without a smart key system
Locks both side doors Check that the door is securely
locked.
Unlocks both side doors
Sounds the alarm
(press and hold) Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks the trunk
(press and hold)
Vehicles with a smart key system
Locks both side doors Check that the door is securely
locked.
Unlocks both side doors Pressing the button unlocks
the driver’s door. Pressing the
button again within 3 seconds
unlocks the other doors.
Unlocks the trunk
(press and hold)
Sounds the alarm
(press and hold)

391-2. Opening, closing and locking the doors and trunk
1
Before driving ■ Operation signals
Doors: A buzzer sounds and the emergency flashers flash to indic ate that
the doors have been locked/unlocked. (Locked: once; Unlocked:
twice)
Trunk: A buzzer sounds to indicate that the trunk has been unloc ked.
■ Door lock buzzer (vehicles with a smart key system)
If an attempt to lock the doors is made when a door is not full y closed, a
buzzer sounds continuously. Fully close the door to stop the bu zzer, and lock
the vehicle once more.
■ Panic mode
Vehicles without a smart key system
Vehicles with a smart key system When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the electronic key.

401-2. Opening, closing and locking the doors and trunk
■ Vehicle finder function
Vehicles without a smart key system
Vehicles with a smart key system When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated. This setting must be custom-
ized at your Toyota dealer.
When the function is set, a buzzer
(sounds once) and the emergency flash-
ers (flash 3 times) are used to inform the
driver of the vehicle’s location.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated. This setting must be custom-
ized at your Toyota dealer.
