3294-3. Do-it-yourself maintenance
4
Maintenance and care

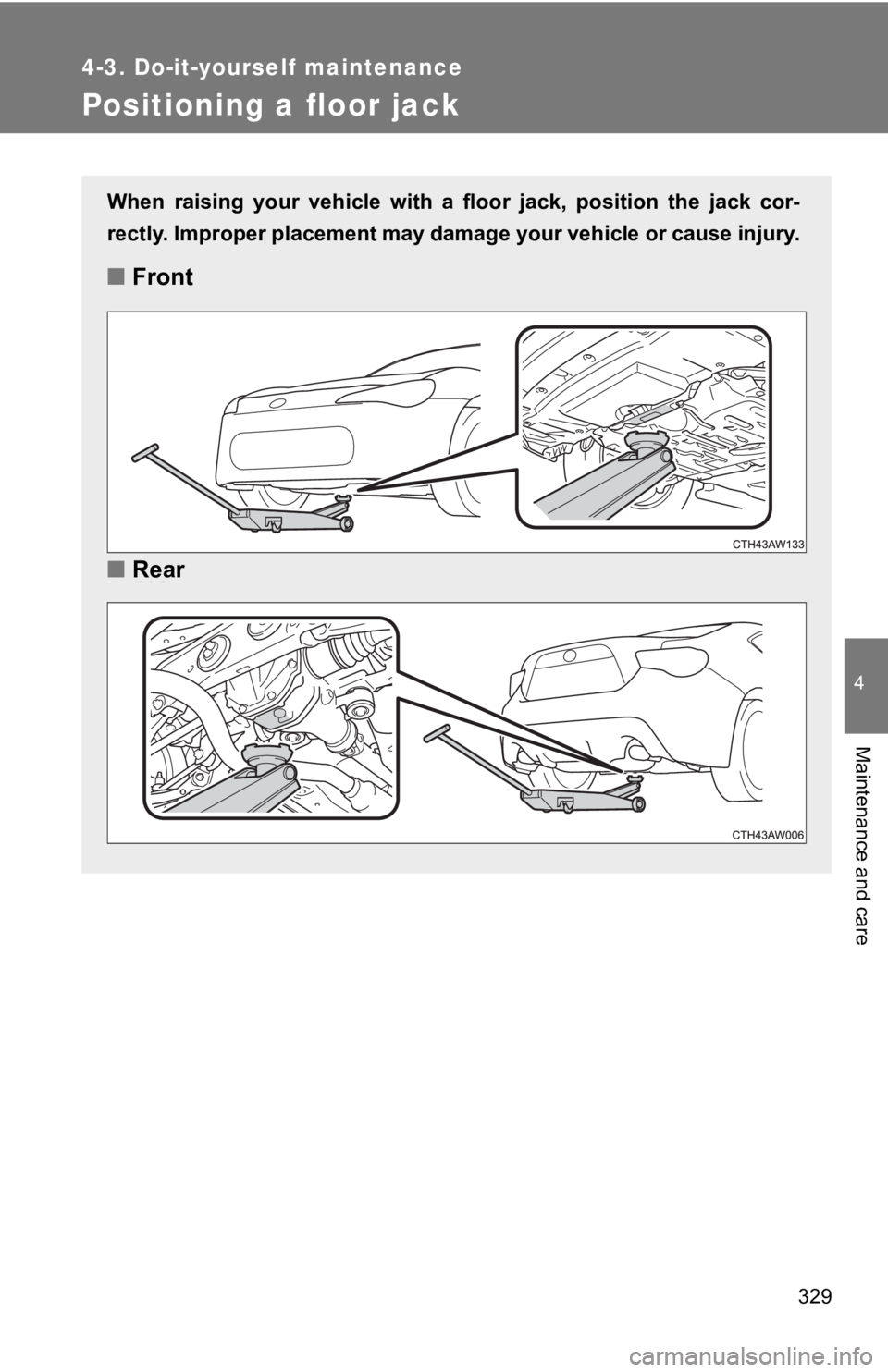

Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause inj ury.
■ Front
■ Rear

3304-3. Do-it-yourself maintenance
WARNING■ When raising your vehicle
Make sure to observe the following precautions to reduce the po ssibility of
death or serious injury:
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever to P (vehicles with an automatic transmission) or R (vehicles
with a manual transmission).
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack wi ll damage
the vehicle and may cause the vehicle to fall off the floor jac k.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any object on top of or underneath
the floor jack.
● When raising the vehicle, ensure that there is sufficient surrounding space.

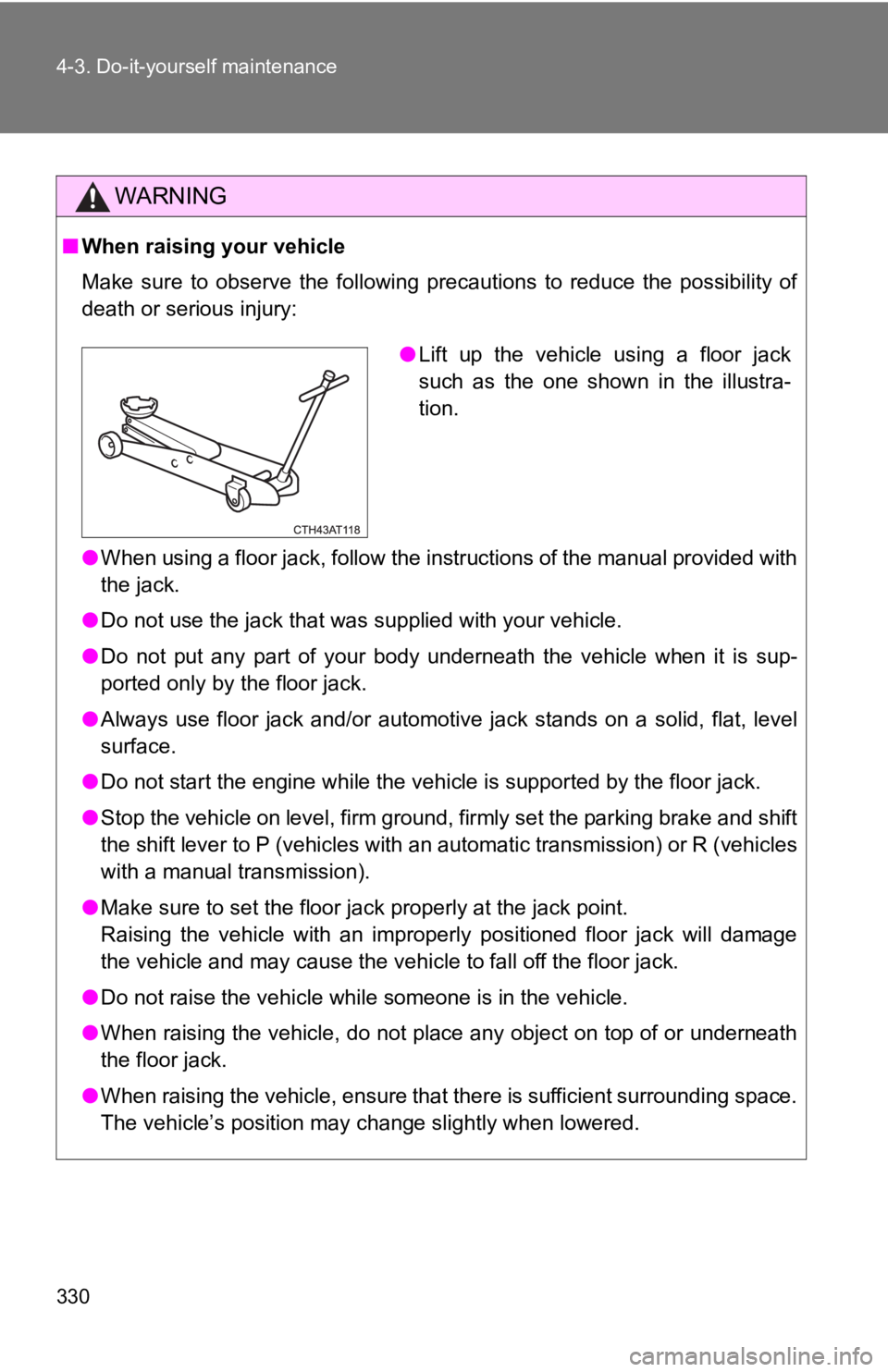

The vehicle’s position may change slightly when lowered. ● Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

3314-3. Do-it-yourself maintenance
4
Maintenance and care

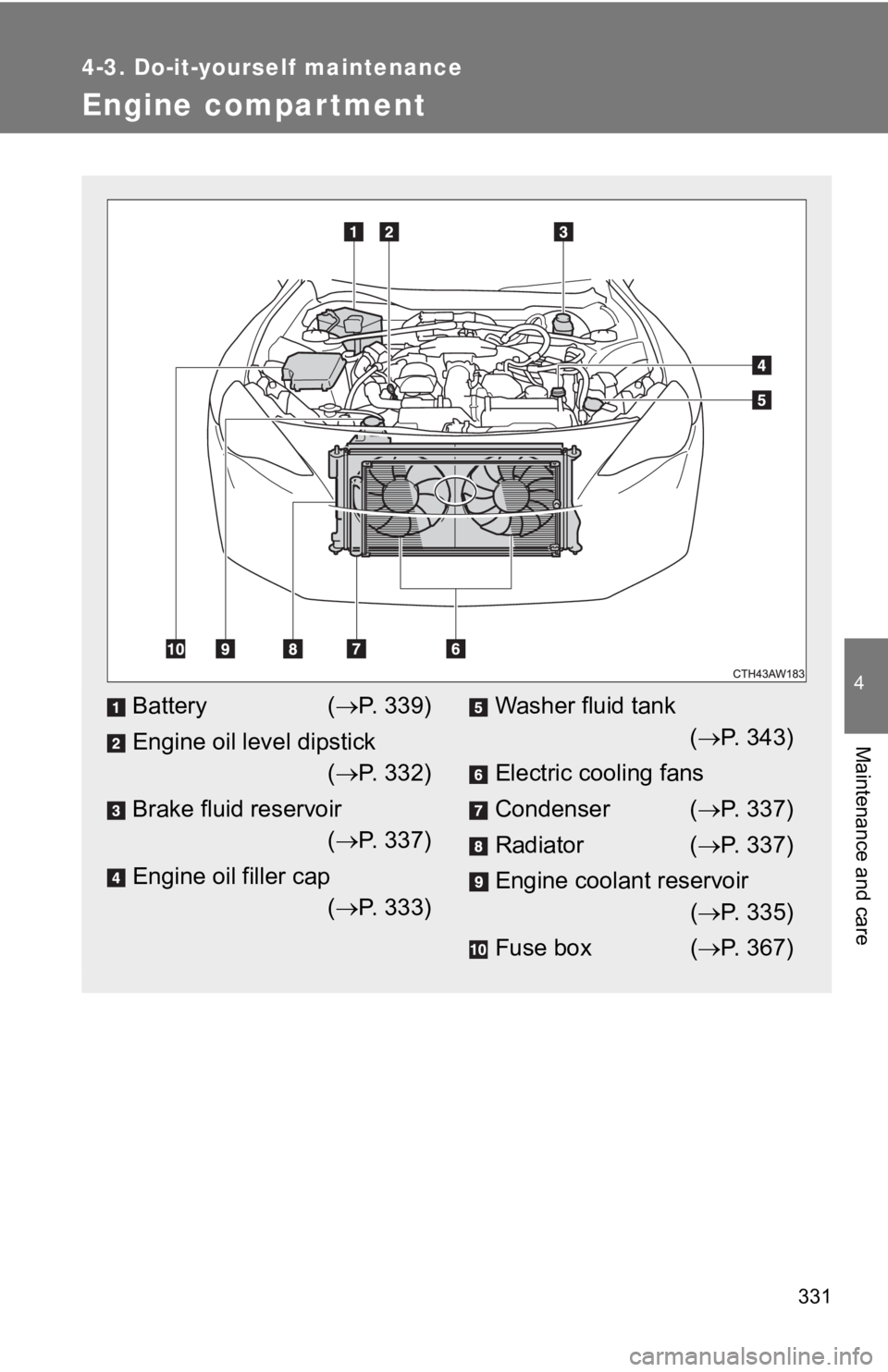

Engine compar tment
Battery (  P. 3 3 9 )
Engine oil level dipstick
(  P. 3 3 2 )
Brake fluid reservoir
(  P. 3 3 7 )
Engine oil filler cap
(  P. 3 3 3 ) Washer fluid tank
(  P. 3 4 3 )
Electric cooling fans
Condenser (  P. 3 3 7 )
Radiator (  P. 3 3 7 )
Engine coolant reservoir
(  P. 3 3 5 )
Fuse box (  P. 3 6 7 )

3324-3. Do-it-yourself maintenance
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.

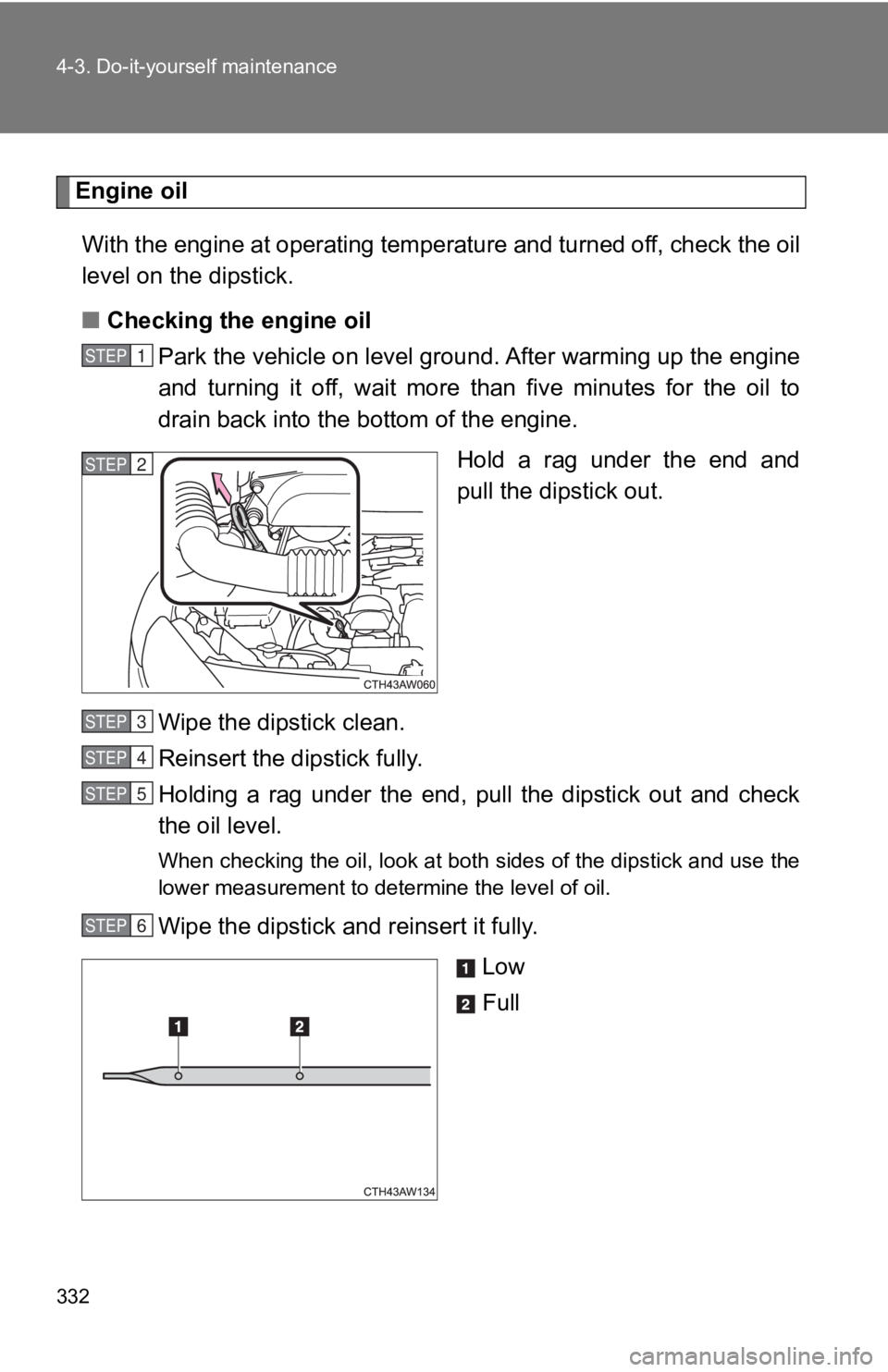

■ Checking the engine oil
Park the vehicle on level groun d. After warming up the engine
and turning it off, wait more than five minutes for the oil to
drain back into the b ottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level. When checking the oil, look at both sides of the dipstick and u se the
lower measurement to determine the level of oil.
Wipe the dipstick and reinsert it fully.
Low
FullSTEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6

3334-3. Do-it-yourself maintenance
4

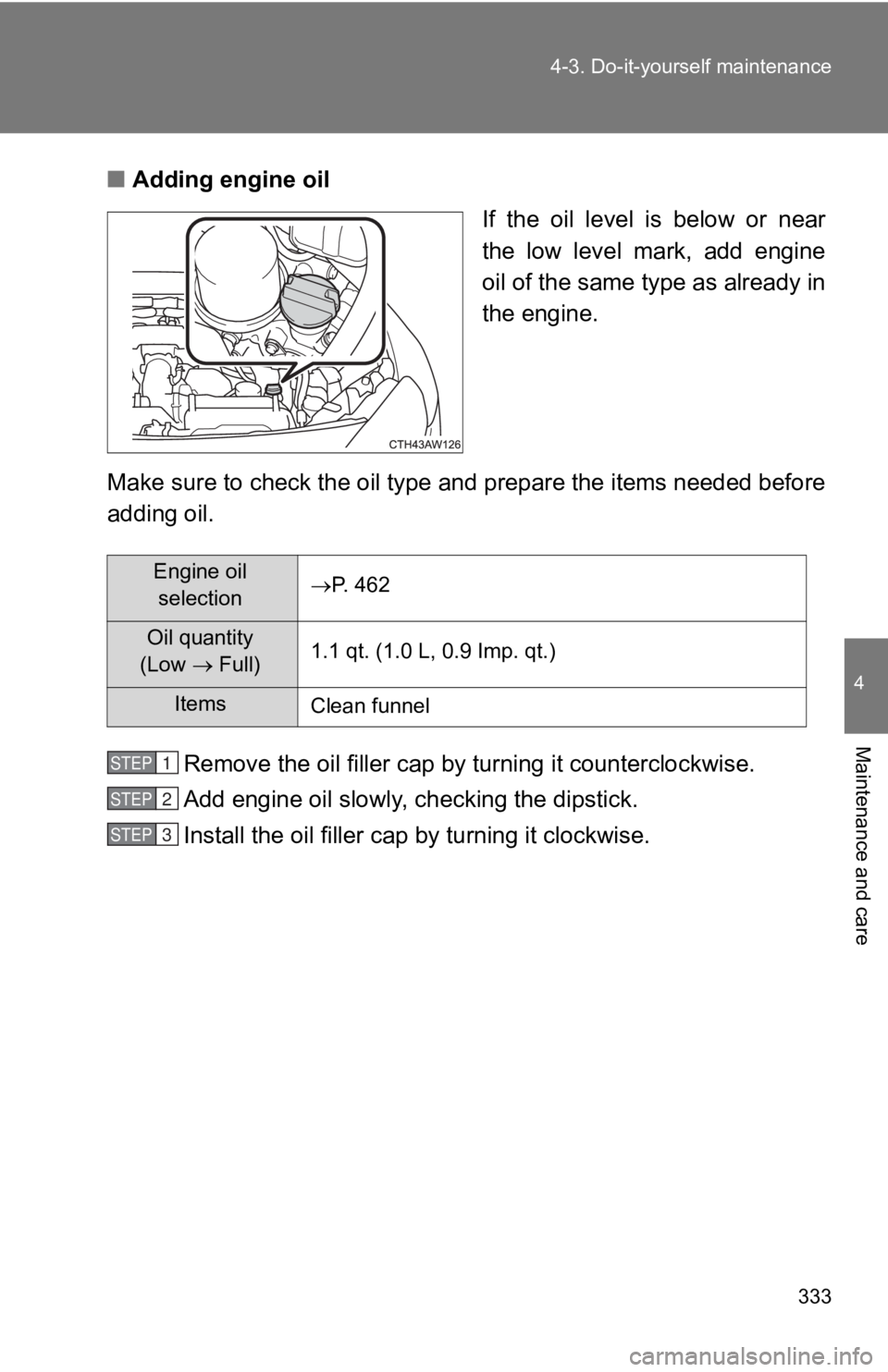

Maintenance and care ■ Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed be fore
adding oil.
Remove the oil filler cap by tu rning it count erclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.Engine oil
selection  P. 462
Oil quantity
(Low  Full) 1.1 qt. (1.0 L, 0.9 Imp. qt.)
Items
Clean funnelSTEP 1
STEP 2
STEP 3

3344-3. Do-it-yourself maintenance
■ Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil ma y need to be
refilled in between oil maintenance intervals.
● When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
● If low quality oil or oil of an inappropriate viscosity is used
● When driving at high engine speeds or with a heavy load, or whe n driving
while accelerating or decelerating frequently
● When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
WARNING■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so ca re should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable m anner. Do
not dispose of used oil and filters in household trash, in sewe rs or onto the
ground.
Call your Toyota dealer, service station or auto parts store fo r information
concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.

3354-3. Do-it-yourself maintenance
4
Maintenance and care
Engine coolant

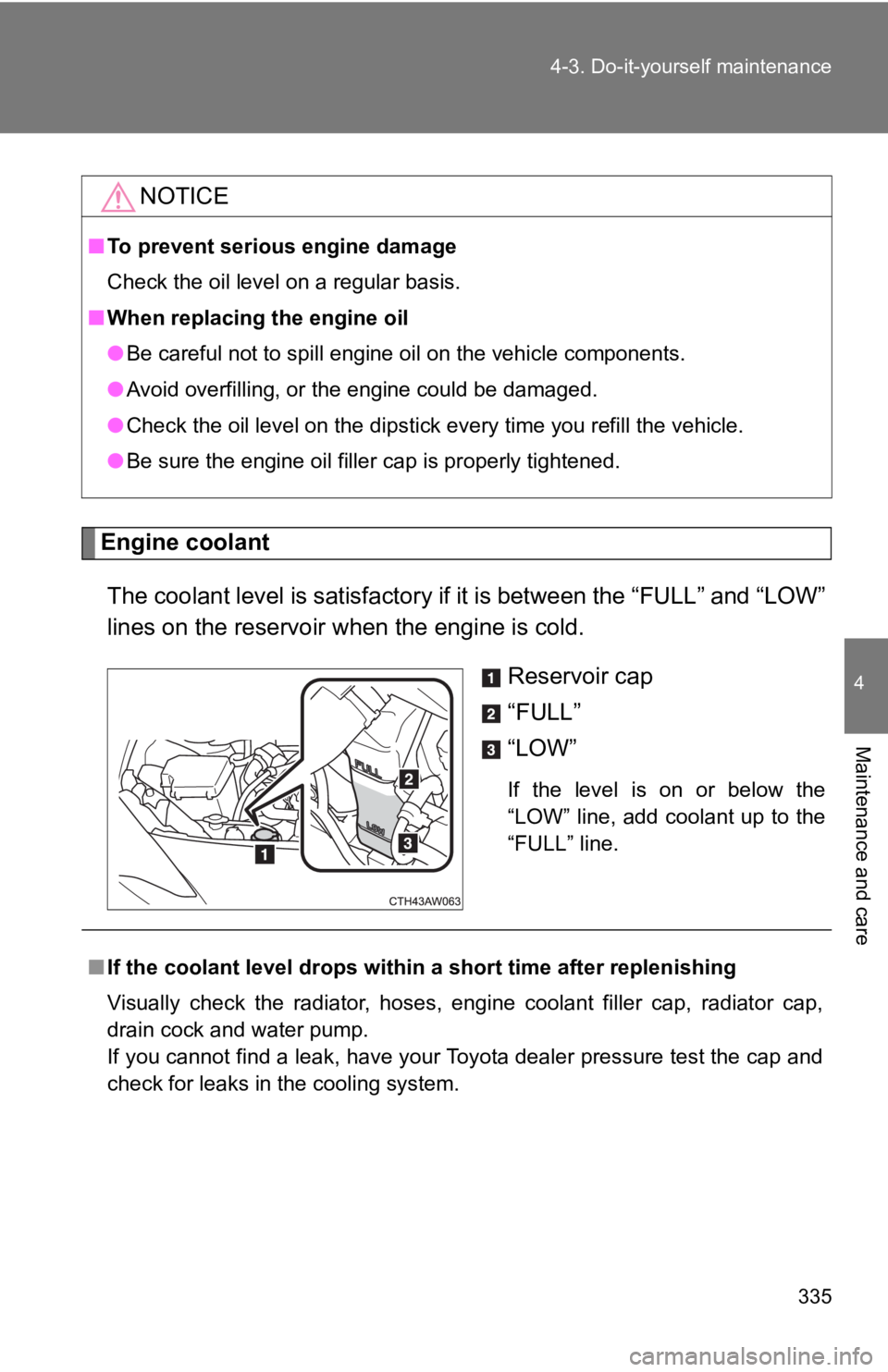

The coolant level is satisfactory if it is between the “FULL” a nd “LOW”
lines on the reservoir w hen the engine is cold.
Reservoir cap
“FULL”
“LOW” If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.NOTICE■ To prevent serious engine damage
Check the oil level on a regular basis.
■ When replacing the engine oil
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the v ehicle.
● Be sure the engine oil filler cap is properly tightened.
■ If the coolant level drops within a short time after replenishi ng
Visually check the radiator, hoses, engine coolant filler cap, radiator cap,
drain cock and water pump.
If you cannot find a leak, have your Toyota dealer pressure test the cap and
check for leaks in the cooling system.

3364-3. Do-it-yourself maintenance
■ Coolant selection
Only use “TOYOTA Genuine 50/50 Pre-mixed Super Long Life Coolan t
BLUE” or similar high-quality ethylene glycol-based non-silicat e, non-amine,
non-nitrite, and non-borate coolant with long-life hybrid organic acid technol-
ogy.
“TOYOTA Genuine 50/50 Pre-mixed Super Long Life Coolant BLUE” i s a
mixture of 50% coolant and 50% deionized water. (Enabled: -31  F [-35  C])
For more details about engine coolant, contact your Toyota deal er.
WARNING■ When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE■ When adding engine coolant
Coolant is neither plain water nor straight antifreeze. The cor rect mixture of
water and antifreeze must be used to provide proper lubrication , corrosion
protection and cooling. Be sure to read the antifreeze or coola nt label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging p arts or paint.
