2012-2. Instrument cluster
2

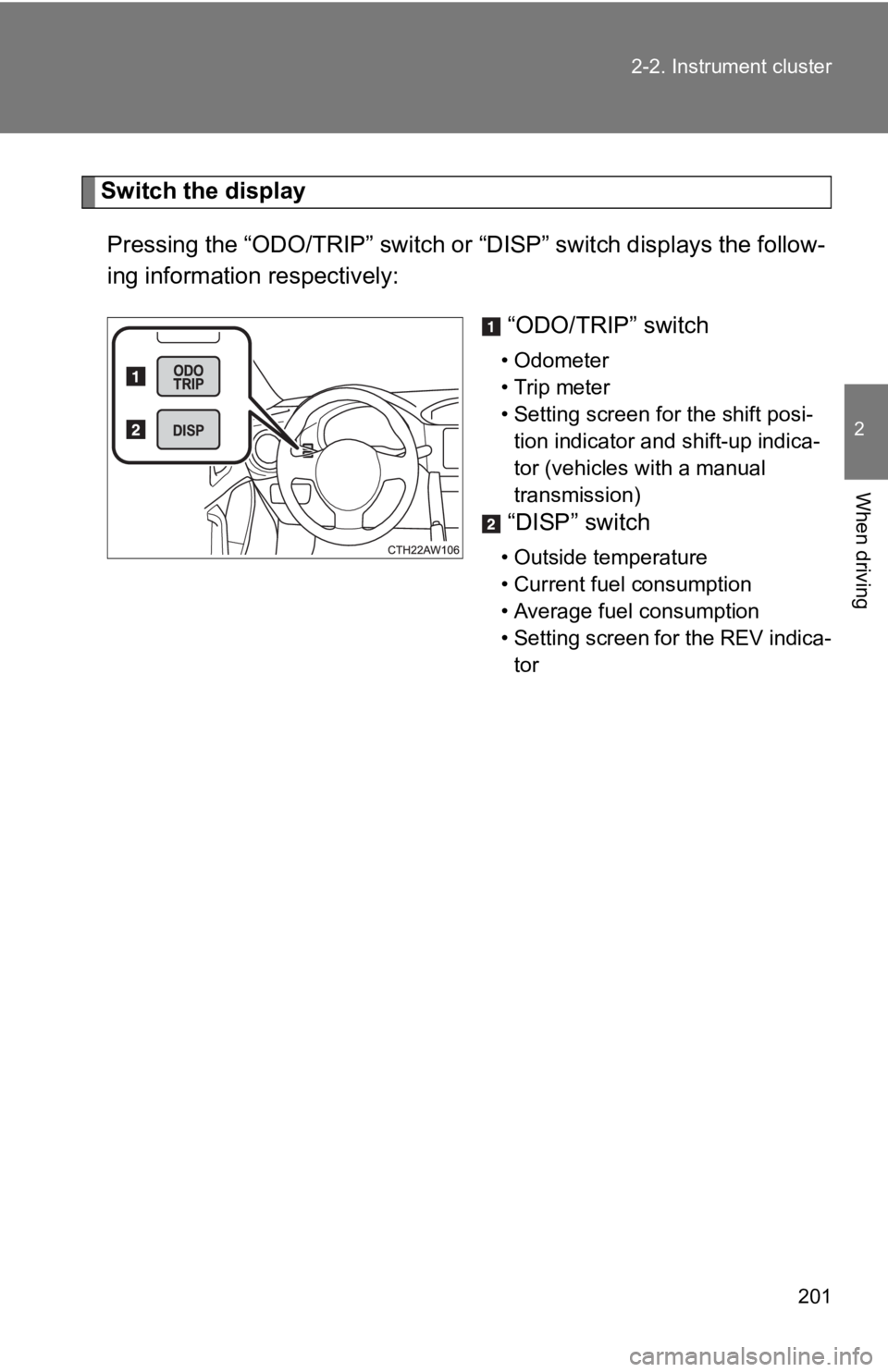

When driving Switch the display
Pressing the “ODO/TRIP” switch or “DISP” switch displays the fo llow-
ing information respectively:
“ODO/TRIP” switch • Odometer
• Trip meter
• Setting screen for the shift posi-
tion indicator and shift-up indica-
tor (vehicles with a manual
transmission)
“DISP” switch • Outside temperature
• Current fuel consumption
• Average fuel consumption
• Setting screen for the REV indica-
tor

2022-2. Instrument cluster

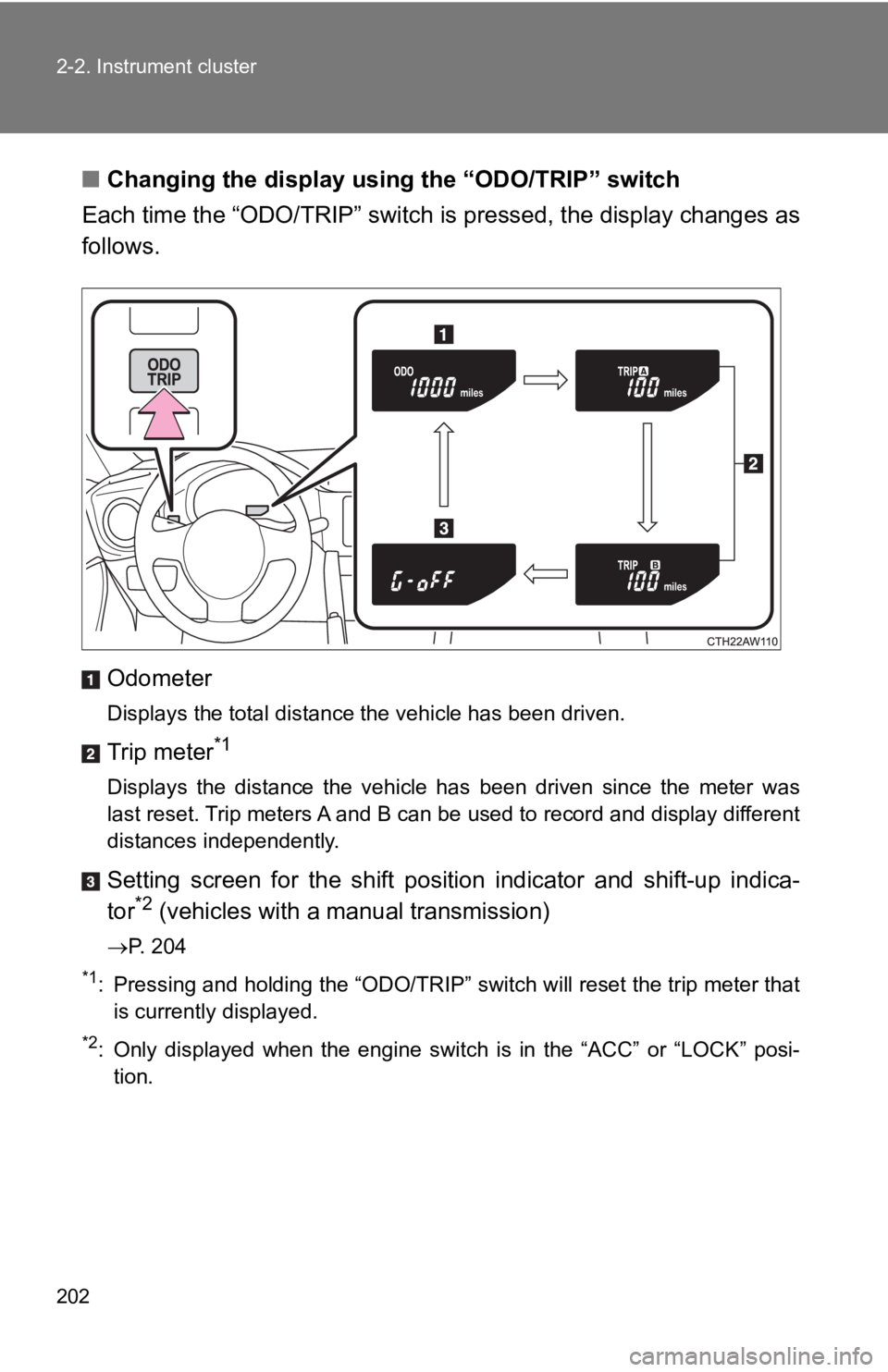

■ Changing the display usi ng the “ODO/TRIP” switch
Each time the “ODO/TRIP” switch is pressed, the display changes as
follows.
Odometer Displays the total distance the vehicle has been driven.
Trip meter *1
Displays the distance the vehicle has been driven since the met er was
last reset. Trip meters A and B can be used to record and display different
distances independently.
Setting screen for the shift position indicator and shift-up in dica-
tor *2
(vehicles with a manual transmission) P. 204*1
: Pressing and holding the “ODO/TRIP” switch will reset the trip meter that
is currently displayed.*2
: Only displayed when the engine switch is in the “ACC” or “LOCK ” posi-
tion.

2032-2. Instrument cluster
2

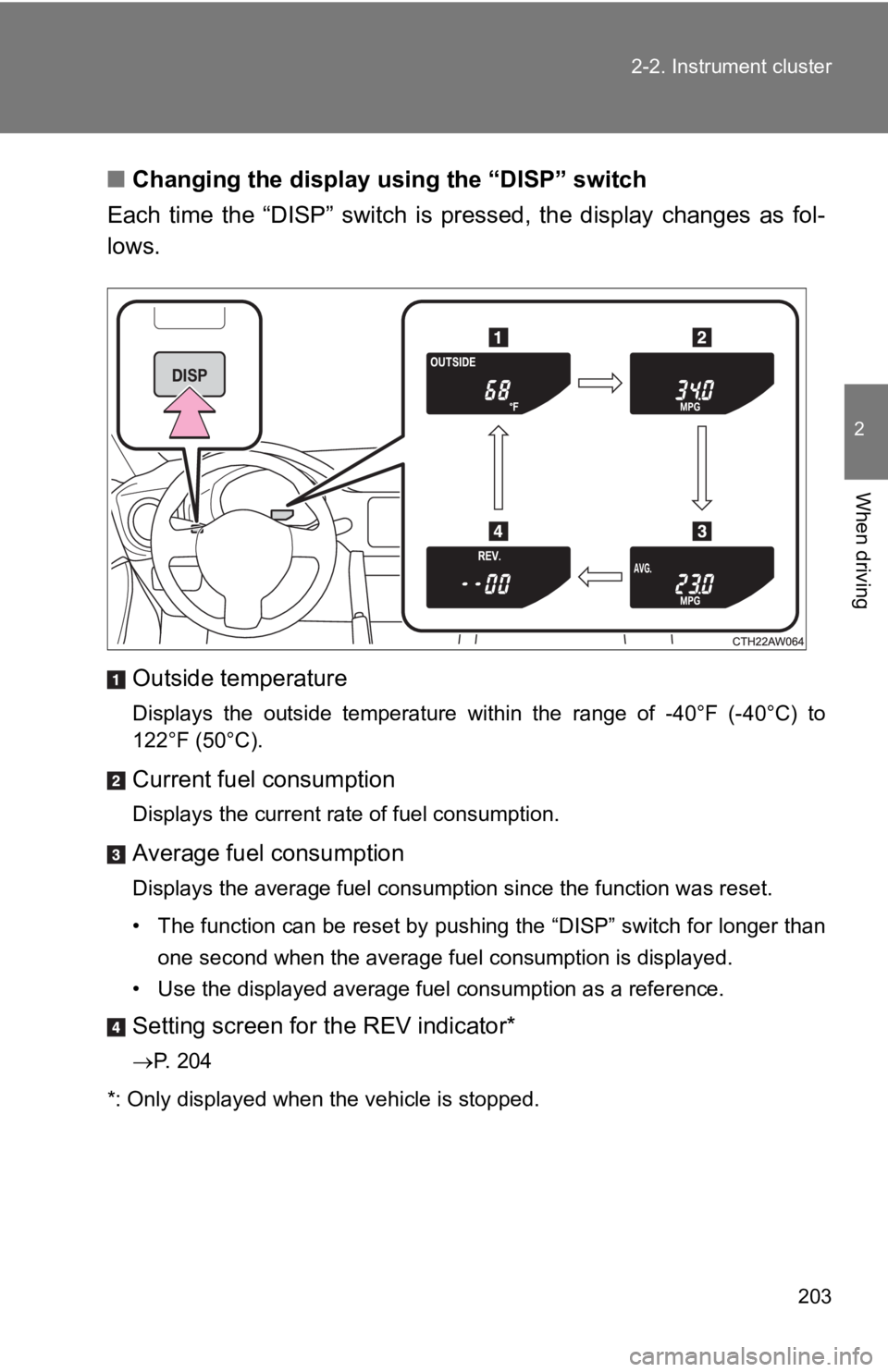

When driving ■ Changing the display using the “DISP” switch
Each time the “DISP” switch is pressed, the display changes as fol-
lows.
Outside temperature Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C).
Current fuel consumption Displays the current rate of fuel consumption.
Average fuel consumption Displays the average fuel consumption since the function was re set.
• The function can be reset by pushing the “DISP” switch for lon ger than
one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Setting screen for the REV indicator*
 P. 204
*: Only displayed when the vehicle is stopped.

2042-2. Instrument cluster
Setting the shift position indi cator and shift-up indicator
(vehicles with a manual transmission)
Displaying of the shift position indicator and shift-up indicat or can be
turned on/off.
Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (  P. 202)
Each time the switch is pressed and held, the display changes
between on/off.
“G-on”: Display on
“G-oFF”: Display off

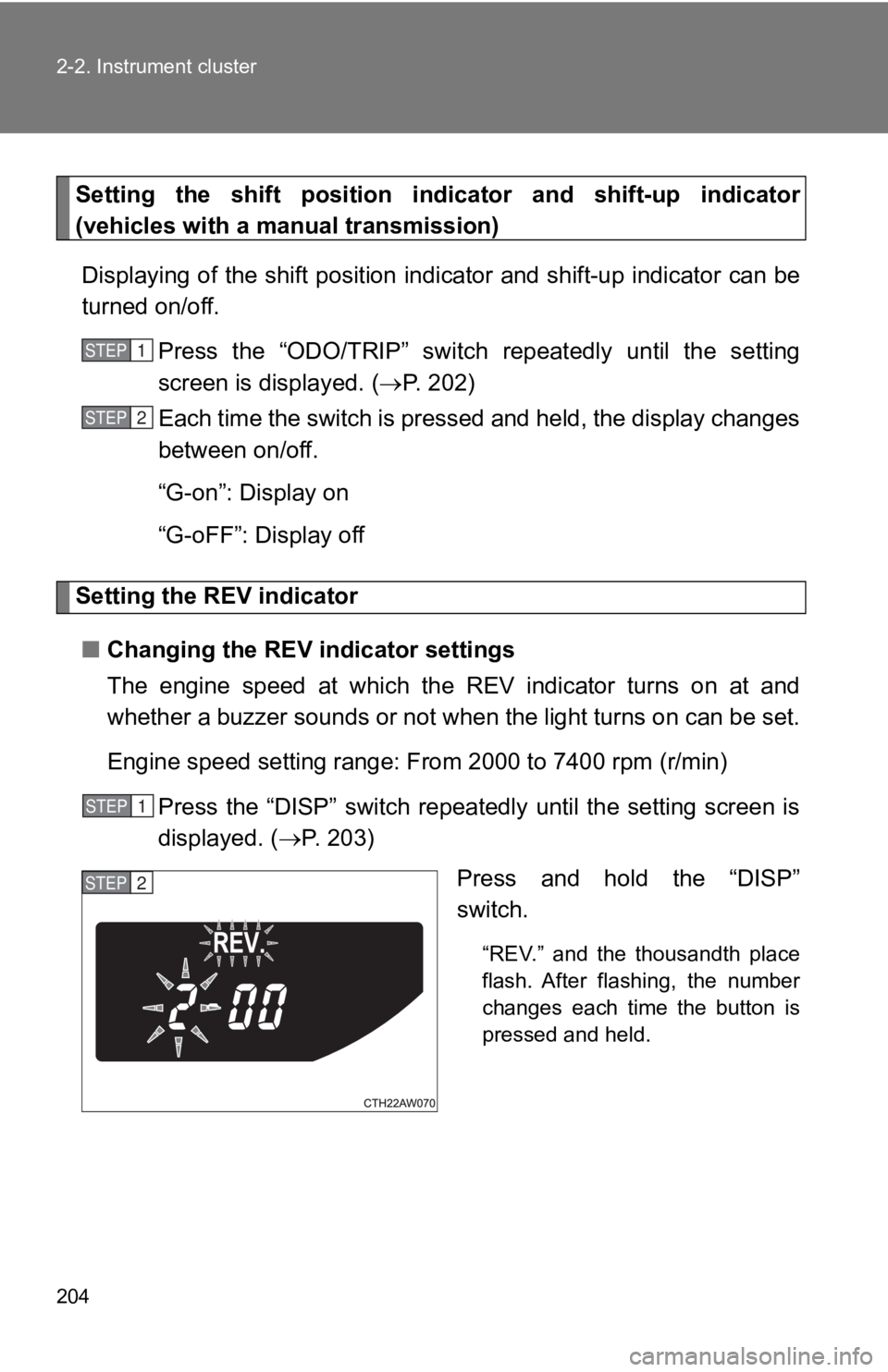

Setting the REV indicator
■ Changing the REV in dicator settings
The engine speed at which the REV indicator turns on at and
whether a buzzer sounds or not w hen the light turns on can be s et.
Engine speed setting range: F rom 2000 to 7400 rpm (r/min)
Press the “DISP” switch repeatedly until the setting screen is
displayed. (  P. 203)
Press and hold the “DISP”
switch. “REV.” and the thousandth place
flash. After flashing, the number
changes each time the button is
pressed and held.STEP 1
STEP 2
STEP 1
STEP 2

2052-2. Instrument cluster
2

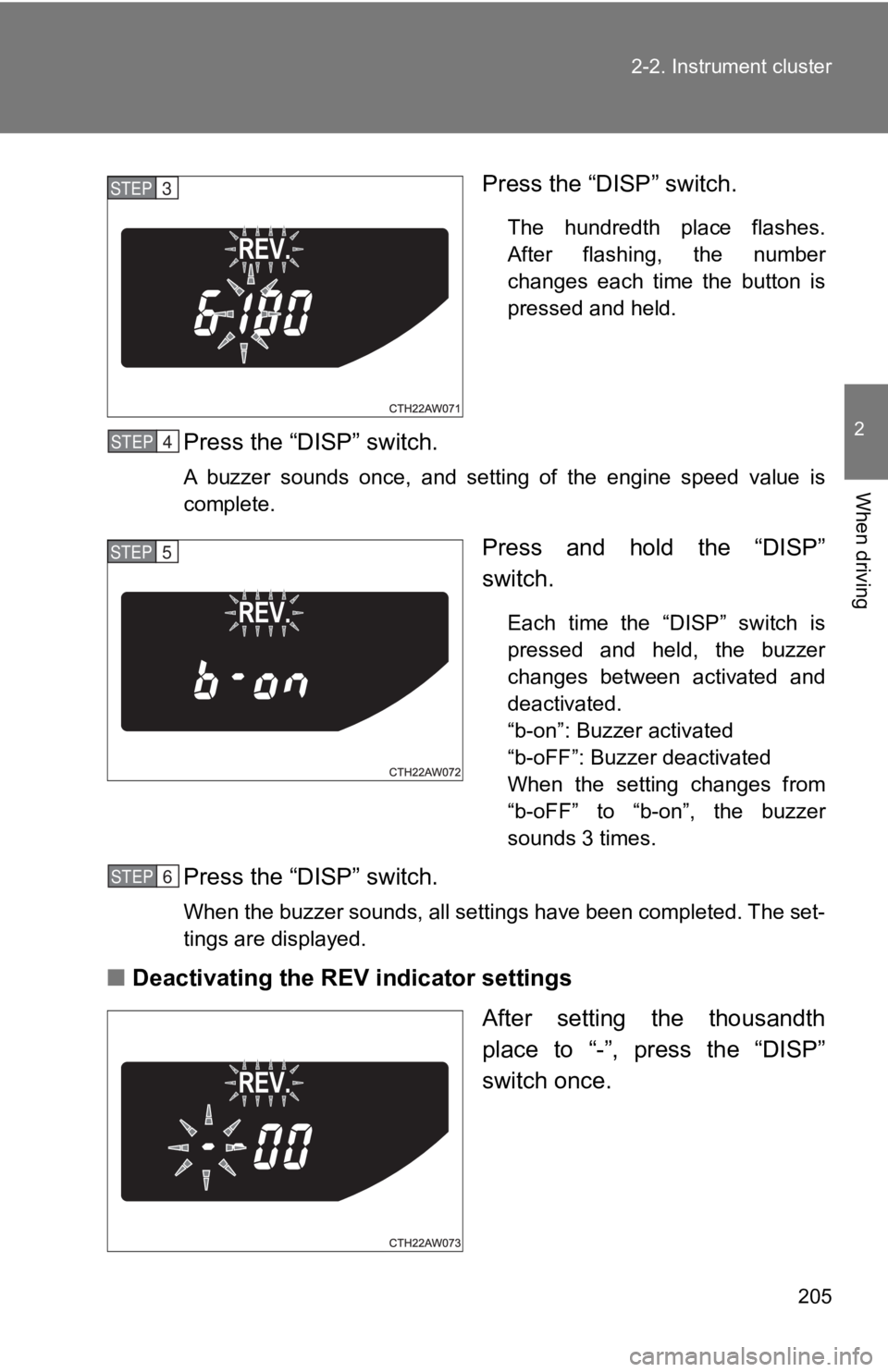

When driving Press the “DISP” switch. The hundredth place flashes.
After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch. A buzzer sounds once, and setting of the engine speed value is
complete.
Press and hold the “DISP”
switch. Each time the “DISP” switch is
pressed and held, the buzzer
changes between activated and
deactivated.
“b-on”: Buzzer activated
“b-oFF”: Buzzer deactivated
When the setting changes from
“b-oFF” to “b-on”, the buzzer
sounds 3 times.
Press the “DISP” switch. When the buzzer sounds, all settings have been completed. The set-
tings are displayed.
■ Deactivating the REV indicator settings
After setting the thousandth
place to “-”, press the “DISP”
switch once.STEP 3
STEP 4
STEP 5
STEP 6

2062-2. Instrument cluster
■ Outside temperature display
● In the following situations, the correct outside temperature ma y not be
displayed.
• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a
traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.
• When the actual outside temperature is outside of the indicato r range.
● If “   ” is displayed for approximately 1 minute or more or if the out side
temperature is not displayed, the system may be malfunctioning. Have
the vehicle inspected by your Toyota dealer.
WARNING■ The information displ ay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the informa tion display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and t he new shift
position number appearing on the display. In this case, wait un til the display
changes and take care not to downshift again, causing rapid and excessive
engine braking and possibly an accident resulting in death or s erious injury.

2072-2. Instrument cluster
2
When driving

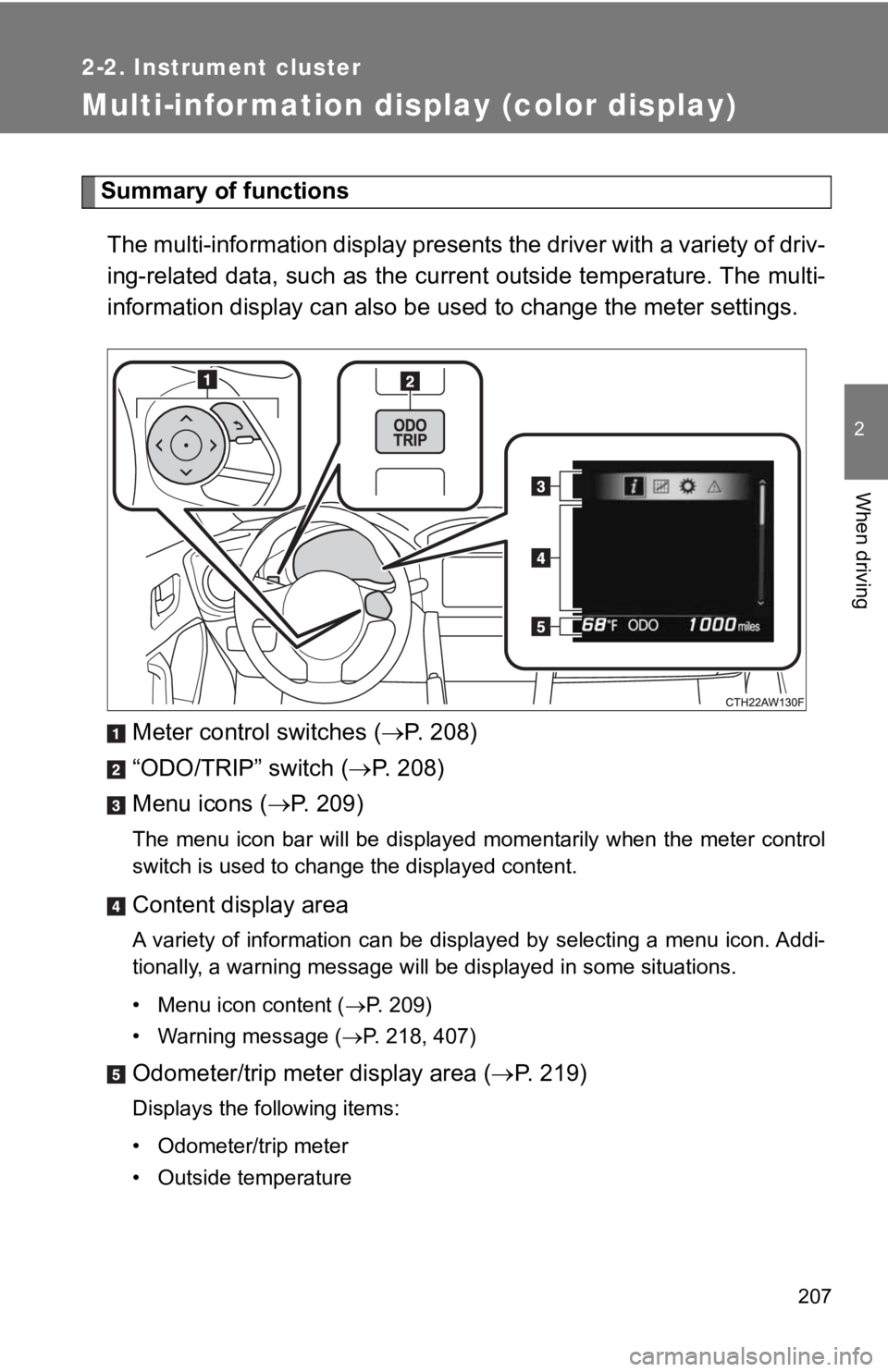

Multi-information display (color display) Summary of functions
The multi-information display presents the driver with a variet y of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the meter settin gs.
Meter control switches (  P. 208)
“ODO/TRIP” switch (  P. 2 0 8 )
Menu icons (  P. 209)The menu icon bar will be displayed momentarily when the meter control
switch is used to change the displayed content.
Content display area A variety of information can be displayed by selecting a menu i con. Addi-
tionally, a warning message will be displayed in some situation s.
• Menu icon content (  P. 209)
• Warning message (  P. 218, 407)
Odometer/trip meter display area (  P. 219)
Displays the following items:
• Odometer/trip meter
• Outside temperature

2082-2. Instrument cluster
Using the multi-in formation display

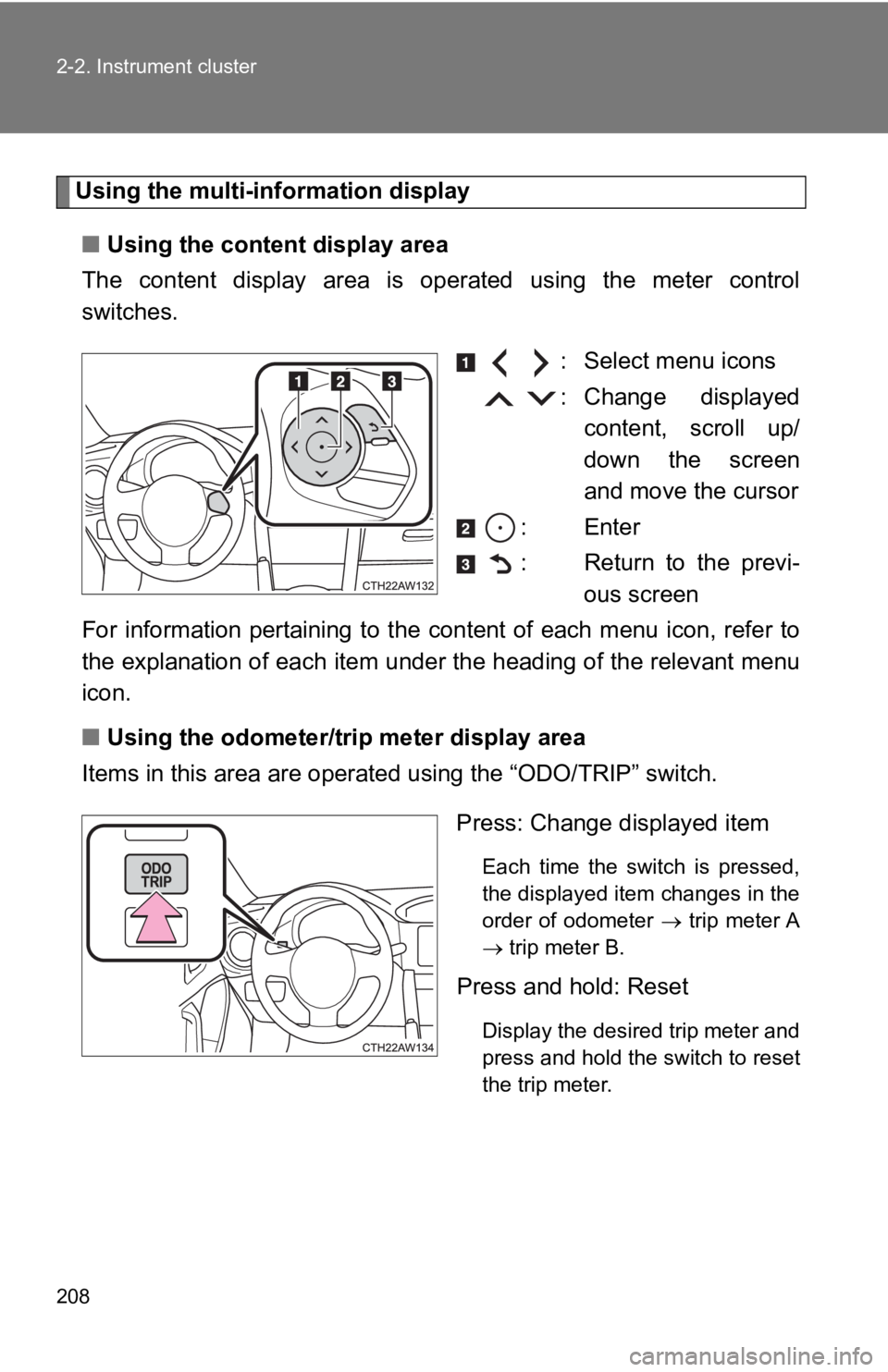

■ Using the content display area
The content display area is operated using the meter control
switches.
: Select menu icons
: Change displayed
content, scroll up/
down the screen
and move the cursor
: Enter
: Return to the previ-
ous screen
For information pertaining to th e content of each menu icon, re fer to
the explanation of eac h item under the heading of the relevant menu
icon.
■ Using the odometer/trip meter display area
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item Each time the switch is pressed,
the displayed item changes in the
order of odometer  trip meter A
 trip meter B.
Press and hold: Reset
Display the desired trip meter and
press and hold the switch to reset
the trip meter.
