2019 TOYOTA 86 Owners Manual

2172-2. Instrument cluster
2
When driving Settings display ( )
Use the meter control switches on the steering wheel to change set-
tings.
Press or to select .
Operate the switches to s elect a desired item.
Press / or / to change the setting and then
press to confirm the change. Item Settings Details
Welcome screen On Select to enable/disable the welcome
screen when the “ENGINE START
STOP” switch is turned to IGNITION
ON mode.Off
REV. RPM --00 rpm
(OFF) ~
7400 rpm Select to enable/disable the REV indi-
cator and set the engine speed at
which the REV indicator will be illumi-
nated.
To disable, select “--” for the engine
speed (--00 rpm)
Selectable engine speed range: 2000
to 7400 rpm
Buzzer On Select to enable/disable the sounding
of a buzzer when the REV indicator is
illuminated. This setting can be
changed only when the REV indicator
is enabled.Off
GSI (vehicles with a
manual transmis-
sion) On Select to enable/disable the shift posi-
tion indicator and shift-up indicator.
(  P. 186)Off
Language English
Select to change the language dis-
played.French
SpanishSTEP 1
STEP 2
STEP 3

2182-2. Instrument cluster
Warning message ( )
Select to display warning messages related to situations such a s a
vehicle malfunction.
● If there is more than one message to be displayed, press /
to change the display.
● If there are no warning mes-
sages to be displayed, a mes-
sage indicating so will be
displayed.Units km, km/h,
km/l
Select to change the units of measure
displayed.km, km/h,
l/100km
miles,
MPH,
MPG
Initialization Ye s
Select to reset the meter display set-
tings to the default setting.
NoItem Settings Details

2192-2. Instrument cluster
2
When driving Odometer/trip meter display area
■ Odometer
Displays the total distance the vehicle has been driven.
■ Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the met er
was last reset. Trip meters A and B can be used to record and d isplay
different distances independently. To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.
■ Outside temperature
Displays the outside temperature within the range of -40°F (-40 °C) to
122°F (50°C). Low outside temperature indicator comes on when t he
ambient temperature is 37°F (3°C) or lower.

2202-2. Instrument cluster
■ G-force display
● Depending on the vehicle usage conditions, the brake fluid pres sure dis-
play may not reach its maximum reading even though the brake pe dal is
fully depressed.
● If a battery terminal is disconnected and reconnected, the stee ring
amount display may be disabled te mporarily. After driving the v ehicle for
a while, the display will be enabled.
■ Suspension of the settings display
● The settings cannot be changed while driving. When changing set tings,
park the vehicle in a safe place.
● If a warning message is displayed, operation of the settings di splay will
be suspended.
■ Using the stopwatch
If the engine is stopped while the stopwatch is operating, the stopwatch will
stop and the time up to that point will be recorded.
■ Outside temperature display
● In the following situations, the correct outside temperature ma y not be
displayed.
• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a
traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.
• When the actual outside temperature is outside of the indicato r range.
● If “   ” is displayed for approximately 1 minute or more or if the out side
temperature is not displayed, the system may be malfunctioning. Have
the vehicle inspected by your Toyota dealer.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.

2212-2. Instrument cluster
2
When driving WARNING■ Caution for use while driving
● When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahea d of the
vehicle.
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the informa tion display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and t he new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the engine needs to be running during setting up the display , ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxi de (CO)
may collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■ While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

2222-3. Operating the lights and windshield wipers

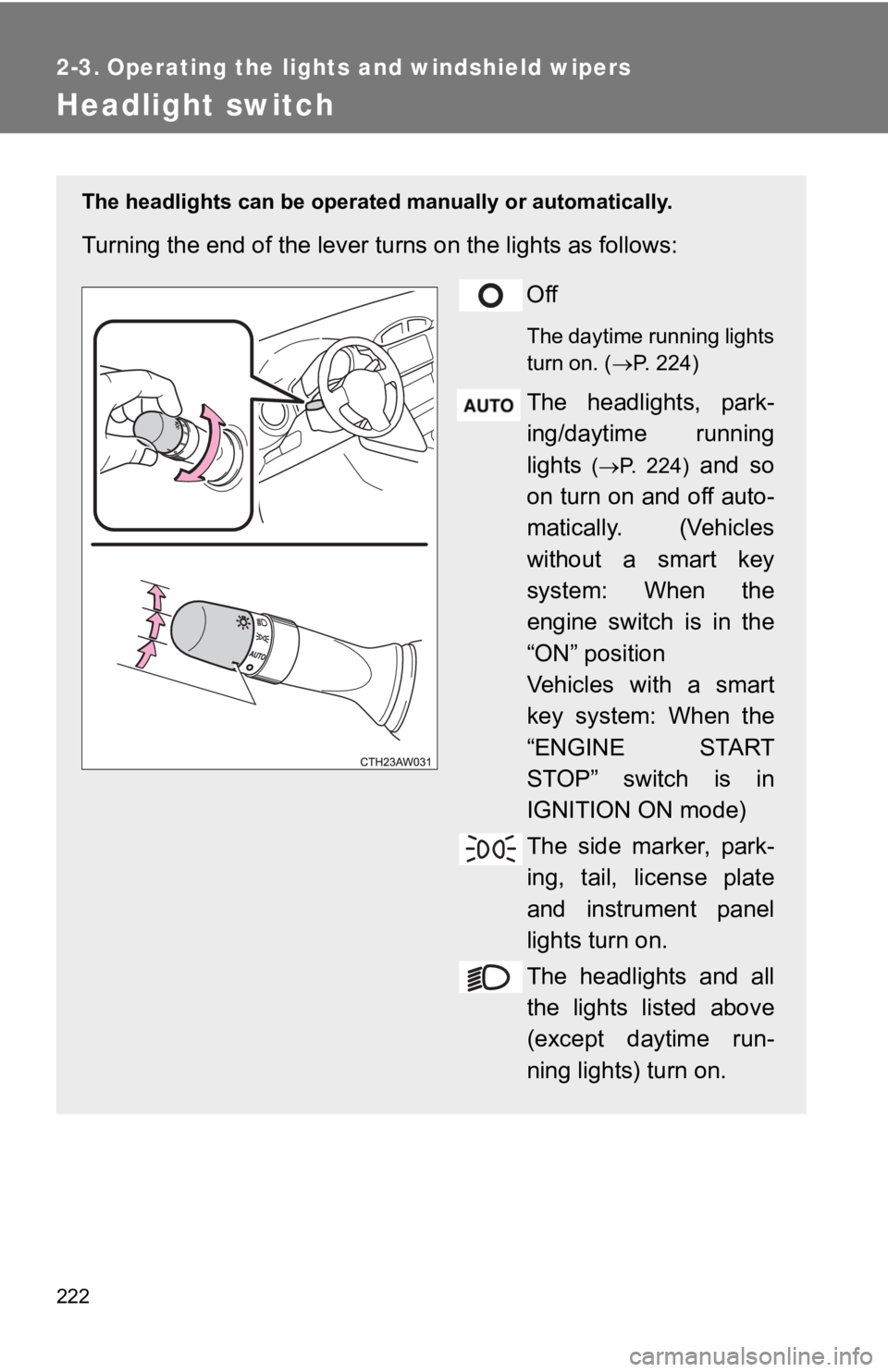

Headlight switch The headlights can be operated manually or automatically.
Turning the end of the lever tu rns on the lights as follows:
Off The daytime running lights
turn on. (  P. 224)
The headlights, park-
ing/daytime running
lights (  P. 224)
and so
on turn on and off auto-
matically. (Vehicles
without a smart key
system: When the
engine switch is in the
“ON” position
Vehicles with a smart
key system: When the
“ENGINE START
STOP” switch is in
IGNITION ON mode)
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
the lights listed above
(except daytime run-
ning lights) turn on.

2232-3. Operating the light s and windshield wipers
2
When driving Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams. Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you and
release it to flash the high
beams once. You can flash the high beams
with the headlights on or off.

2242-3. Operating the lights and windshield wipers
■ Daytime running light system
● The daytime running lights illuminate using the same lights as the parking
lights and illuminate brighter than the parking lights.
● To make your vehicle more visible to other drivers during dayti me driving,
the daytime running lights turn on automatically when all of th e following
conditions are met. (The daytime running lights are not designe d for use
at night.)
• The engine is running
• The shift lever is shifted out of P (Vehicles with an automati c transmis-
sion)
• The parking brake is released
• The headlight switch is off or in the “AUTO”
* position
* : When the surroundings are bright
The daytime running lights remain on after they illuminate even if the parking
brake is set again.
● When the turn signal indicators are flashing, the daytime runni ng light on
the side that the turn signals are flashing will turn off.
● When the emergency flashers are flashing, both daytime running lights
will turn off.
● Compared to turning on the headlights, the daytime running ligh t system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
