89 11-7. Safety information
Before driving

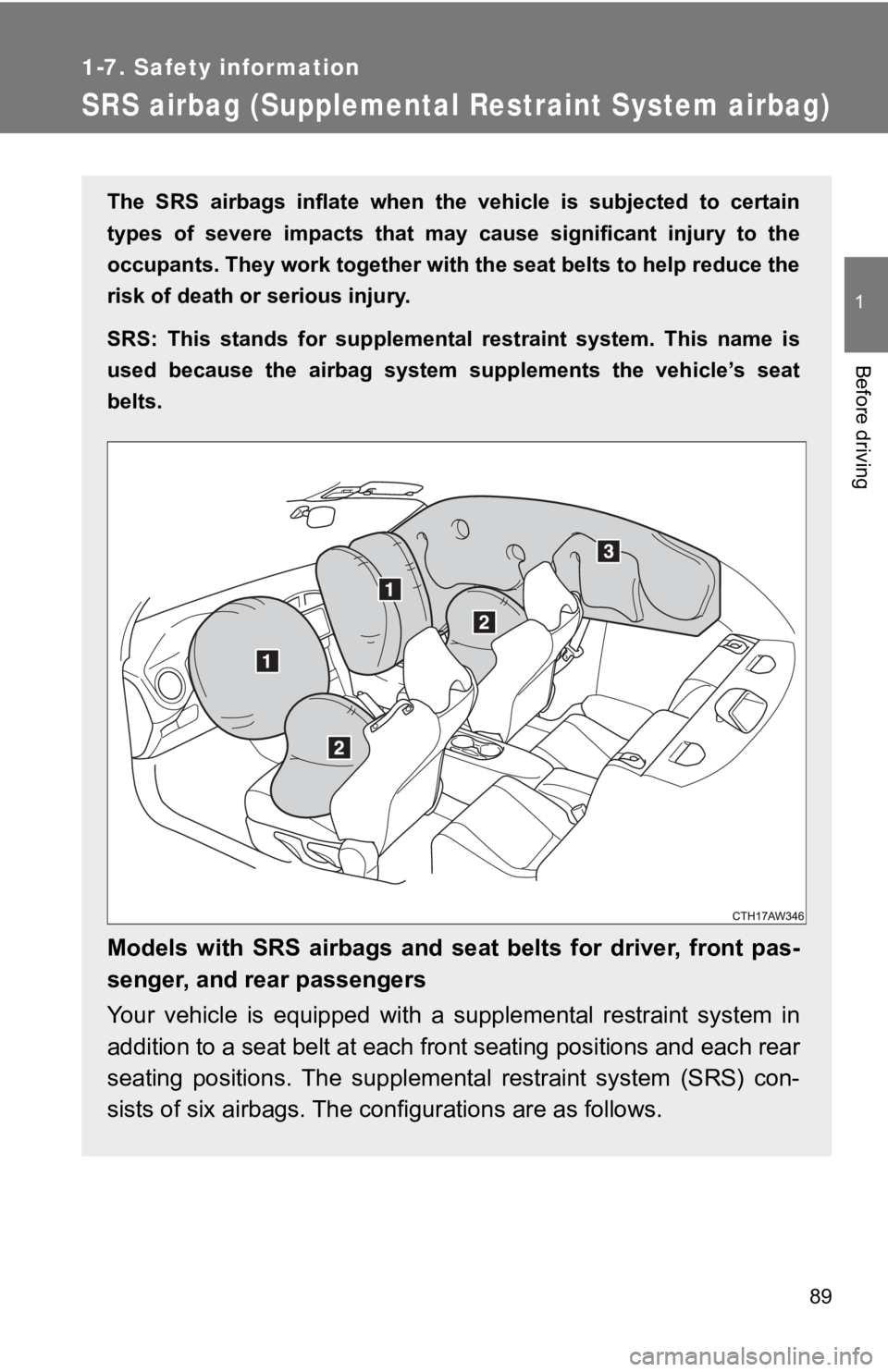

SRS airbag (Supplemental Re straint System airbag)The SRS airbags inflate when the vehicle is subjected to certai n
types of severe impacts that may cause significant injury to th e
occupants. They work together with the seat belts to help reduc e the
risk of death or serious injury.
SRS: This stands for supplement al restraint system. This name i s
used because the airbag system s upplements the vehicle’s seat
belts.
Models with SRS airbags and seat belts for driver, front pas-
senger, and rear passengers
Your vehicle is equipped with a supplemental restraint system i n
addition to a seat belt at each front seating positions and eac h rear
seating positions. The supplemental restraint system (SRS) con-
sists of six airbags. The conf igurations are as follows.

901-7. Safety information
■ When you sell your vehicle
When you sell your vehicle, we urge you to explain to the buyer that it is
equipped with SRS airbags by alerti ng the buyer to the applicab le section in
this Owner’s Manual. Driver’s and front passe nger’s frontal airbags
Driver’s and front pas senger’s side airbags
Curtain shield airbags (for driver, front passenger, and rear p as-
sengers)
These SRS airbags are designed only as a supplement to the pri-
mary protection prov ided by the seat belt.
The system also controls front s eat belt pretensioners. For ope ra-
tion instructions and precautions concerning the seat belt pret en-
sioner, refer to “Seat belt pretensioners”. ( 
P. 61)

911-7. Safety information
1
Before driving WARNING■ SRS airbag
● To obtain maximum protection in the event of an accident, the d river and
all passengers in the vehicle should always wear seat belts whe n the vehi-
cle is moving. The SRS airbag is designed only to be a suppleme nt to the
primary protection provided by the seat belt. It does not elimi nate the need
to fasten seat belts. In combination with the seat belts, it of fers the best
combined protection in case of a serious accident.
Not wearing a seat belt increases the chance of severe injury o r death in a
crash even when the vehicle has the SRS airbag.
For instructions and precautions concerning the seat belt syste m, refer to
“Seat belts”. (  P. 60)
● Do not sit or lean unnecessarily close to the SRS airbag. Becau se the
SRS airbag deploys with considerable speed - faster than the bl ink of an
eye - and force to protect in high speed collisions, the force of an airbag
can injure an occupant whose body is too close to SRS airbag.
It is also important to wear your seat belt to help avoid injur ies that can
result when the SRS airbag contacts an occupant not in proper p osition
such as one thrown forward during pre-accident braking.
Even when properly positioned, there remains a possibility that an occu-
pant may suffer minor injury such as abrasions and bruises to t he face or
arms because of the SRS airbag deployment force.
● The SRS airbags deploy with considerable speed and force. Occup ants
who are out of proper position when the SRS airbag deploys could suffer
very serious injuries. Because the SRS airbag needs enough spac e for
deployment, the driver should always sit upright and well back in the seat
as far from the steering wheel as practical while still maintai ning full vehi-
cle control and the front passenger should move the seat as far back as
possible and sit upright and well back in the seat.
● Do not place any objects over or near the SRS airbag cover or b etween
you and the SRS airbag. If the SRS airbag deploys, those object s could
interfere with its proper operation and could be propelled insi de the vehicle
and cause injury.

921-7. Safety information
WARNING■ SRS airbag
● Put children aged 12 and under in the
rear seat properly restrained at all
times. The SRS airbag deploys with
considerable speed and force and can
injure or even kill children, especially if
they are 12 years of age and under and
are not restrained or improperly
restrained. Because children are lighter
and weaker than adults, their risk of
being injured from deployment is
greater.
For that reason, we strongly recom-
mend that ALL children (including those
in child seats and those that have out-
grown child restraint devices) sit in the
REAR seat properly restrained at all
times in a child restraint device or in a
seat belt, whichever is appropriate for
the child's age, height and weight.
Secure ALL types of child restraint
devices (including forward facing child
seats) in the REAR seats at all times.
According to accident statistics, chil-
dren are safer when properly restrained
in the rear seating positions than in the
front seating positions.
For instructions and precautions con-
cerning the child restraint system, refer
to “Child restraint systems”. (  P. 137)

931-7. Safety information
1
Before driving WARNING■ SRS airbag
● NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT
SEAT. DOING SO RISKS SERIOUS INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD TOO CLOSE TO THE SRS AIRBAG.
● Never allow a child to stand up, or to kneel on the front passe nger’s seat,
or never hold a child on your lap or in your arms. The SRS airb ag deploys
with considerable force and can injure or even kill the child.
● When the SRS airbag deploys, some smoke will be released. This smoke
could cause breathing problems for people with a history of asthma or
other breathing trouble. If you or your passengers have breathi ng prob-
lems after SRS airbag deploys, get fresh air promptly.
● A deploying SRS airbag releases hot gas. Occupants could get bu rned if
they come into direct contact with the hot gas.

941-7. Safety information
SRS airbag system components
Front sub sensor (right-hand
side)
SRS warning light
Frontal airbag module
(driver's side) (two-stage)
Front passenger’s frontal air-
bag ON and OFF indicator
(center of instrument panel)
Frontal airbag module (front
passenger’s side) (two-
stage)
Front passenger’s occupant
detection control module
Door impact sensor (right-
hand side)
Curtain shield airbag mod-
ule (right-hand side)
Airbag wiring
Side airbag module (front
passenger’s side) Side airbag sensor (center
pillar right-hand side)
Curtain shield airbag sensor
(rear wheel house right-hand
side)
Seat belt pretensioner (front
passenger’s side)
Satellite safing sensor
(under the center of the rear
seats)
Front passenger’s occupant
classification system sensor
Seat belt buckle switch (front
passenger’s side)
Seat belt pretensioner
(driver’s side)
Curtain shield airbag sensor
(rear wheel house left-hand
side)

951-7. Safety information
1
Before driving
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag sys -
tem controls airbag deployment power for the driver and front p as-
senger. The front passenger's air bag system consists of the fro nt
passenger occupant detec tion control module etc.
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag control module. T he
airbag control module cons ists of an airbag sensor.
In certain types of severe front or side impacts, the SRS airba g sys-
tem triggers the airbag inflators. A chemical reaction in the inflators
quickly fills the airbags with non- toxic gas to help restrain t he motion
of the occupants. Side airbag sensor (center
pillar left-hand side)
Side airbag module (driver’s
side)
Door impact sensor (left-
hand side) Airbag control module
(including impact sensors
and rollover sensors)
Front sub sensor (left-hand
side)
Curtain shield airbag mod-
ule (left-hand side)
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruisi ng etc., may be sustained from S RS air-
bags, due to the extremely high speed deployment (inflation) by hot
gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover an d inflator)
as well as the front seats, parts of the front and rear pillars , and roof side
rails, may be hot for several minutes. The airbag itself may al so be hot.
● The windshield may crack.

961-7. Safety information
Toyota advanced frontal airbag system
Your vehicle is equipped with a Toyota advanced frontal airbag sys-
tem that complies with the new advanced frontal airbag requirem ents
in the amended Federal Motor Vehicle Safety Standard (FMVSS) No .
208.
The Toyota advanced frontal airbag system automatically determi nes
the deployment force of the driv er’s SRS frontal airbag at the time of
deployment as well as whether or not to activate the front pass en-
ger’s SRS frontal airbag and, if activated, the deployment forc e of the
SRS frontal airbag at the time of deployment.
Your vehicle has warning labels on the driver’s and front passe nger’s
sun visors beginning with the phrase “EVEN WITH ADVANCED AIR
BAGS” and a tag attached to the glove box lid beginning with th e
phrase “Even with Advanced Air Bags”. Make sure that you carefu lly
read the instructions on the warning labels and tag.
Always wear your seat belt. The Toyota advanced frontal airbag sys-
tem is a supplemental restraint system and must be used in comb ina-
tion with a seat belt. All occupa nts should wear a seat belt or be
seated in an appropriate c hild restraint system.
The driver’s SRS frontal airbag is stowed in the center portion of the
steering wheel. The front passenger’s SRS frontal airbag is sto wed
near the top of the dashboard under an “SRS AIRBAG” mark.
In a moderate to severe frontal collision, the following compon ents
deploy.
● SRS frontal airbag for driver
● SRS frontal airbag for front passenger
These components suppl ement the seat belts b y reducing the impa ct
to the occupant’s head and chest.
