2019 TOYOTA 86 Owners Manual

137 11-7. Safety information
Before driving
Child restraint systems
Points to remember
Studies have shown that installin g a child restraint on a rear seat is
much safer than installing one to the front passenger seat.
● Choose a child restraint system that suits your vehicle and is
appropriate to the age and size of the child.
● For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(  P. 141)
Types of child restraints
Child restraint systems are classified into the following 3 typ es
according to the age an d size of the child.
Rear facing  Infant seat/convertible seatA child restraint system for a sma ll child or baby must itself be prop-
erly restrained on the seat with the LATCH anchors or the lap p ortion
of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the
use of child restraint systems.

1381-7. Safety information
Forward facing  Convertible seat
Booster seat
■ Selecting an appropriate child restraint system
● Use a child restraint system appropriate for the child until th e child
becomes large enough to properly w ear the vehicle’s seat belt.
● If a child is too large for a child restraint system, sit the c hild on a rear
seat and use the vehicle's seat belt. (  P. 60)

1391-7. Safety information
1
Before driving WARNING■ Child restraint precautions
● For effective protection in automobile accidents and sudden sto ps, a child
must be properly restrained, using a seat belt or child restrai nt system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle' s interior.
● Toyota strongly urges the use of a proper child restraint syste m that con-
forms to the size of the child, installed on the rear seat. Acc ording to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated. In the event
of an accident, the force of the rapid inflation of the front p assenger airbag
can cause death or serious injury to the child if the rear-faci ng child
restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint syst em that
requires a top tether strap should not be used in the front pas senger seat
since there is no top tether strap anchor for the front passeng er seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag could inflate with co nsiderable
speed and force. Otherwise, the child may be killed or seriousl y injured.

1401-7. Safety information
WARNING■ Child restraint precautions
● Do not allow the child to lean his/her head or any part of his/ her body
against the door or the area of the seat, front and rear pillar s or roof side
rails from which the SRS side airbags or SRS curtain shield air bags deploy
even if the child is seated in the child restraint system. It i s dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injur y to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat b elt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors sh ould be used
to cut the belt.
■ When the child restrai nt system is not in use
● Keep the child restraint system properly secured on the seat ev en if it is
not in use. Do not store the restraint unsecured in the passeng er compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or acci dent.

141 11-7. Safety information
Before driving

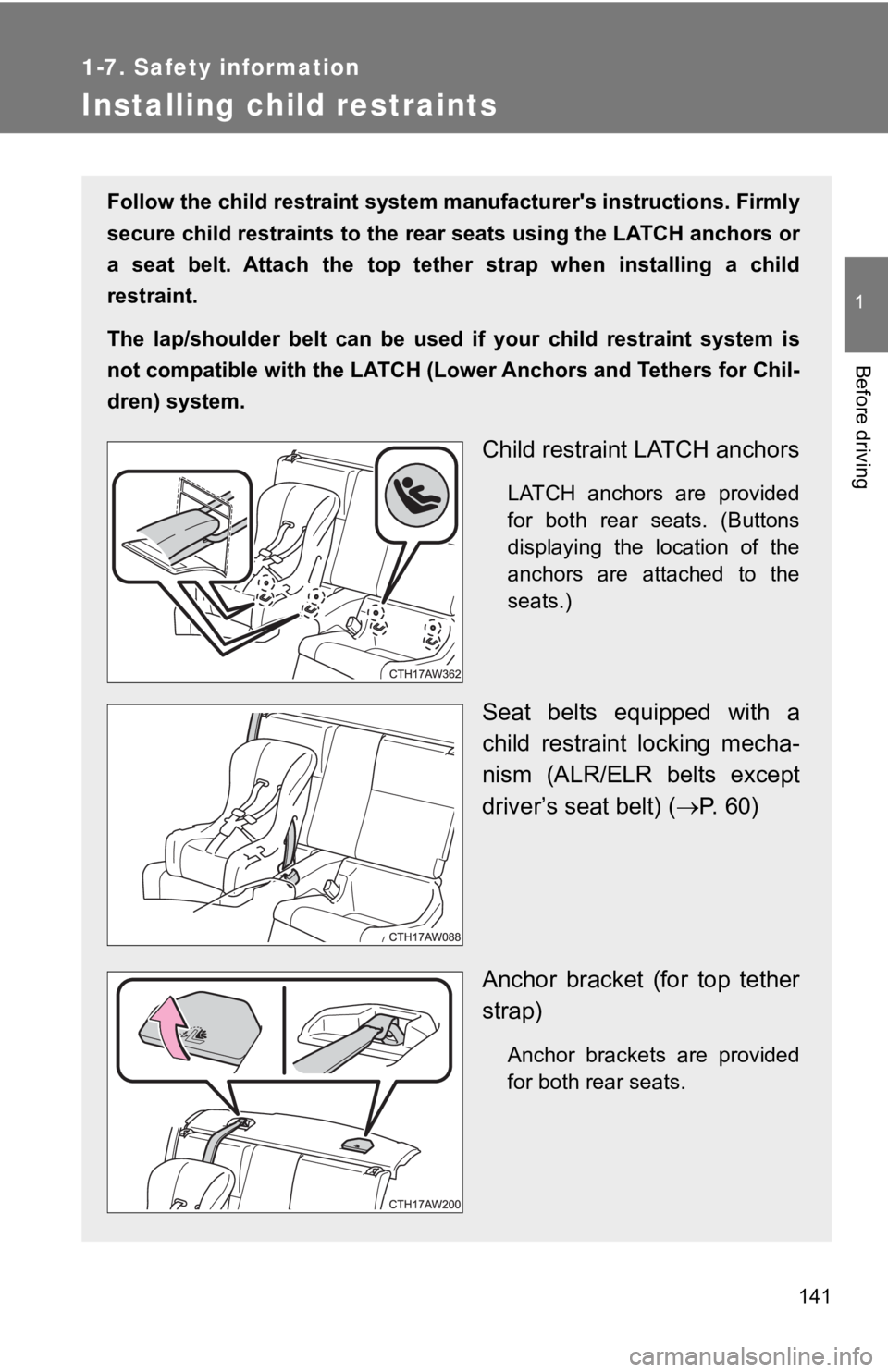

Installing child restraints Follow the child restraint system m anufacturer's instructions. Firmly
secure child restraints to the r ear seats using the LATCH ancho rs or
a seat belt. Attach the top tether strap when installing a chil d
restraint.
The lap/shoulder belt can be used if your child restraint syste m is
not compatible with the LATCH (Lower Anchors and Tethers for Ch il-
dren) system.
Child restraint LATCH anchors LATCH anchors are provided
for both rear seats. (Buttons
displaying the location of the
anchors are attached to the
seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (  P. 6 0 )
Anchor bracket (for top tether
strap)
Anchor brackets are provided
for both rear seats.

1421-7. Safety information
Installation with LATCH system
Ty p e A
Pull the cover.
Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.Canada only STEP 1
STEP 2
STEP 3

1431-7. Safety information
1
Before driving Ty p e B
Pull the cover.
Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchors.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.Canada only STEP 1
STEP 2
STEP 3

1441-7. Safety information
Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear facing  Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.STEP 1
STEP 2
STEP 3
