2019 TOYOTA 86 Owners Manual

3774-3. Do-it-yourself maintenance
4
Maintenance and care Pull out the lamp and turn the
lens counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.STEP 4
STEP 5
STEP 6

3784-3. Do-it-yourself maintenance
■ Back-up lights
Remove the clips. To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, rever se the steps listed.STEP 1
STEP 2
STEP 3
STEP 4

3794-3. Do-it-yourself maintenance
4
Maintenance and care ■ License pl ate lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
■ Replacing the following bulbs
If any of the lights listed belo w has burnt out, have it replac ed by
your Toyota dealer.
● Headlights
● Parking lights/dayti me running lights
● Front turn signal lights
● Front fog lights (if equipped)
● Stop/tail lights
● Stop lights
● Rear turn signal lights
● Rear side ma rker lights
● High mounted stoplight STEP 1
STEP 2
STEP 3

3804-3. Do-it-yourself maintenance
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the light lens does not
indicate a malfunction. Contact your Toyota dealer for more inf ormation in
the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the light.
■ LED light bulbs
The headlights, parking lights/daytime running lights, front tu rn signal lights,
front fog lights (if equipped), stop/tail lights, stop lights, rear turn signal lights,
rear side marker lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to
have the light replaced.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to pre vent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
■ Removing and installing the luggage trim cover clip
Removing
Installing

3814-3. Do-it-yourself maintenance
4
Maintenance and care WARNING■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immedia tely after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or c rack.
● Fully install the light bulbs and any parts used to secure them . Failure to
do so may result in heat damage, fire, or water entering a light unit. This
may damage the light or cause condensation to build up on the i nner side
of the lens.
■ When changing the back-up lights
Stop the engine and wait until the exhaust pipes have cooled do wn suffi-
ciently. The lights are located near the exhaust pipe and touching a hot
exhaust pipe can cause burns.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

3824-3. Do-it-yourself maintenance

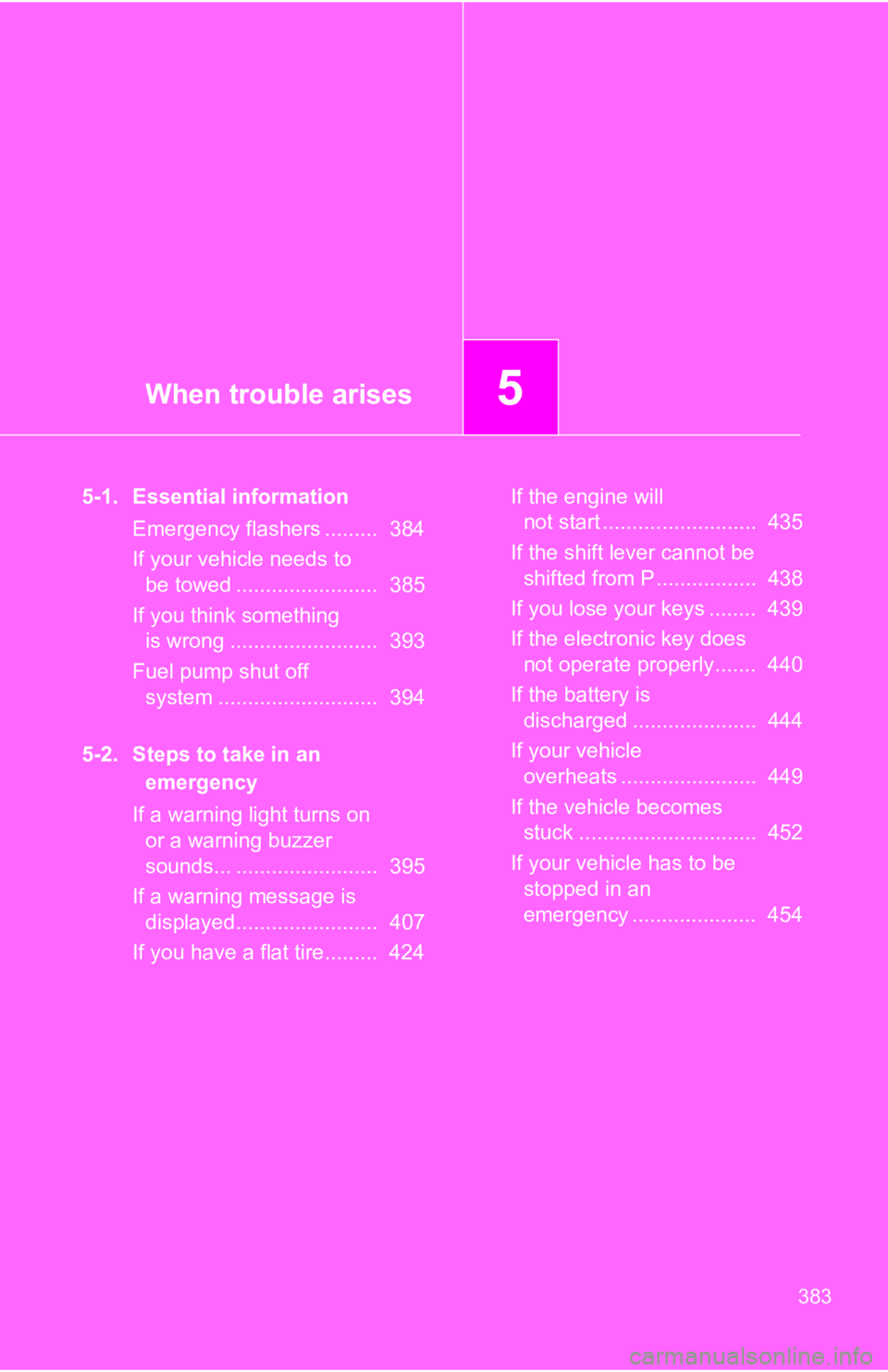

When trouble arises
5
3835-1. Essential information
Emergency flashers ......... 384
If your vehicle needs to
be towed ........................ 385
If you think something
is wrong ......................... 393
Fuel pump shut off
system ........................... 394
5-2. Steps to take in an
emergency
If a warning light turns on
or a warning buzzer
sounds... ........................ 395
If a warning message is
displayed........................ 407
If you have a flat tire......... 424 If the engine will
not start .......................... 435
If the shift lever cannot be
shifted from P................. 438
If you lose your keys ........ 439
If the electronic key does
not operate properly....... 440
If the battery is
discharged ..................... 444
If your vehicle
overheats ....................... 449
If the vehicle becomes
stuck .............................. 452
If your vehicle has to be
stopped in an
emergency ..................... 454

3845-1. Essential information
Emergency flashers
■ Emergency flashers
If the emergency flashers are used for a long time while the en gine is not
operating, the battery may discharge.The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch. All the turn signal lights will
flash. To turn them off, press
the switch once again.
