2019 TOYOTA 86 Owners Manual

2652-5. Driving information
2
When driving
Trailer towing Toyota does not recommend towi ng a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier f or a wheelchair, scooter, bicyc le, etc.
Your Toyota is not designed for trailer towing or for the use o f tow
hitch mounted carriers.

2662-5. Driving information
Dinghy towing
NOTICE■ To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

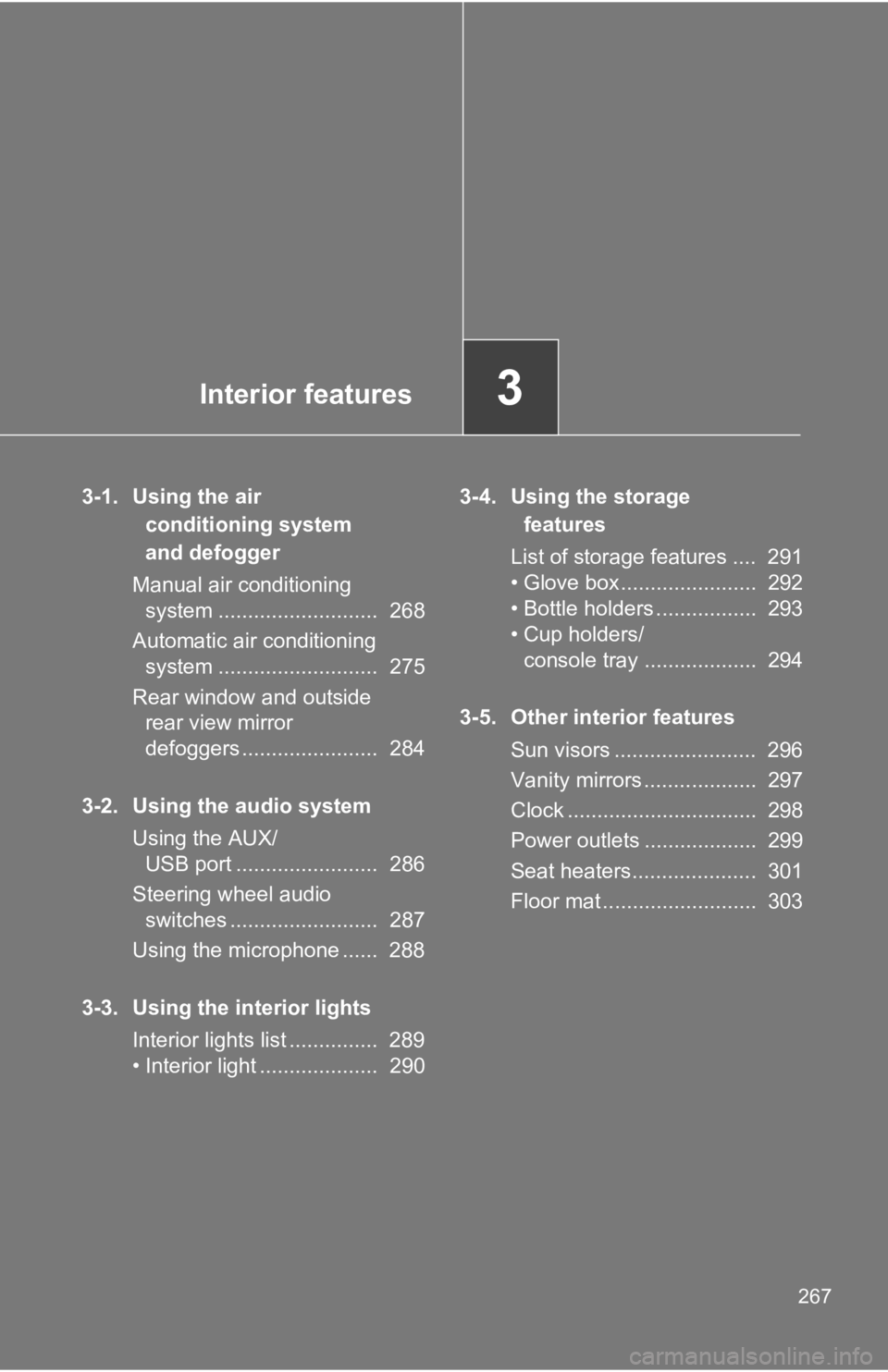

Interior features
3
2673-1. Using the air
conditioning system
and defogger
Manual air conditioning
system ........................... 268
Automatic air conditioning
system ........................... 275
Rear window and outside
rear view mirror
defoggers ....................... 284
3-2. Using the audio system
Using the AUX/
USB port ........................ 286
Steering wheel audio
switches ......................... 287
Using the microphone ...... 288
3-3. Using the interior lights
Interior lights list ............... 289
• Interior light .................... 290 3-4. Using the storage
features
List of storage features .... 291
• Glove box....................... 292
• Bottle holders ................. 293
• Cup holders/
console tray ................... 294
3-5. Other interior features
Sun visors ........................ 296
Vanity mirrors ................... 297
Clock ................................ 298
Power outlets ................... 299
Seat heaters..................... 301
Floor mat .......................... 303

2683-1. Using the air conditioning system and defogger
Manual air conditioning system 
Adjusting the settings
To adjust the fan speed, turn th e fan speed control dial clock-
wise (increase) or counter clockwise (decrease).Turning the dial to “0” turns off the fan.
To adjust the temperature setting, turn the temperature control
dial clockwise (warm) or c ounterclockwise (cool).
is not pressed, the system will blow ambient temperature air
or heated air.
To select the air outlets, set the air outlet selection dial to the
desired position.
The positions between the air outlet selections shown below can
also be selected for more delicate adjustment.
 : If equippedFan speed control dialAir outlet selection dial
Air conditioning on/off button Temperature control dial
Outside air or recirculated air mode
STEP 1
STEP 2
STEP 3

2693-1. Using the air condit ioning system and defogger
3
Interior features Defogging the windshield
Set the air outlet selection dial to
position. The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.
Perform the following operations accordingly:
● To adjust the fan speed, turn the fan speed control dial.
● To adjust the temperature setting, turn the temperature con-
trol dial.
● If the dehumidification func tion is not operating, press
to operate the dehumi dification function.
To defog the windshield and the side windows early, turn the
air flow and temperature up.STEP 1
STEP 2

2703-1. Using the air condit ioning system and defogger
■ Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
The air intake is automatically
switched to outside air mode. It is
not possible to return to recircu-
lated air mode when the switch is
on.

2713-1. Using the air condit ioning system and defogger
3
Interior features Switching between outside air and reci rculated air modes
Press . The mode switches between outside air mode (introduces air from out-
side the vehicle) (indicator off) and recirculated air mode (re cycles air
inside the vehicle) (indicator on) each time the button is pres sed.
Adjusting the position of the air outlets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets
Direct air flow to the left or right,
up or down. When defrosting the side win-
dows, face the right and left side
outlets toward them.

2723-1. Using the air condit ioning system and defogger
Opening and closing the air outlets
Center outlets
Open the air outlet.
Close the air outlet.
Right and left side outlets
Open the vent.
Close the vent.
